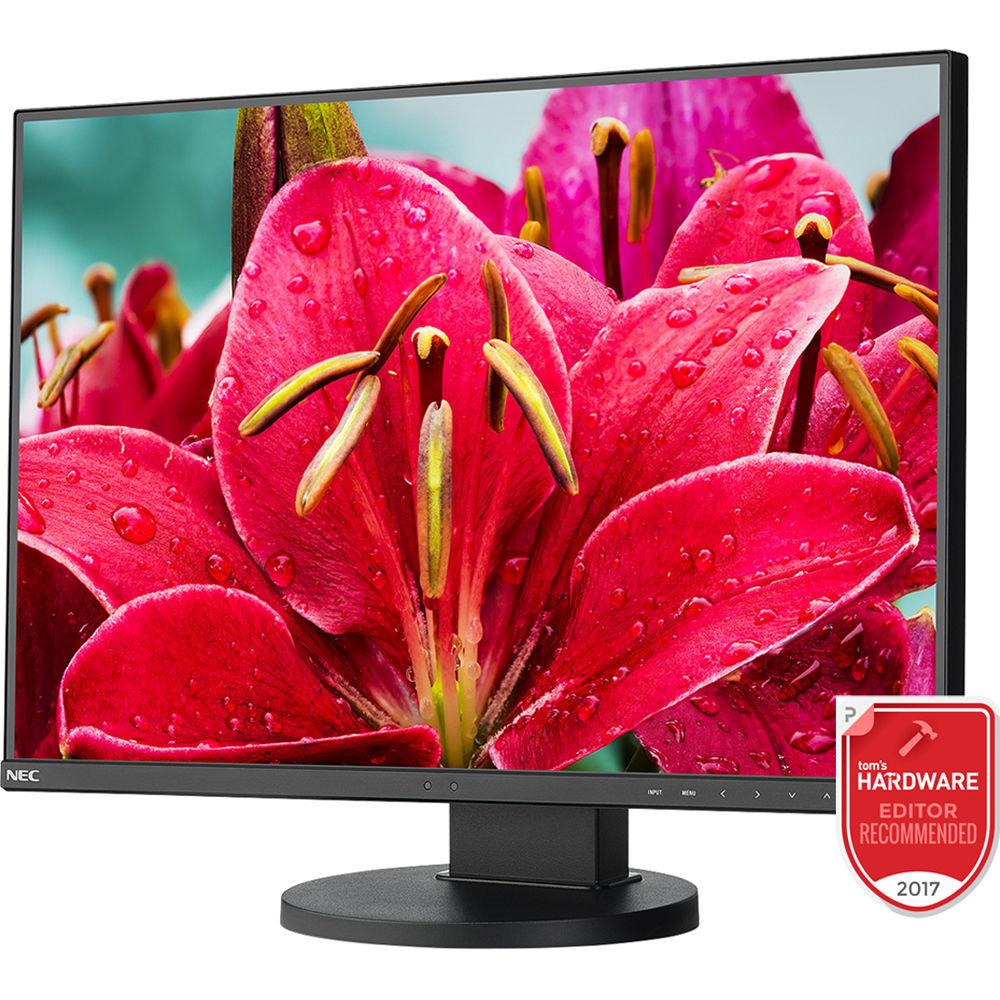

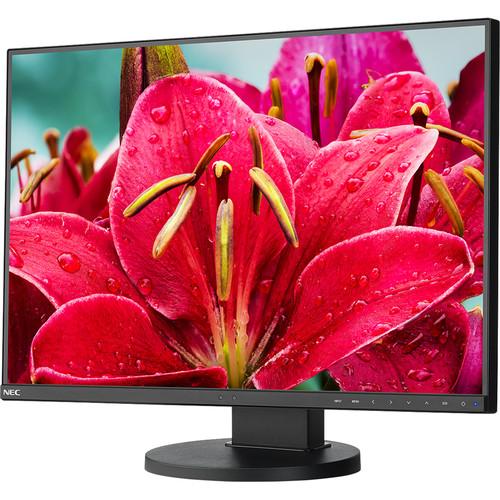

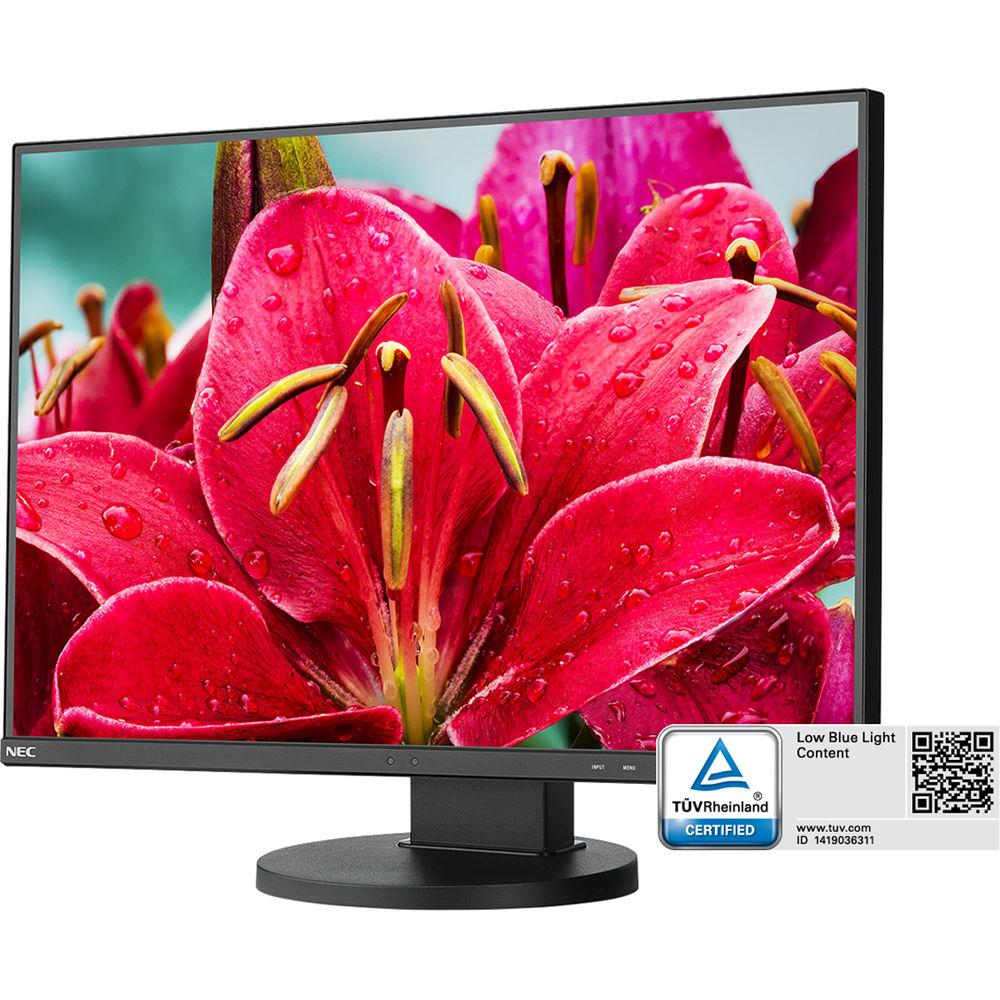

User Manual for NEC EA245WMI-BK 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA245WMI-BK 24" 16:10 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA245WMI-BK 24" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With 178° horizontal and vertical viewing angles, the EA245WMI-BK 24" 16:10 IPS Monitor from NEC it is easy to see the screen from virtually any angle, with little to no distortion. In addition to enhanced viewing angles the display itself can be tilted, swiveled, and the height can be adjusted to provide enhanced viewing comfort. Once positioned, the screen settings can be adjusted using the intuitive touch-sensitive OSD controls, while the human and ambient light sensors automatically detect lighting conditions and adjust the display characteristics accordingly. Accompanying the various display configuration settings, this NEC monitor also comes equipped with an ECO mode, allowing users to manually adjust display brightness.

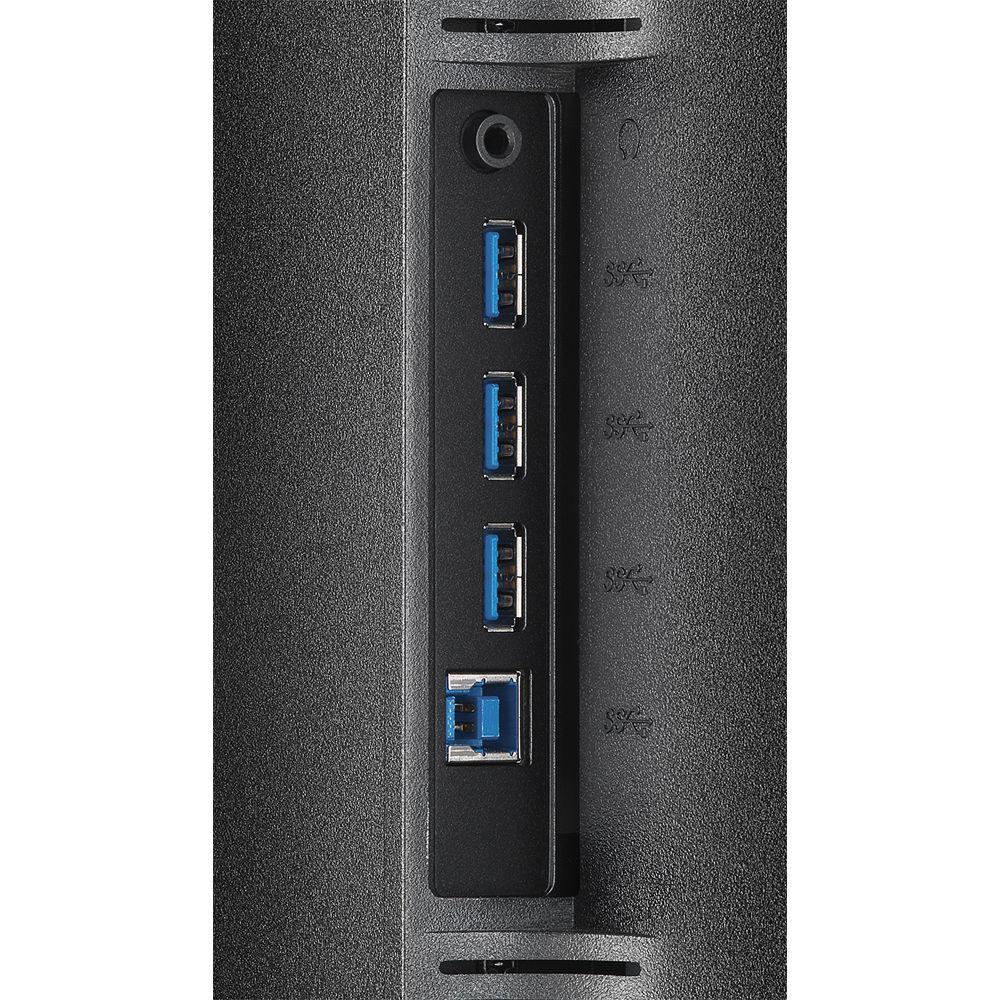

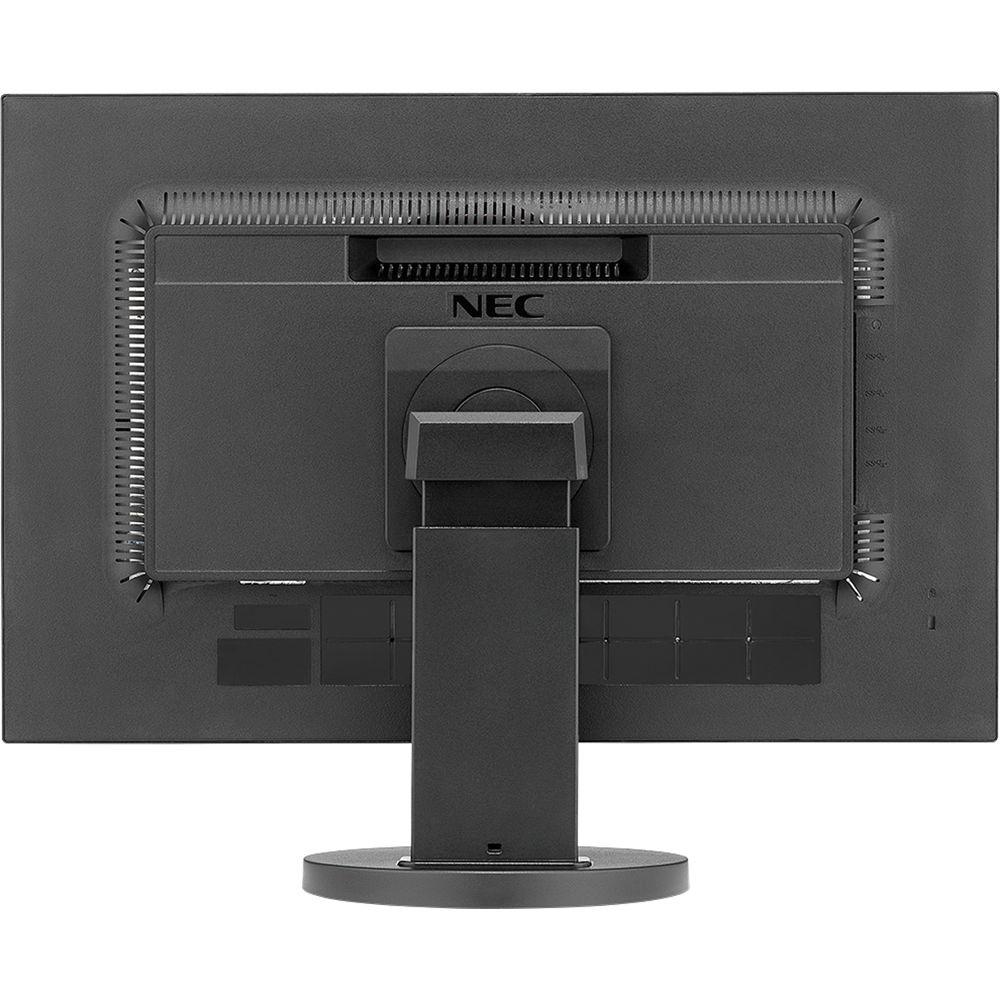

The EA245WMI-BK features a Full HD 1920 x 1200 resolution along with a 1000:1 contrast ratio, a 6 ms response time, and a brightness rating of 300 cd/m² for a crisp, clear picture with reduced ghosting. On the back of the monitor are DisplayPort, HDMI, DVI-D, and VGA connectors to plug this monitor into a variety of computer configurations. In addition to audio/video connectors this NEC monitor comes equipped with a 3-port USB hub designed to support USB compatible peripherals such as keyboards, mice, and much more. - Ultra narrow 0.9mm bezels on three sides of the display to reduce distraction especially in multi-monitor configurations.
- LED backlight technology provides for low power consumption and less hazardous materials

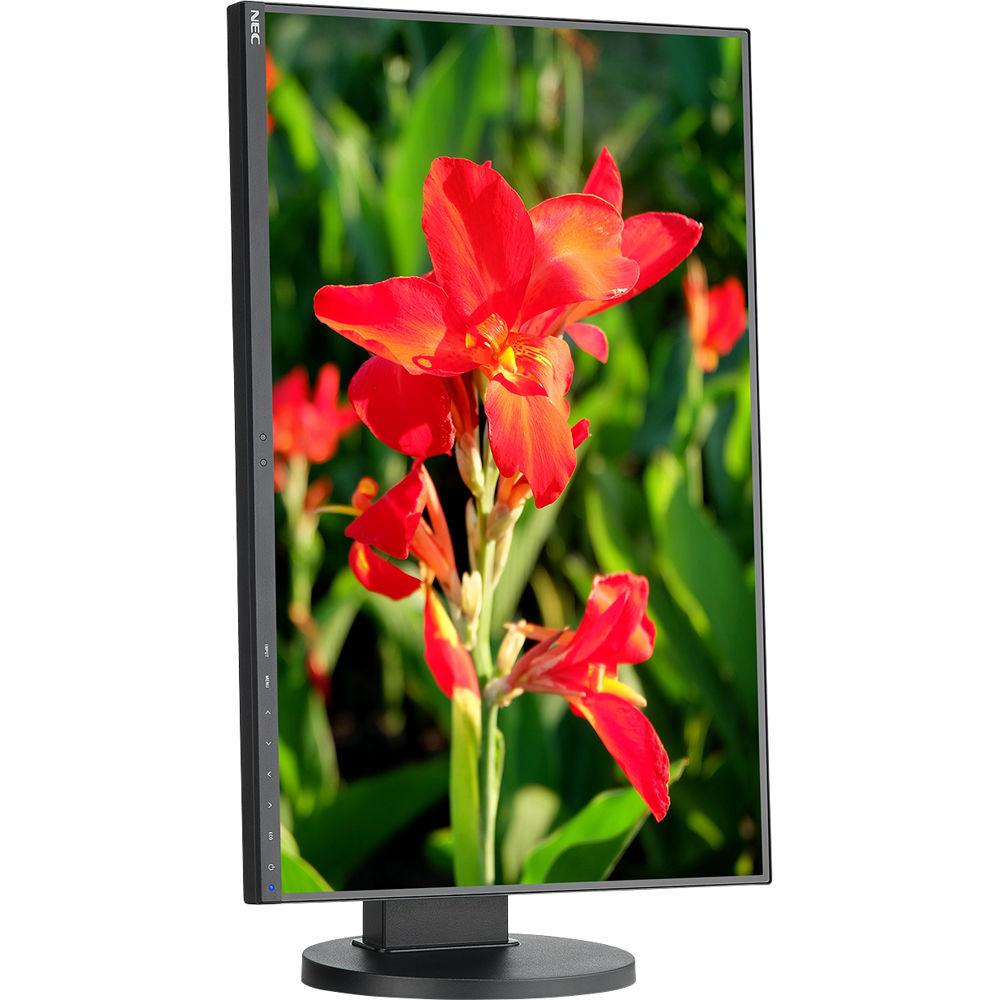

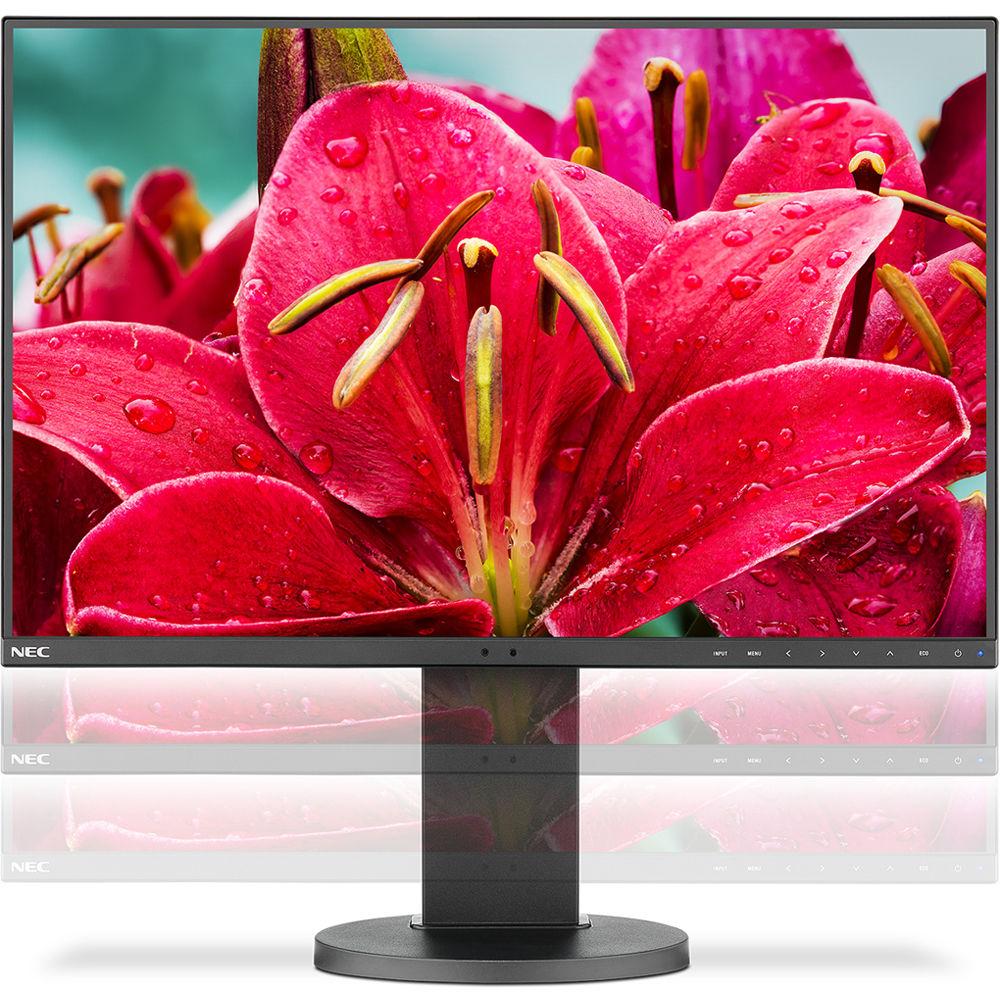

- Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort 1.2 in / out, HDMI, DVI-D, and VGA inputs
- Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever

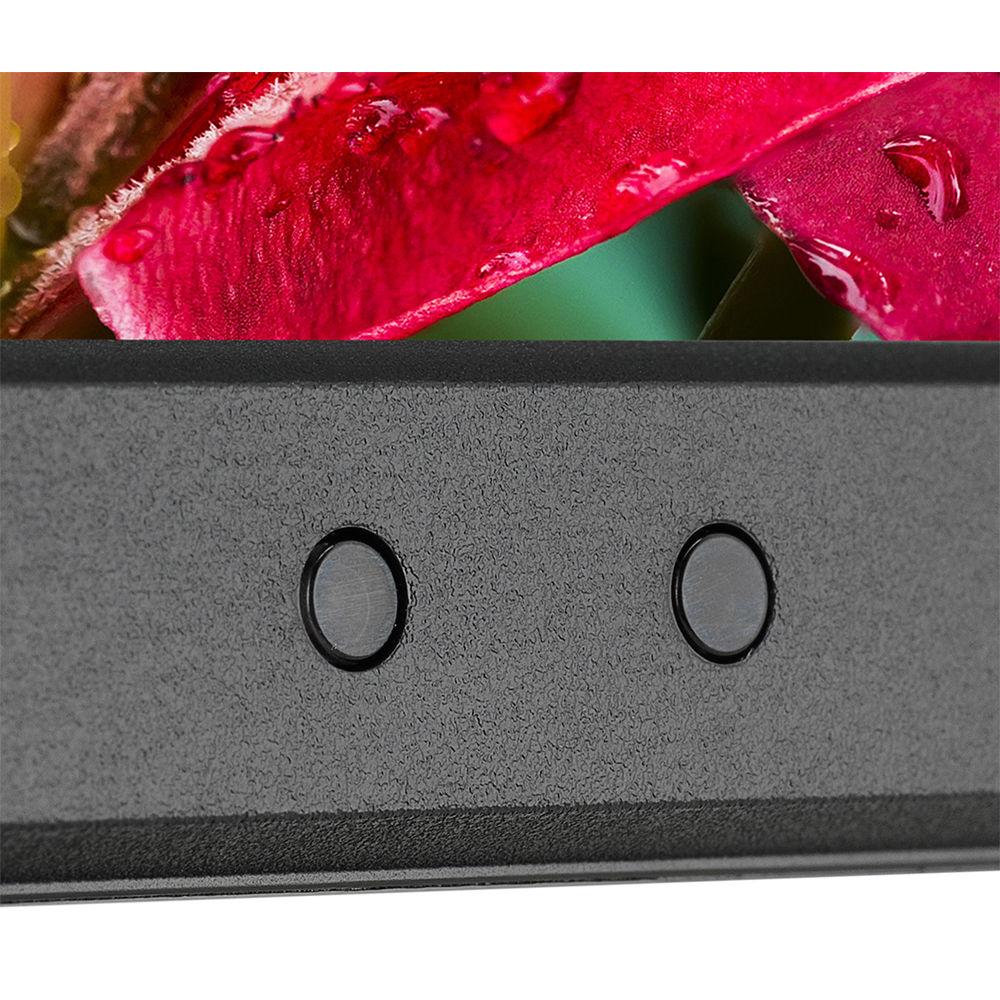

- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- ENERGY STAR 7.0 and TCO 7.0
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit

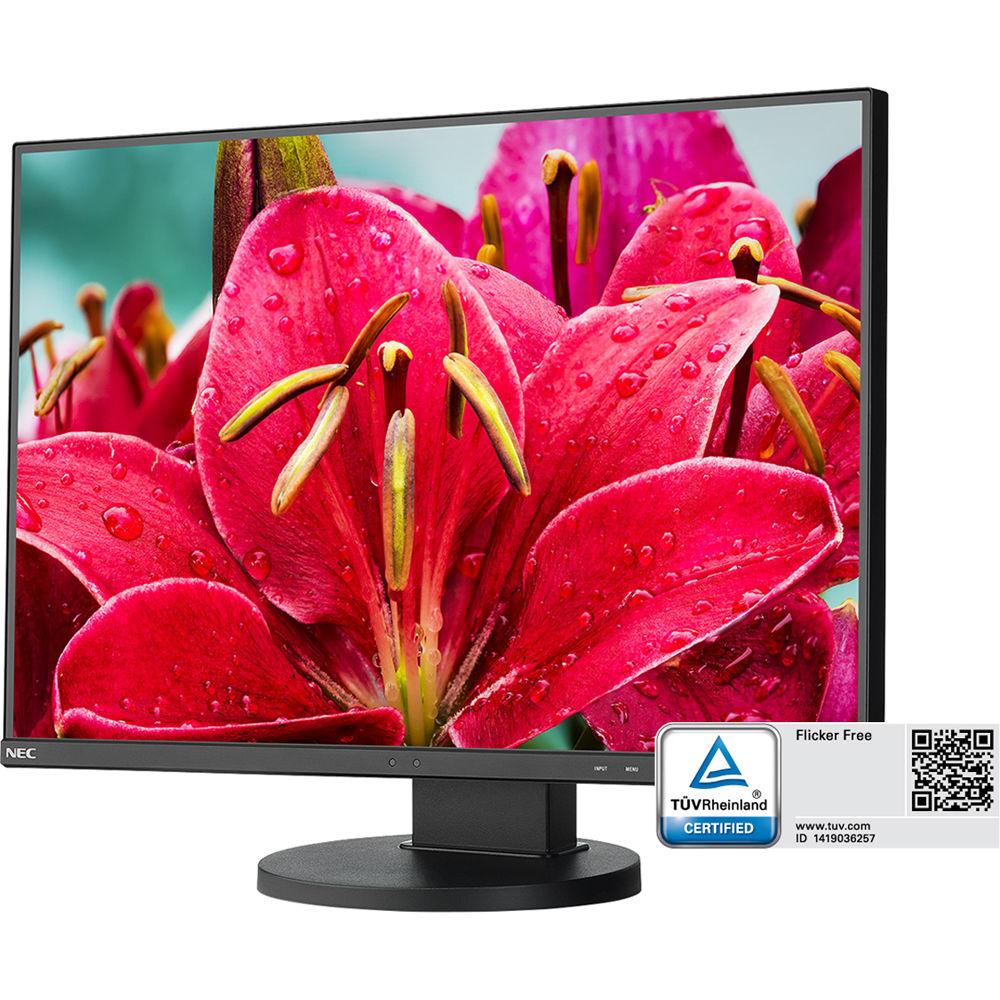

- Built-in low blue light filter technology and flicker-free certified
UPC: 805736062380 In the Box NEC EA245WMI-BK 24" 16:10 IPS Monitor Power Cord DisplayPort Cable USB Cable ControlSync Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA245WMI-BK 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC EA245WMI-BK 24" 16:10 IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC EA245WMI Specs | | | Size | 24" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 95 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 3 x USB Type-A 2.0
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes | | | | Power Consumption | 0.3 W (Standby)
22 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 3.9" / 9.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.9 x 15.7 x 8.0" / 53.2 x 39.8 x 20.4 mm (With Stand)
20.9 x 13.7 x 1.9" / 53.1 x 34.7 x 4.8 mm (Without Stand) | | Weight | 13.2 lb / 6 kg (With Stand)
9.3 lb / 4.2 kg (Without Stand) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 26.0 x 18.0 x 7.0" |
