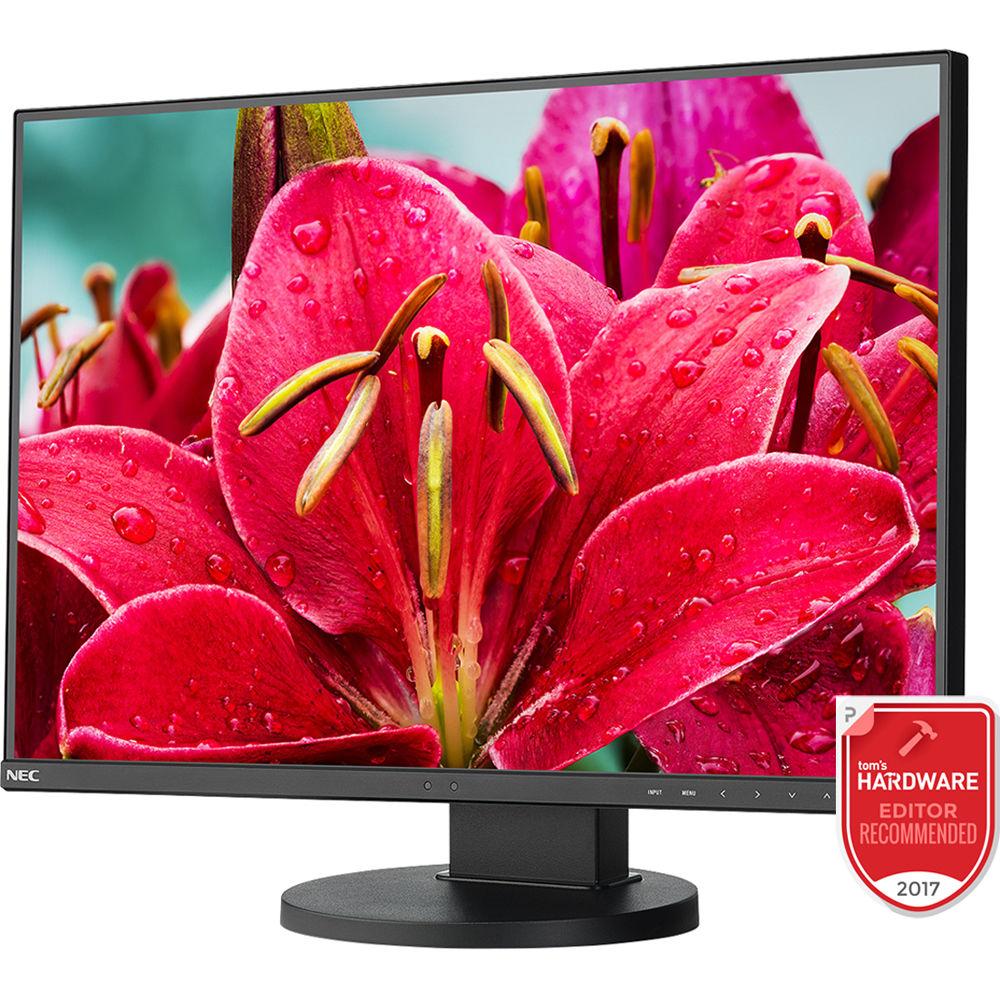

User Manual for NEC EA245WMI-BK-SV 24" 16:10 IPS Monitor with SpectraViewII Click to enlarge the picture
Contents of the user manual for the NEC EA245WMI-BK-SV 24" 16:10 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA245WMI-BK-SV 24" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

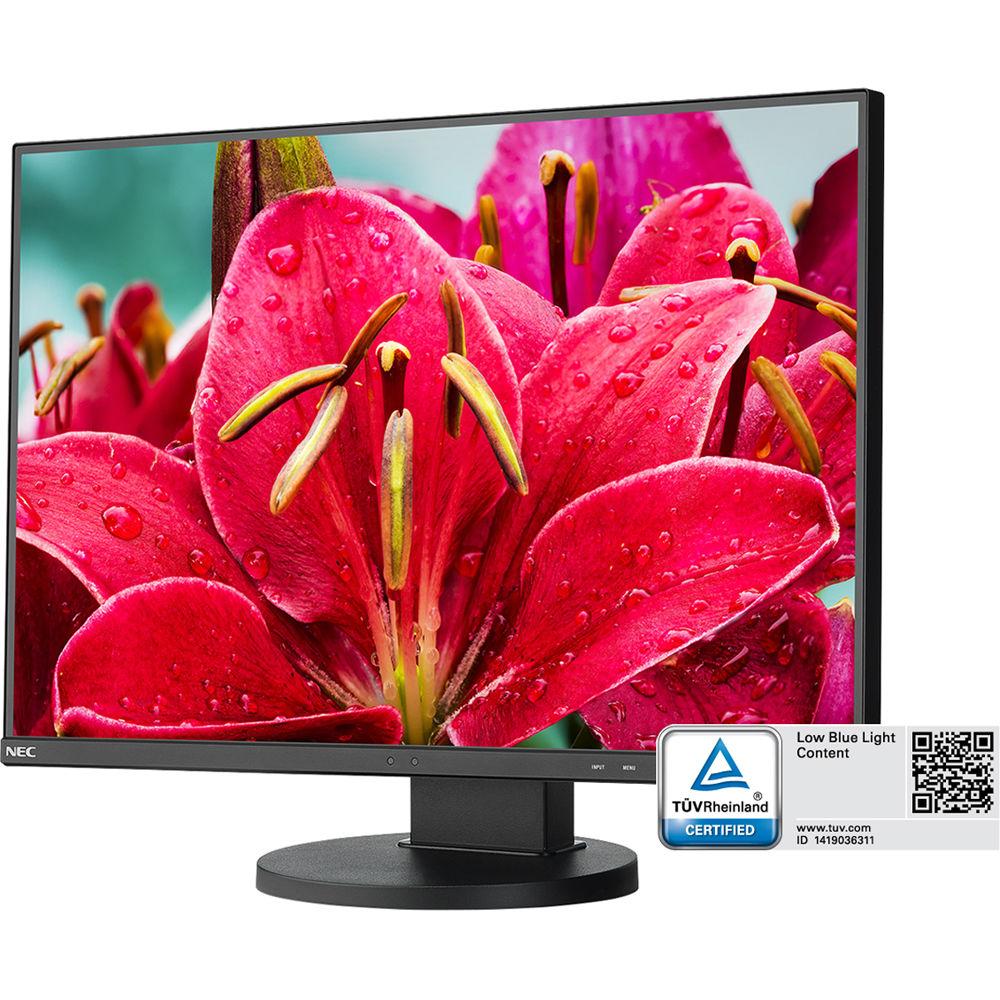

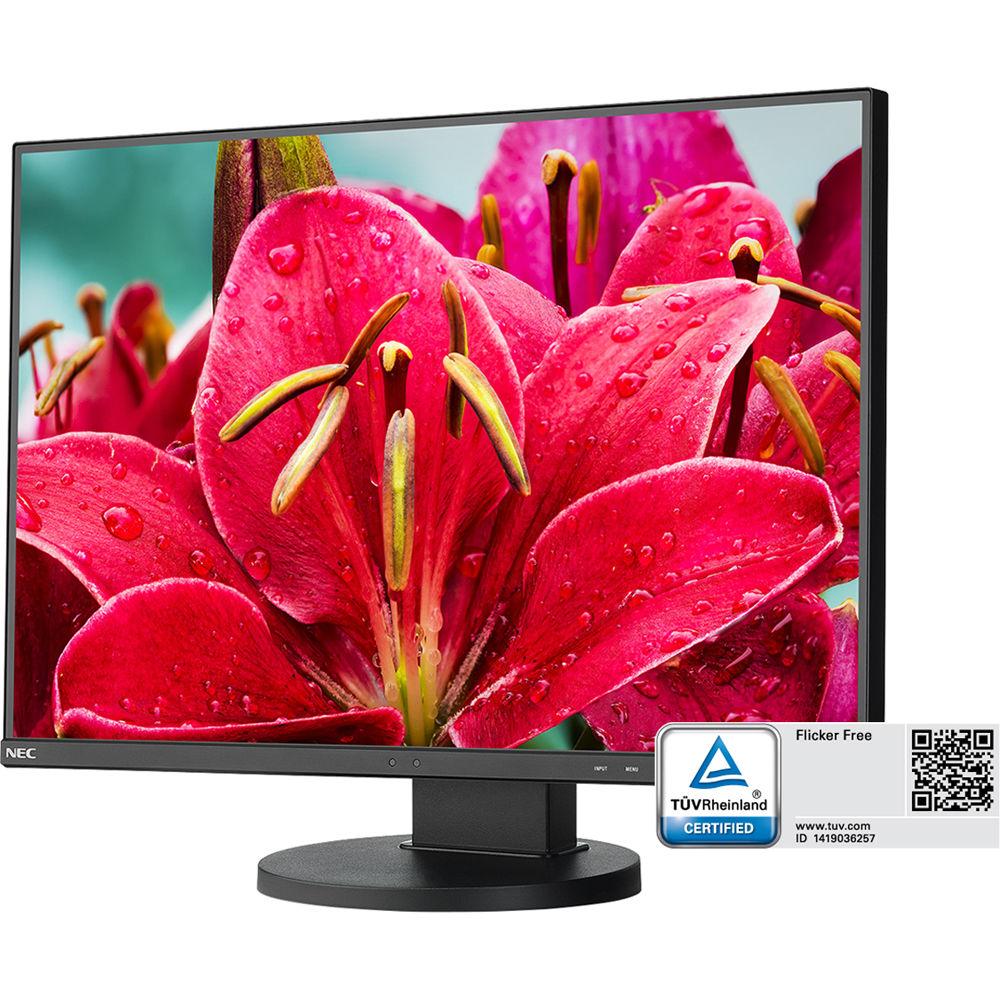

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultra-narrow bezel, the EA245WMI-BK-SV 24" 16:10 IPS Monitor with SpectraVewII from NEC offers an enhanced viewing experience allowing the user to focus on the content with in the display. The display itself features a 1920 x 1200 resolution complete with a 16:10 aspect ratio, a 300 cd/m² brightness rating, 1,000:1 contrast ratio, and a 6 ms response time providing a clear, dynamic picture with reduced ghosting when viewing fast moving videos and movies.
Configuring the EA245WMI is simple as it comes equipped with DisplayPort 1.2, HDMI, DVI-D, and VGA inputs. Once configured, this IPS (In-Plane Switching) display can be viewed from nearly any angle thanks to 178° horizontal and vertical viewing angles. The ergonomic stand allows the monitor to be tilted and swiveled, along with the ability to adjust the height of the display for maximum viewing comfort.

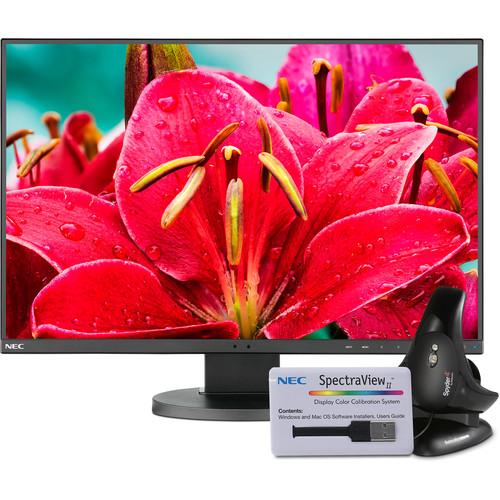

The NEC EA245WMI IPS Monitor comes with the SpectraView EA Kit featuring SpectraViewII software and the Spyder colorimeter. With the included SpectraViewII software it is simple to take precise color measurements of the display using the included colorimeter. Once the measurements are recorded the software then adjusts the display settings according to the recorded measurements to ensure accurate color representation. - Ultra narrow 0.9mm bezels on three sides of the display to reduce distraction especially in multi-monitor configurations.
- LED backlight technology provides for reduced power consumption and less hazardous materials

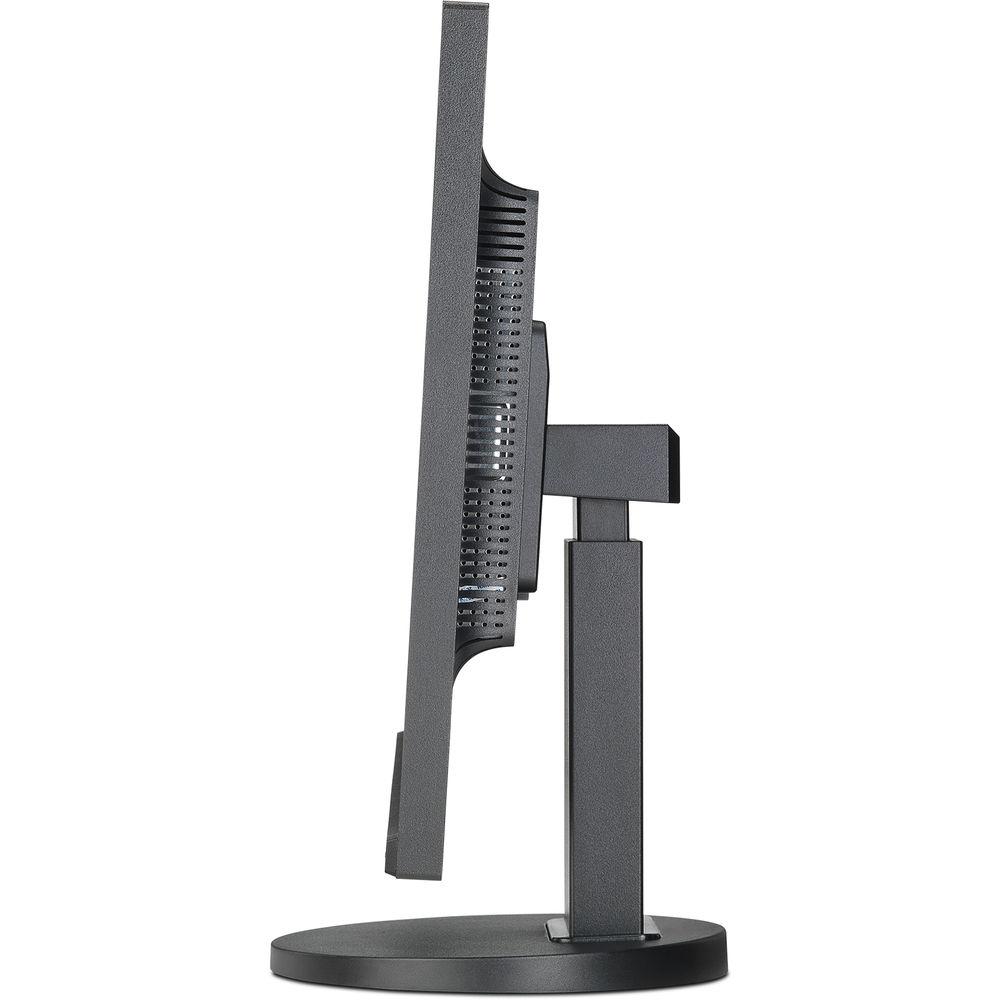

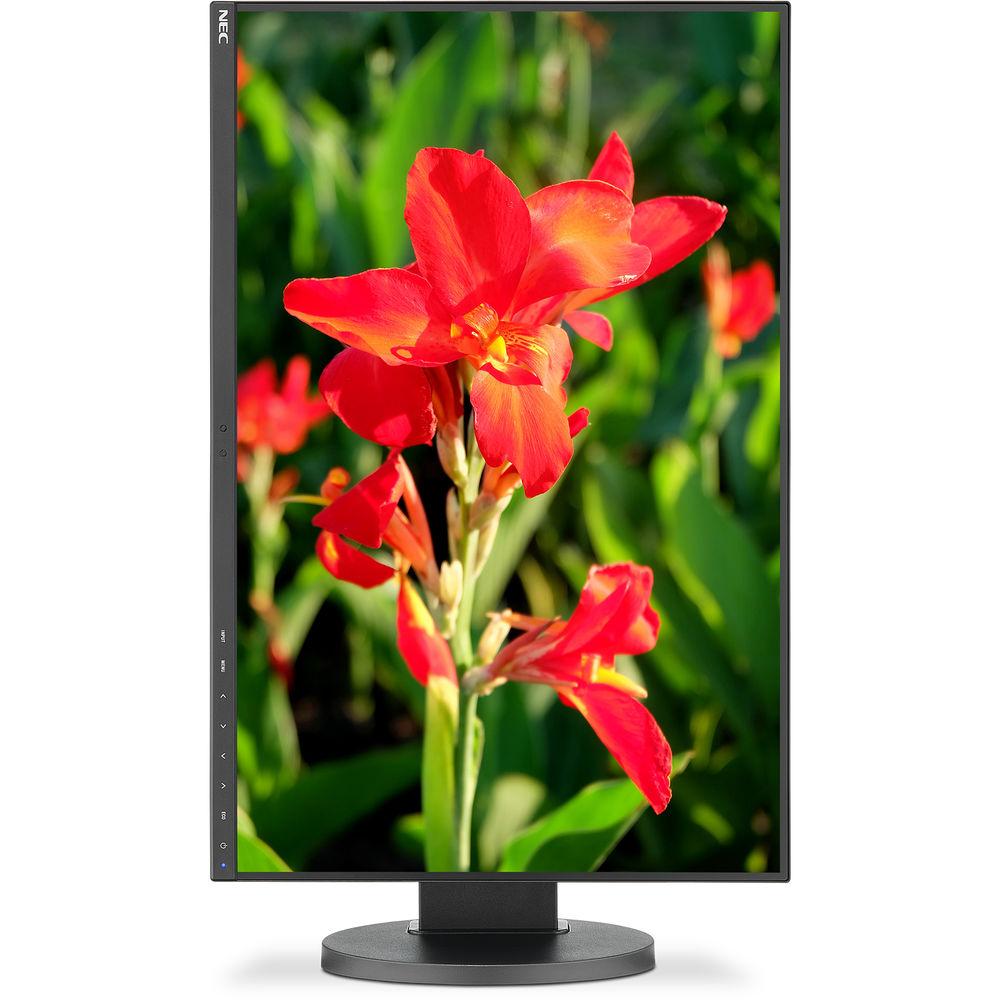

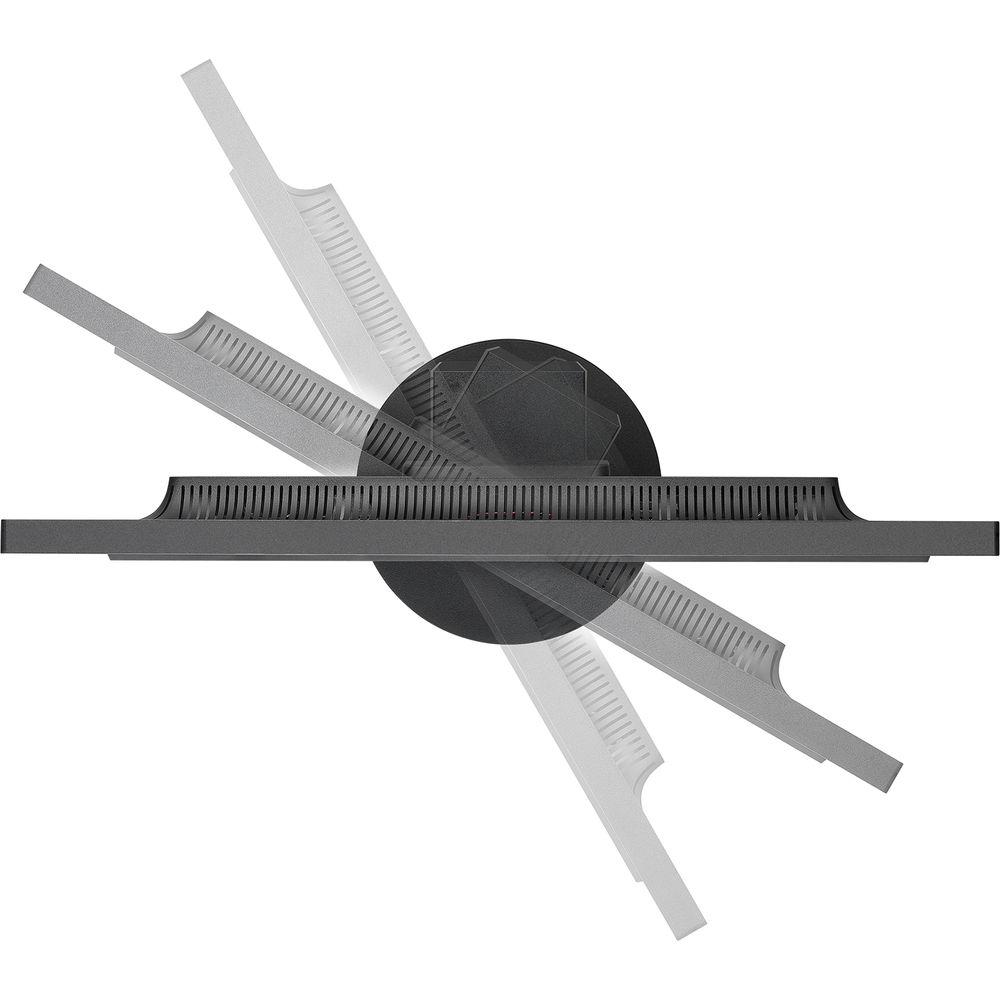

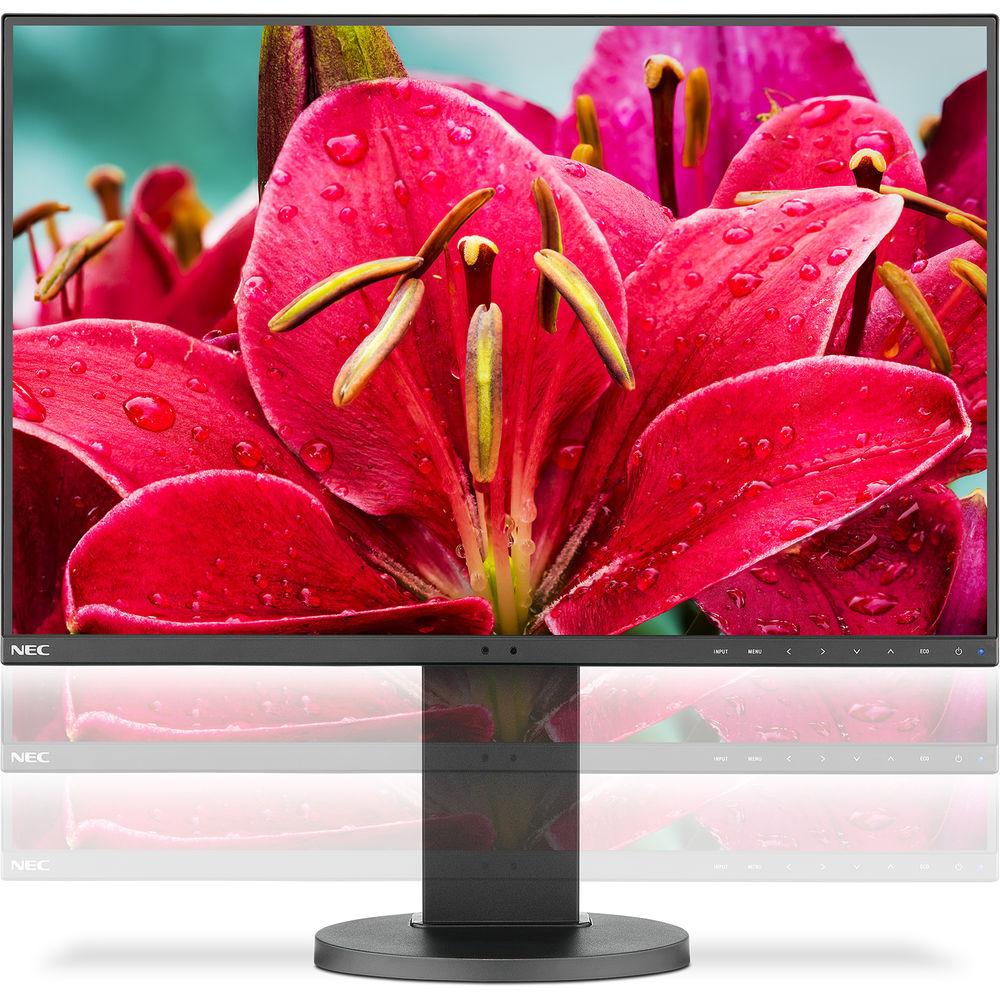

- Height-adjust, pivot, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort 1.2 in / out, HDMI, DVI-D, and VGA
- Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power, and reducing your energy costs
- ENERGY STAR 7.0 and TCO 7.0
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Includes the SpectraView EA Kit (SVII-EA-KIT) with SpectraViewII software and Spyder colorimeter
UPC: 805736063325 In the Box NEC EA245WMI-BK-SV 24" 16:10 IPS Monitor with SpectraViewII Power Cord DisplayPort Cable USB Cable ControlSync Cable Spyder4 Display Calibration System SpectraView II Display Calibration Software Limited 3-Year Warranty User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA245WMI-BK-SV 24" 16:10 IPS Monitor with SpectraViewII in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA245WMi Specs | | | Size | 24" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 95 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | | | Power Consumption | 0.3 W (Standby)
22 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 3.9" / 9.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.9 x 15.7 x 8.0" / 53.2 x 39.8 x 20.4 mm (With Stand)
20.9 x 13.7 x 1.9" / 53.1 x 34.7 x 4.8 mm (Without Stand) | | Weight | 13.2 lb / 6 kg (With Stand)
9.3 lb / 4.2 kg (Without Stand) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 26.0 x 18.0 x 7.3" |
