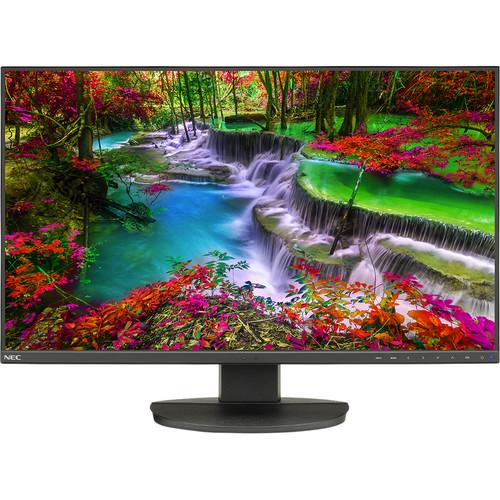

User Manual for NEC EA271F-BK 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA271F-BK 27" 16:9 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA271F-BK 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

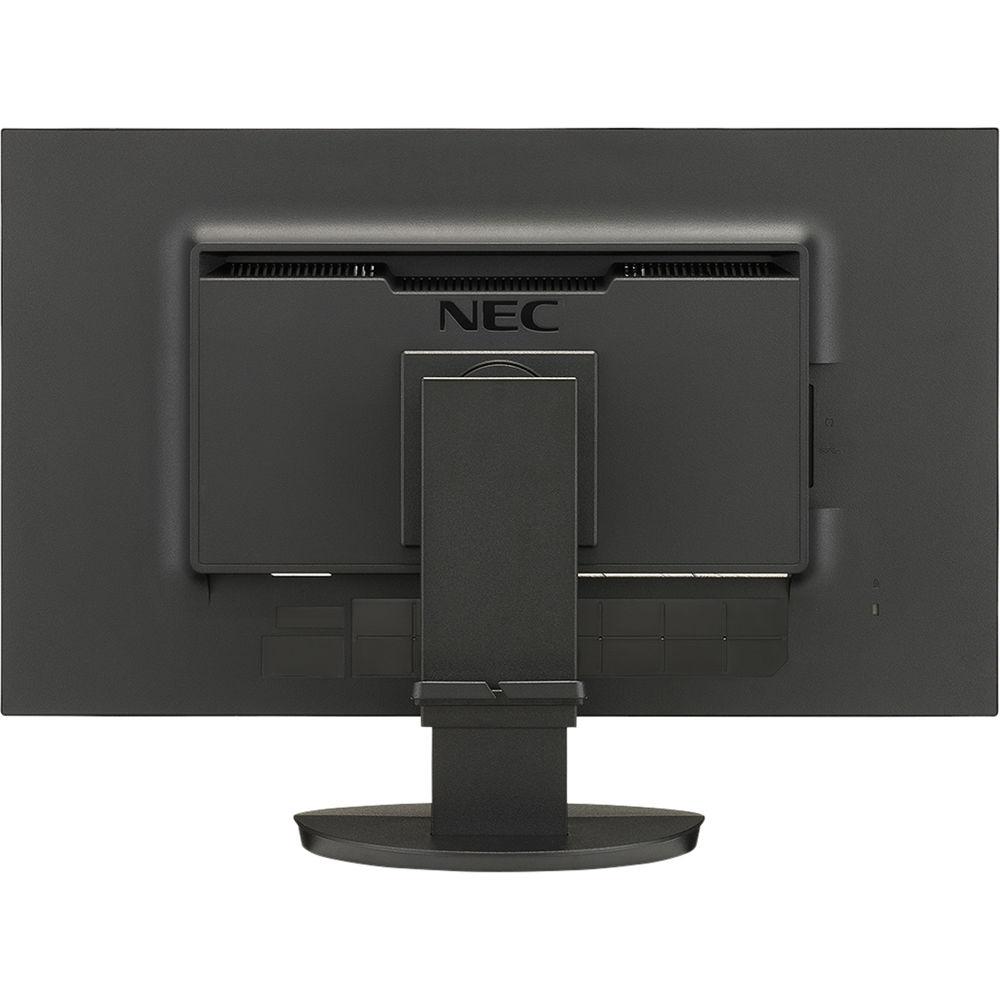

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Tilt, pivot, swivel, and adjust the height of the EA271F-BK 27" 16:9 IPS Monitor from NEC for maximum viewing comfort. This detachable ergonomic stand features a quick-release function so you can detach it from the base and mount it to the wall using a VESA compatible wall mount. Whether you're looking at the display on the stand or the wall, the IPS (In-Plane Switching) panel supports 178° horizontal and vertical viewing angles, which reduces distortion so you can see the screen from nearly any perspective.
Setup is simple as the EA271F-BK comes equipped with DisplayPort, HDMI, DVI-D, VGA, and DVI-D connectors. Once connected, the monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 6 ms response time, and support for up to 16.7 million colors. Furthermore, this NEC display comes equipped with touch-sensitive OSD controls, which allows for easy adjustment display settings, and a built-in ambient light sensor that adjusts the display's brightness to match nearby lighting conditions. - Monitor Features
-
- LED backlight technology reduces power consumption and hazardous materials

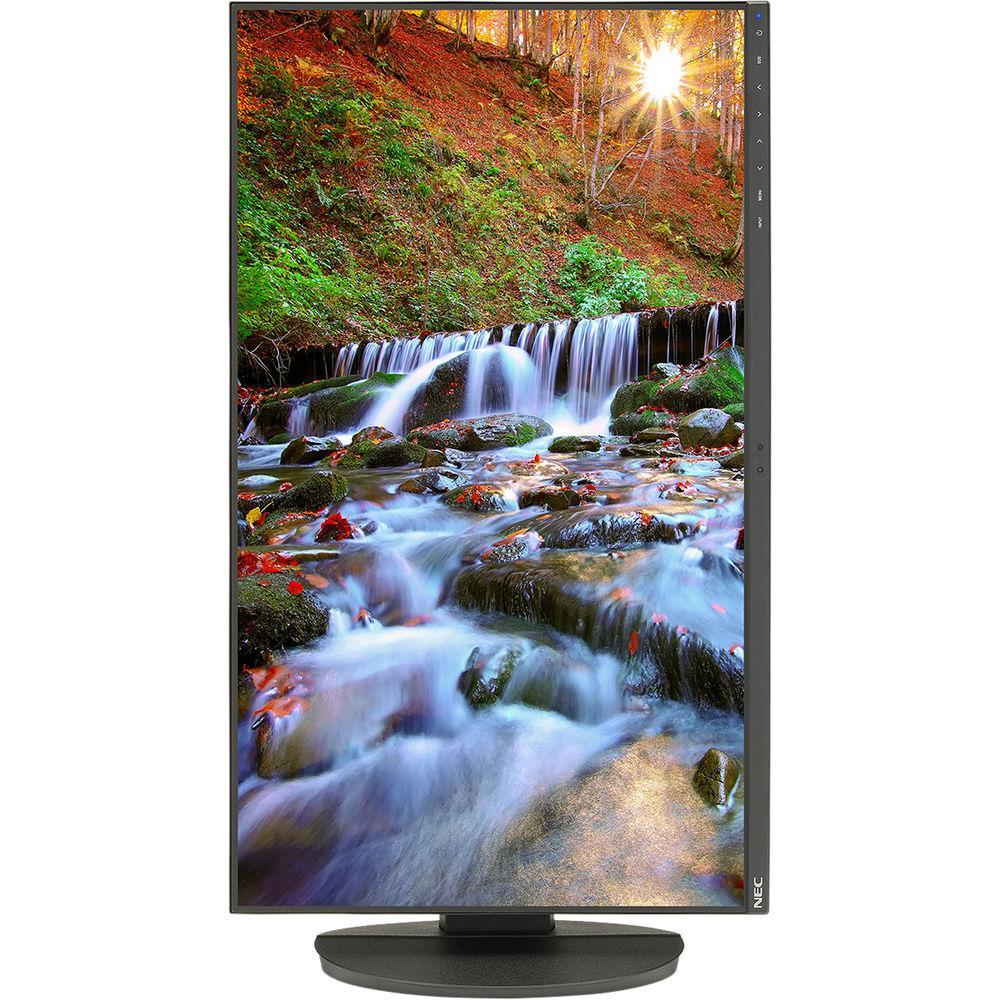

- Fully adjustable quick-release stand, including height-adjust (130mm), pivot, tilt, and swivel capabilities, adds flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort, HDMI, DVI-D, and VGA inputs

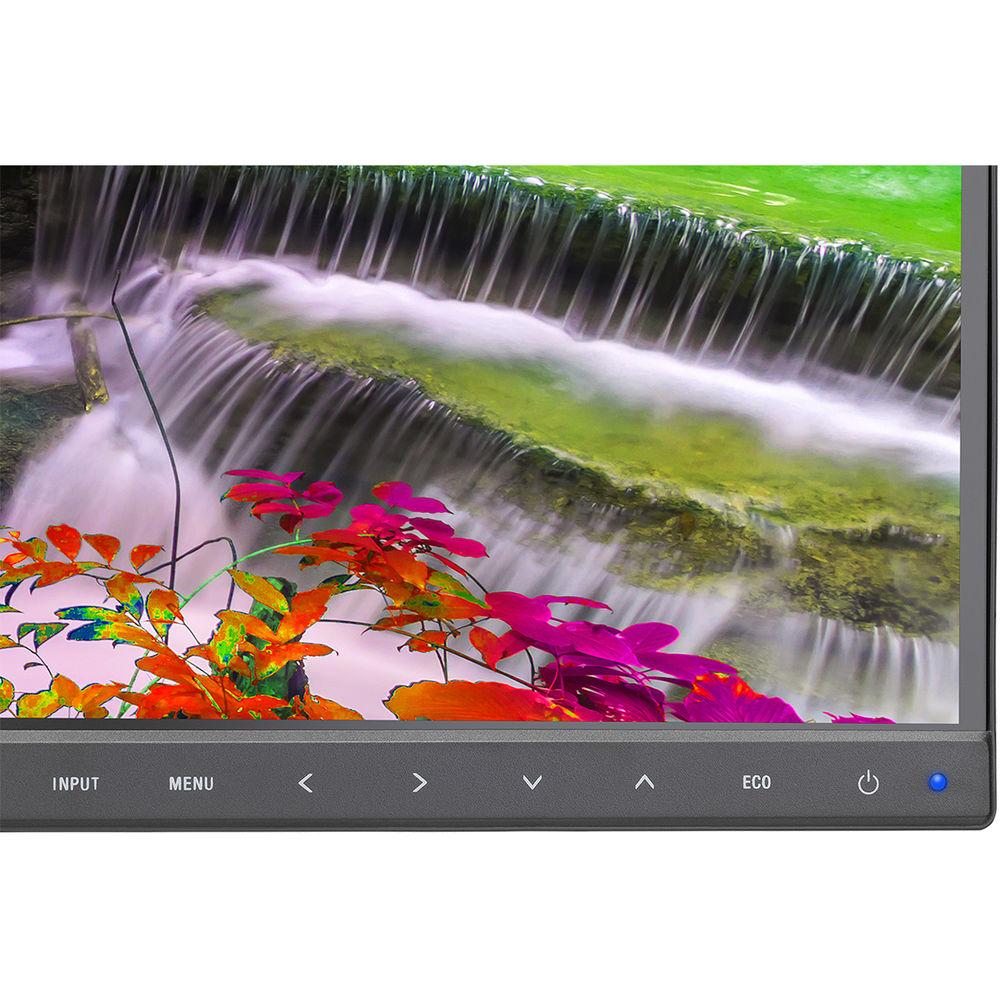

- Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easy
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
- Additional Features
-
- SpectraViewII compatible
- ControlSync
- Customize setting
- Integrated speakers
- 3-port USB hub
- LED backlit
- Auto brightness with ambient light sensor
- Human sensor
- ECO mode
- Carbon footprint meter
- Resettable cost meter

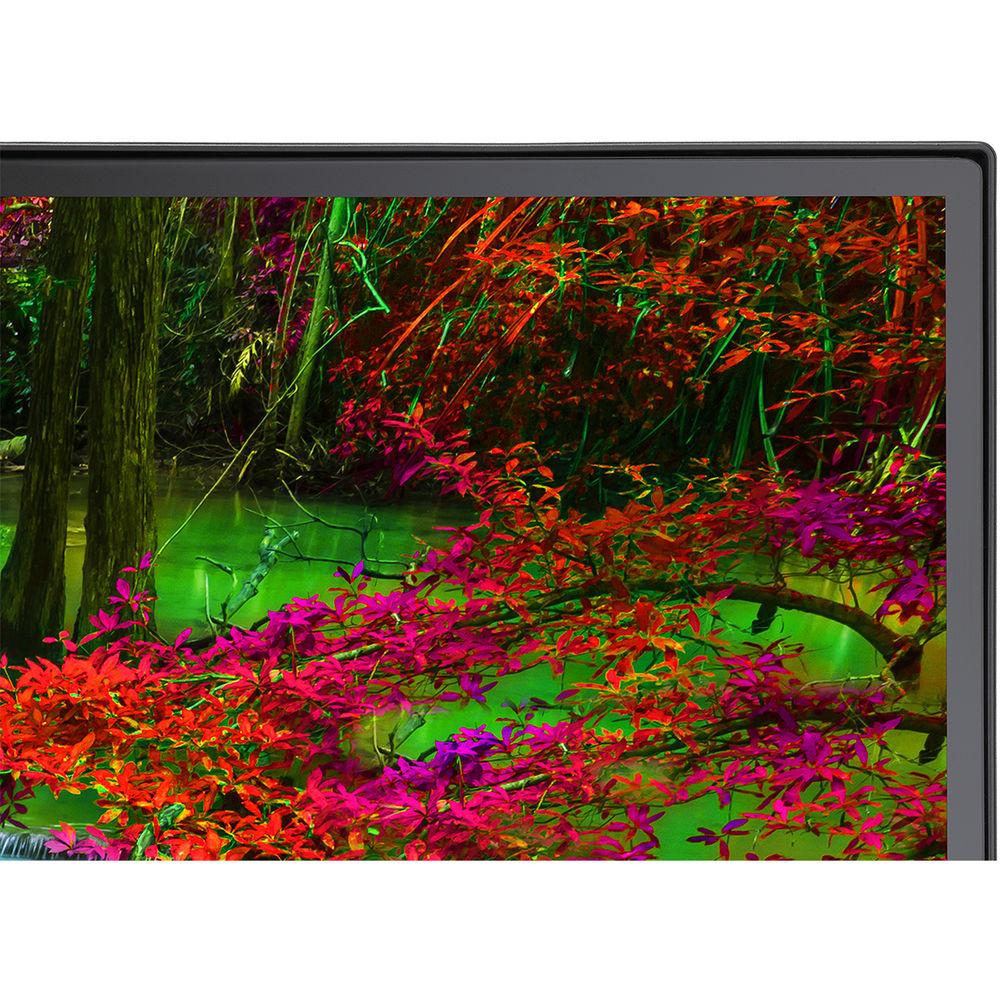

- Ultra-narrow bezel
- Tilt
- Swivel
- Dual direction pivot
- Height-adjustable stand
- Rapid response
- Ambix
- XtraView
- Hot key
- OSD lock out
- Cable management
- Dynamic visual mode
- NaViSet software
- VESA mount
- HDCP
- DDC/CI
- No touch auto adjust
- Plug-and-Play (VESA DDC2B)
- VESA DPMS power management
- AccuColor color control
- Digital controls
- ISO 9241-307 Class I
UPC: 805736069204 In the Box NEC EA271F-BK 27" 16:9 IPS Monitor DisplayPort Cable USB Cable ControlSync Cable Power Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA271F-BK 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC EA271F-BK 27" 16:9 IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC EA271F-BK Specs | | | Size | 27" | | Screen Area | 27.48 x 13.24" / 69.79 x 33.63 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 32 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.31 x 0.31 mm | | | | Connectivity | 1 x DisplayPort Input
1 x HDMI Input
1 x DVI-D Input
1 x VGA
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 17 W (Typical)
0.27 W (Eco) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 6563' / 2000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | None | | Dimensions (W x H x D) | 24.0 x 20.8 x 9.8" / 61.0 x 52.8 x 24.9 cm (With Stand)
24.0 x 14.2 x 1.8" / 61.0 x 36.1 x 4.6 cm (Without Stand) | | Weight | 16.8 lb / 7.62 kg (With Stand)
11.0 lb / 4.99 kg (Without Stand) | | | | Package Weight | 21.4 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
