User Manual for NEC EA271Q-BK 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA271Q-BK 27" 16:9 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA271Q-BK 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

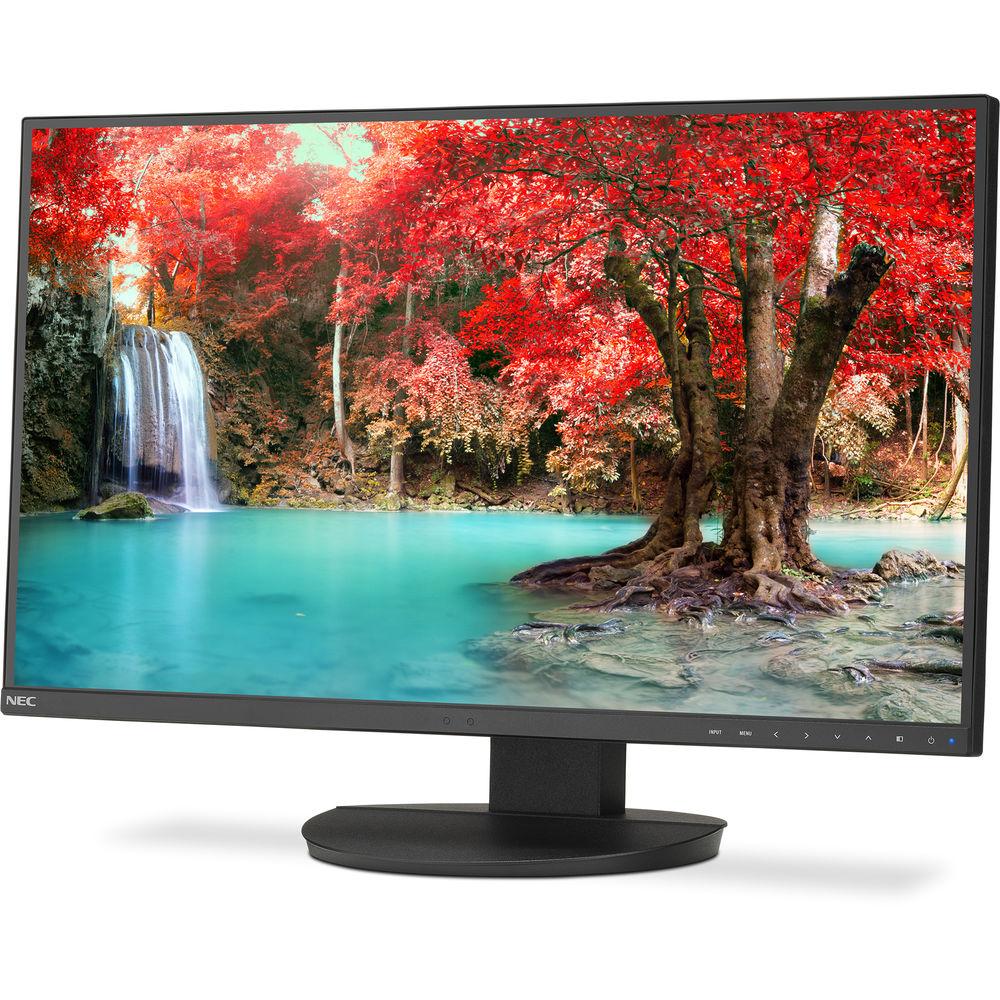

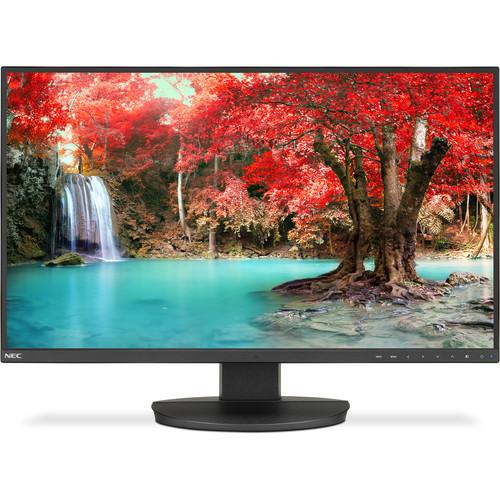

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EA271Q-BK 27" 16:9 IPS Monitor from NEC is designed for multi-monitor setups thanks to its ultra-narrow bezels, which provide you with a more immersive viewing experience. It's built with a Plane-to-Line Switching (PLS) panel that features a 2560 x 1440 QHD resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, and support for 16.7 million colors. Moreover, this display can be used for color-sensitive work with 78.3% Adobe RGB, 74.6% NTSC, and 100% sRGB coverage. Connect it to your system via DisplayPort, DVI-D, HDMI, or USB Type-C and adjust its versatile stand to best fit your viewing preference. You can also install an optional VESA-compatible mount, stand, or arm if needed. - USB Type-C
- The USB Type-C input can deliver up to 60W of power as well as video and USB data transfer over a single cable.

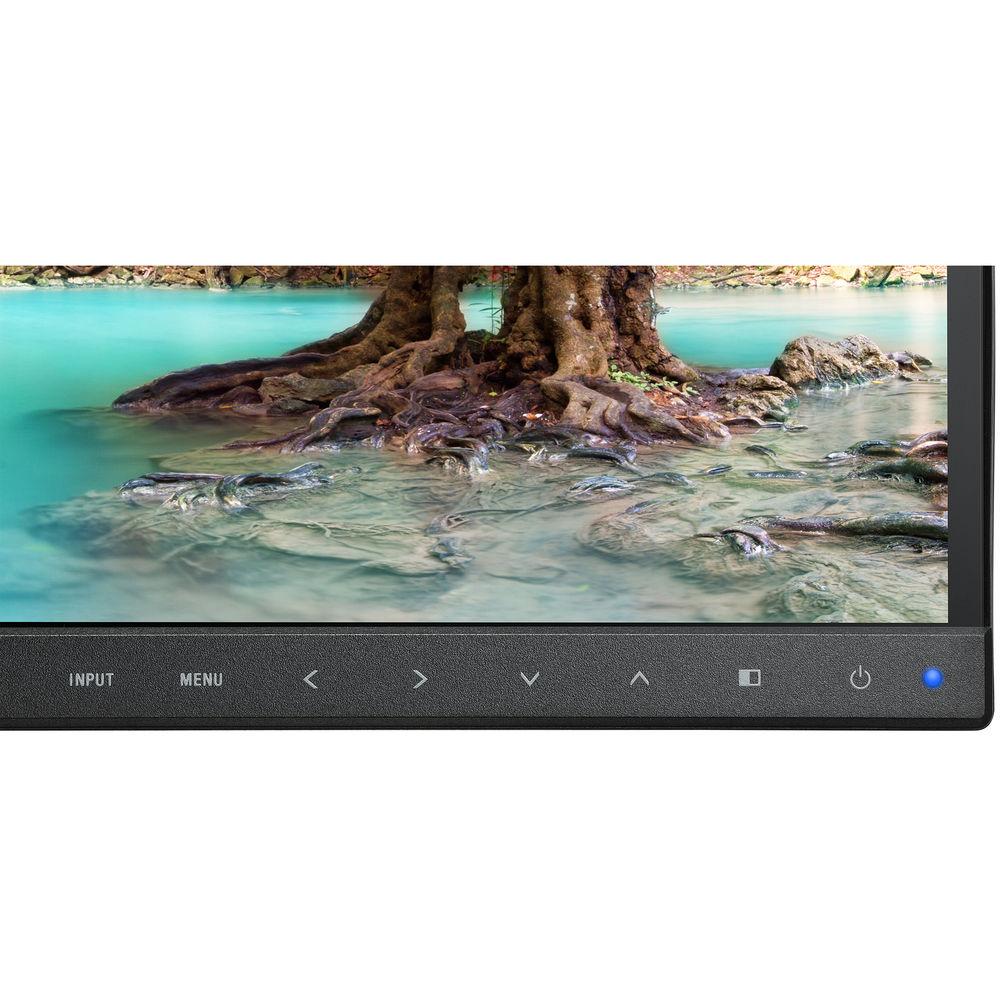

- Touch-Sensitive OSD Controls
- Instead of buttons, this display uses touch-sensitive controls integrated on its bezel for making display adjustments.
- Integrated Light Sensors
- With human and ambient light sensors, this display can automatically determine the proper display brightness to conserve power.
- Additional Features
-
- PBP mode
- PBP button
- Tilt

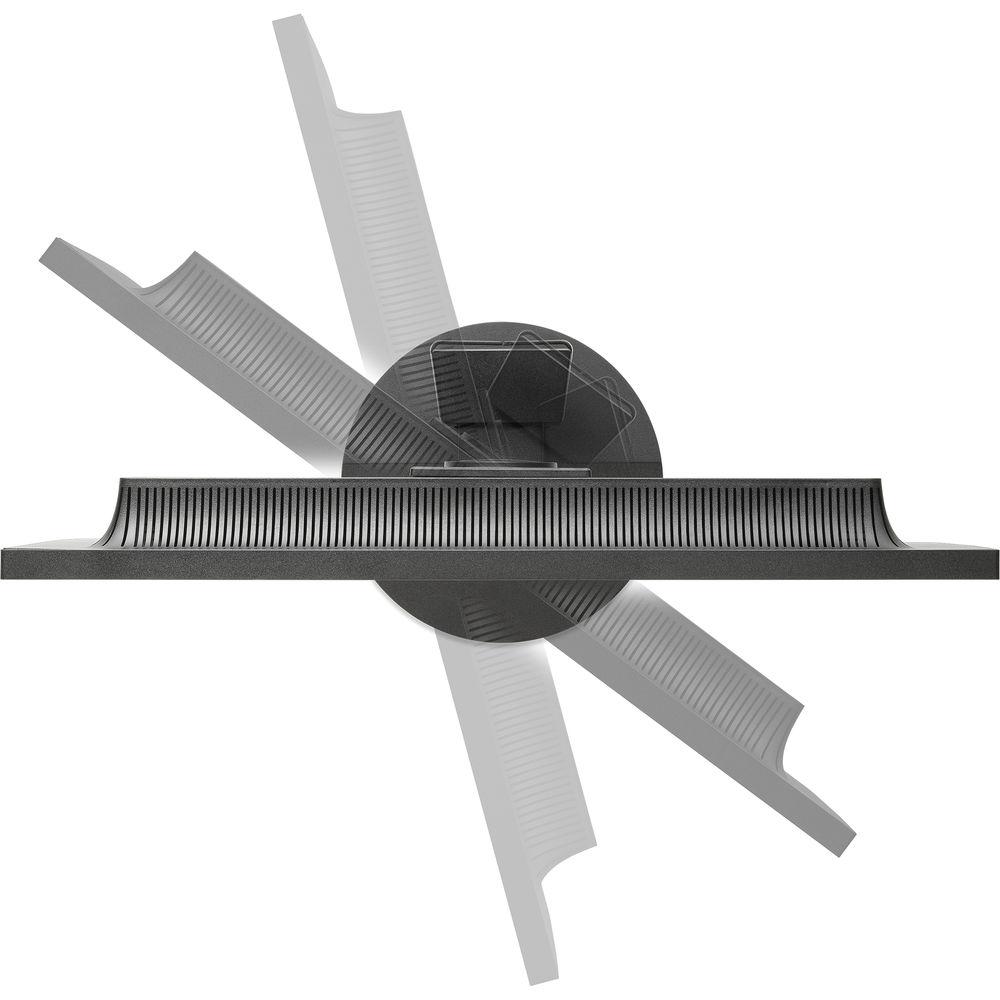

- Swivel

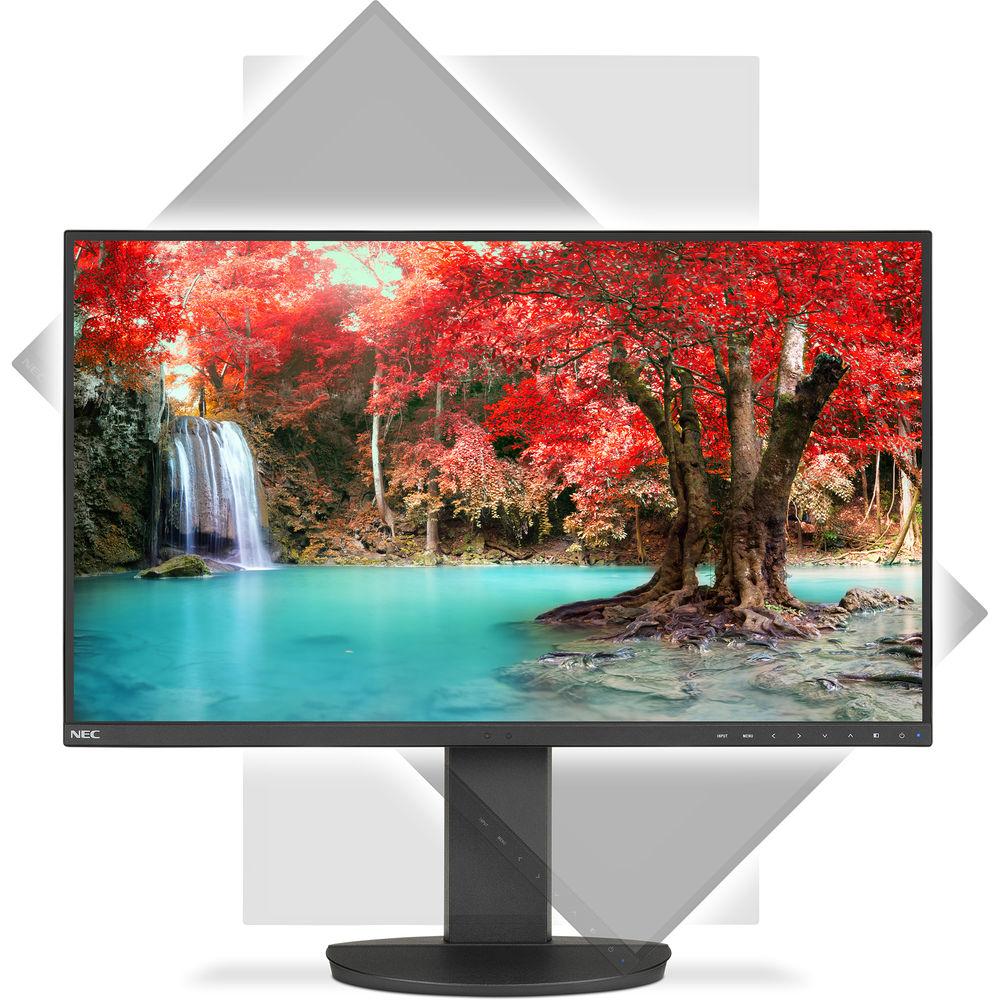

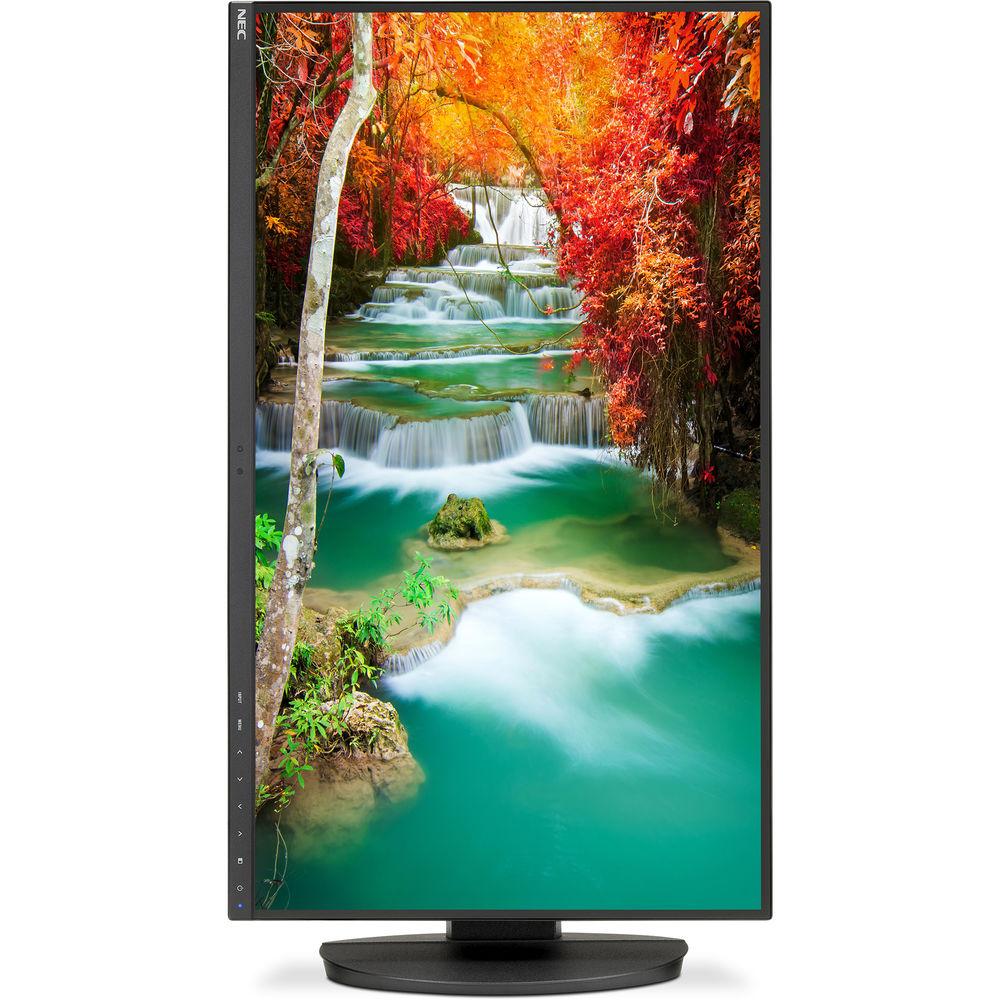

- Pivot

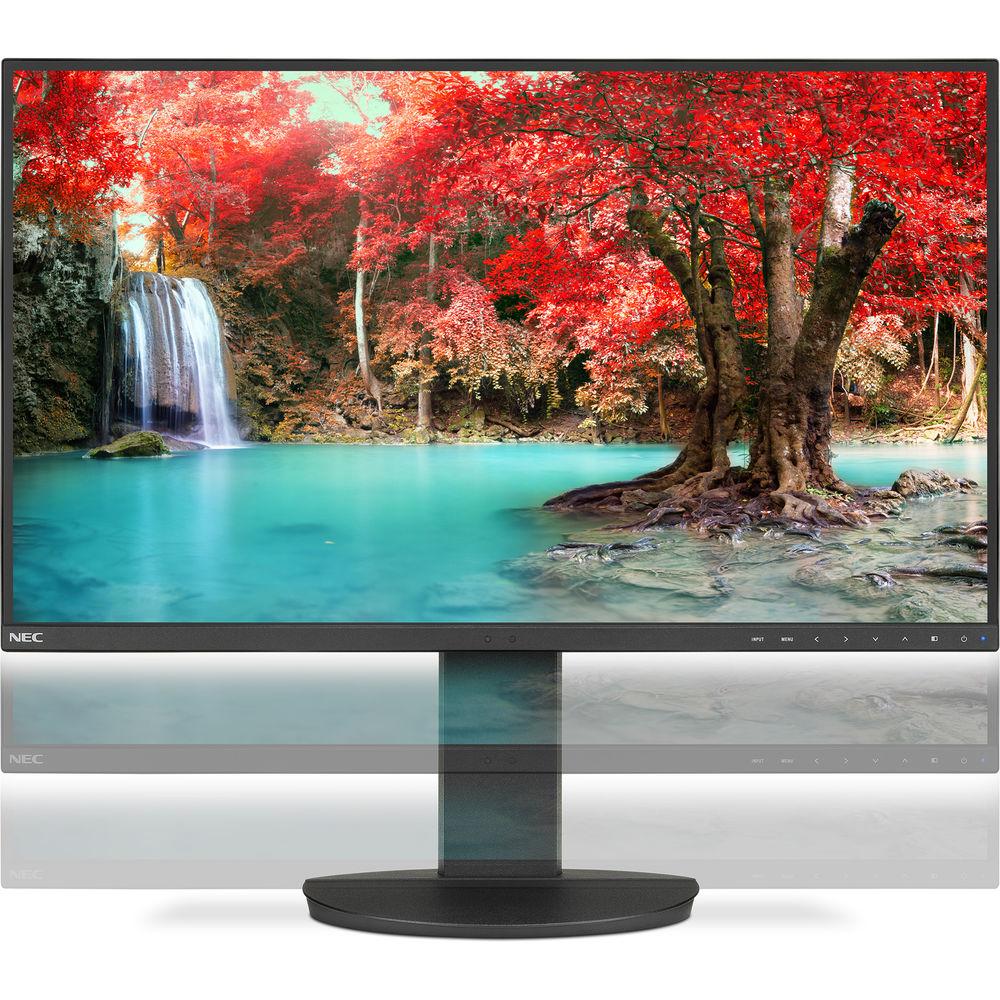

- Height-adjustable stand
- ControlSync
- Customize Setting
- Integrated speakers
- 3-port USB 3.0 hub
- LED backlit
- ECO Mode
- Carbon footprint meter
- Resettable cost meter
- Carrying handle
- Rapid Response
- XtraView
- Hot Key
- OSD Lock Out
- Cable management
- NaViSet Administrator software
- DDC/CI
- VESA DPMS power management
- Uniformity correction
- Digital controls
- ISO 9241-307 Class I
- DICOM SIM
UPC: 805736069389 In the Box NEC EA271Q-BK 27" 16:9 IPS Monitor Power Cable DisplayPort Cable USB 3.0 Cable ControlSync Cable Factory Calibration Report Limited 3-Year Warranty User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA271Q-BK 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA271Q-BK Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 94 Hz (DVI, DisplayPort, HDMI) | | Vertical Frequency | 56 to 75 Hz (DVI, DisplayPort, HDMI) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 78.3% Adobe RGB
74.6% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°

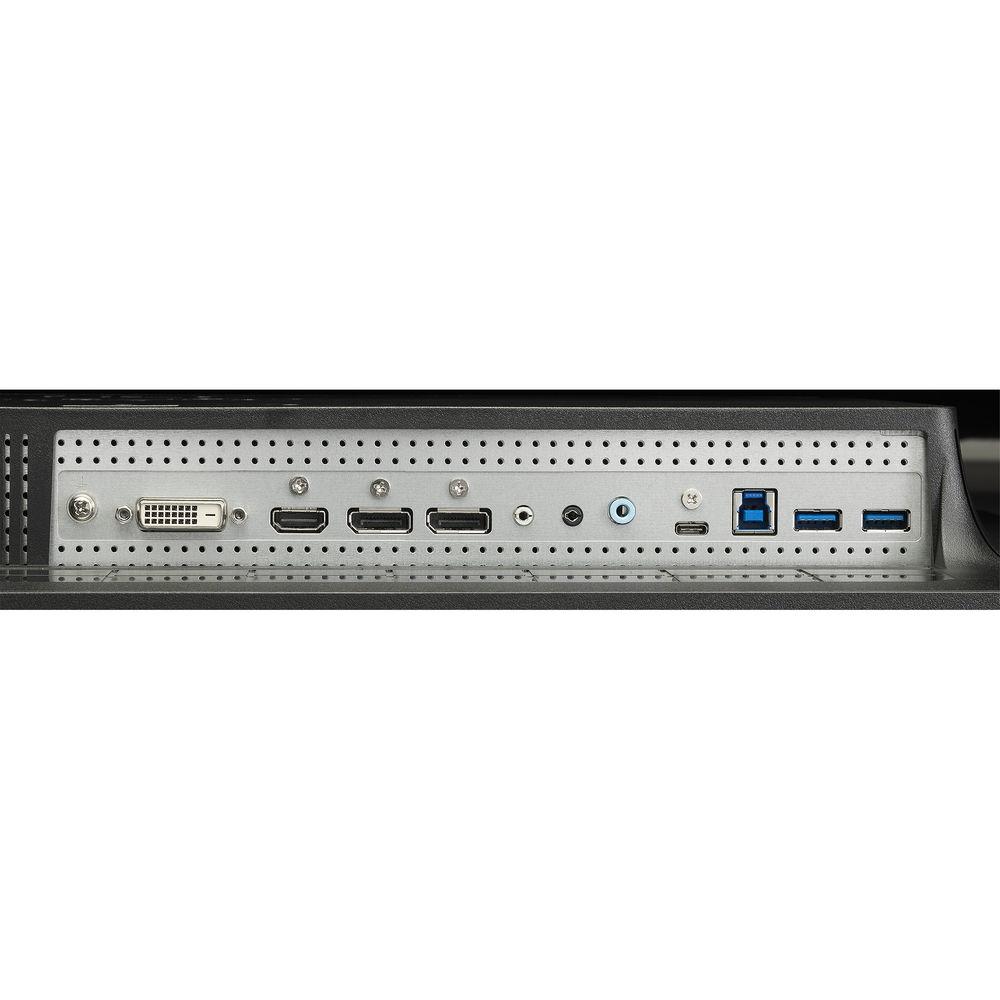

Vertical: 178° | | Dot Pitch | 0.23 x 0.23 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x DVI-D
1 x HDMI
1 x USB Type-C | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 37 W (Typical)
150 W (Maximum)
0.3 W (Standby) | | USB Power Delivery | 60 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.1 x 20.8 x 9.8" / 611.8 x 528.0 x 250.0 mm (With Stand)
24.1 x 14.2 x 2.6" / 611.8 x 361.9 x 67.2 mm (Without Stand) | | Weight | 20.06 lb / 9.1 kg (With Stand)
12.57 lb / 5.7 kg (Without Stand) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 8.5" |
