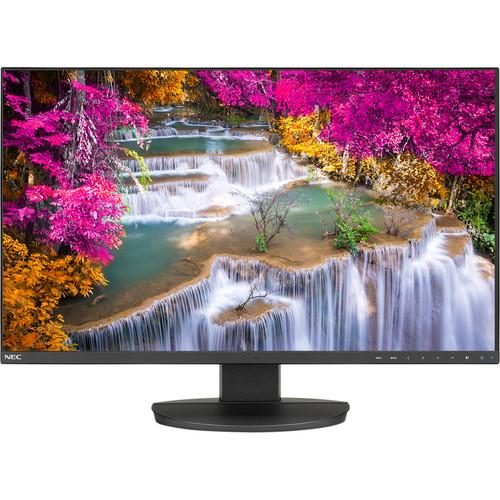

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EA271U-BK 27" 16:9 4K IPS Monitor from NEC is designed for multi-monitor setups thanks to its ultra-narrow bezels, which provide you with a more immersive viewing experience. It's built with an In-Plane Switching (IPS) panel that features a 3840 x 2160 4K UHD resolution, a 1000:1 static contrast ratio, a 350 cd/m² brightness rating, and support for 1.07 billion colors. Moreover, this display can be used for color-sensitive work with 78.1% Adobe RGB, 75.1% NTSC, and 100% sRGB coverage. Connect it to your system via DisplayPort, HDMI, or USB Type-C and adjust its versatile stand to best fit your viewing preference. You can also install an optional VESA-compatible mount, stand, or arm if needed. - SpectraView Calibration Software
- The SpectraViewII software is designed for professionals working with color-critical applications. When combined with a color sensor, it offers accurate, reliable, and repeatable display calibrating and profiling.
- Spyder5 Color Calibration Sensor
- The Spyder5 Color Sensor is designed to provide you with accurate colors and can adapt to ambient light to adjust the display's brightness accordingly.
- USB Type-C
- The USB Type-C port on this display supports up to 60W of power delivery as well as DisplayPort 1.2 video all over one cable.
- Touch-Sensitive OSD Controls
- Instead of buttons, this display uses touch-sensitive controls integrated on its bezel for making display adjustments.
- Integrated Light Sensors
- With human and ambient light sensors, this display can automatically determine the proper display brightness to conserve power.
- Additional Features
-
- PBP mode
- PBP button
- Tilt
- Swivel

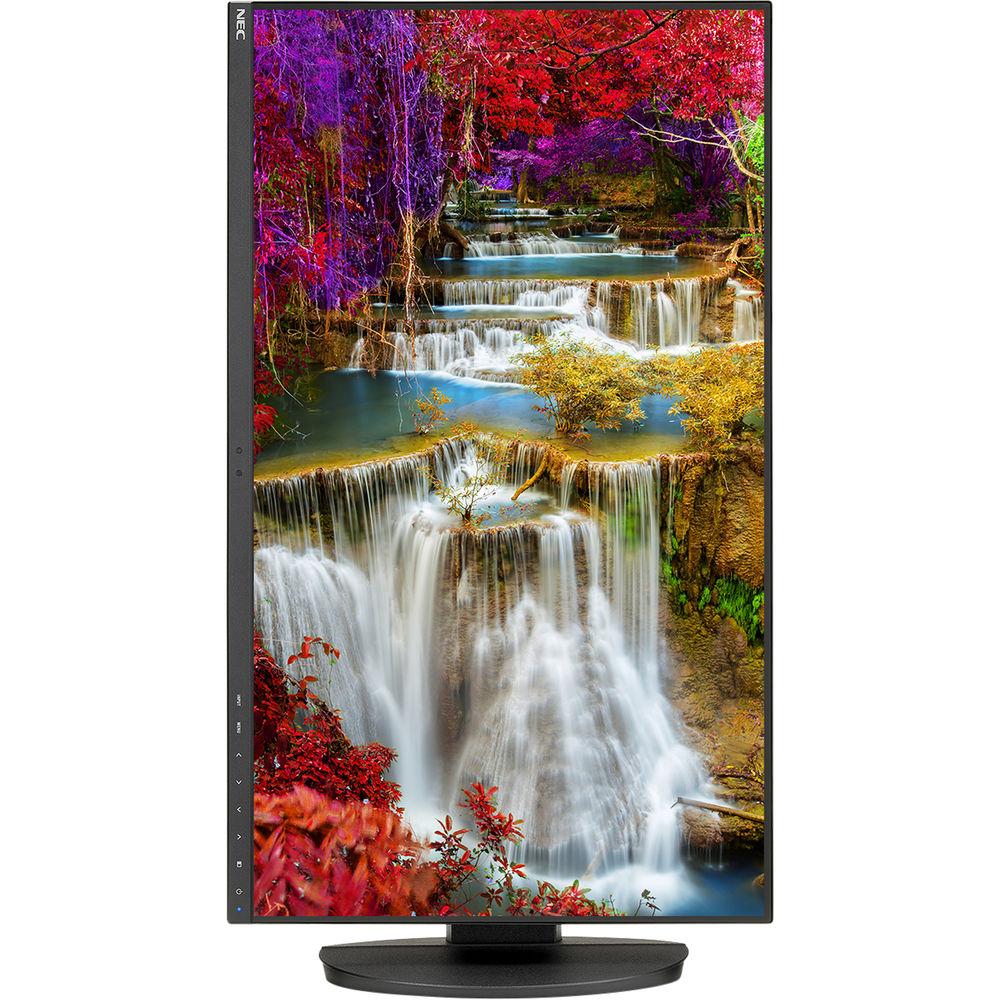

- Pivot

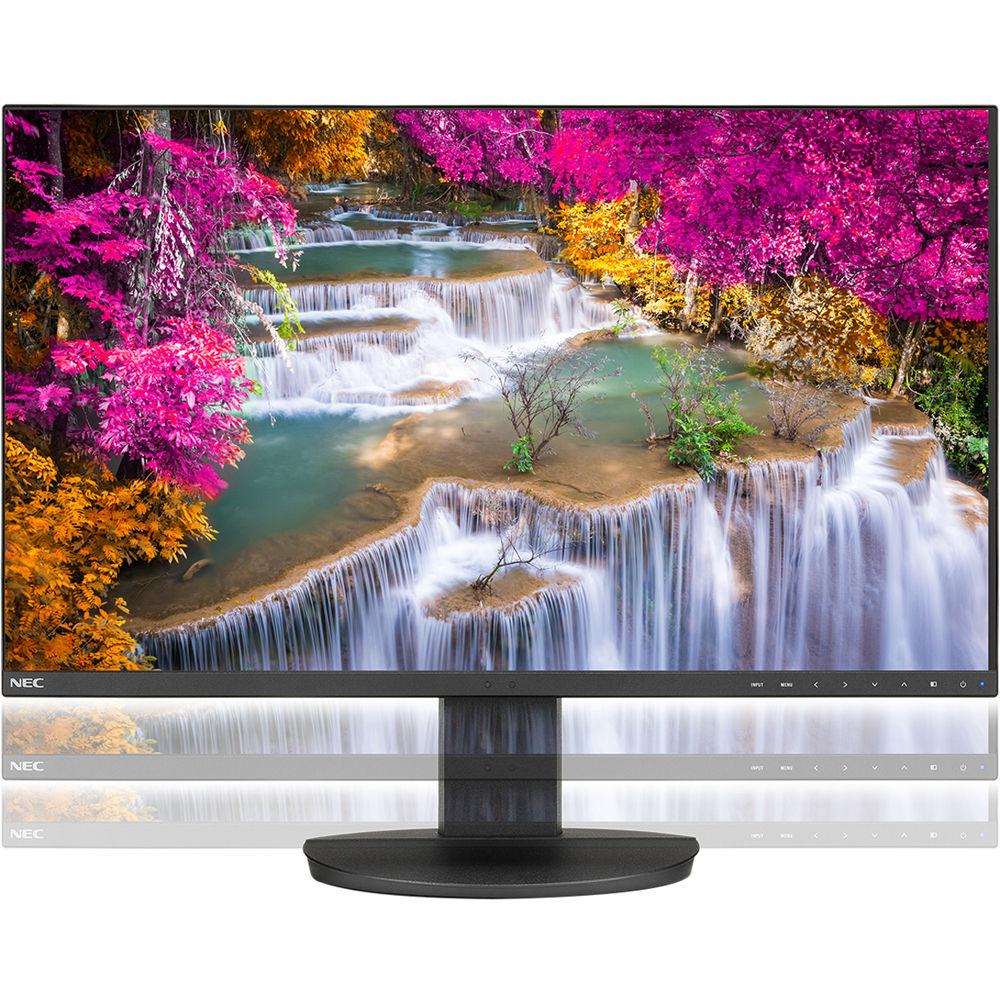

- Height-adjustable stand
- ControlSync
- ECO Mode
- Carbon footprint meter
- Resettable cost meter
- 3-sided narrow bezel
- Carrying handle
- Rapid Response
- XtraView
- Hot Key
- OSD Lock Out
- Cable management
- NaViSet Administrator software
- DDC/CI
- VESA DPMS power management
- Uniformity correction
- Digital controls
- ISO 9241-307 Class I
- DICOM SIM
UPC: 805736069655 In the Box NEC EA271U-BK 27" 16:9 4K IPS Monitor SpectraView Calibration Software Spyder5 Full-Spectrum Color Sensor for SpectraViewII Software Power Cable DisplayPort Cable USB Cable ControlSync Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA271U-BK 27" 16:9 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC EA271U-BK 27" 16:9 4K IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC EA271U-BK-SV Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 136 kHz | | Vertical Frequency | 30 to 75 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 78.1% Adobe RGB
75.1% NTSC
100% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.16 x 0.16 mm | | | | Connectivity | 1 x DisplayPort
2 x HDMI
1 x USB Type-C
3 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | Yes | | | | Power Consumption | 38 W (Typical)
150 W (Maximum)
0.3 W (Eco) | | USB Power Delivery | 60 W (via USB Type-C) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 39,999' / 12,192 m | | | | Height Adjustment | 5.91" / 150 mm | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.1 x 20.8 x 9.8" / 612.1 x 528.3 x 248.9 mm (With Stand)
24.1 x 14.2 x 2.6" / 612.1 x 360.7 x 66.0 mm (Without Stand) | | Weight | 20.9 lb / 9.48 kg (With Stand)
13.4 lb / 6.08 kg (Without Stand) | | | | Package Weight | 26.25 lb | | Box Dimensions (LxWxH) | 28.5 x 18.5 x 8.5" |
