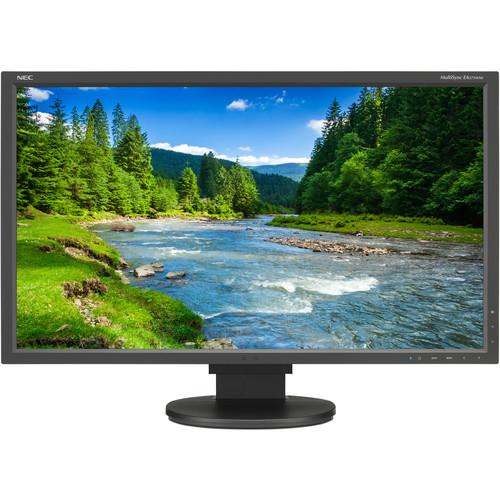

User Manual for NEC EA275WMI-BK 27" Widescreen LED Backlit WQHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA275WMI-BK 27" Widescreen LED Backlit
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA275WMI-BK 27" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a built-in ambient light sensor and support for XtraView+, the EA275WMI-BK 27" Widescreen LED Backlit WQHD IPS Monitor from NEC automatically adjusts to the lighting conditions while making it easy to see the display from wide angles. With an in-plane switching (IPS) panel you benefit from 178° horizontal and vertical viewing angles which reduce distortion, making it possible to view the screen from nearly any angle. In addition to enhanced viewing angles, content being viewed on this display is depicted clearly and accurately thanks to the 2560 x 1440 WQHD resolution, while the 1,000:1 contrast ratio supports darker dark and brighter bright colors.
Connect the EA275WMI from NEC to a variety of computer configurations as it comes equipped with DisplayPort, DVI-I, and HDMI connectors. Touch sensitive OSD controls simplify the process of adjusting various aspects of the display such as brightness, resolution, and more. Once configured, the quick-release stand allows the monitor to be tilted, swiveled, pivoted, and the height can be adjusted for enhanced viewing comfort. - Ambient Light Sensor
- Automatically adjusts the backlight and power management depending on the ambient lighting brightness.
- Ambix
- Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.
- ControlSync
- Allows users to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, users will be able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
- No Touch Auto Adjust
- Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.
- Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
- XtraView+
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left, and right) with less color shift and without any glare, reflection, or distortion.
- IPS Panel
- High resolution IPS panel with wide viewing angles for improved image reproduction.
- Versatile Connectivity

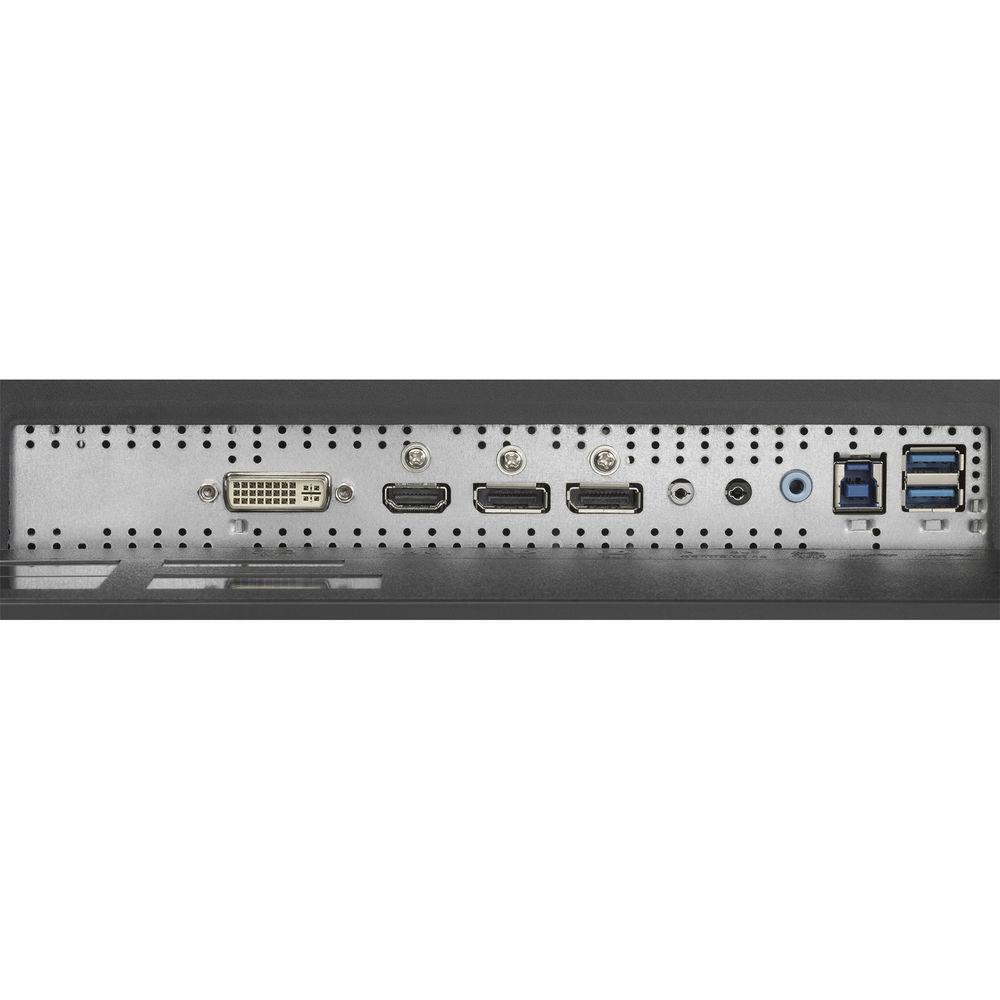

- Full connectivity, including DisplayPort, HDMI, and DVI-I inputs.
- OSD Controls

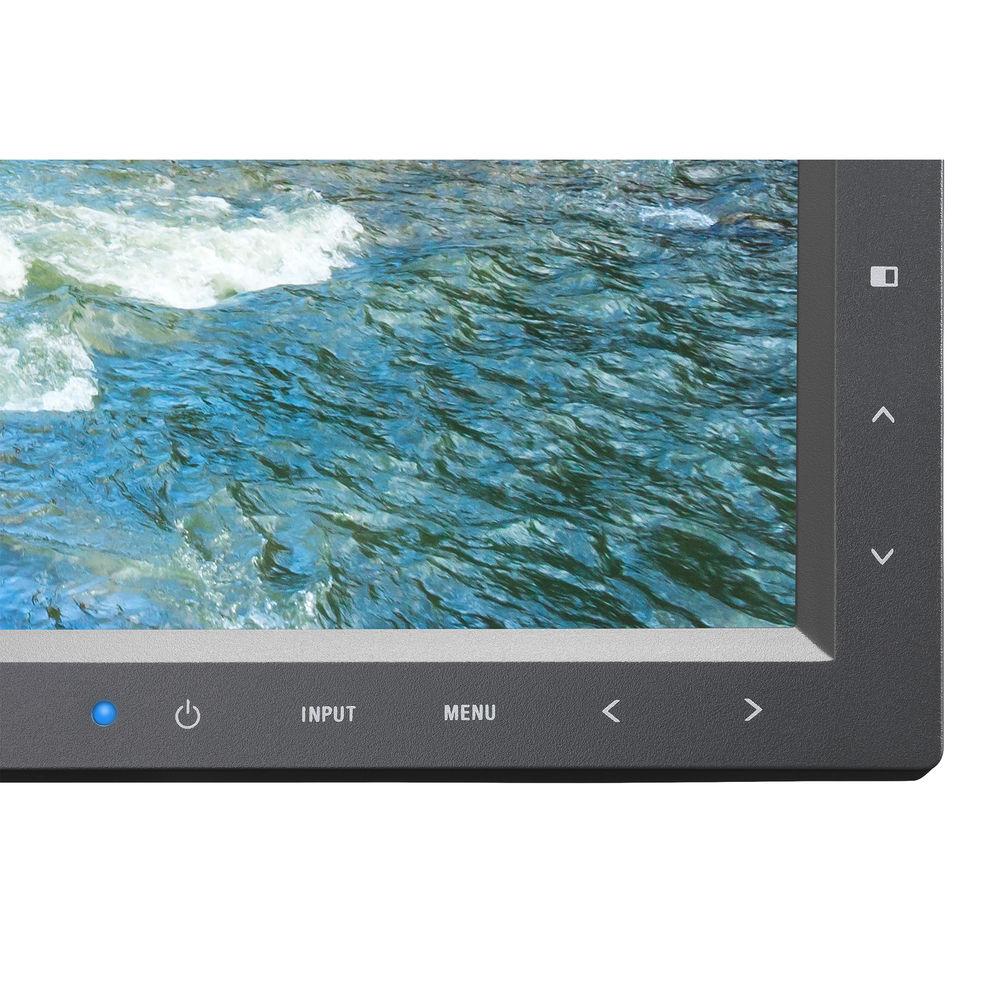

- Touch-sensitive OSD controls are integrated into the bezel, making for easier display adjustments.
- Light Sensors
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power.
- Adjustable Monitor Stand

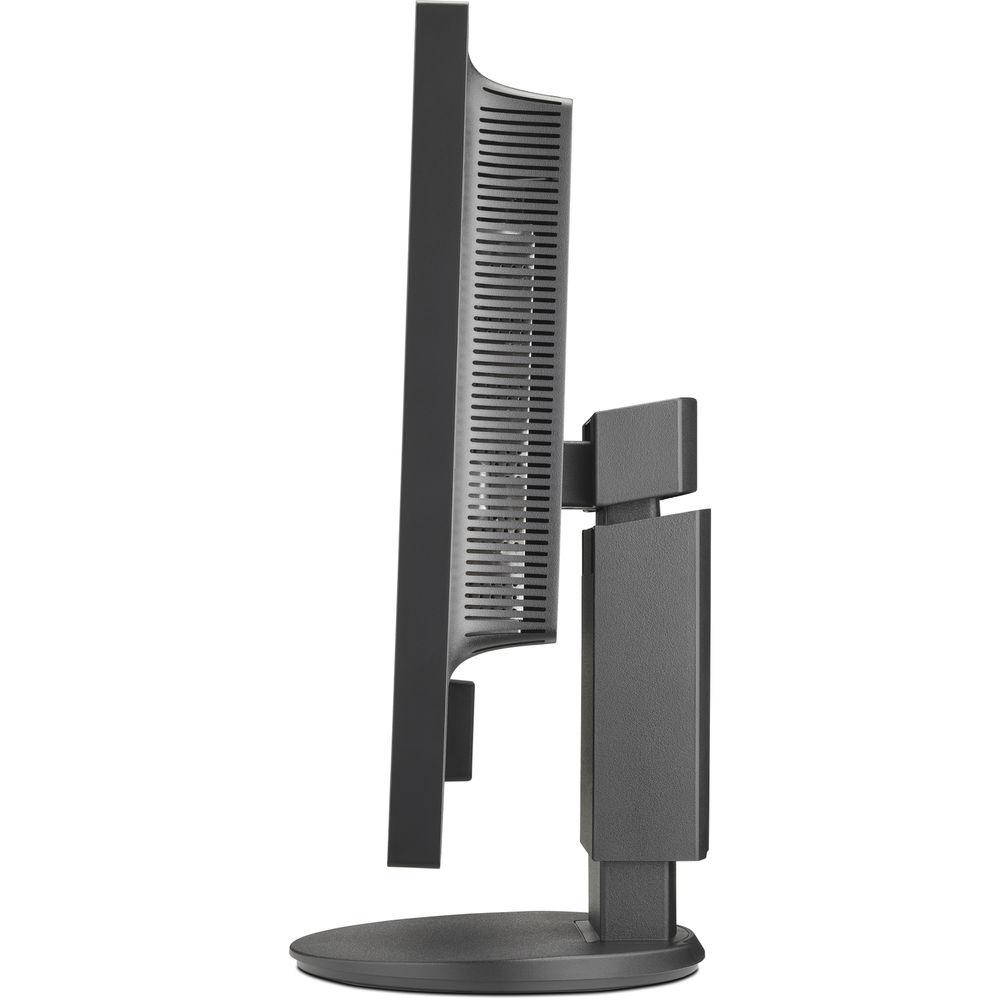

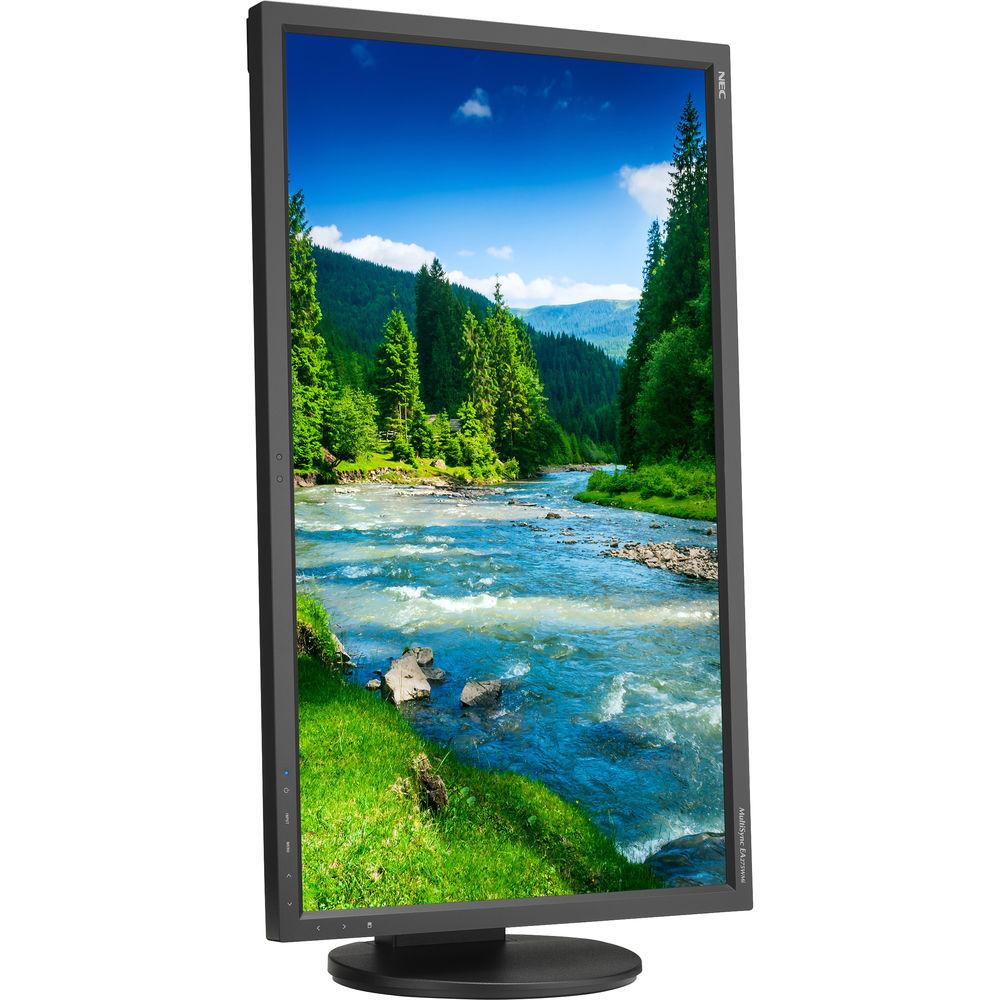

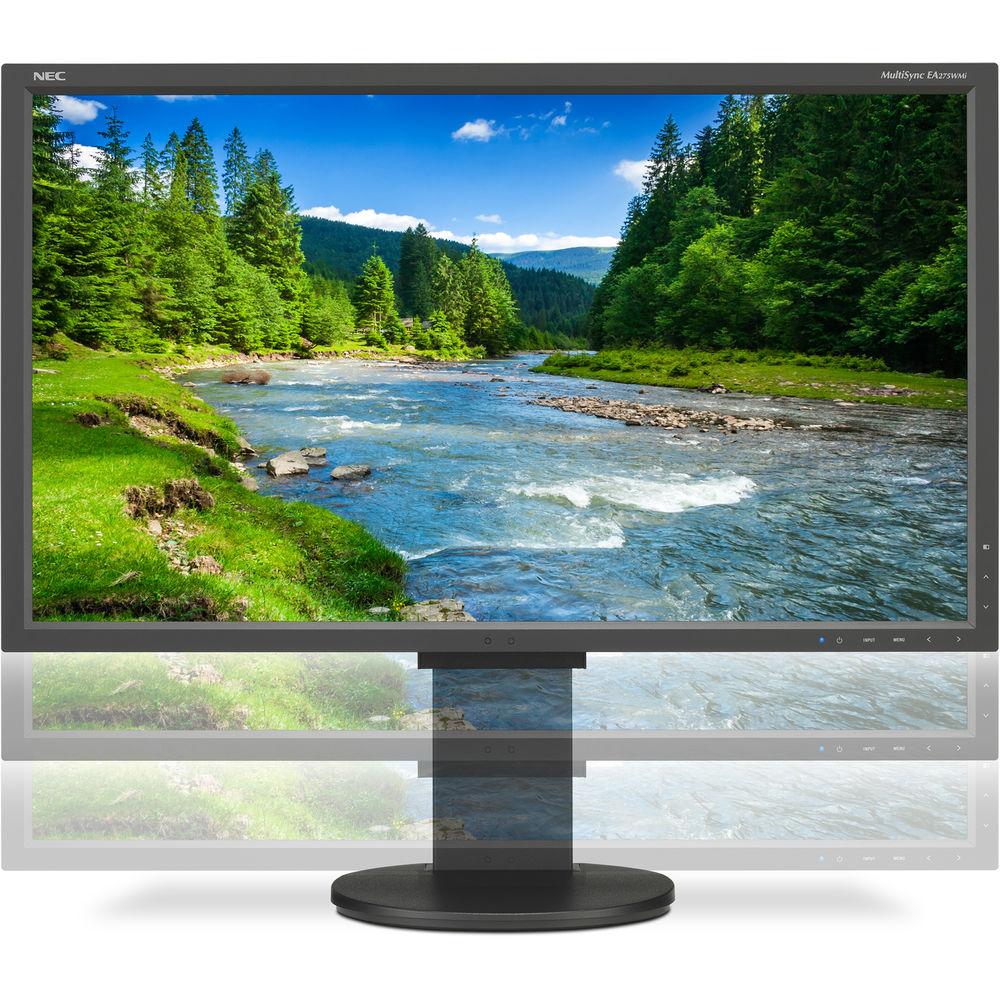

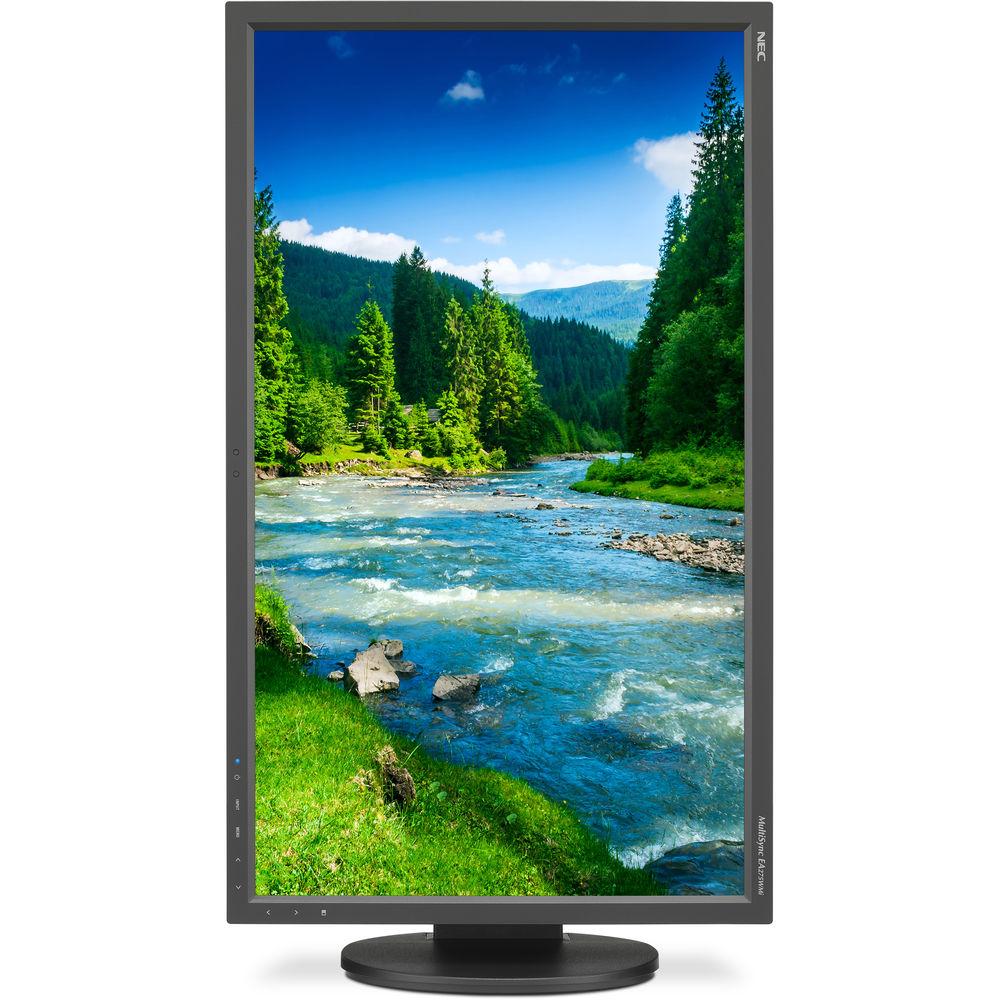

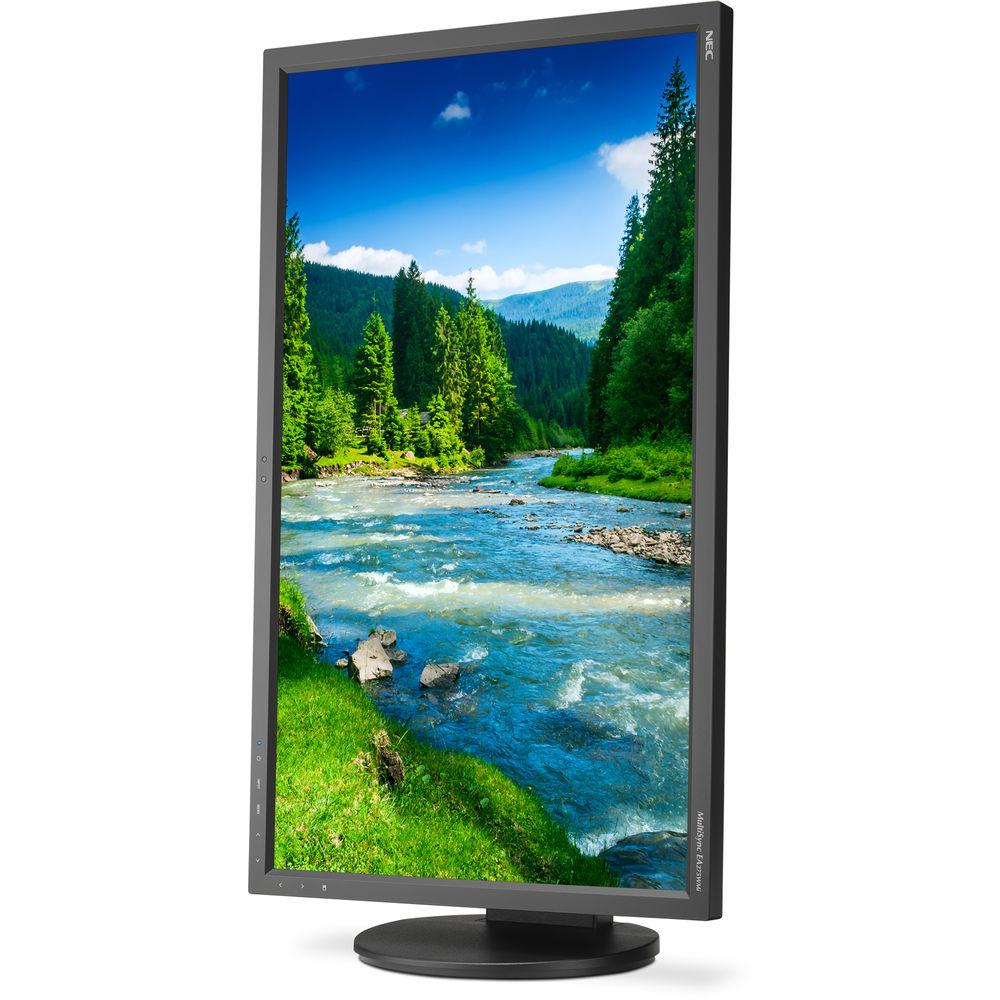

- Fully adjustable quick-release stand, including height-adjust (5.1" / 130mm), pivot, tilt, and swivel capabilities, adds flexibility and comfort to your viewing preferences.
- Eco-Friendly
- ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs.
- Color Calibration
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit.
- Other Features
- • PBP mode
• PBP button
• Tilt
• Swivel
• Pivot
• Height-adjustable stand
• ControlSync
• Customize Setting
• Integrated speakers

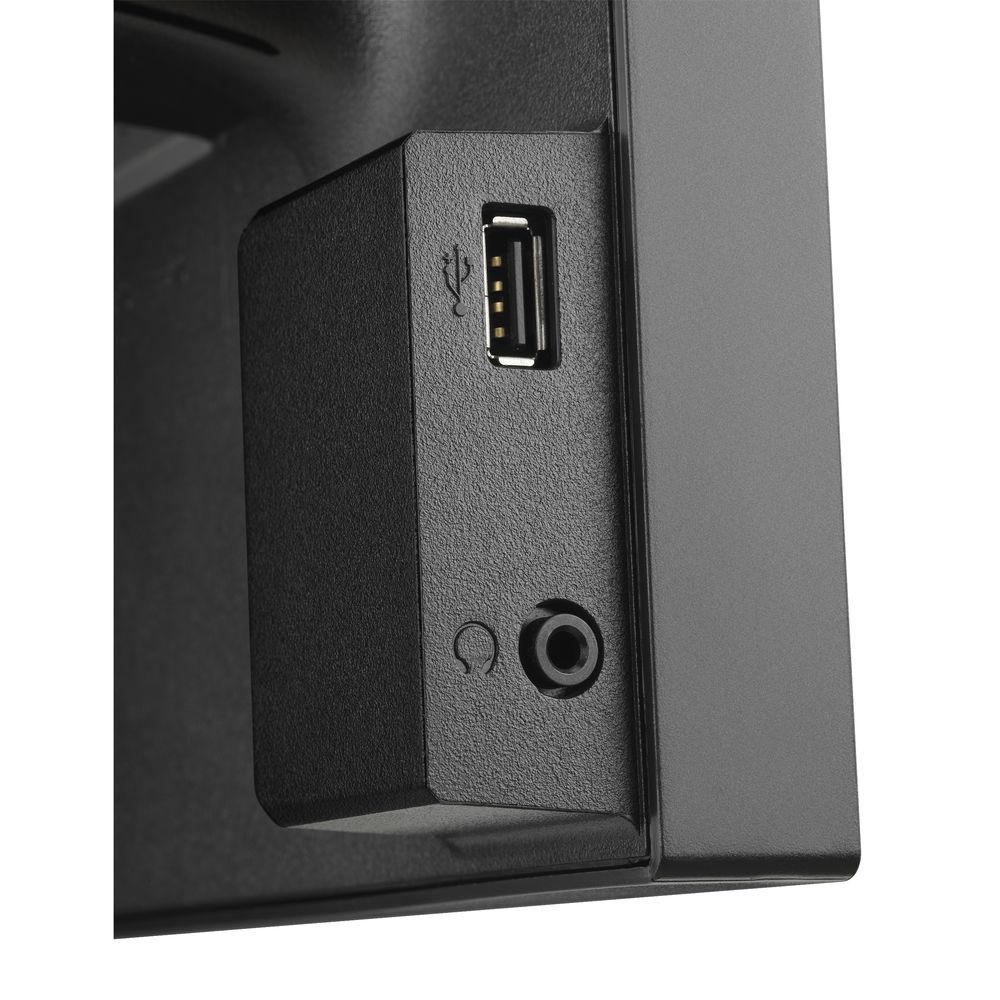

• 3-port USB 3.0 hub
• LED backlit
• Auto brightness with ambient light sensor
• Human sensor
• ECO Mode
• Carbon footprint meter
• Resettable cost meter
• Thin frame
• Carrying handle
• Rapid Response
• XtraView
• Hot Key
• Touch OSD controls
• OSD Lock Out
• Cable management
• NaViSet software
• VESA mount
• HDCP
• DDC/CI
• Plug-and-Play (VESA DDC2B)
• VESA DPMS power management
• Uniformity correction
• UHD upscaling
• Digital controls
• ISO 9241-307 Class I
• DICOM SIM UPC: 805736056846 In the Box NEC EA275WMI-BK 27" Widescreen LED Backlit WQHD IPS Monitor DisplayPort Cable Power Cable USB 3.0 Cable ControlSync Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA275WMI-BK 27" Widescreen LED Backlit WQHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC EA275WMI-BK 27" Widescreen LED Backlit WQHD IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC EA275WMI Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 91 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.23 x 0.23 mm | | | | Connectivity | 1 x DVI-I
1 x DisplayPort Input
1 x HDMI | | | | Power Consumption | 0.5 W (Standby)

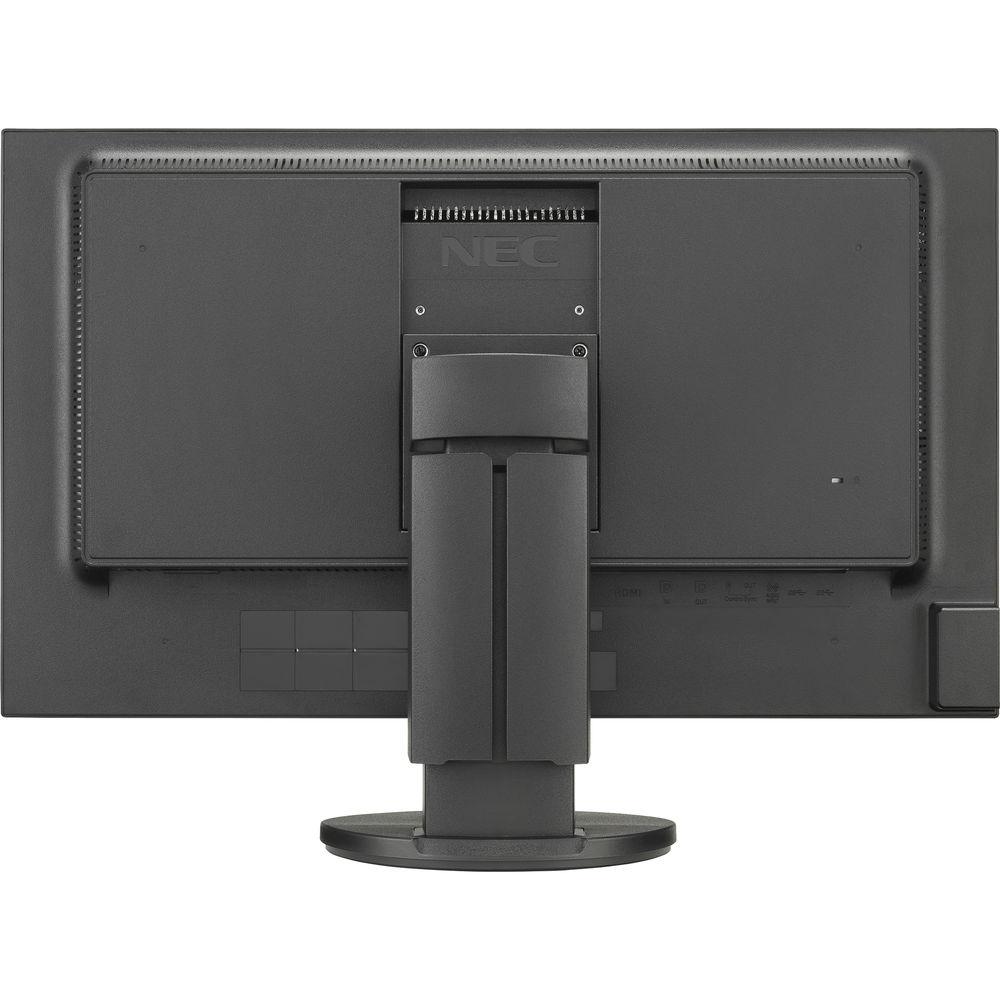

61 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 25.2 x 14.9 x 2.8" / 63.9 x 37.8 x 7.2 mm (Without Stand)
25.2 x 16.5 x 9.1" / 64.0 x 41.9 x 23.1 mm (With Stand) | | Weight | 12.8 lb / 5.8 kg (Without Stand)
19.2 lb / 8.7 kg (With Stand) | | | | Package Weight | 24.2 lb | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 11.0" |
