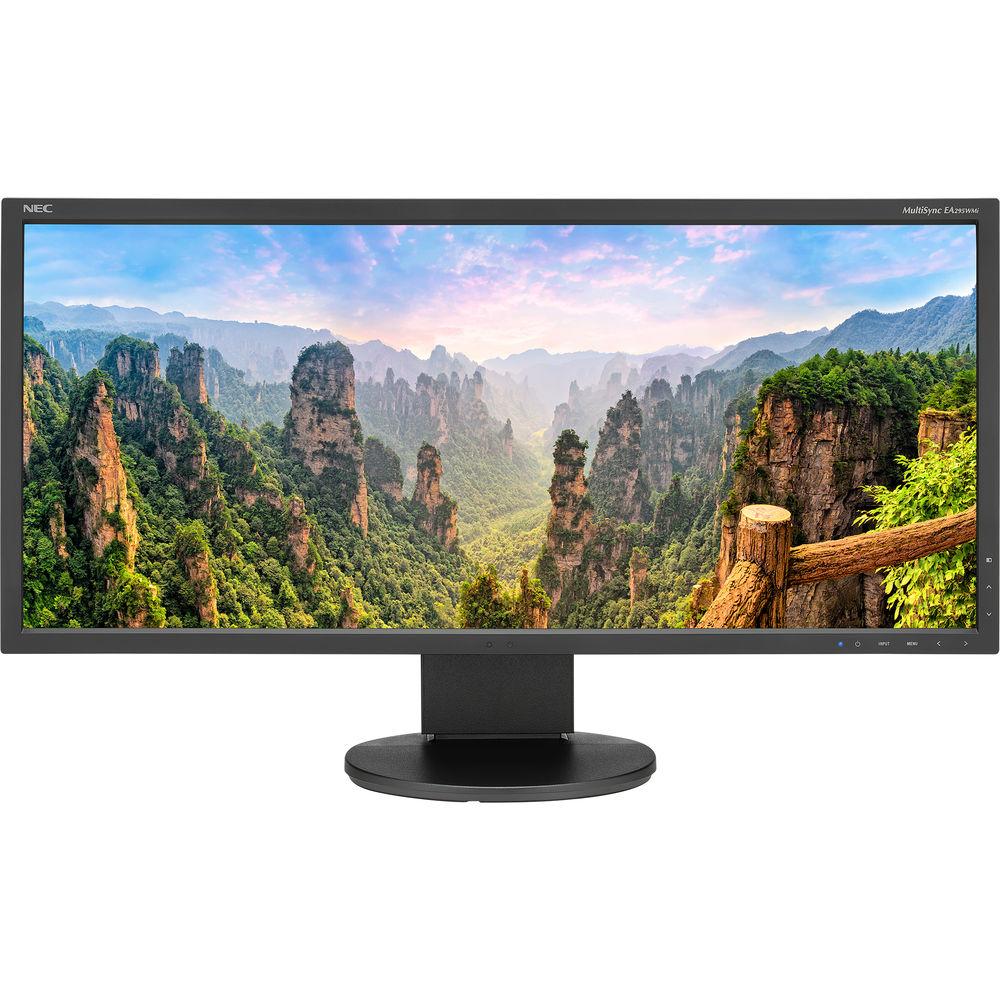

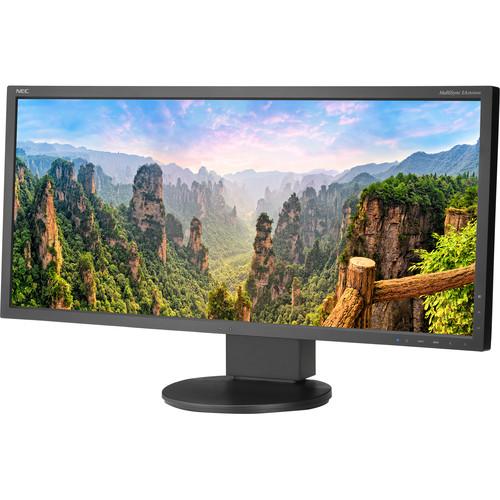

User Manual for NEC EA295WMI-BK 29" 21:9 Ultrawide IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC EA295WMI-BK 29" 21:9 Ultrawide IPS
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EA295WMI-BK 29" 21:9 Ultrawide IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the EA295WMI-BK 29" 21:9 Ultrawide IPS Monitor from NEC you can take advantage increased screen space with picture-in-picture and picture-by-picture modes to get more done.
This ultrawide display features a 21:9 aspect ratio with a 2560 x 1080 resolution, a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and a 6 ms response time for a more dynamic picture with reduced ghosting and blur. If that's not enough, this display also covers 100% of the sRGB and Rec. 709 color spaces and comes with an internal programmable 14-bit 3D LUT for enhanced color accuracy when working with a variety of graphic design applications.

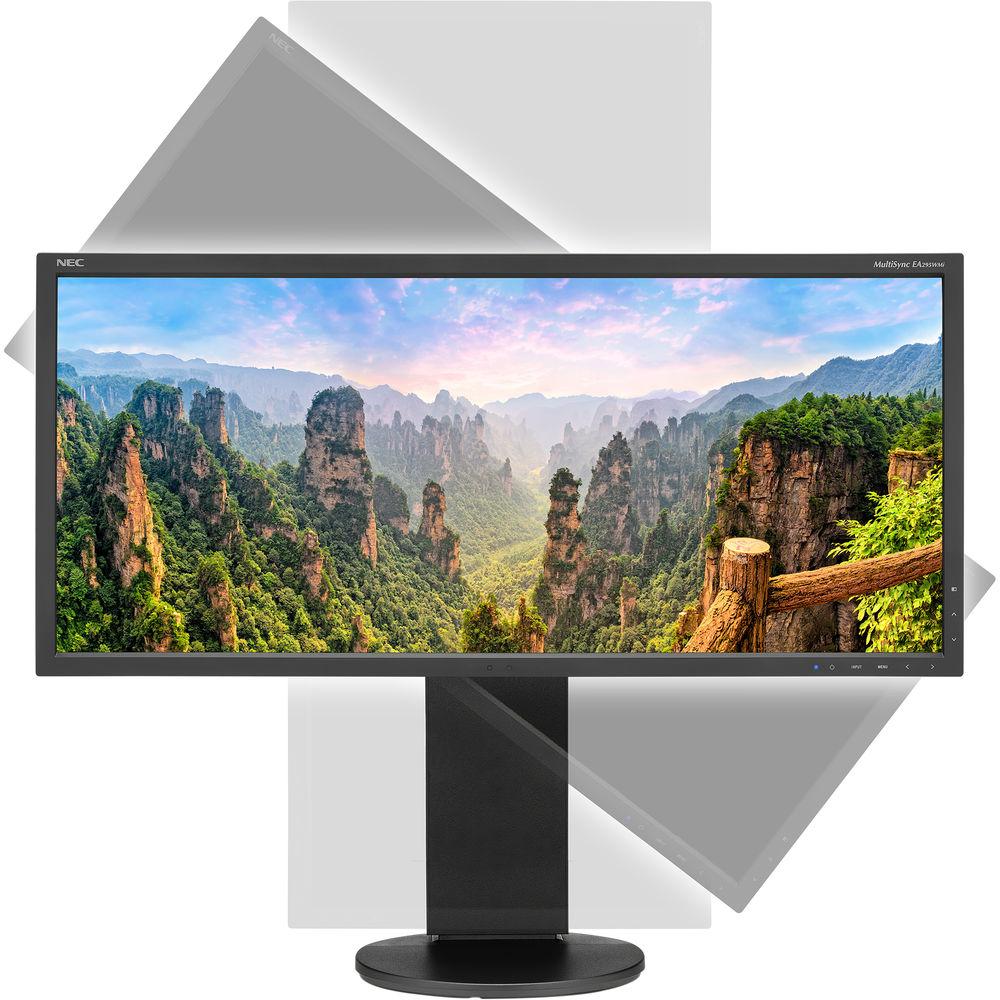

Setup and configuration of the NEC EA295WMI monitor is simple as it comes with DisplayPort, HDMI, and VGA inputs as well as a USB 3.1 hub to connect USB compatible peripherals directly to the display. Once configured, users can select from five different Picture modes while the MultiProfiler tool makes it easy to manipulate various settings such as keyboard shortcuts, navigating picture modes, and more. Additionally, the display can be tilted, swiveled, and pivoted into place to take full advantage of the 178° horizontal and vertical viewing angles offered by this IPS (In-Plane Switching) panel. -
- This IPS LCD panel offers wide viewing angles and excellent color reproduction for enhanced screen performance
- Internal programmable 14-bit 3D lookup tables (LUTs) ensure accurate color rendition
- The USB 3.1 hub with DisplaySync Pro controls two computers with only one keyboard and mouse
- Take advantage of 5 programmable Picture Mode profiles for quick access to multiple color spaces
- Picture-in-Picture and Picture-by-Picture modes increase productivity by displaying two sources simultaneously
- MultiProfiler provides complete control over picture modes, enables real-time print emulation, and can automate changing settings with keyboard shortcuts

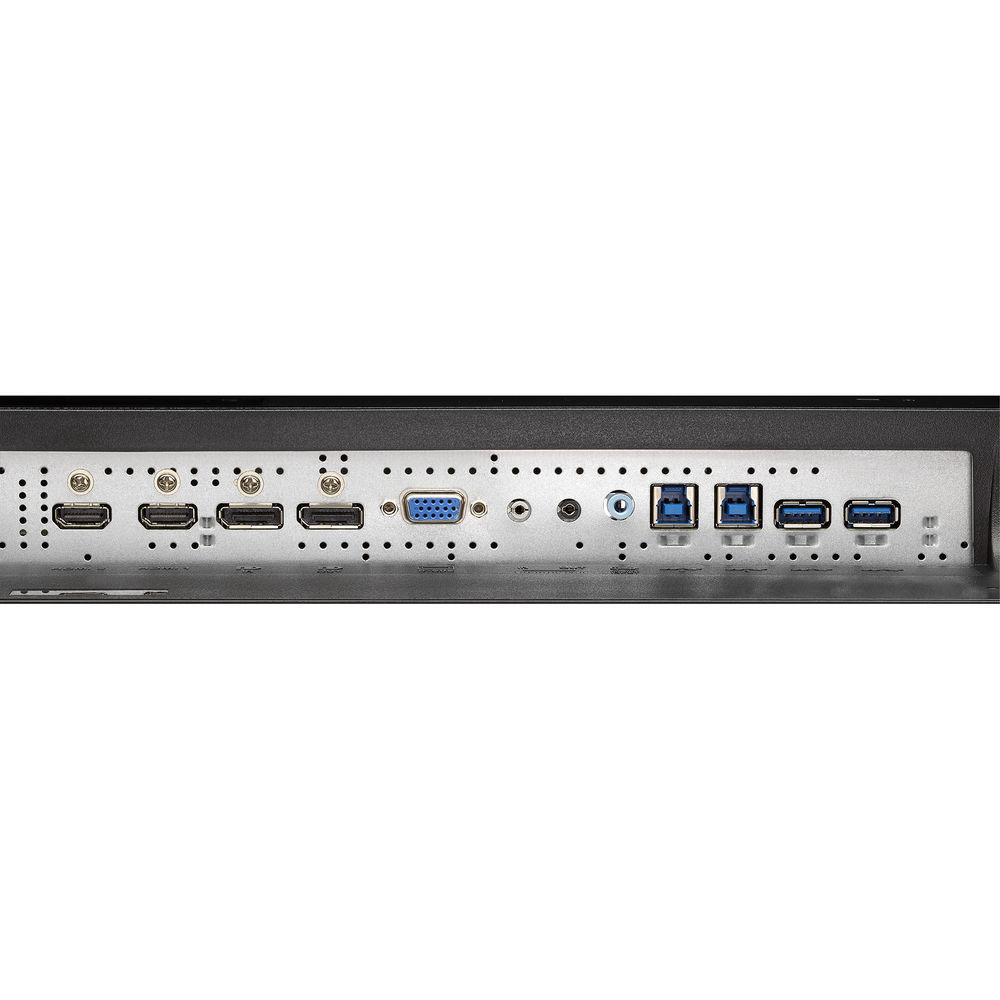

- Wide connectivity includes 10-bit DisplayPort and HDMI as well as VGA, and DVI-D inputs
- Built-in low blue light filter technology and flicker-free certified
Additional Features
- Tile Matrix
- Tile Comp
- Tilt

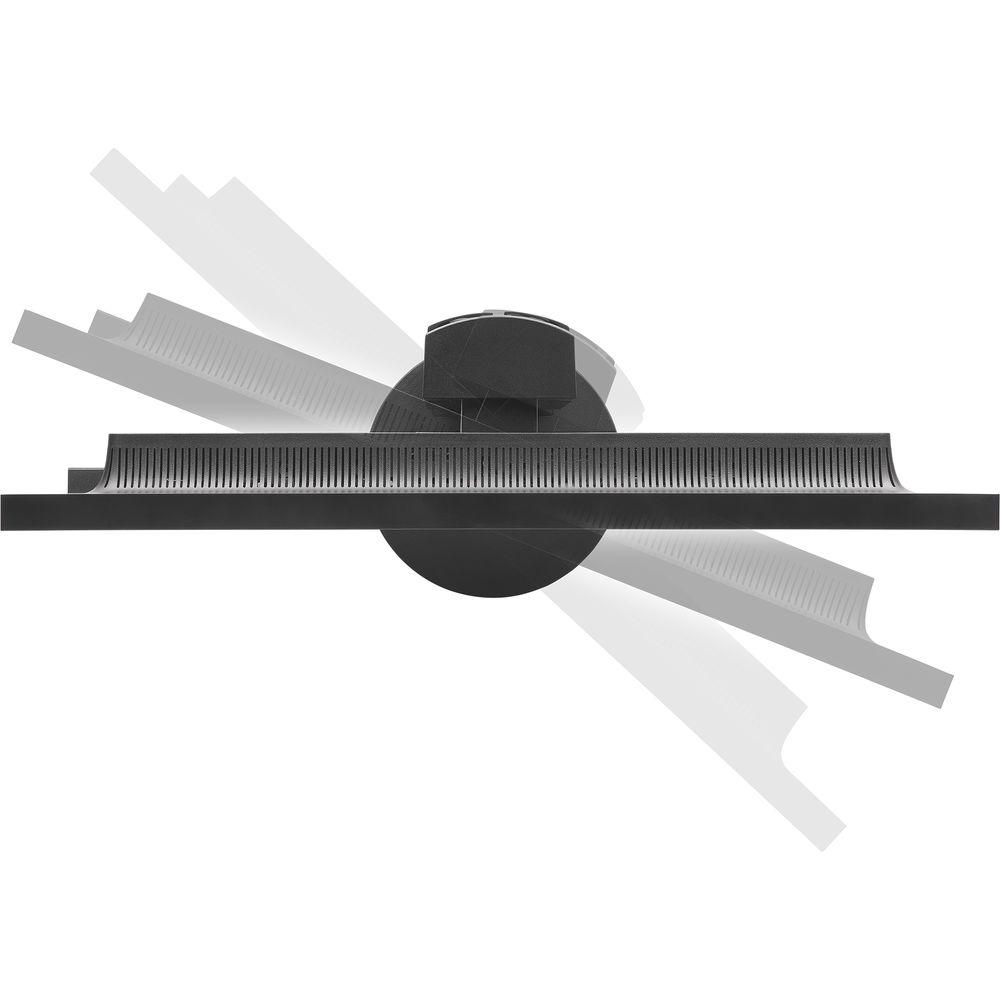

- Swivel

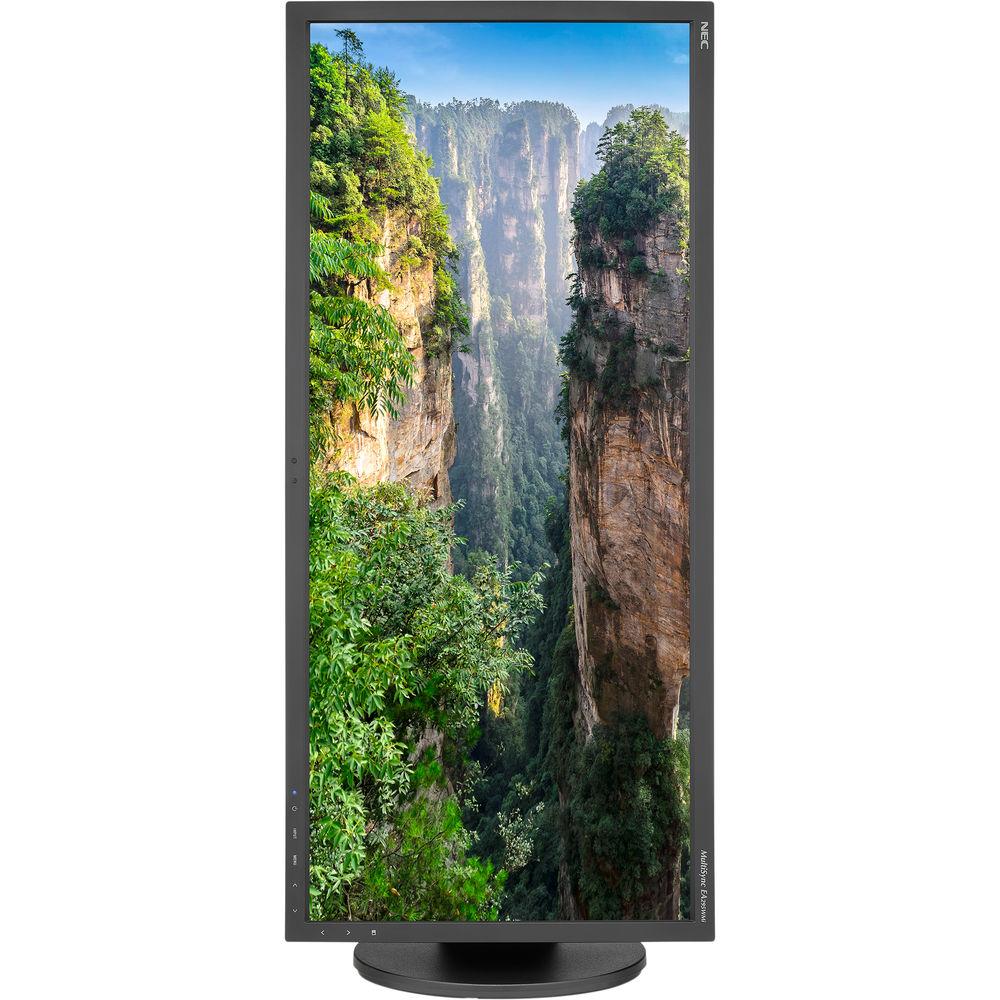

- Pivot

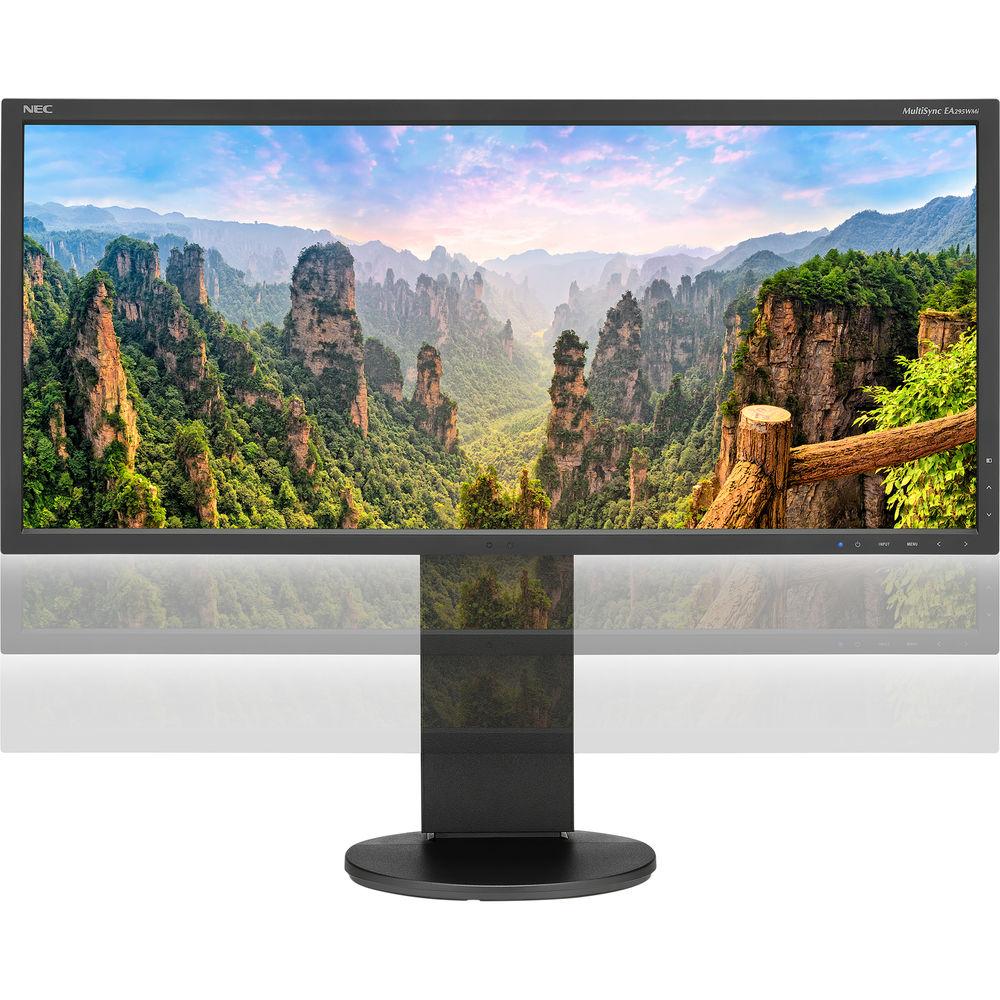

- Height-adjustable stand
- ControlSync
- Customize Setting
- Integrated speakers
- USB 3.0 hub with DisplaySync Pro
- LED backlight
- Auto brightness with ambient light sensor
- Human sensor
- ECO Mode
- Carbon footprint meter
- Resettable cost meter
- Carrying handle
- Rapid Response
- XtraView
- Hot Key

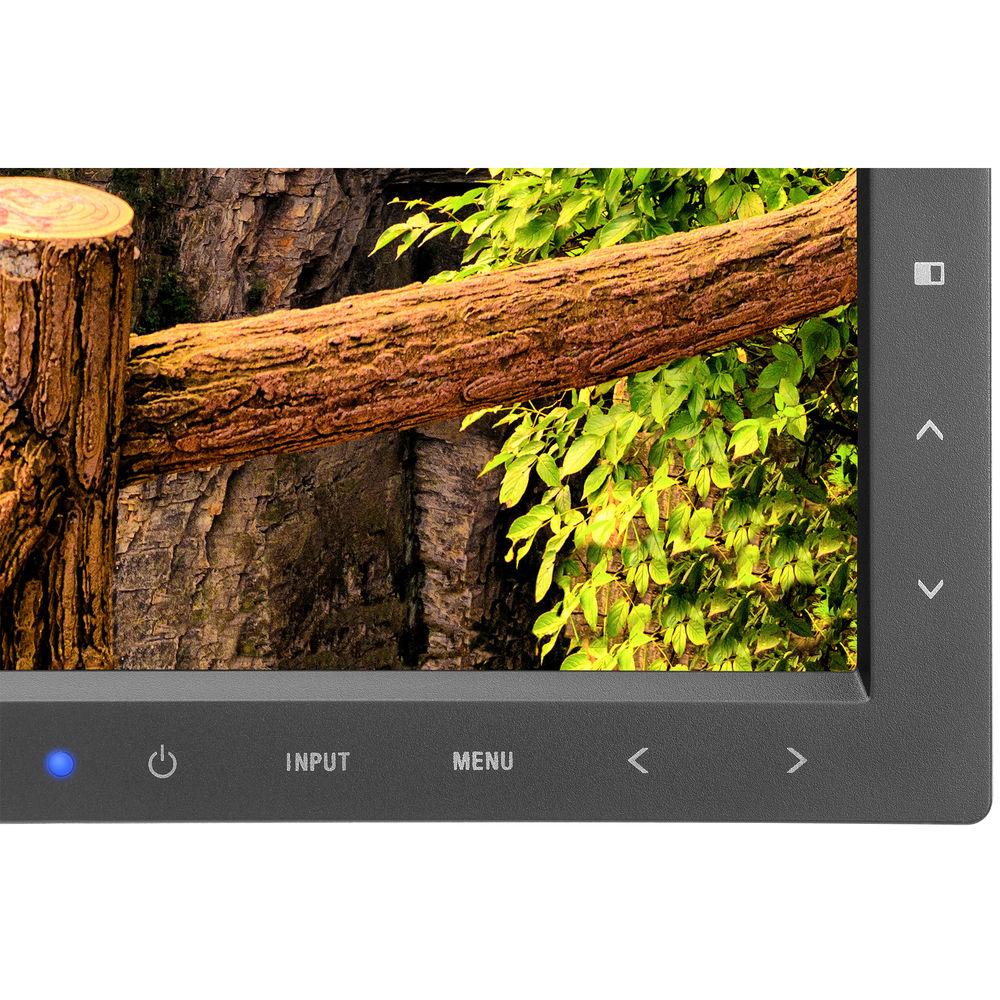

- Touch OSD controls
- OSD Lock Out
- Cable management
- NaViSet Administrator 2.0 software
- VESA mount
- HDCP
- DDC/CI
- Plug-and-Play (VESA DDC2B)
- VESA DPMS power management
- Uniformity correction
- Digital controls
- ISO 9241-307 Class I
- DICOM SIM
- Low Blue Light mode
- Flicker Free
UPC: 805736066333 In the Box NEC EA295WMI-BK 29" 21:9 Ultrawide IPS Monitor Power Cable DisplayPort Cable USB 3.0 Cable ControlSync Cable Limited 3-Year Warranty User Manual PDF 5.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EA295WMI-BK 29" 21:9 Ultrawide IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC Ultrawide EA295WMI-BK Specs | | | Size | 29" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1080 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 97 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 118 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.26 x 0.26 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
2 x HDMI Input
1 x VGA Input
2 x USB Type-A (USB 3.1 Gen 2) Input
3 x USB Type-A (USB 3.1 Gen 2) Output | | HDCP Support | Yes | | Built-In Speakers | Yes | | | | Power Consumption | 34 W (Typical)
0.3 W (Standby) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 27.8 x 21.3 x 9.1" / 70.6 x 54.1 x 23.1 cm (With Stand)
27.8 x 12.7 x 2.7" / 70.6 x 32.3 x 6.9 cm (Without Stand) | | Weight | 21.2 lb / 9.62 kg (With Stand)
14.6 lb / 6.62 kg (Without Stand) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 31.0 x 17.0 x 9.0" |
