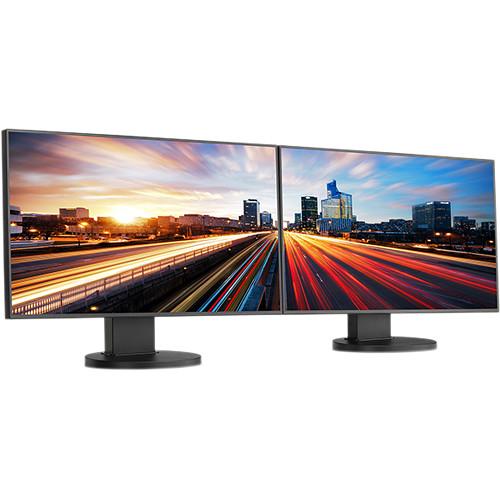

User Manual for NEC EX241UN-BK-SV 24" 16:9 IPS Monitor with SpectraViewII Click to enlarge the picture
Contents of the user manual for the NEC EX241UN-BK-SV 24" 16:9 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EX241UN-BK-SV 24" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - MultiSync EX241UN | NEC Display Solutions
With a reduced size bezel and slim design, the EX241UN-BK-SV 24" 16:9 IPS Monitor from NEC is designed to take up less space and operate using less power, all while offering a high quality Full HD picture. With a 1920 x 1080 resolution, 1,000:1 contrast ratio, and 6 ms response time, this widescreen display offers a dynamic picture quality complete with reduced ghosting when viewing fast moving videos.

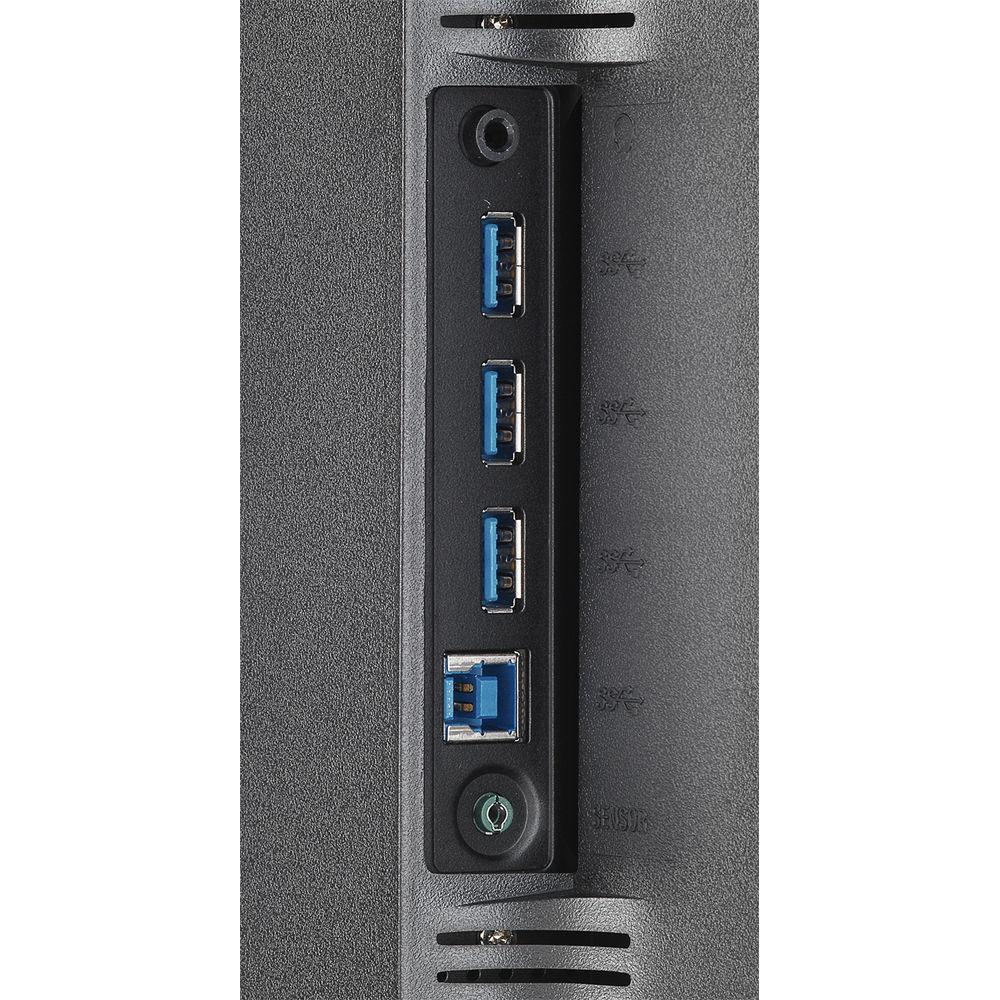

Setup and configuration of the EX241UN-BK-SV 24" monitor is simple as it comes equipped with DisplayPort, HDMI, DVI-D, and VGA inputs as well as a three port USB 3.0 hub. Once configured the display offers 178° horizontal and vertical viewing angles and the monitor can be tilted, swiveled, and pivoted into place to ensure maximum viewing comfort. NEC has even included dual built-in speakers with the EX241UN-BK-SV to offer a complete multimedia experience.
Also included with the EX241UN-BK-SV monitor is the SpectraViewII Color Calibration bundle which includes a copy of NEC's SpectraViewII software and a Datacolor Spyder Calibration sensor. - LED backlight technology provides for industry-leading low power consumption and less hazardous materials

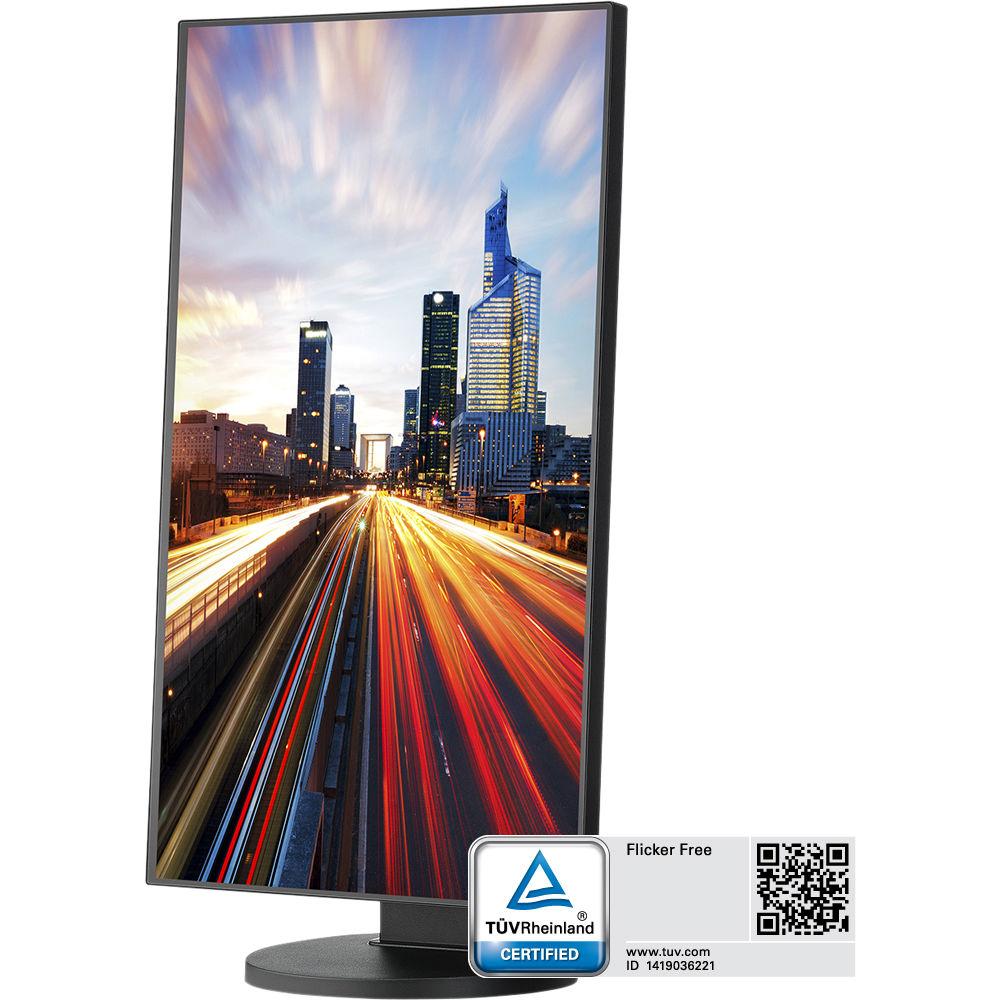

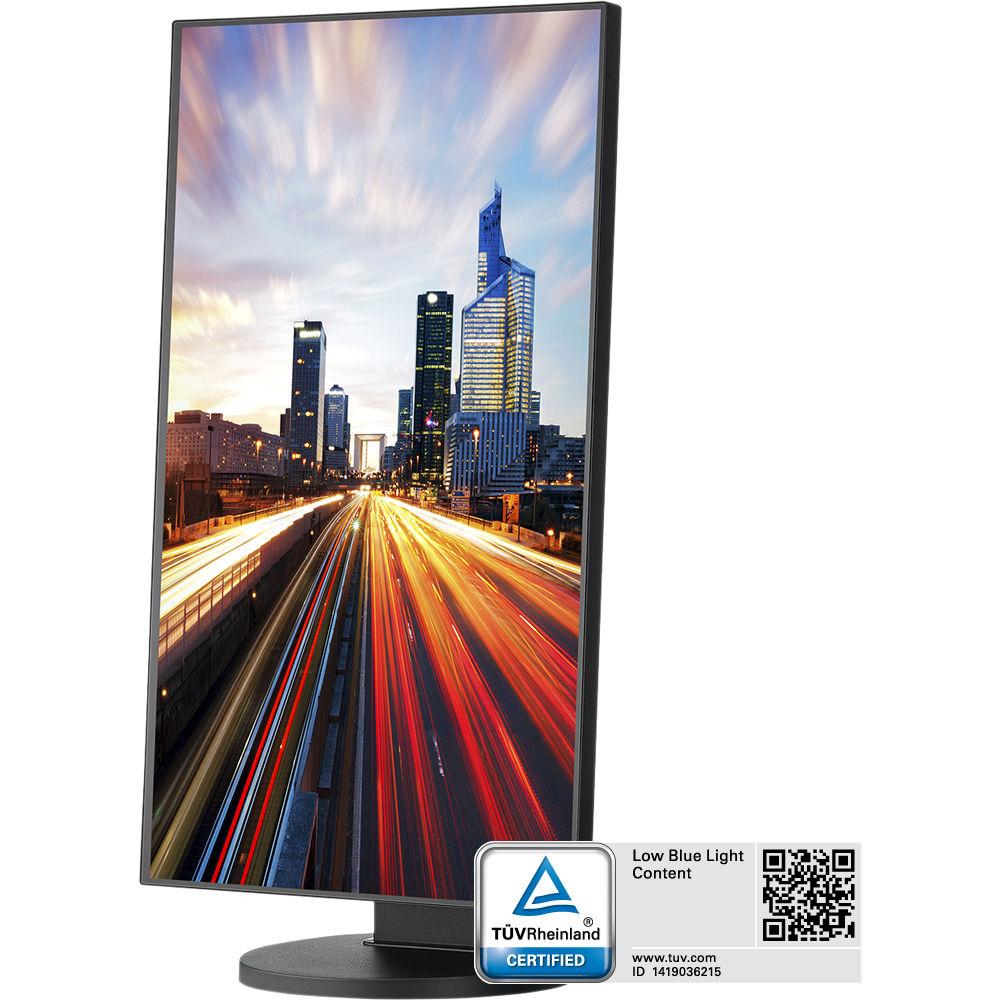

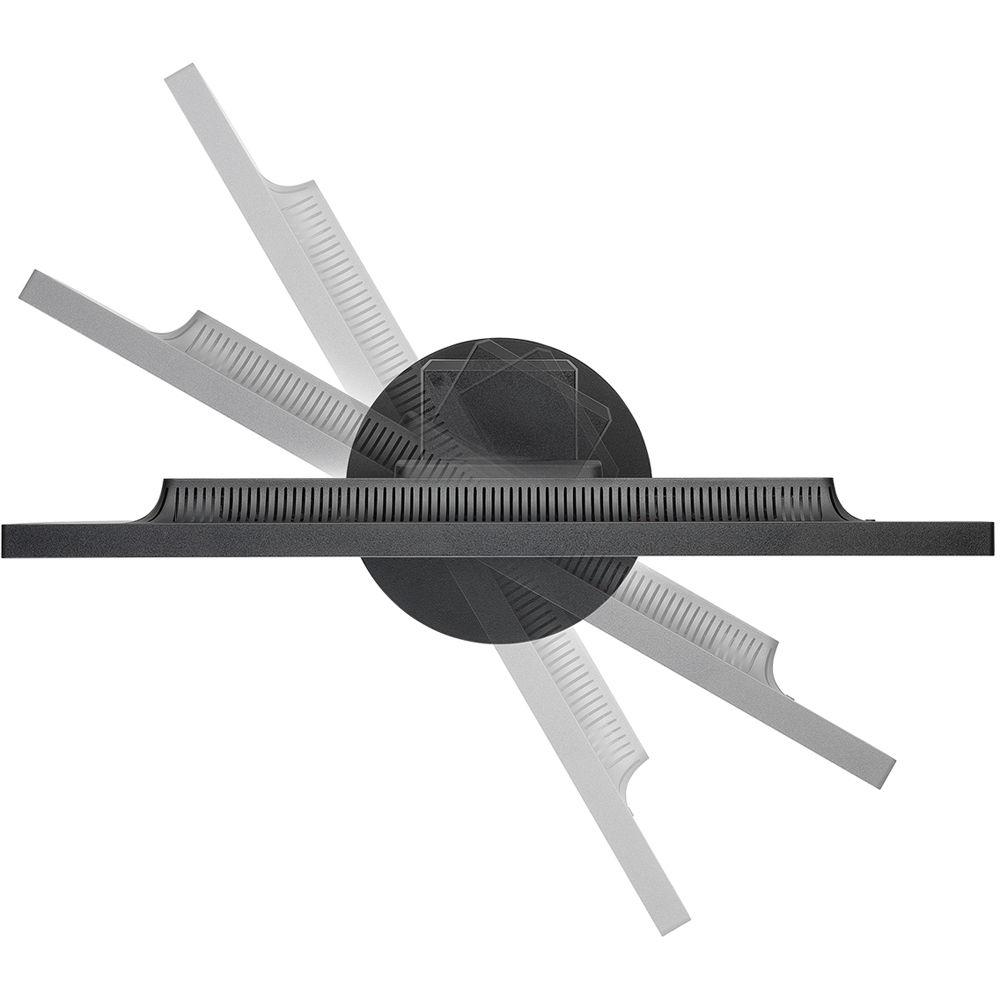

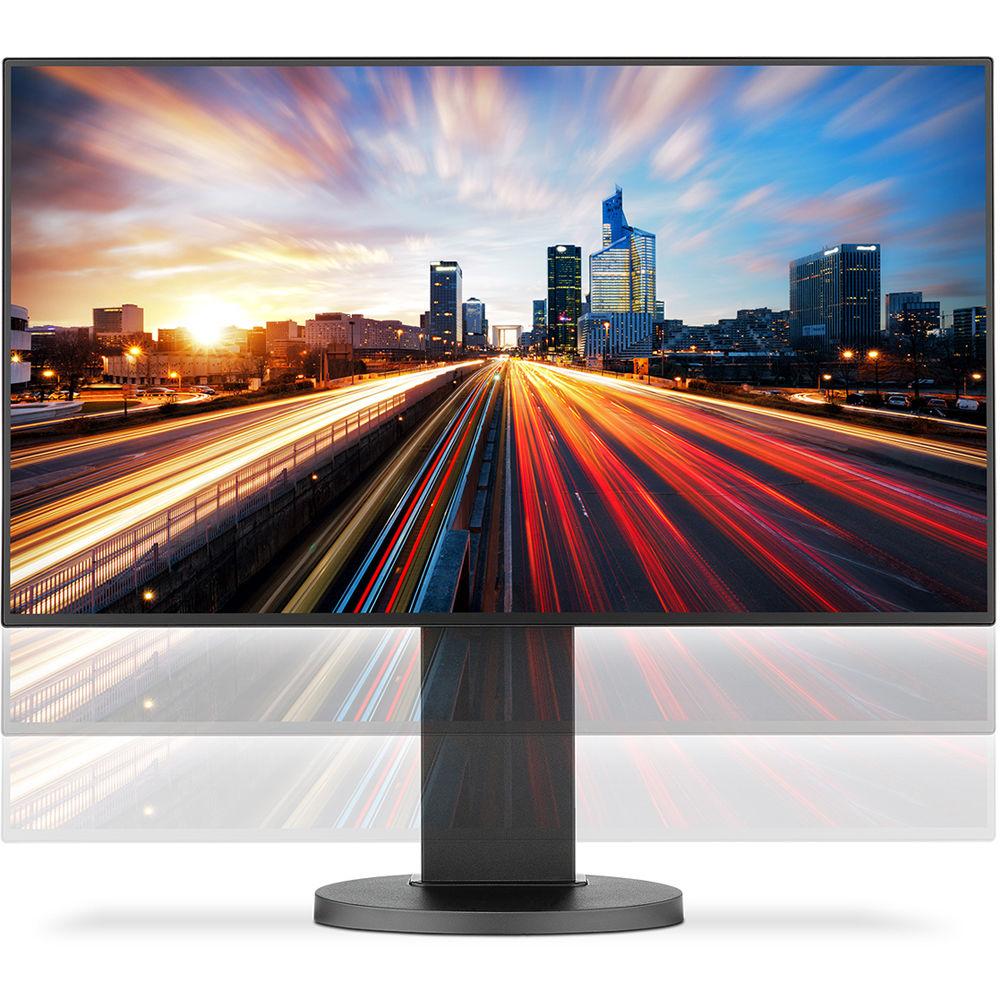

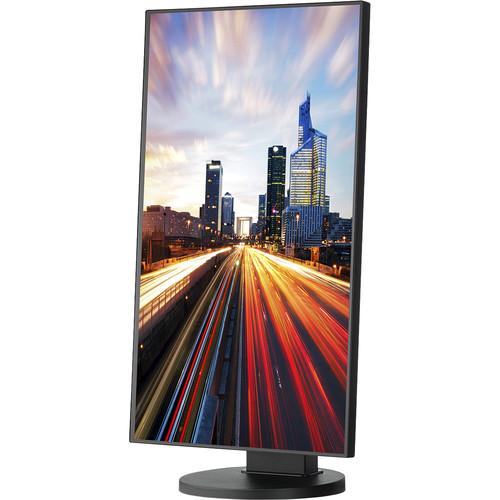

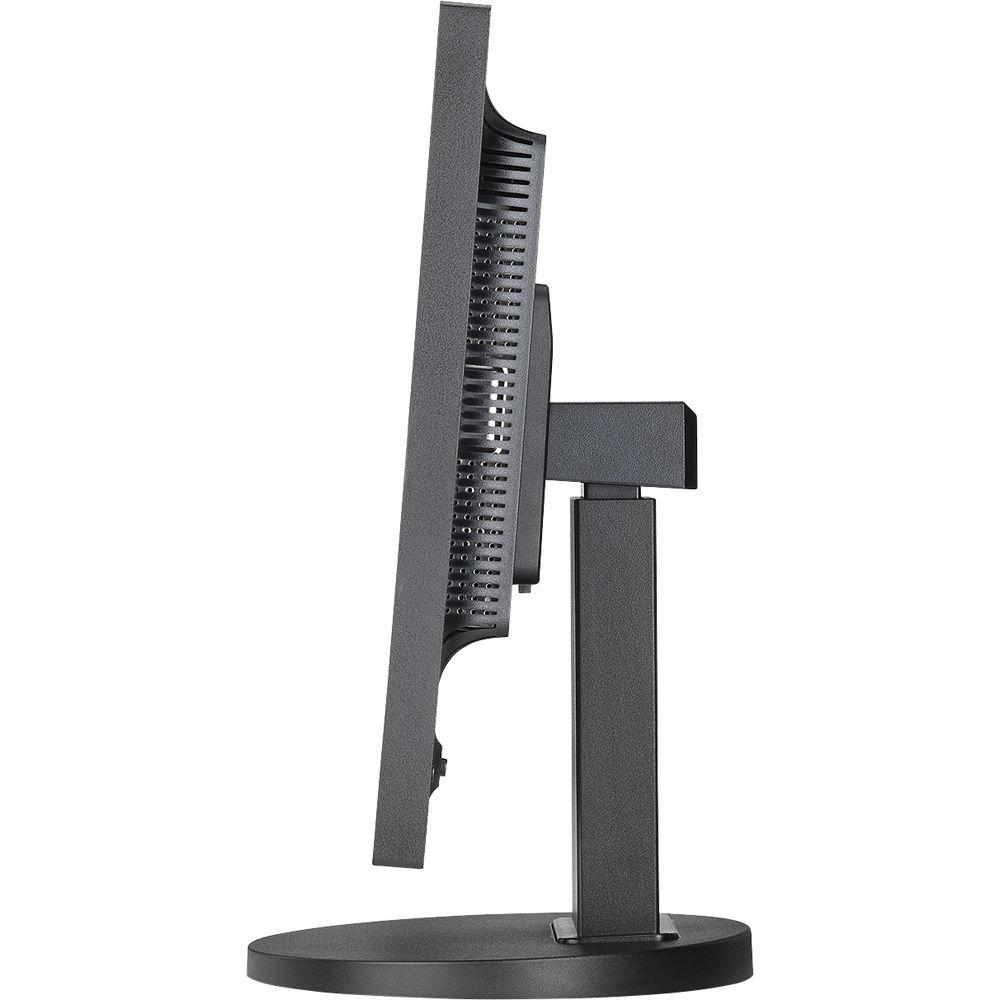

- Height-adjust, pivot, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences

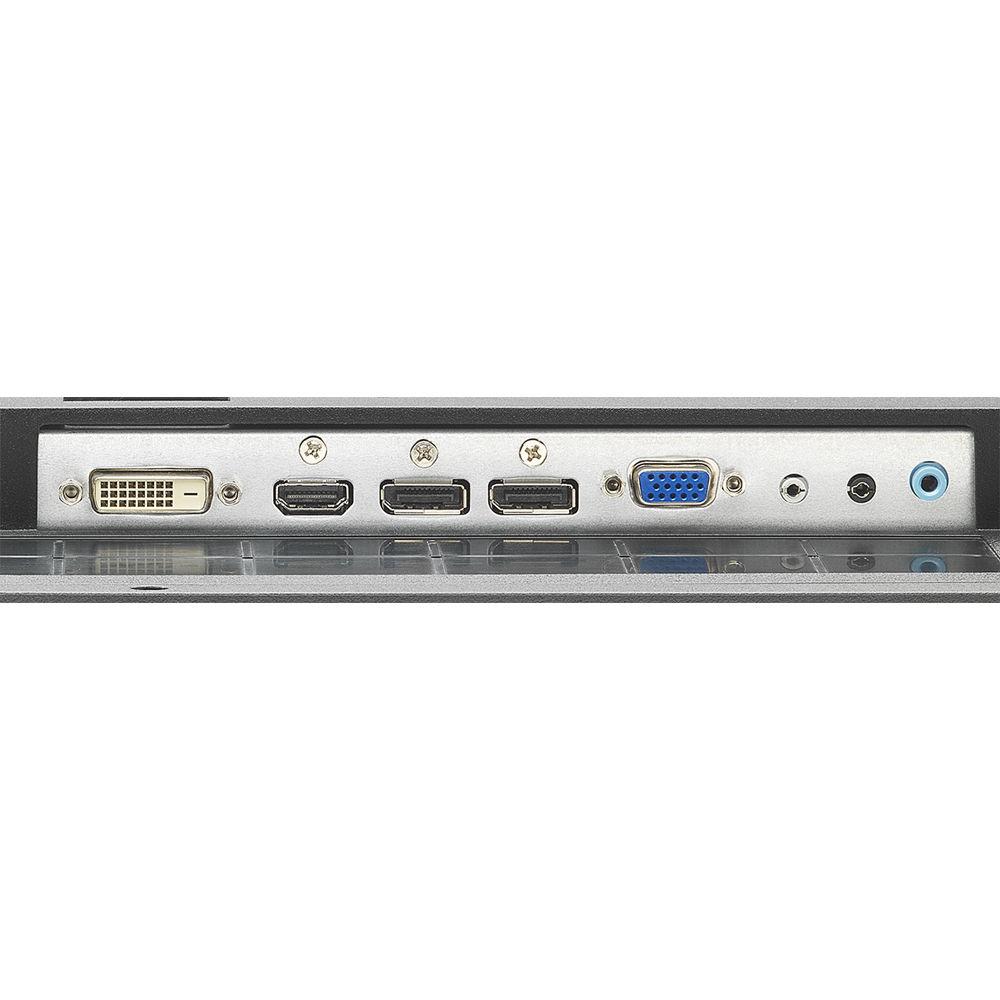

- Full connectivity, including DisplayPort, HDMI, DVI-D, and VGA inputs
- 5-way control button with on screen display makes display adjustments simple
- Optional human and ambient light sensors (KT-SS1) automatically detect your work conditions to determine the proper display brightness, conserving power
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- ENERGY STAR 7.0 and TCO 7.0
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Includes the SVII-EA-KIT with SpectraViewII calibration software
UPC: 805736064001 In the Box NEC EX241UN-BK-SV 24" 16:9 IPS Monitor with SpectraViewII Basic Display Calibration Bundle for Select MultiSync EA Series Monitors ycxvcqvccxtccasdxcucruefubcafs Power Cord DisplayPort Cable USB Cable ControlSync Cable Limited 3-Year Warranty User Manual PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EX241UN-BK-SV 24" 16:9 IPS Monitor with SpectraViewII in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EX241UN Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2 x 0.2 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x DisplayPort 1.2 Output
1 x HDMI
1 x VGA | | | | Power Consumption | 0.3 W (Standby)

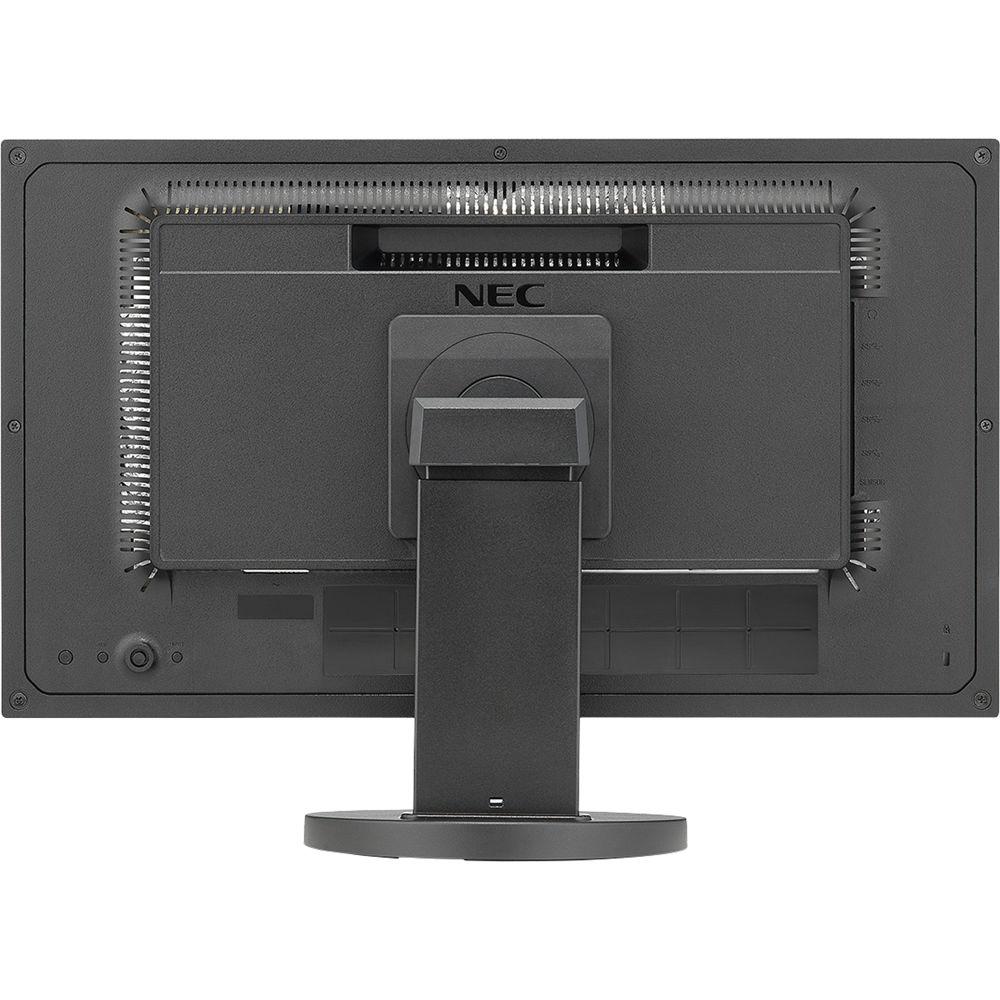

19 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 3.9" / 9.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.2 x 14.6 x 8.0" / 53.8 x 37.0 x 20.4 mm (With Stand)
21.2 x 12.2 x 1.7" / 53.8 x 31.0 x 4.4 mm (Without Stand) | | Weight | 12.3 lb / 5.6 kg (With Stand)
8.2 lb / 3.7 kg (Without Stand) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 26.0 x 16.3 x 7.2" |
