User Manual for NEC EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch Monitor Click to enlarge the picture
Contents of the user manual for the NEC EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

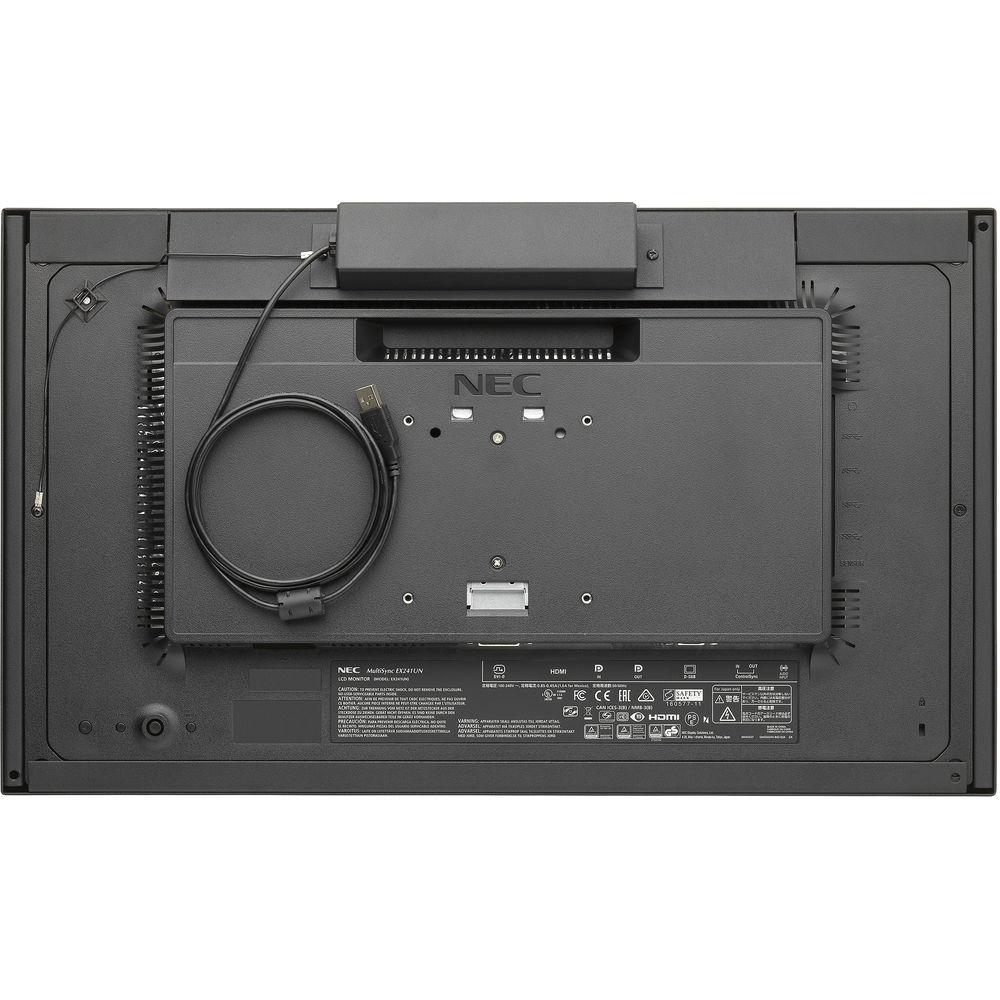

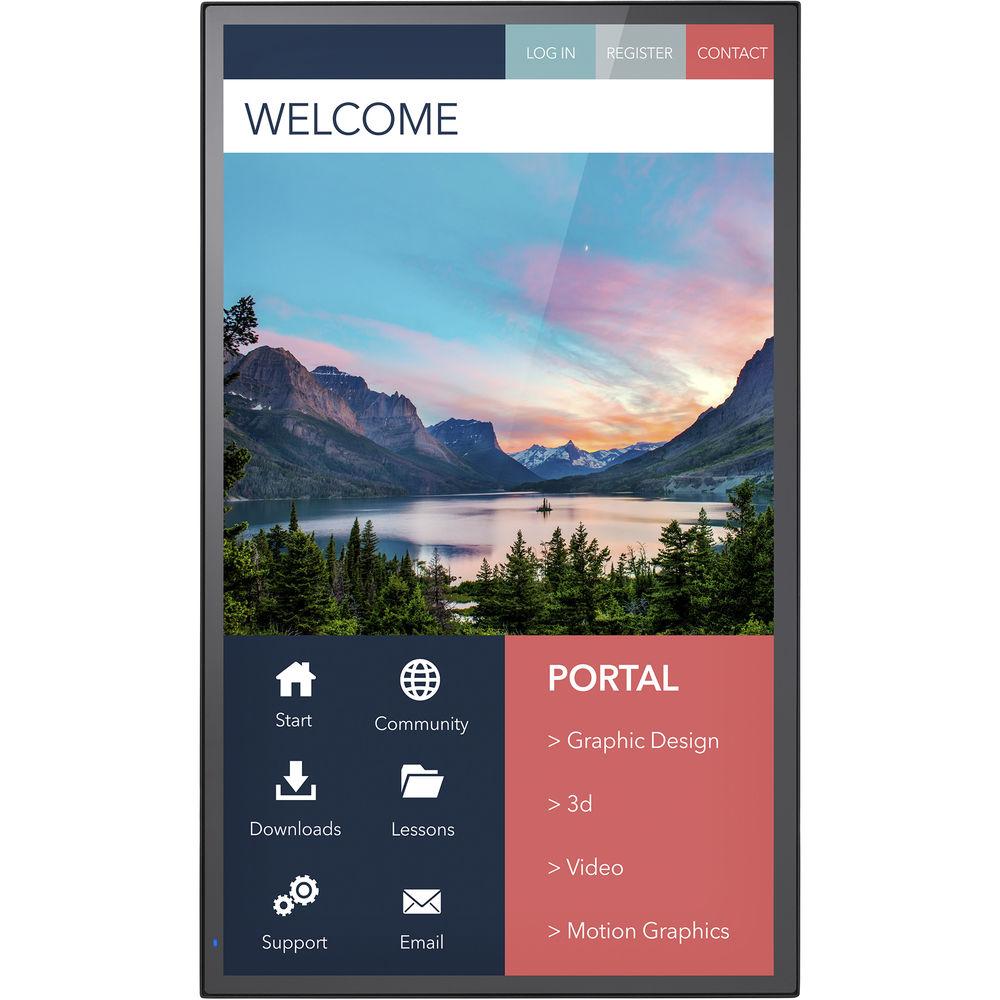

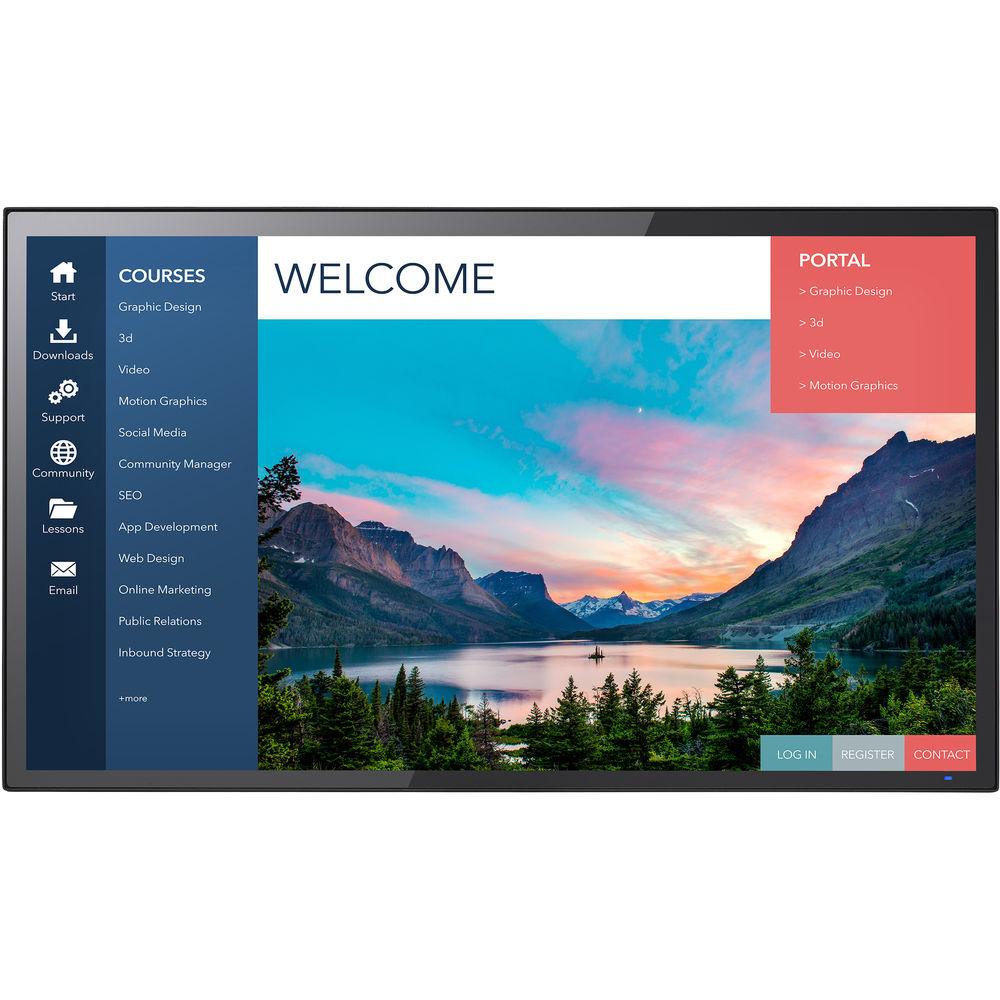

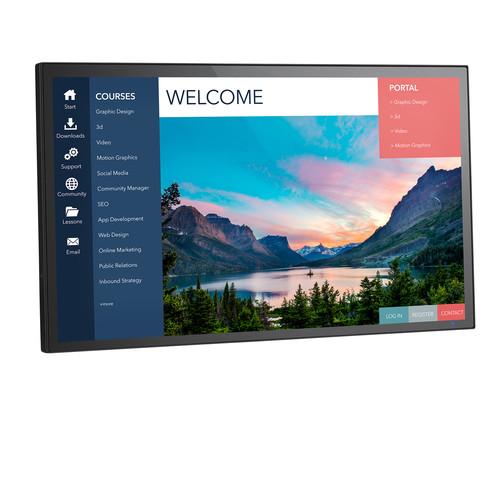

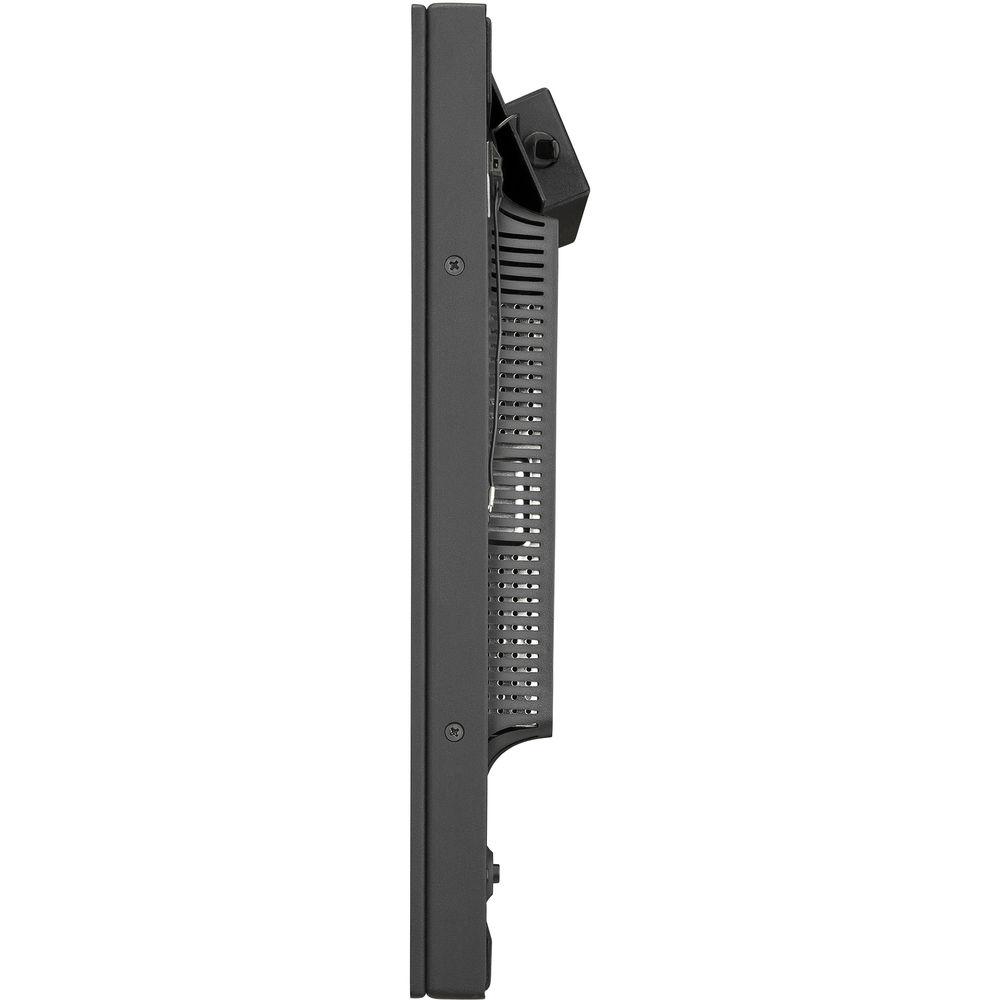

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch Monitor from NEC is the touch-enabled version of their MultiSync EX241UN and features 10-point multi-touch technology. It has been built with a 5-way control button on the back with on-screen display indicators for the user-friendly adjustment of key settings for up to 25 EX241UN displays, which is useful for controlling kiosks and other installed locations. Upon establishing one unit as the master, users are able to control many performance attributes of their multi-monitor setup through a single display unit. This control is exercised using integrated ControlSync ports.
Specs-wise, the EX241UN-PT-H is equipped with a native resolution of 1920 x 1080 with a 60 Hz refresh rate, Advanced High Performance In-Plane Switching (AH-IPS) technology, support for 16.7 million colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, a dynamic contrast ratio of 5000:1, 250 cd/m2 brightness, 93 pixels per inch, a 6 ms (GtG) response time, and 100% sRGB and 72% NTSC color gamut coverage. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one DisplayPort 1.2 output, one DisplayPort 1.2 input, one HDMI input, one 24-pin DVI-D input, and one 15-pin VGA input. For connecting this display to your host system, there is one USB 3.1 Gen 1 Type-B port, and additional peripherals can be connected using the three USB 3.1 Gen 1 Type-A ports. Audio can be output using dual 1W speakers, and there is also a 3.5mm audio input and a 3.5mm headphone output. Compatible operating systems include Windows, macOS, Chrome, and Linux. General Features - TileComp
- Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix on NEC displays (some data on the screen will be lost in the area of the bezels).
- XtraView+
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left, and right) with less color shift and minimal glare, reflection, or distortion.
- TileMatrix
- Allows users to customize a video wall configuration using advanced on-screen display (OSD) controls.
- Ambix4
- Allows up to four inputs (DisplayPort, VGA, and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
- Kensington Lock
- Enables a security cable to be attached to the projector.
Additional Features - 1/8" Clear Tempered Cover Glass
- 3-port USB 3.0 Type-A hub
- Auto brightness with optional ambient light and human sensor (KT-SS1)
- 100 x 100mm VESA mounting
- Back side 5 way OSD control button
- Dynamic Visual Mode (Standard, Text, Movie, Gaming, Photo, and Dynamic)
- NaViSet Administrator 2 software compatible
- Plug-and-Play (VESA DDC2B)
- VESA DPMS power management
- Compatible with Windows, Google Chrome, Android, macOS, and Linux
In the Box NEC EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch Monitor Power Cord DisplayPort 1.2 Cable USB Type-B to Type-A Cable ControlSync Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EX241UN-PT-H 23.8" 16:9 IPS Multi-Touch Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EX241UN Specs | | | Size | 23.8" | | Screen Area | 20.7 x 11.7" / 525.78 x 297.18 mm | | Panel Type | IPS-Type LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | HDR Compatibility | None | | Color Gamut | 100% sRGB
72% NTSC | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.274 x 0.274 mm | | | | Connectivity | 1 x DisplayPort 1.2 Output
1 x DisplayPort 1.2 Input
1 x HDMI Input
1 x DVI-D Input
1 x VGA Input
1 x 3.5 mm Output
1 x 3.5 mm Input
3 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 19 W (Typical)
0.3 W (Eco) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.85 to 0.45 A | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Tilt Adjustment | 0 to 30° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 22.1 x 13.0 x 2.1" / 561.3 x 330.2 x 53.3 mm (Without Stand) | | Weight | 7.85 lb / 3.56 kg (Without Stand) |
