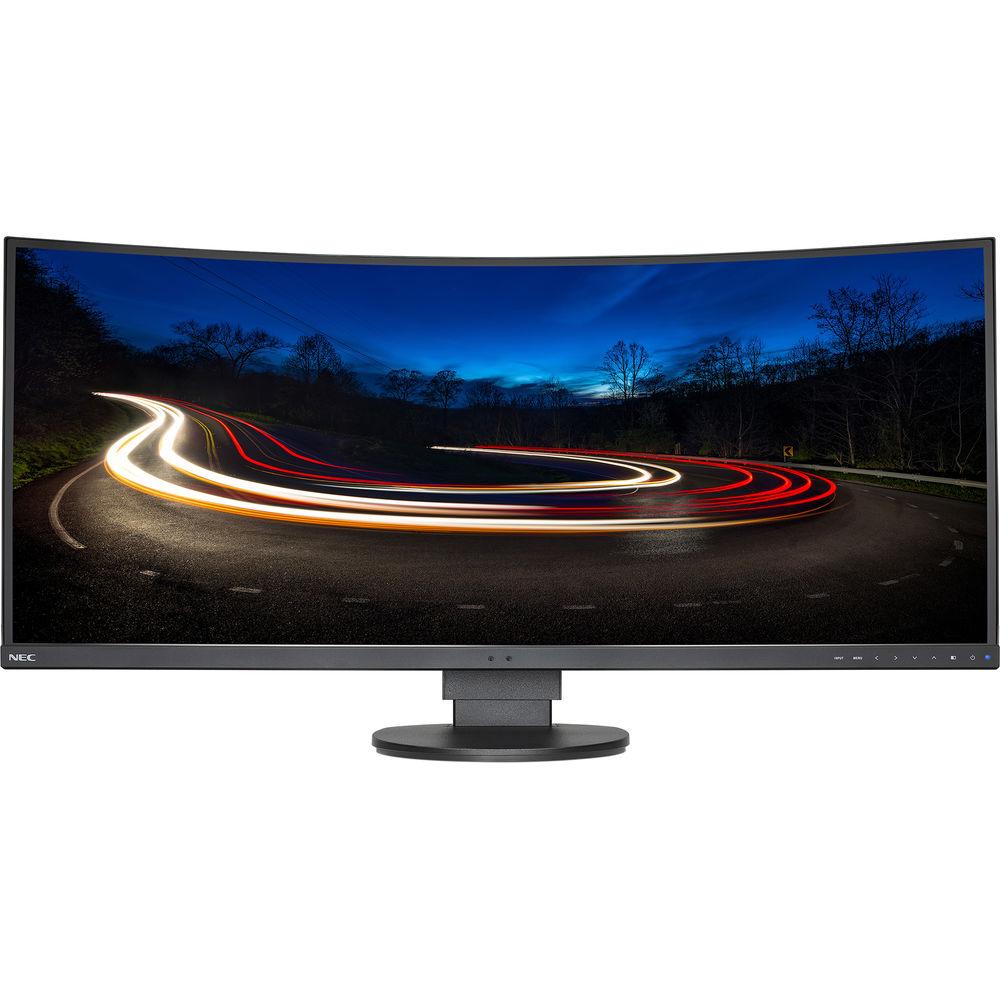

User Manual for NEC EX341R-BK-SV 34" 21:9 Ultrawide Curved LCD Monitor with SpectraView Color Calibration Kit Click to enlarge the picture
Contents of the user manual for the NEC EX341R-BK-SV 34" 21:9 Ultrawide Curved
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC EX341R-BK-SV 34" 21:9 Ultrawide Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description New NEC Curved Desktop Display Read More - EX341R Curved Desktop Monitor | NEC Display Solutions

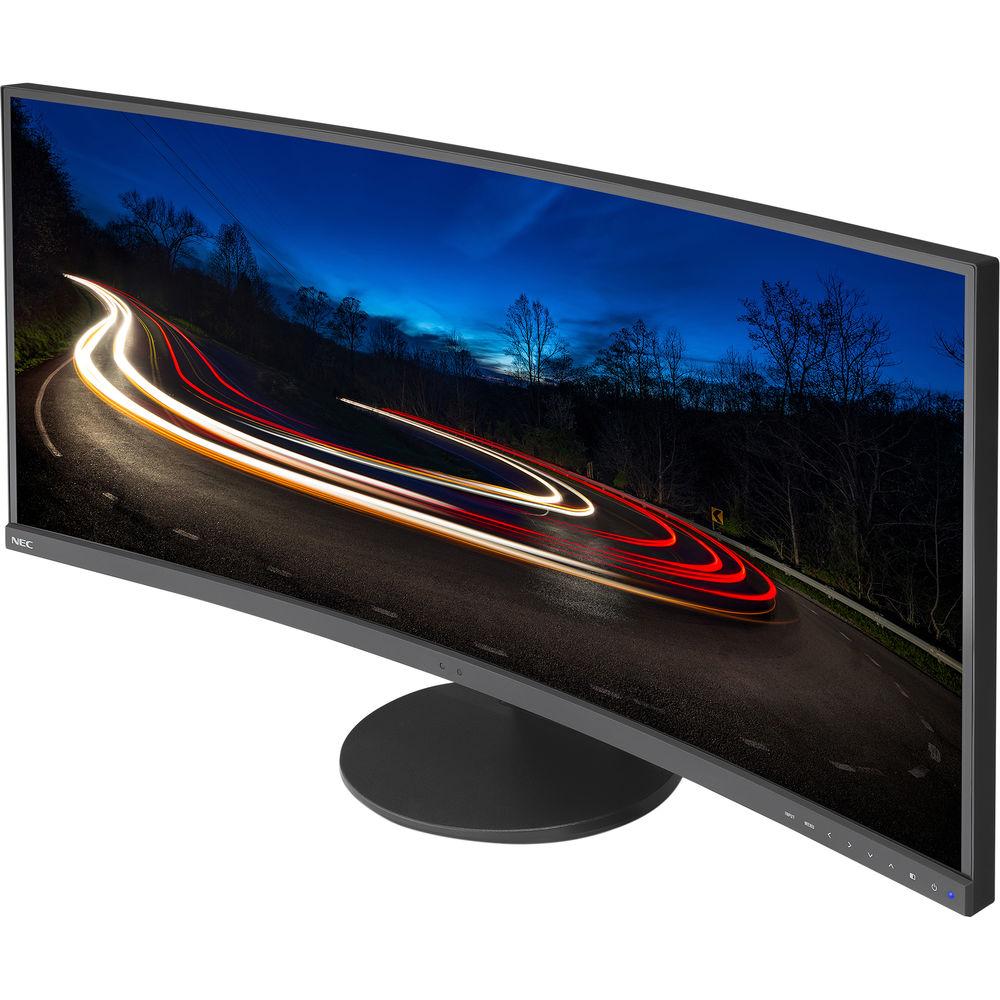

With an 1800R curvature, the EX341R-BK-SV 34" 21:9 Ultrawide Curved LCD Monitor from NEC offers an immersive viewing experience as the display is designed to mirror the curvature of the human eye. In addition to the curved display, this monitor features an ultrawide 21:9 aspect ratio along with a 3440 x 1440 resolution, a 3000:1 contrast ratio, a 5 ms response time, and a brightness rating of 290 cd/m².
Setup and configuration of the EX341R-BK-SV monitor is simple as it comes equipped with DisplayPort 1.2, HDMI 2.0, and HDMI 1.4 inputs to plug a variety of devices directly into this monitor. This NEC monitor even comes equipped with a DisplayPort 1.2 output connector to integrate into a daisy chain configuration.
Once configured, the LED backlit display is ergonomically pleasing as it can be tilted, swiveled, and the height can be adjusted to ensure maximum viewing comfort. The monitor can even be mounted to the wall using a VESA compatible mount to take full advantage of its 178° horizontal and vertical viewing angles. Additionally, built-in ambient light sensors help adjust the brightness of the display to match surrounding lighting conditions for increased energy savings. - Includes the SpectraView II calibration software and the SVII-EA-KIT calibration kit
- 1800R curved SVA panel creates an immersive desktop experience
- LED backlight technology provides for low power consumption and less hazardous materials

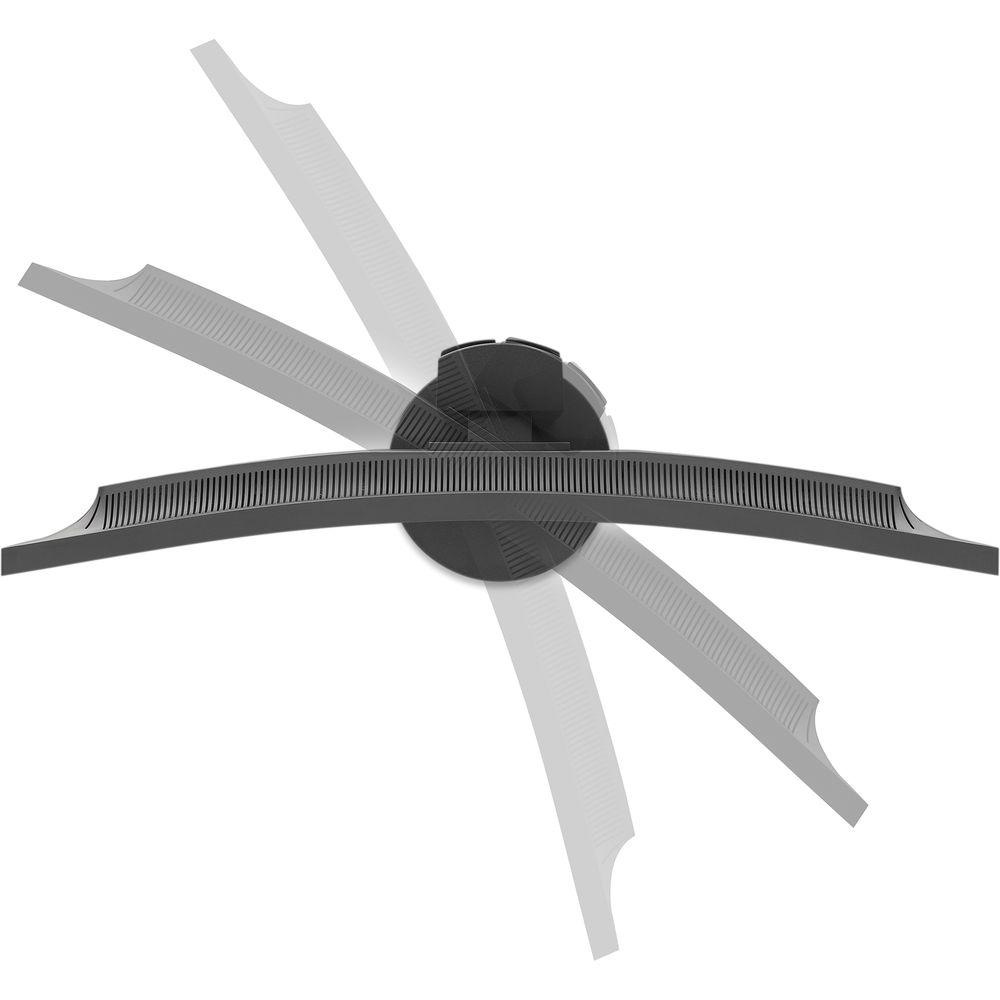

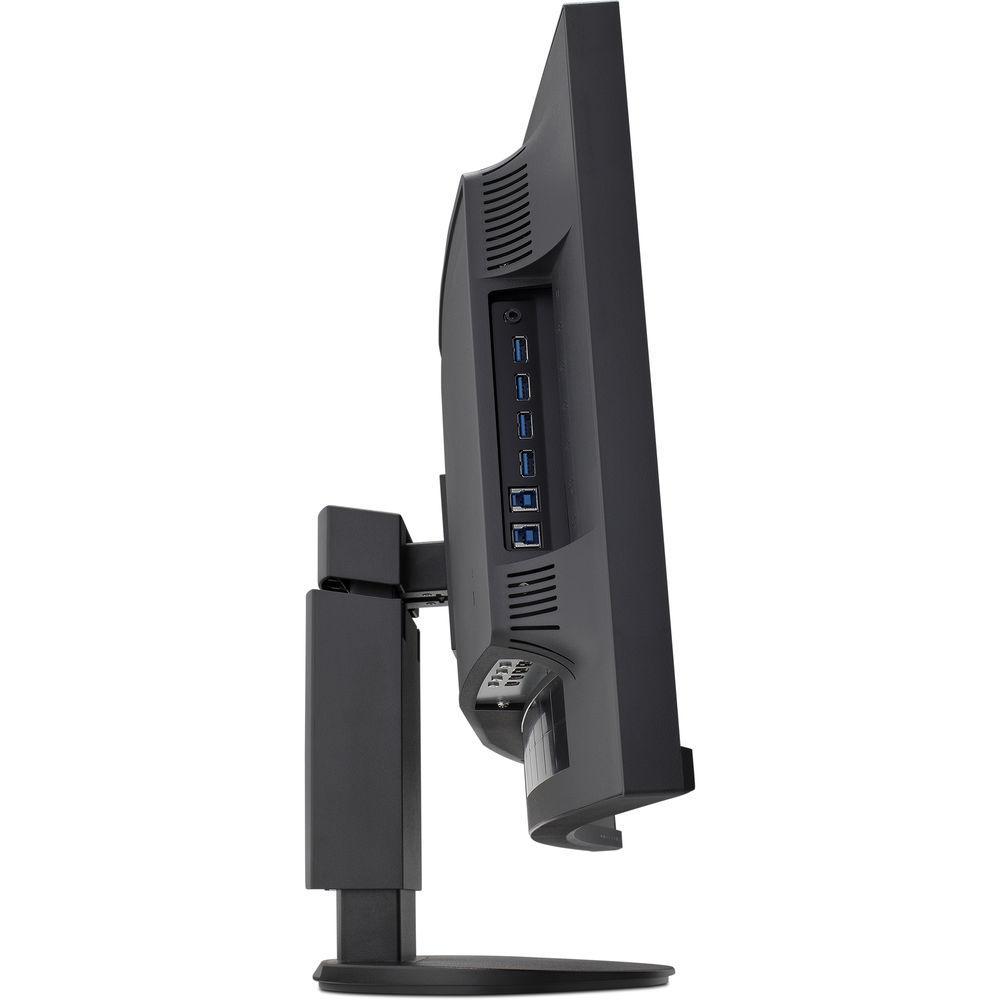

- Height-adjust, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort 1.2, HDMI 2.0, and 1.4 inputs

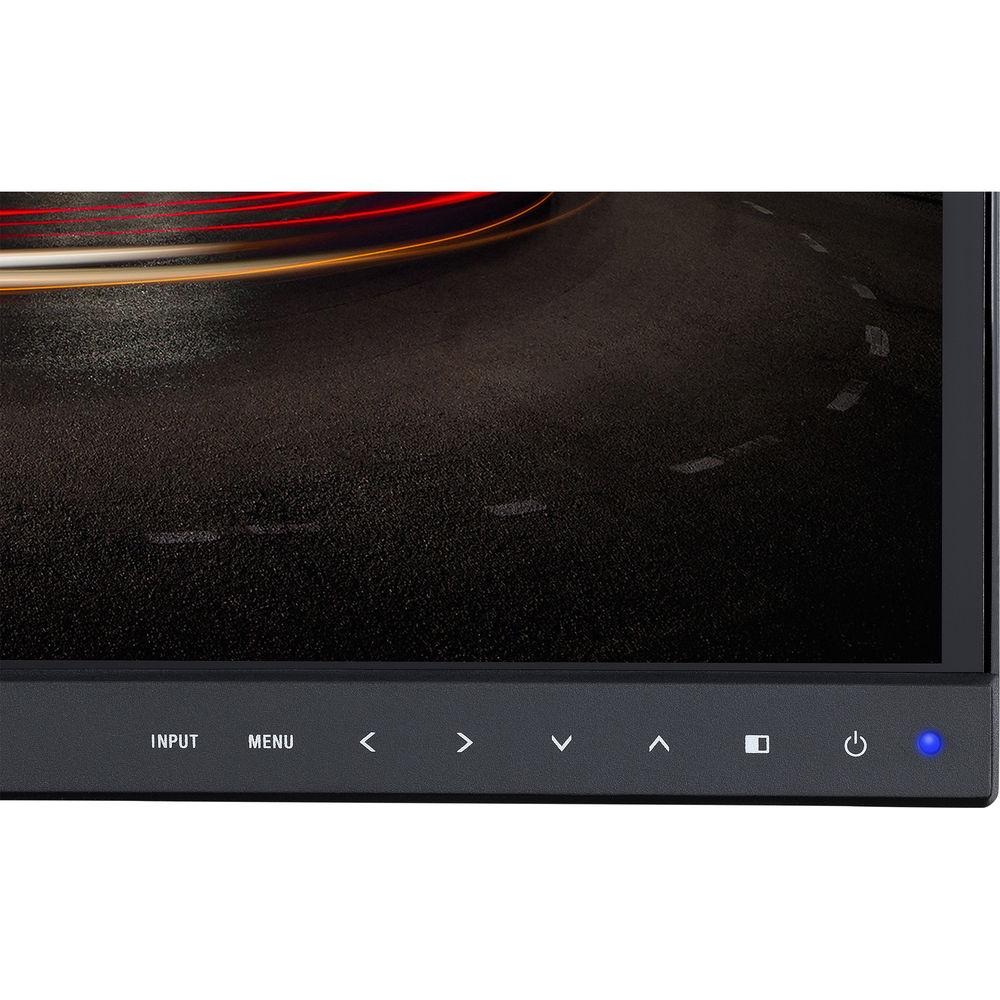

- Touch controls for the on-screen display makes display adjustments simple
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, conserving power
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- Included NaViSet Administrator 2 free software solution greatly eases administration and management of larger display device installations

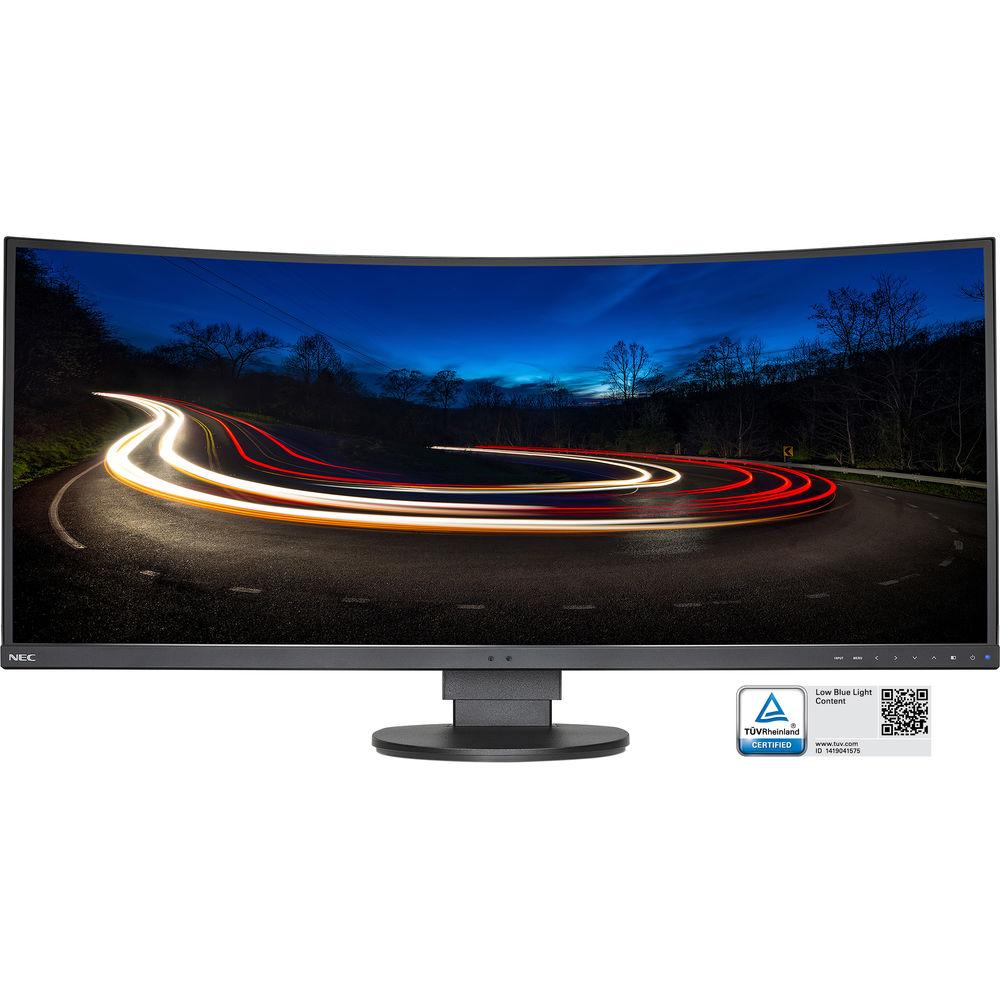

- Built-in low blue light filter technology and flicker-free certified
- NaViSet Administrator 2 Software
- • Remotely adjust almost any parameter or setting found within the On Screen Display menu
• NaViSet Graphical User Interface
• Click here for a larger view
• Gather valuable information pertaining to a Windows computer such as model name, OS version, memory, and CPU (Windows version only)
• Any information that is gathered about connected devices is stored in a local database and can be exported for later review
• Automatically issue email alerts if a diagnostic error is reported by a device or a setting has been changed
• Schedule periodic polling for singular or multiple devices at specific times or on demand
• Sort connected devices into groups to help organize collections of display and computers
• Assign an electronic Asset Tag to a device to provide a secure method of tracking a product over a network - Additional Features
- • Tilt
• Swivel
• Height-adjustable stand
• ControlSync
• Customize Setting
• Integrated speakers

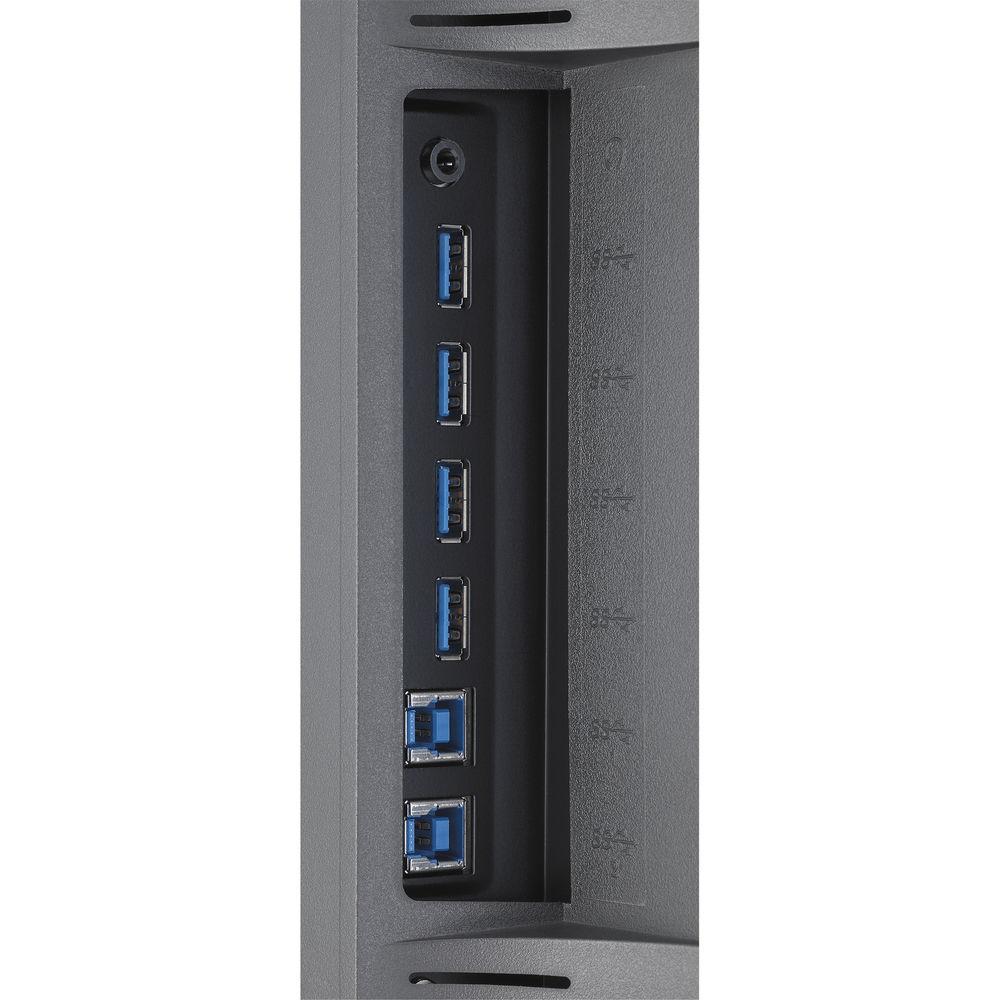

• 4-port USB 3.0 hub with DisplaySync Pro
• LED backlit
• Auto brightness with ambient light and human sensor
• ECO Mode
• Carbon footprint meter
• Resettable cost meter

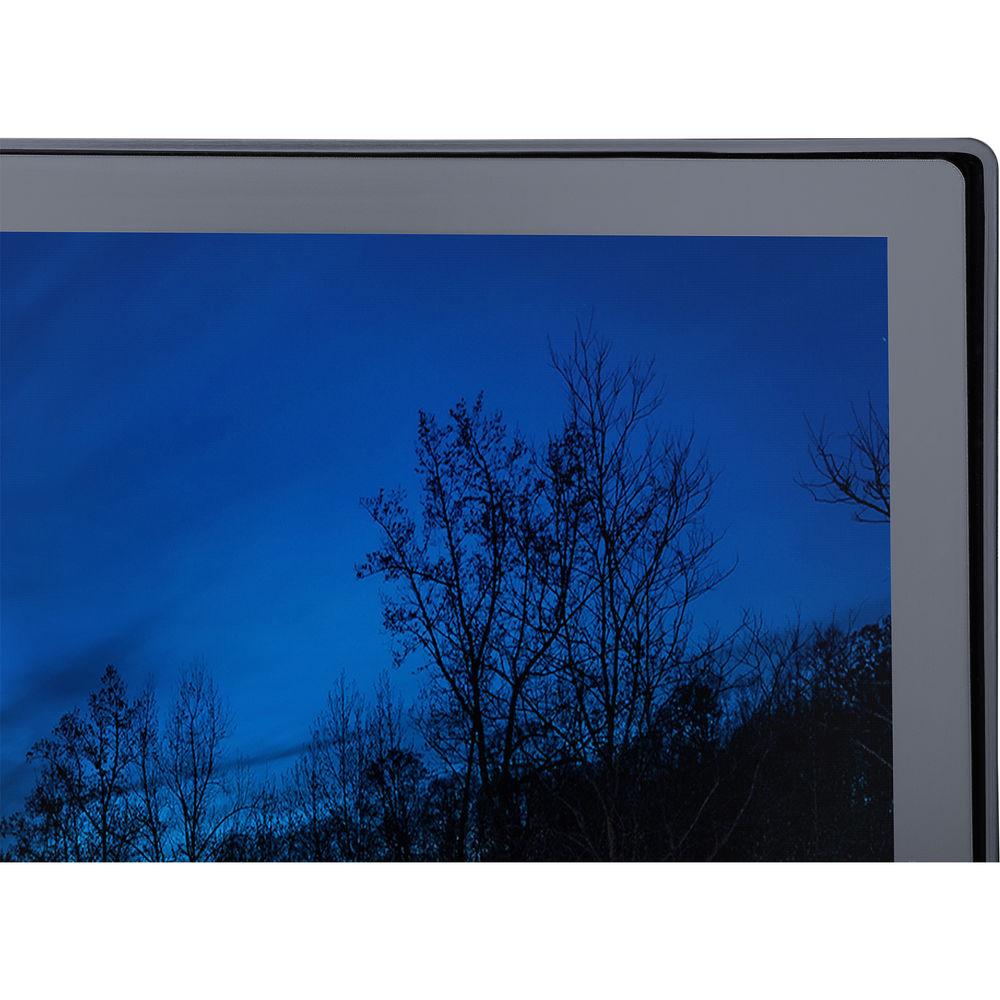

• Ultra-narrow bezel
• Carrying handle
• Rapid Response
• Ambix
• XtraView
• Hot Key
• Touch OSD control buttons
• OSD Lock Out
• Cable management
• Dynamic Visual Mode (Standard, Text, Movie, Gaming, Photo, Dynamic)
• NaViSet software
• VESA mount
• HDCP
• DDC/CI
• Plug and Play (VESA DDC2B)
• VESA DPMS power management
• AccuColor color control
• Digital smoothing
• Digital controls

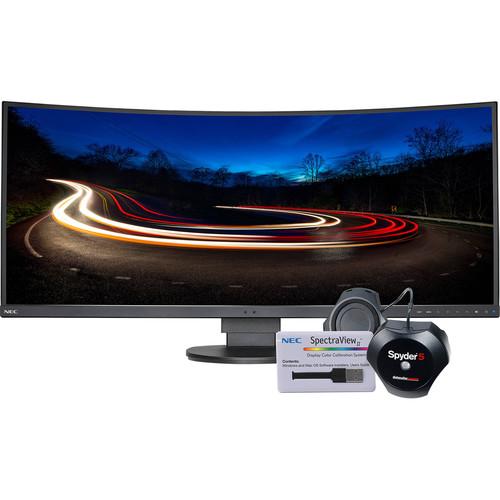

• ISO 9241-307 Class I UPC: 805736063943 In the Box NEC EX341R-BK-SV 34" 21:9 Ultrawide Curved LCD Monitor with SpectraView Color Calibration Kit SpectraView II Software USB Spyder5 Color Calibration Sensor Power Cord DisplayPort Cable USB Cable ControlSync Cable Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 User Manual PDF 3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC EX341R-BK-SV 34" 21:9 Ultrawide Curved LCD Monitor with SpectraView Color Calibration Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EX341R-BK-SV Specs | | | Size | 34" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 110 ppi | | Maximum Brightness | 290 cd/m2 | | Contrast Ratio | 3000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 95 kHz | | Vertical Frequency | 29.5 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 77.5% NTSC
99.5% sRGB | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.23 x 0.23 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x DisplayPort 1.2 Output
1 x HDMI 1.4
1 x HDMI 2.0 | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.3 W (Standby)
62 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 31.8 x 16.5 x 9.1" / 80.8 x 41.9 x 23.0 mm (With Stand)
31.8 x 14.3 x 4.1" / 80.8 x 36.4 x 10.5 mm (Without Stand) | | Weight | 23.6 lb / 10.7 kg
16.8 lb / 7.6 kg (Without Stand) | | | | Package Weight | 34.3 lb | | Box Dimensions (LxWxH) | 37.0 x 22.0 x 12.5" |
