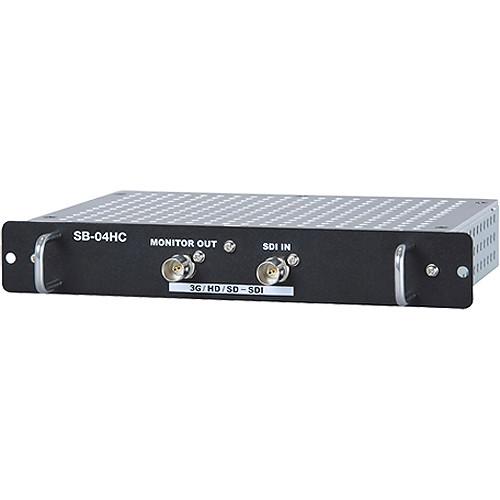

Product description The NEC Internal 3G/HD/SD-SDI Input Card allows for seamless integration within your NEC display or projector. The input card features OPS (Open Pluggable Specification), which increases flexibility for broadcast or digital signage applications. The card can help you achieve broadcast-grade video. The card provides 3G/HD/SD-SDI input and loop-through in order to daisy chain the signal to other displays or projectors. UPC: 805736039887 In the Box NEC Internal 3G/HD/SD-SDI Input Card Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC Internal 3G HD SD-SDI Input Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC SB-04HC Specs | Compatible Models | Flat-Panel Displays: NEC V-, P-, and X-Series LCD displays
Projectors: NEC NP-PX602WL-BK/PX602WL-WH/PX602UL-BK/PH602UL-WH, NP-PX700W/PX750U/PX800X, NP-PX700W2/PX750U2/PX800X2, NP-PX803UL-BK/PX803UL-WH, NP-PX1004UL-BK/PX1004UL-WH, NP-PH1000U/PH1400U, NP-PH1202HL, and NP-PH1202HL1 projectors | | Video Input | SD: SMPTE259M level-C via 1 x via BNC Connector
HD: SMPTE292M
3G: SMTPE424M
Video Processing: 24-bit, 4:4:4 | | Video Output | SD/HD-SDI: Active Looping Signal
Equalized and Relocked | | Audio Input Signal | SMPTE272M @ 270 Mb/s
SMPTE299M to 1485 Mb/s
2 stereo channels | | Sample Rate | 48 kHz | | Input Signal | 480i SD-SDI @ 60 Hz
576i SD-SDI @ 50 Hz
720p HD-SDI @ 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
1080i HD-SDI @ 50Hz, 60Hz
1080p HD-SDI @ 24Hz, 25Hz, 30Hz, sf24
1080i 3G-SDI @ 50Hz, 60Hz
1080p 3G-SDI @ 24Hz, 25Hz, 30Hz, sf24 1080i
HD-SDI @ 50Hz, 60Hz | | Output Signal | Digital Video: 1440 x 480 interlace DVI-D or HDMI @ 60 Hz
Number of Channels 1440 x 576 DVI-D or HDMI @ 50 Hz
720-line progressive DVI-D or HDMI @ same frame rate as input
1080-line interlace DVI-D or HDMI @ same frame rate as input
1080-line progressive DVI-D or HDMI @ same frame rate as input
1080-line interlace DVI-D or HDMI @ same frame rate as input
1080-line progressive DVI-D or HDMI @ same frame rate as input | | Operating Temperature | 32 to 149°F (0 to 65°C) | | Humidity | 20 to 80% | | Storage Temperature | 32 to 140°F (0 to 60°C) | | Approvals | FCC Part15 Class B | | Dimensions (W x H x D) | 7.9 x 5.7 x 1.2" (200.0 x 145.0 x 30.0 mm) | | Weight | 0.75 lb (0.34 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.9 x 7.9 x 2.0" |
