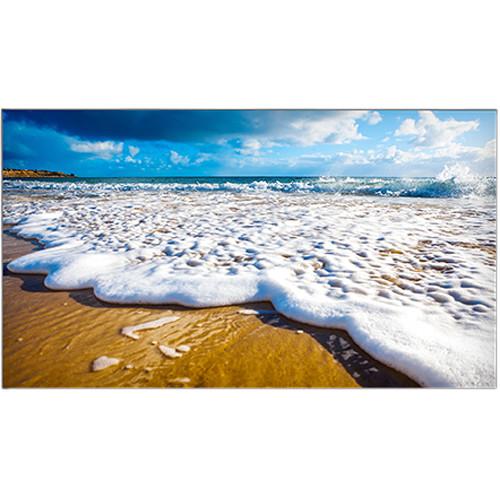

User Manual for NEC MultiSync 46" LCD Video Wall Display Click to enlarge the picture
Contents of the user manual for the NEC MultiSync 46" LCD Video Wall
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
|
User manual for the NEC MultiSync 46" LCD Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The MultiSync 46" LCD Video Wall Display from NEC features native UHD daisy chaining that enables the user to create UHD video walls with either a single UHD image or four different Full HD sources. With an advanced set of intelligent features, it is easy to install and operate. The FrameComp feature supports a seamless appearance, crucial for fast moving content, creating one image by synchronizing the content across the entire video wall. The NEC heat management system enables the user to monitor and control the heat inside the display.
You can upgrade the power of your display at any time while seamlessly integrating one of various slot-in PCs, signal interfaces, and other OPS compatible products without the need for external cables or devices. with NaViSet Administrator 2, it allows you to manage all your connected display devices from a centralized location. - Compelling Image Presentation
- Hardware color and brightness calibration secures a consistent image presentation over the entire video wall
- Continous Workflow
- Reliable and secure with 24/7 operation
- Easy Setup
- Auto TileMatrix offers time and cost savings during installation and allows you to configure just one display in order to complete the set up for the entire wall
- Multi-Display Management Software
- Free Download of NaViSet Administrator 2 allows you to manage all your connected display devices from a centralized location
- Additional Features
-
- Auto ID assignment
- Auto tiling function
- Automatic alarm e-mails
- DICOM support
- Frame comp
- HTTP server
- Image flip
- Intelligent wireless data (based on NFC)
- NaViSet administrator 2
- Point zoom function
- Programmable 10-bit LUT with three memory banks
- Sticky note function in OSD
- Super slim bezel with 3.7mm between contents and 3.5 mm bezel width
- TileMatrix
- User readable log function
- Black front bezel and back cabinet
UPC: 805736062656 In the Box NEC MultiSync 46" LCD Video Wall Display DisplayPort Cable Power Cable Signal Cable LAN Cable Limited 3-Year Warranty NEC Whitepaper: Commercial Monitors Vs. Consumer TVs PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC MultiSync 46" LCD Video Wall Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC X464UNS-2 Specs | | | Panel Technology | S-PVA with direct LED backlight | | Screen Size | 46" / 116.8 cm | | Native Resolution | 1920 x 1080 at 60 Hz | | Supported Resolutions | DisplayPort and HDMI: 3840 x 2160 at 24/30 Hz, 1920 x 1080, 1600 x 1200, 1360 x 768, 1280 x 1024, 1280 x 768, 1080i, 1080p, 1024 x 768, 800 x 600, 720p at 50/60 Hz, 640 x 480, 576p at 50 Hz, 480p at 60 Hz
HDMI Only: 4096 x 2160 at 24 Hz, 3840 x 2160 at 25 Hz, 1360 x 768, 576i (50 Hz), 480i at 60 Hz | | Active Screen Area | 40 x 22.6" / 101.8 x 57.3 cm | | Aspect Ratio | 16:9 | | Brightness | 700 cd/m²
420 cd/m² (Eco) | | Contrast Ratio | 3500:1 (typical) | | Viewing Angle | Horizontal/Vertical: 178°/178° (typical at contrast ratio 10:1) | | Response Time | 8 ms (typical) | | Refresh Rate | 60 Hz | | Haze Level | 25% | | Orientation | Face Up, Landscape, Portrait | | Connectivity | Input Video Analog: 1 x D-sub 15-pin
Input Video Digital: 1 x DisplayPort (with HDCP), 1 x DVI-D (with HDCP), 1 x HDMI (with HDCP)
Input Audio Analog: 2 x 3.5 mm jack
Input Audio Digital: 1 x DisplayPort, 1 x HDMI
Input Control: 1 x LAN 100 Mb, 1 x Remote Control (3.5 mm jack), 1 x RS232
Output Video Digital: 1 x DisplayPort out (loop through: DisplayPort, DVI-D, HDMI, interface extension slot, OPS)
Output Audio Analog: 1 x 3.5 mm jack
Output Control: 1 x LAN 100 Mb | | Slots | Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Maximum Power Consumption: 10A/61W
Slot Technology: Analog and digital interface extension (NEC standard) | | Temperature Sensor | Three integrated sensors (triggered actions programmable) | | Sensor | NFC Sensor: Integrated with 0.8" / 2 cm range (free NEC Android App required) | | Audio | Optional speakers (15 W + 15 W) | | Power Consumption | 150 W
120 W Eco | | Power Savings Mode | < 1 W
< 0.5 W (ECO Standby) | | Power Management | VESA DPMS | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% | | Bezel Width | Bottom/Right: 1.2 mm
Top/Left: 2.3 mm
Content to Content: 3.7 mm | | VESA Mounting | 300 x 300 mm (FDMI), 4 holes, M6 | | Ingress protection | IP40 (front), IP20 (back) | | Certification and Compliance | C-tick, CE, FCC Class A, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI | | Dimensions | Without Stand: 40.2 x 22.7 x 4" / 102.2 x 57.7 x 10.2 cm | | Weight | Without Stand: 43.9 lb / 19.9 kg | | | | Package Weight | 56.5 lb | | Box Dimensions (LxWxH) | 47.5 x 29.5 x 11.0" |
