User Manual for NEC MultiSync E171M 17" TN LED Monitor Click to enlarge the picture
Contents of the user manual for the NEC MultiSync E171M 17" TN LED
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC MultiSync E171M 17" TN LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

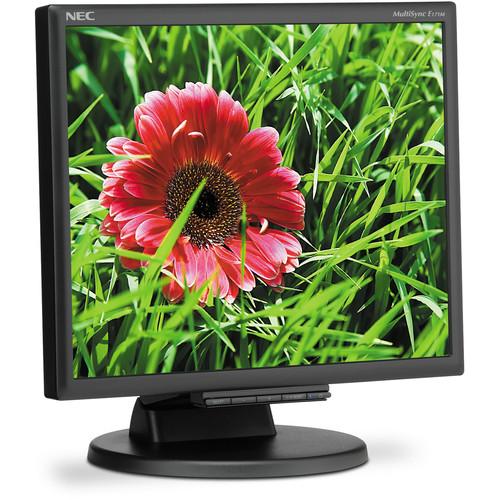

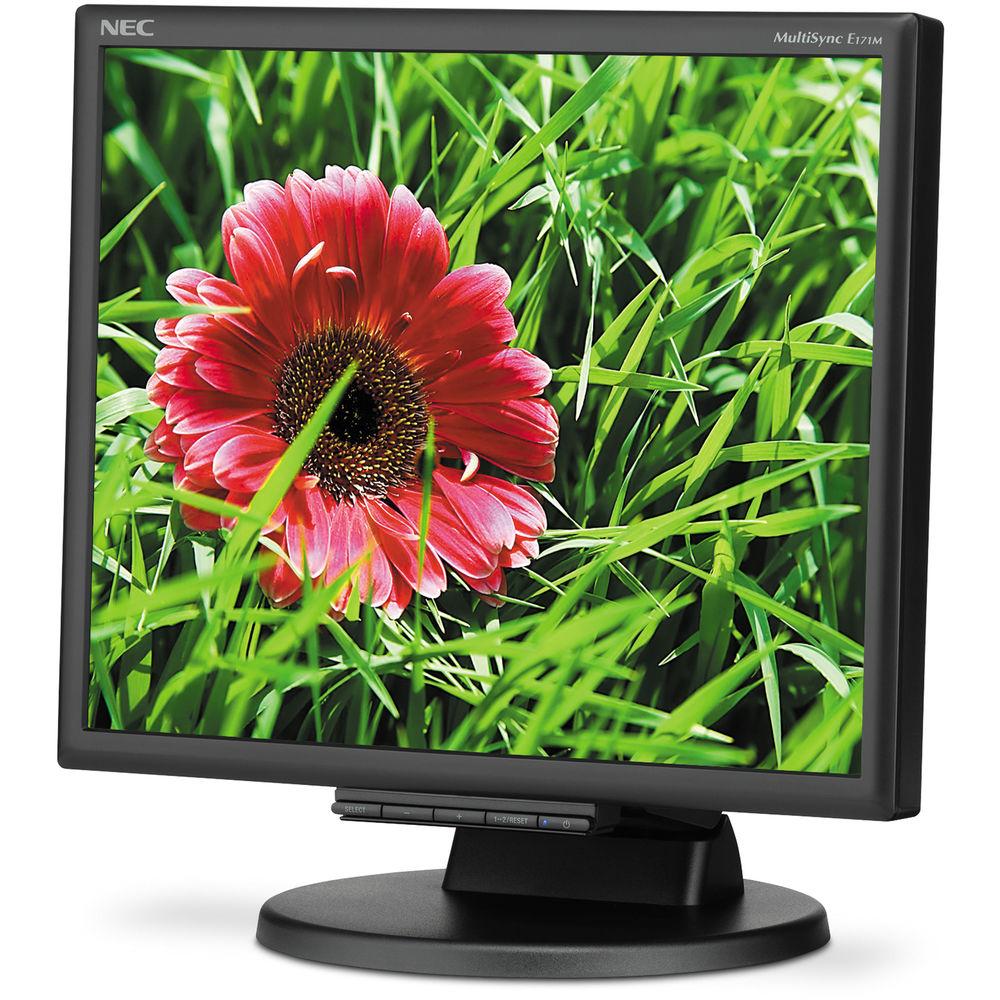

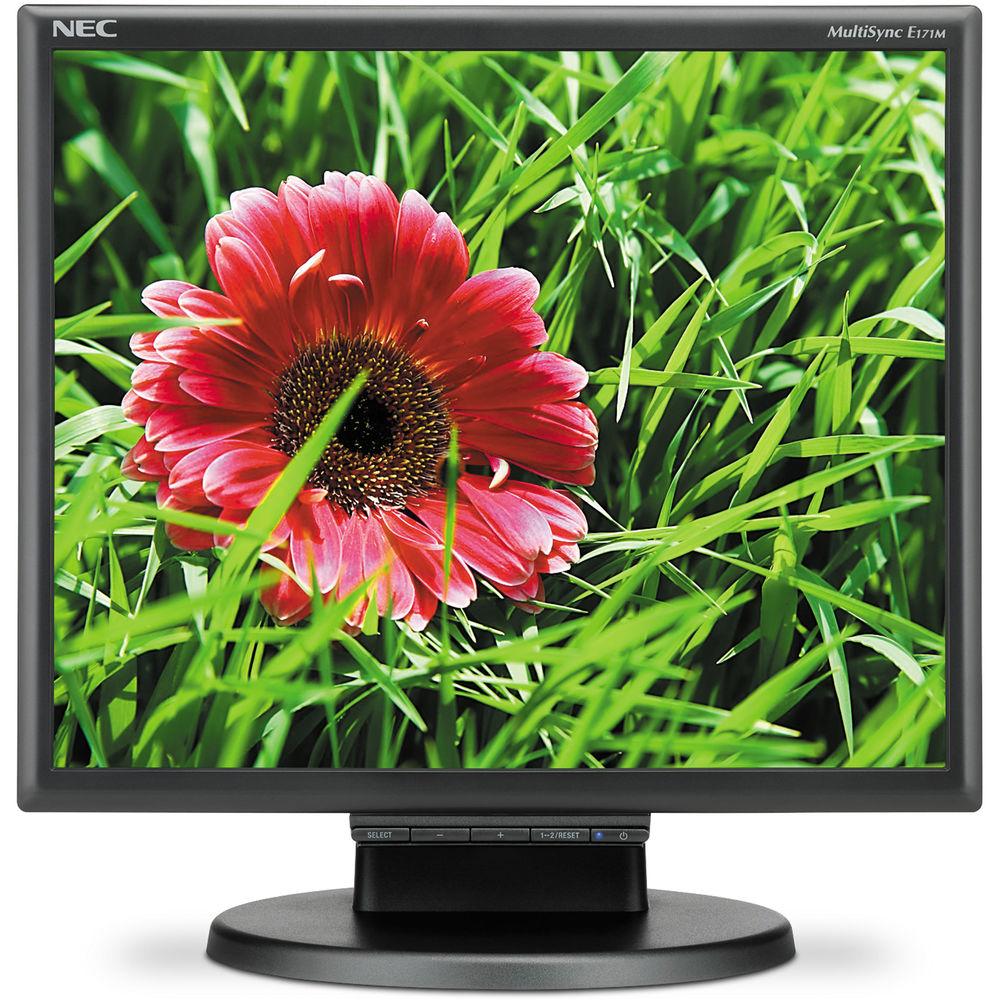

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The NEC MultiSync E171M 17" TN LED Monitor is a 1280 x 1024 resolution display with 250 cd/m² brightness and a contrast ratio of 1,000:1. This capable display also has 170° horizontal and vertical viewing angles and a response time of 5 ms. The monitor will be able to show more than 16.7 million colors as well for good color rendering. Added features to this monitor are two 1W speakers for audio along with a headphone jack. Connectivity is simple due to DVI-D and VGA inputs and this display is 100 x 100mm VESA mount compatible. - ECO Mode
- Allows you to manually adjust the display's brightness to save power and reduce energy costs.
- Adjustable Stand
- The detachable stand features 2" of height adjustment along with tilt and swivel capabilities.
- Intelligent Power Manager System
- Automatically switches to a low power state or powers down when the monitor is not in use.
- Carbon Footprint Meter
- Tracks carbon footprint savings and calculates the reduction in greenhouse gas emissions.
- NaViSet Administrator 2
- Eases administration and management of larger display device installations.
- Ambix
- Allows up to two inputs to be connected and for each of the signals to be displayed with the press of a button.
- Other Features
- OSD user controls, touch-integratable, No Touch Auto Adjust, XtraView, and Rapid Response
UPC: 805736052244 In the Box NEC MultiSync E171M 17" TN LED Monitor Power Cord VGA Cable Audio Cable Detachable Stand Limited 3-Year Warranty User Manual PDF 1.7mbrquqtzdzzbstx Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC MultiSync E171M 17" TN LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC E171M-BK Specs | | | Size | 17" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Pixels Per Inch (ppi) | 96 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 81.1 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Dot Pitch | 0.26 x 0.26 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x VGA | | | | Power Consumption | 0.2 W (Standby)
12 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 2" / 5.1 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 14.5 x 14.1 x 9.1" / 36.8 x 35.9 x 23.0 mm (With Stand)
14.5 x 12.6 x 2.4" / 36.8 x 32.1 x 6.1 mm (Without Stand) | | Weight | 6.6 lb / 3 kg (Without Stand)
9.3 lb / 4.2 kg (With Stand) | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 18.8 x 17.3 x 6.9" |
