User Manual for NEC MultiSync EA223WM-BK 22" LED-Backlit LCD Computer Display Click to enlarge the picture
Contents of the user manual for the NEC MultiSync EA223WM-BK 22" LED-Backlit LCD
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC MultiSync EA223WM-BK 22" LED-Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

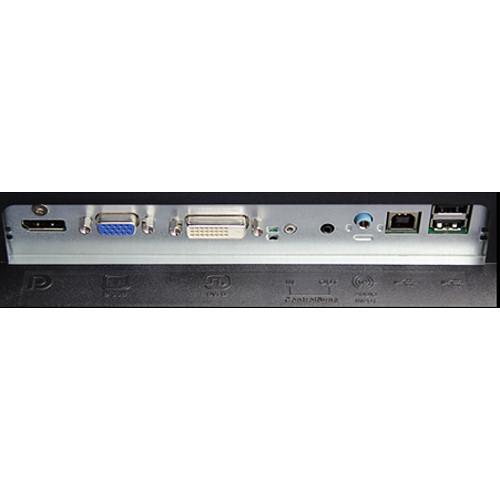

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The MultiSync EA223WM-BK 22" LED-Backlit LCD Computer Display from NEC is a high definition monitor with an optimal resolution of 1680 x 1050 and a 16:10 aspect ratio. This NEC monitor has been redesigned and future-proofed with connectivity options, such as a DisplayPort, a DVI-D port and a VGA port as well as housing four USB 2.0 ports. Thanks to its LED backlighting, this NEC monitor is ENERGY STAR 5.0-certified and is eco-friendly. LED backlighting is not only energy efficient, but it also contributes to a static contrast ratio of 1,000:1 and a brightness rating of 250cd/m². The 5ms video response time ensures that digital HD video content have optimal image quality. An anti-glare finish on the screen prevents strong and harsh lights from ruining the viewing experience. This NEC monitor also comes with built-in multimedia speakers to provide excellent audio as well as a 3.5mm audio jack for connecting external speakers or headphones. The 178°/168° viewing angles as well as the ability to use a 100mm x 100mm VESA mount allow for comfortable placement. Also, the 4-way adjustable stand of this NEC monitor has tilt, swivel, pivot and height adjustment options in order to ensure an optimal viewing experience. - Comfortable Viewing Quality
- A 1680 x 1050 resolution supports premium viewing quality through a screen with a 16:10 aspect ratio. Enjoy clear and vivid images in your home or office without having to deal with eye fatigue
- ControlSync
- ControlSync allows users to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, users will be able to control many performance attributes of the multi-monitor setup in unison through the single monitor
- Ambix
- This NEC monitor features Ambix, which allows up to two inputs (VGA and DVI) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button
- Ambient Light & Human Sensors
- This NEC monitor has smart sensing technology, which includes ambient light and human sensors. These sensors help reduce power consumption by automatically detecting your work conditions to determine the proper display brightness or entering Power Saving mode
- Integrated Multimedia Speakers

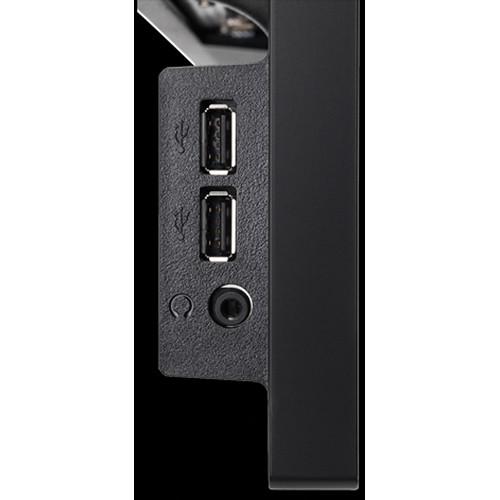

- The integrated multimedia speakers on this NEC monitor are hidden to maintain the monitor's aesthetic appeal and also includes an audio jack for external speakers or a pair of headphones
- Rapid Response
- With Rapid Response, this NEC monitor delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
- 4-Way Ergonomic Stand

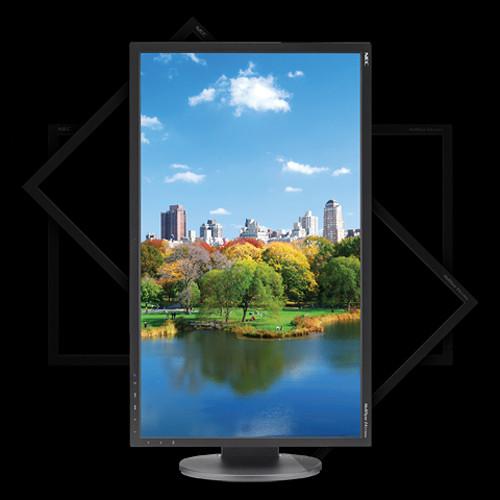

- This NEC monitor features a 4-way adjustable stand that boasts pivot, tilt, swivel and height adjustments up to 130mm to maximize your viewing comfort by eliminating glare, reflection or distortion
- No Touch Auto Adjust
- This NEC monitor allows the monitor to be automatically adjusted to optimal image settings when initially turned on
UPC: 805736039757 In the Box NEC MultiSync EA223WM-BK 22" LED-Backlit LCD Computer Display Setup Sheet User Manual USB Cable VGA Cable Power Cord DVI-D Cable Audio Cable ControlSync Cable Limited 3-Year Warranty User Manual PDF 3.9mbsycxtuyztyzcsqds Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC MultiSync EA223WM-BK 22" LED-Backlit LCD Computer Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC EA223WM Specs | | | Size | 22" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1680 x 1050 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 82.3 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.28 x 0.28 mm | | | | Connectivity | 4 x USB Type-A 2.0 Output
1 x DVI-D
1 x DisplayPort Input
1 x VGA | | Built-In Speakers | Yes | | | | Power Consumption | 0.4 W (Standby)
25 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 6562' / 0 to 2000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, TCO Certified, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.8 x 20.2 x 8.6" / 50.4 x 51.4 x 21.8 mm (With Stand)
19.8 x 13.0 x 2.4" / 50.4 x 33.0 x 6.1 mm (Without Stand) | | Weight | 12.3 lb / 5.6 kg (With Stand)
7.3 lb / 3.3 kg (Without Stand) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 10.0" |
