User Manual for NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - 4K UHD | NEC Display Solutions

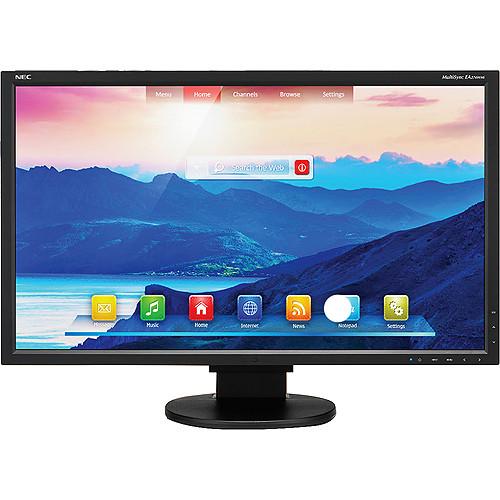

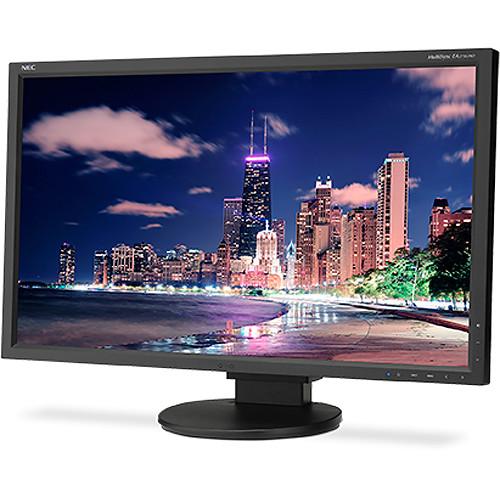

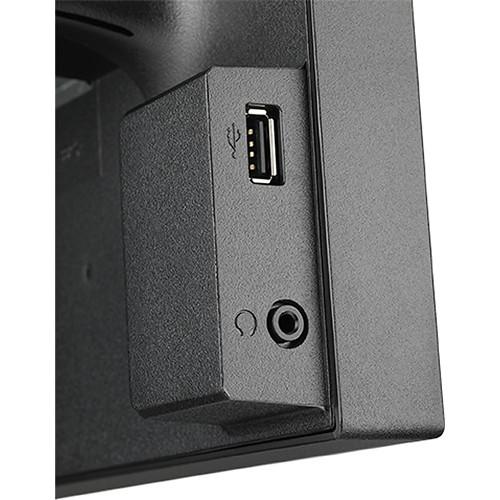

The NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor features a resolution of 3840 x 2160 that provides a large on-screen workspace so you can easily view the details in images and extra rows in a spreadsheet. It is outfitted with an IPS panel that delivers vivid colors and 178° viewing angles. For connectivity, it's compatible with systems that have a DisplayPort, HDMI, or a DVI-D port. In addition, you can display the visuals from two systems at the same time. Moreover, NEC has equipped this monitor a 3-port USB 3.0 hub to provide your system with extra USB ports.
This NEC MultiSync 4K monitor offers a response time of 6 ms and a 1000:1 contrast ratio. It comes with a 350 cd/m² brightness level for enhanced visibility in a brightly lit room. Furthermore, the integrated sensors detect the amount of light in your environment and automatically adjust the display's brightness. You can attach the monitor to the wall using an optional VESA 100 x 100mm compliant mount to save desk space, or attach the monitor to the included stand and tilt, swivel, or pivot the display to suit your viewing needs. - 4K UHD resolution (3840 x 2160) offers a large on-screen desktop space, which is four times bigger than a full HD resolution display
- LED backlight technology provides industry-leading low power consumption and less hazardous materials

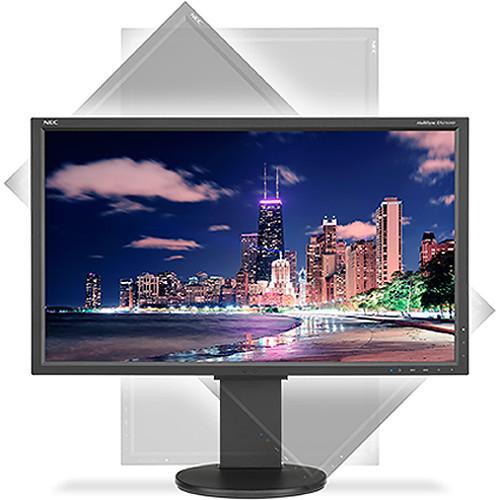

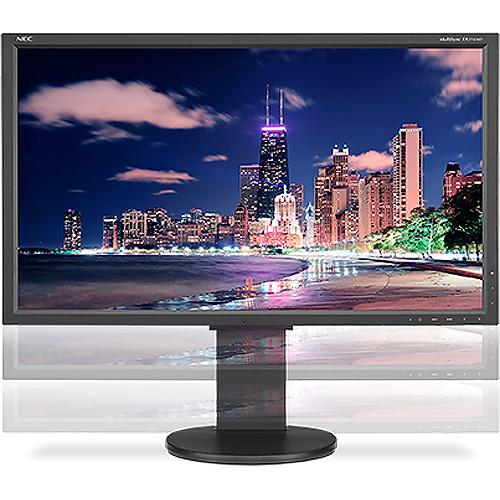

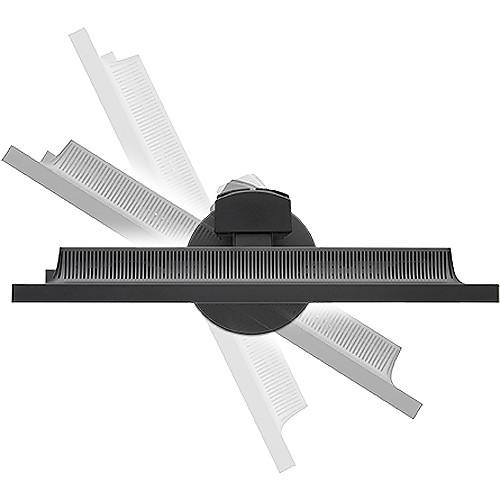

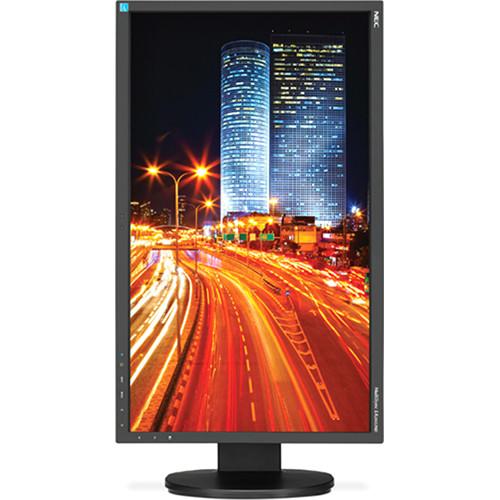

- This monitor features a fully adjustable quick-release stand and height adjustment up to 5.1" along with pivot, tilt, and swivel capabilities to offer flexibility and comfort for your viewing preferences

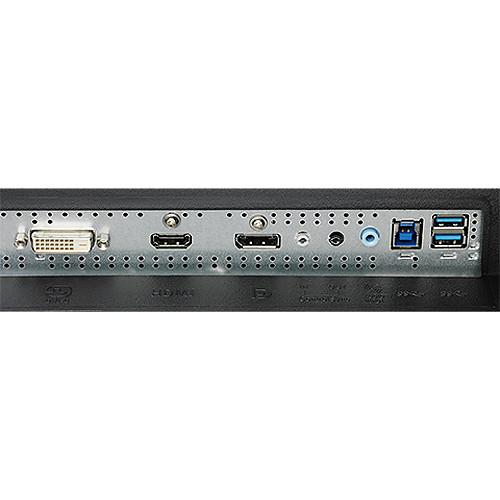

- Compatible with systems that have a DisplayPort, HDMI, or a DVI-D port
- Touch-sensitive OSD controls integrated in the bezel lets you easily make display adjustments
- The human sensor and an ambient light sensor automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs
UPC: 805736057256 In the Box NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor Power Cable DisplayPort Cable ControlSync Cable USB 3.0 Cable Mounting Screws Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC EA275UHD Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Maximum Brightness | 350 cd/m2 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 135 kHz | | Vertical Frequency | 30 to 75 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 78.1% Adobe RGB
75.1% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.16 x 0.16 mm | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
3 x USB Type-A (USB 3.1 Gen 1) Output
1 x DVI-D
1 x DisplayPort 1.2 Input
1 x HDMI 2.0 | | | | Power Consumption | 0.4 W (Standby)
49 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 25.2 x 14.9 x 2.6" / 64.1 x 37.9 x 6.6 mm (Without Stand)
25.2 x 16.5 x 9.1" / 64.0 x 41.9 x 23.1 mm (With Stand) | | Weight | 13.7 lb / 6.2 kg (Without Stand)
20.1 lb / 9.1 kg | | | | Package Weight | 26.4 lb | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 11.0" |
