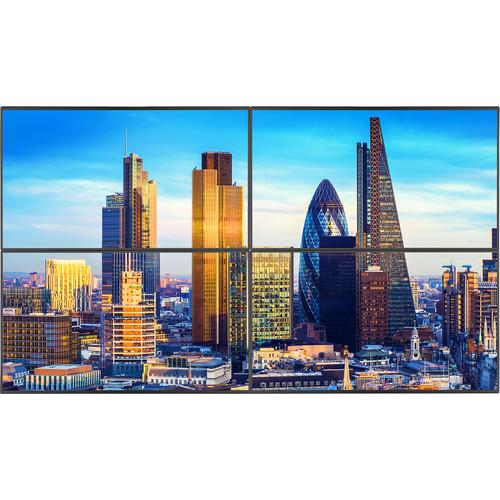

Product description The MultiSync EX241UN 2x2 Video Matrix Bundle from NEC includes four MultiSync EX241UN Displays, a Chief K3G220B KONTOUR Grommet-Mounted 2x2 Array Arm, and a Tripp Lite ISOBAR 6-Port Surge Suppressor.
The narrow bezels found on the EX241UN 23.8" 16:9 IPS Monitor from NEC offer an enhanced viewing experience, while the 1920 x 1080 Full HD resolution provides a crisp, clear picture quality. In addition to the enhanced resolution, this NEC monitor features a 16:9 widescreen aspect ratio, a 1,000:1 contrast ratio, and a 6 ms response time for a more dynamic picture with reduced ghosting.
The black K3 Series KONTOUR Grommet-Mounted 2x2 Array Arm from Chief is elegantly designed. It provides a stable mounting solution for multiple monitors in settings such as call centers, security desks, IT offices, health-care institutions, and control rooms.
The Tripp Lite Isobar 6 Surge Suppressor (6-Outlet, 6' Cord, 3330 Joule), featuring noise filtration and surge suppression rated at 3330 joules / 97,000A, protects various devices including personal computers, peripherals, workstations, telecommunications systems, point of sale equipment and audio / video systems, from surges and line noise. It features 6 NEMA 5-15R outlets that are arranged in 3 filter banks to help avert system crashes and reboots. The outlets can accommodate up to 4 large transformer plugs. - EX241UN-BK 23.8" 16:9 IPS Monitor (Desktop)
- MultiSync EX241UN | NEC Display Solutions
The narrow bezels found on the EX241UN-BK 23.8" 16:9 IPS Monitor from NEC offer an enhanced viewing experience, while the 1920 x 1080 Full HD resolution provides a crisp, clear picture quality. In addition to the enhanced resolution, this NEC monitor features a 16:9 widescreen aspect ratio, a 1000:1 contrast ratio, and a 6 ms response time for a more dynamic picture with reduced ghosting.
Setup and configuration of the EX241UN-BK is simple as it comes equipped with DisplayPort, HDMI, DVI-D, and VGA inputs making it easy to connect this monitor to a variety of computer configurations. Once set up, this NEC display comes equipped with a 5-way control button with on screen display settings to adjust various screen settings. This display is also designed for reduced power consumption thanks to the built-in LED backlight technology, and with ECO mode, the display's brightness can be adjusted to save power and energy costs. - LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Height-adjust, pivot, tilt, and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort, HDMI, DVI-D, and VGA inputs
- 5-way control button with on screen display makes display adjustments simple
- Optional human and ambient light sensors (KT-SS1) automatically detect your work conditions to determine the proper display brightness, conserving power
- ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- Dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearly seamless images
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
- Built-in low blue light filter technology and flicker-free certified
- Additional Features
-
- ControlSync
- Integrated Speakers
- Built-In USB 3.0 Hub
- Auto Brightness
- Carbon Footprint Meter
- Resettable Cost Meter
- Carrying Handle
- Ambix
- XtraView
- No Touch Auto Adjust
- Plug-and-Play (VESA DDC2B)
- AccuColor Color Control
- ISO 9241-307 Class I
- DICOM SIM for IPS models
UPC: 805736062373 K3 Series KONTOUR Grommet-Mounted 2x2 Array Arm (Black) The black K3 Series KONTOUR Grommet-Mounted 2x2 Array Arm from Chief is elegantly designed. It provides a stable mounting solution for multiple monitors in settings such as call centers, security desks, IT offices, health-care institutions, and control rooms. - Centris heads can be easily moved along the array arm for lateral adjustment and easy screen alignment
- Centris technology in heads provides smooth, fingertip 12° tilt in all directions
- Accommodates monitors up to 24" in size
- Independent height adjustment of each arm
- Array arms can be adjusted from flat up to a 15° angle toward the user
- A teardrop hole pattern in the head allows fast & easy mounting of monitors
- VESA 75 x 75 mm and 100 x 100 mm compatible
- Tool-free, integrated cable installation
- Post-installation leveling (roll)
UPC: 841872157030 Isobar 6 Surge Suppressor (6-Outlet, 6' Cord, 3330 Joule) The Tripp Lite Isobar 6 Surge Suppressor (6-Outlet, 6' Cord, 3330 Joule), featuring noise filtration and surge suppression rated at 3330 joules / 97,000 amps, protects various devices including personal computers, peripherals, workstations, telecommunications systems, point of sale equipment and audio / video systems, from surges and line noise. It features 6 NEMA 5-15R outlets that are arranged in 3 filter banks to help avert system crashes and reboots. The outlets can accommodate up to 4 large transformer plugs.
Using sine-wave tracking, the surge suppression circuits reduce 6,000V test surges to harmless levels under 35 volts, and protect your equipment against surge conditions exceeding IEEE 587 category A & B specifications.
Featuring a combination of large toroidal chokes, ferrite rod-core inductors, HF / VHF
capacitors and multiple layers of metal oxide varistors, the isolated filter banks help remove EMI / RFI interference and noise generated by connected equipment. The Surge Suppressor includes a 6' (1.82 m) AC line cord consisting of an angled input plug and keyhole mounting tabs. It comes in a rugged all-metal case for enhanced durability. - Noise filtration and surge suppression rated at 3330 joules / 97,000 amps help protect equipment from surges and line noise
- Suitable for various devices including personal computers, peripherals, network and CAD / CAM / CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio / video and home theater systems
- 6 NEMA 5-15R outlets arranged in 3 filter banks help avert system crashes and reboots, and can accommodate up to 4 large transformer plugs
- Using sine-wave tracking, the surge suppression circuits reduce 6,000V test surges to harmless levels under 35 volts, and protect your equipment against surge conditions exceeding IEEE 587 category A & B specifications
- Isolated filter banks feature a combination of large toroidal chokes, ferrite rod-core inductors, HF / VHF capacitors and multiple layers of metal oxide varistors, and help remove EMI / RFI interference and noise generated by connected equipment
- Includes a 6' (1.82 m) AC line cord with an angled input plug
- Keyhole mounting tabs enable permanent installation
- Comes in a rugged all-metal case for enhanced durability
In the Box Bundle Items 4 x EX241UN-BK 23.8" 16:9 IPS Monitor (Desktop) ywrwqyfvzyaaxcysvesszzuxxq K3 Series KONTOUR Grommet-Mounted 2x2 Array Arm (Black) ywrwqyfvzyaaxcysvesszzuxxq - Limited 10-Year Warranty on Parts & Labor
Isobar 6 Surge Suppressor (6-Outlet, 6' Cord, 3330 Joule) ywrwqyfvzyaaxcysvesszzuxxq - Set of 4 Outlet Safety Covers
- Instruction Manual with Warranty Information
- Lifetime Limited Warranty
NEC Whitepaper: Commercial Monitors Vs. Consumer TVs PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC MultiSync EX241UN 2x2 Video Matrix Bundle with Grommet-Mounted Desktop Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EX241UN-BK 23.8" 16:9 IPS Monitor (Desktop)
| | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC
100% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2 x 0.2 mm | | | | Connectivity | 3 x USB Type-A (USB 3.1 Gen 1)
1 x DVI-D
1 x DisplayPort Input
1 x DisplayPort 1.2 Output
1 x HDMI
1 x VGA | | | | Power Consumption | 0.3 W (Standby)
19 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 3.9" / 9.9 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.2 x 14.6 x 8.0" / 53.8 x 37.0 x 20.4 mm (With Stand)
21.2 x 12.2 x 1.7" / 53.8 x 31.0 x 4.4 mm (Without Stand) | | Weight | 12.3 lb / 5.6 kg (With Stand)
8.2 lb / 3.7 kg (Without Stand) | | | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 7.0" | - K3 Series KONTOUR Grommet-Mounted 2x2 Array Arm (Black)
| Compatibility | To confirm the compatibility of this table stand with your monitor, visit Chief's | | Mounting Pattern Compatibility (Universal Version) | 75 x 75 mm, 100 x 100 mm | | Mounting Method | Grommet mount | | Desktop Thickness Range | 0.5 to 5" (13 to 127 mm) | | Grommet Hole Size Range | 0.38 to 3.50" (10.00 to 89.00 mm) | | Orientation | Landscape & Portrait | | Solution Type | Universal | | Tilt | 12° | | Typical Screen Sizes | Up to 24" (61 cm) | | Overall Dimensions (H x W x D) | 38.81 x 34.02 x 7.02" (985.80 x 864.10 x 178.20 mm) | | Weight Capacity | 15.0 lb (6.8 kg) per monitor | | | | Box Dimensions (LxWxH) | 41.5 x 18.5 x 5.5" | - Isobar 6 Surge Suppressor (6-Outlet, 6' Cord, 3330 Joule)
| Application | Home / Office, Computer Networks | | | | Frequency Compatibility | 50 / 60 Hz | | Output Power | 1440 W | | Volt Amp Capacity | 12 A | | Outlet Type | 6 NEMA 5-15R | | Transformer Accommodation | Supports up to 4 large transformer plug accessories without covering remaining outlets | | | | Recommended Electrical Service | 120V (110-125V) | | Input Connection Type | NEMA 5-15P input plug | | Plug | Space-saving right angle input plug | | Cord Length | 6' (1.82 m) | | Voltage Compatibility | 120 VAC | | | | Switches | Two position red illuminated on / off power switch | | | | AC Suppression Joule Rating | 3330 | | AC Suppression Response Time | NM = 0 ns. CM = | | Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression | | Clamping Voltage | 140 RMS | | AC Surge Current Rating | 97,000 amps (36,000 NM / 61,000 CM) | | AC Suppression | Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors | | Safe Thermal Fusing | Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences | | Let Through | UL1499 let through rating: 330V - UL Verified IEEE587 Cat. A ringwave let through rating: Less than 35 volts | | EMI / RFI Filtering | 40-80 dB | | Isolated Filter Banks | Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 3 filter banks. | | Immunity | Conforms to IEE 587 / ANSI C62.41 | | | | Cable (Coax) Protection | No | | Network (Ethernet) Protection | No | | | | Material | Metal | | Receptacle Color | Black | | AC Line Cord Color | Gray | | Style | Strip | | Integrated Keyhole Mounting Tabs | Metal end caps are fitted with keyhole mounting tabs for wallmount installation | | | | Appearance | Rugged all-metal corded strip format with high quality duplex receptacles | | Right-Angle Plug | Yes | | Certifications | UL1449 3rd EDITION UL1283 (EMI Filter) UL1363 (Power Tap) cUL / CSA (Canada) Exceeds IEEE 587 category A&B specifications | | Approvals | Exceeds IEEE 587 category A&B specifications | | Weight | 2.4 lb (1.08 kg) | | Unit Dimensions (HWD) | 2.5 x 6 x 3.5" (6.35 x 15.24 x 8.89 cm) |
