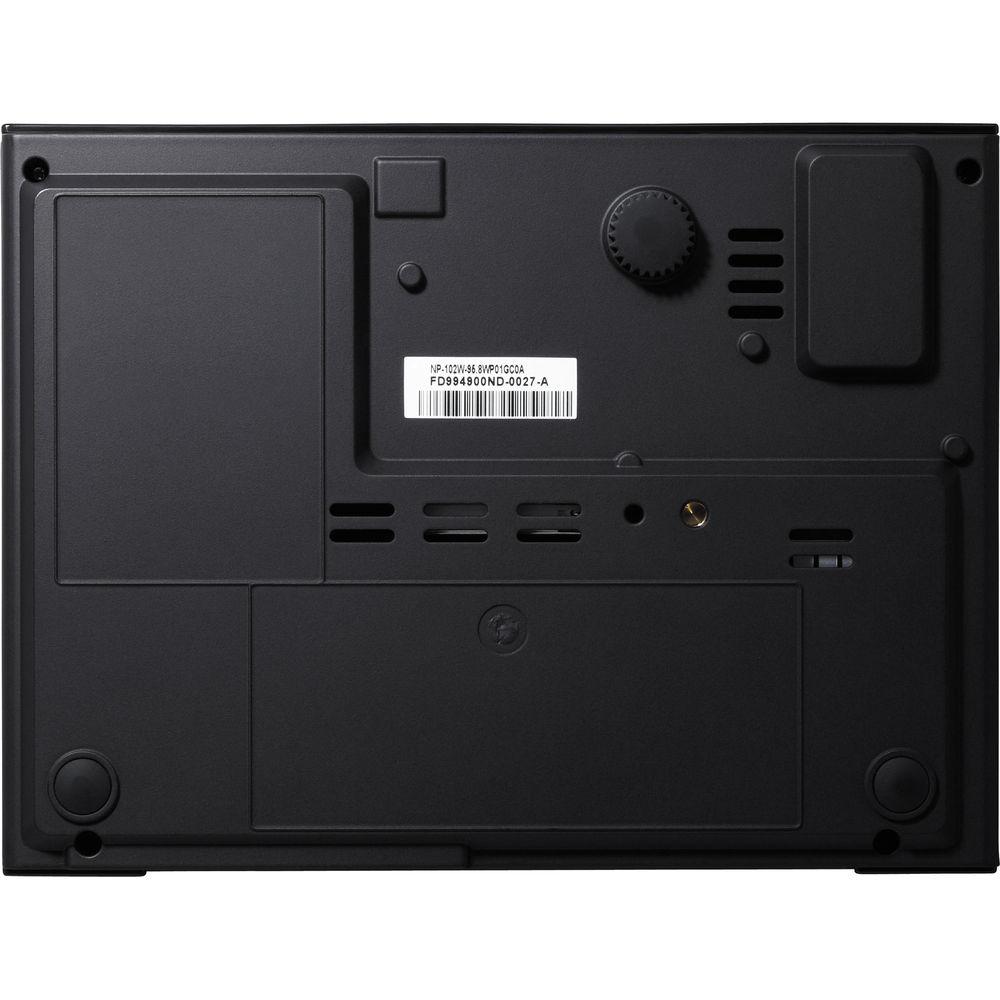

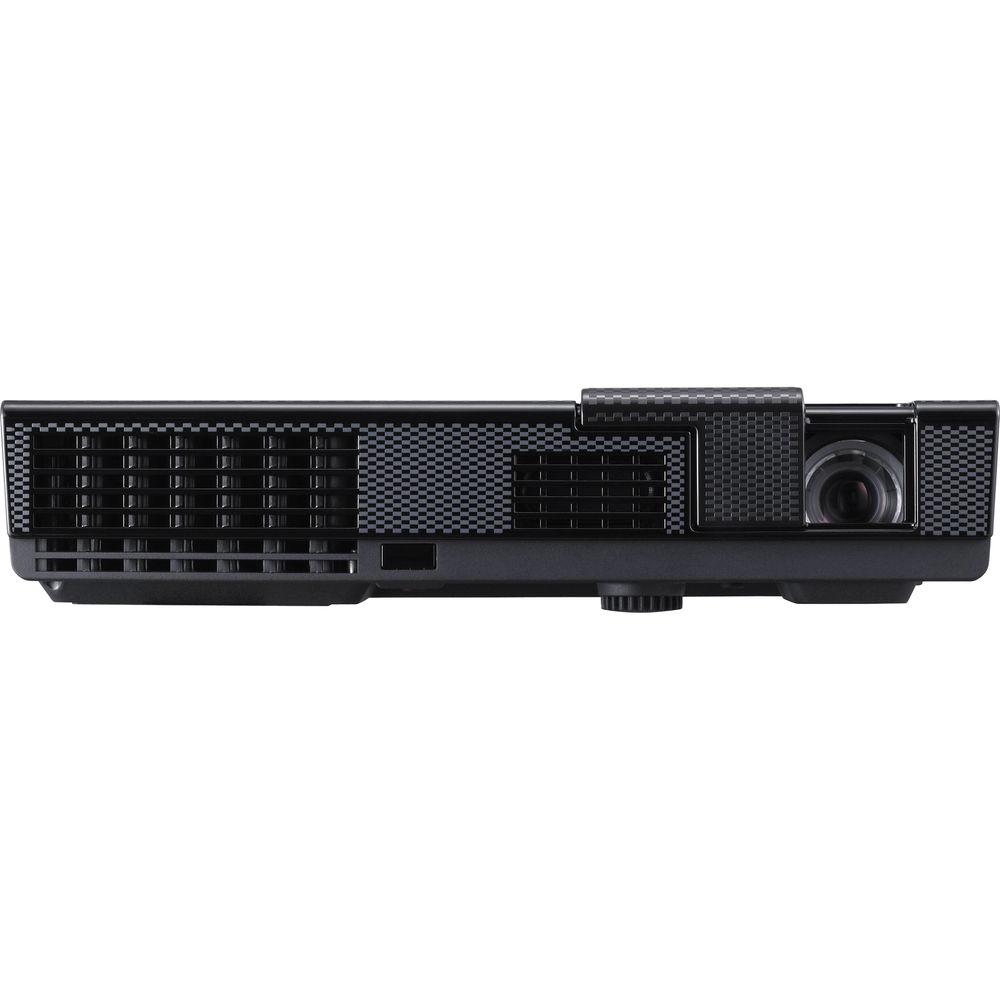

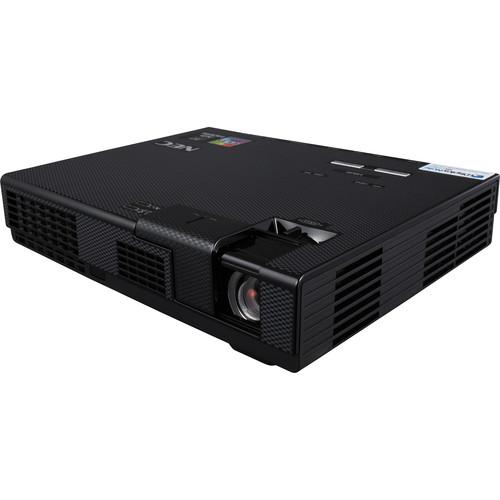

User Manual for NEC NP-L102W LED Mobile DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-L102W LED Mobile DLP Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-L102W LED Mobile DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The NP-L102W LED Mobile DLP Projector delivers 1000 lumens of brightness with a 10,000:1 contrast ratio. It features WXGA 1280 x 800 widescreen resolution and can project up to a 100" diagonal. The NP-L102W is powered by a DMD DLP chip system and its LED light source features a long lifespan of 20,000+ hours. This means you'll save money because there are no traditional projector lamps to buy or replace. LEDs are also more energy efficient and they produce less heat. This model provides multiple connectivity options including HDMI and VGA. Plus, the NP-L102W supports PC-less presenting via USB, microSD or its 1GB of internal memory. These three options support a variety of file formats including audio, video, photo, PowerPoint, Excel and Word files/documents. The projector has a built-in 2W mono speaker as well. Other features include a low standby power consumption level that's less than 0.5W and built-in wall color correction presets provide for adaptive color tone correction to display properly on non-white surface. This projector even affords wireless presenting, although the optional wireless adapter is required. - Designed for Mobile Use
- • Form factor is approximately the size of a hardcover novel
• Lightweight at only 3.1 lbs (1.4 kg)
• Integrated power supply

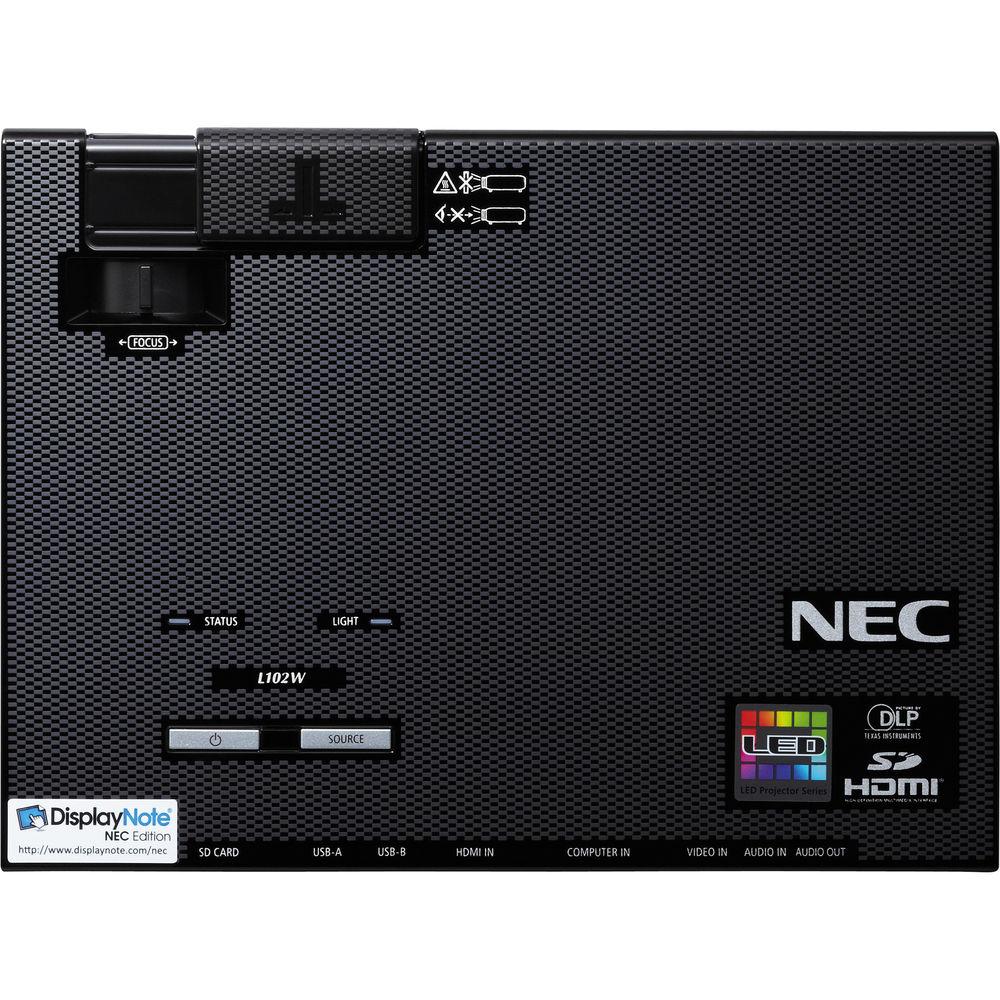

• Minimalistic operating buttons - Ease of Use
- • Bright images can be easily viewed in most applications
• High contrast images (10,000:1) from the latest Texas Instruments DLP
• Intuitive remote control provides one-touch source changes and complete menu control - Designed with the Environment in Mind
- • LED solid state light source provides a mercury-free design
• Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
• Auto power on when the power cord is plugged into the wall and AC is applied
• Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage - Additional Features
- • Wireless LAN (optional) for direct connection with iOS, Android, Mac and Windows devices

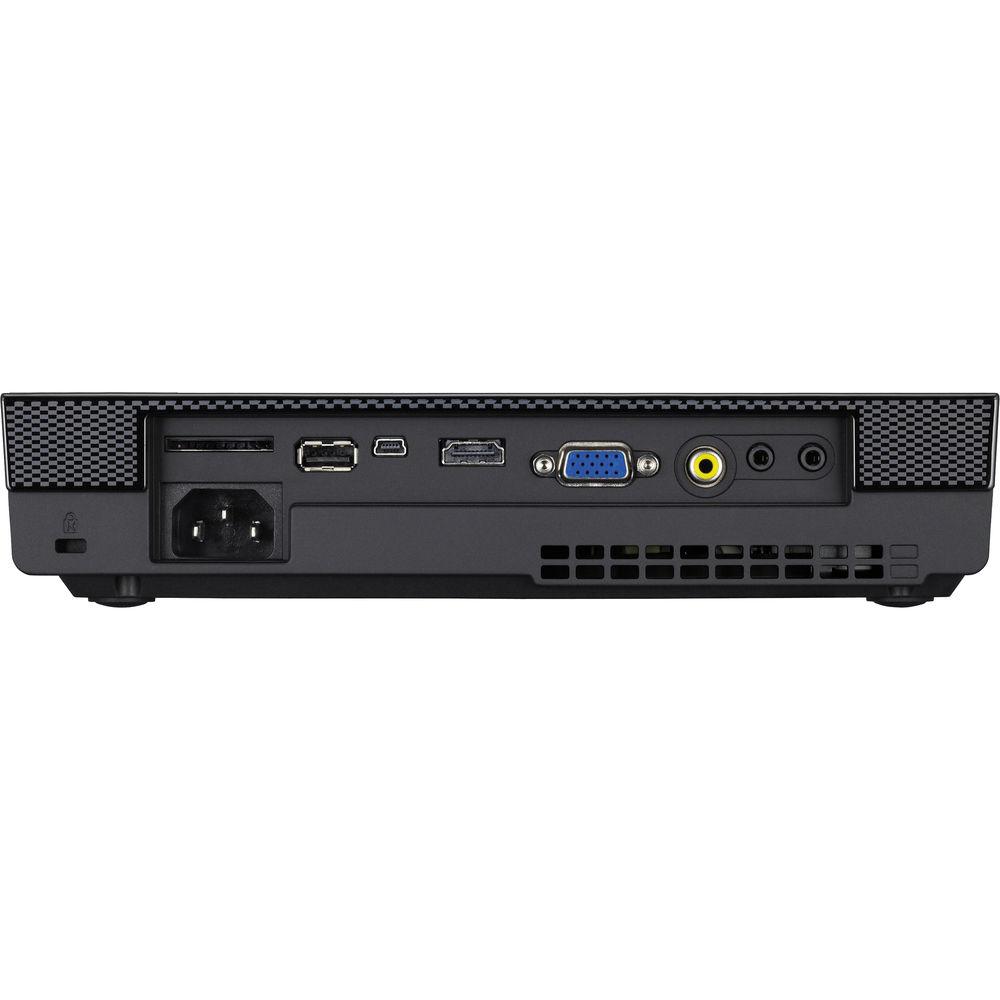

• Flexible input panel, color-coded and clearly labeled connects to computers, Blu-Ray players and other sources using the VGA, HDMI, and composite inputs
• 1GB internal memory stores presentations on the projector, alleviating the need to carry a laptop from presentation to presentation
Office Viewer supports Microsoft Word, Excel, PPT and Adobe PDF
• SD card reader expands storage up to 32GB. Flash card reader supports SD, SDHC and MMC
• 2W speaker
• Built-in wall color correction presets provide for adaptive color tone correction to display properly on non-white surfaces
• Plug and Play setup and operation optimizes images displayed from computers and video sources
• Native WXGA resolution projector automatically syncs with higher-resolution computers
• Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
• ECO Mode technology extends lamp life, lowers audible noise and reduces total cost of ownership
• Built-in closed captioning enables decoding and display of text information from a video
• Kensington lock slot enables security cable to be attached to projector
• Filter-free design eliminates the hassle and time spent monitoring and/or changing filters UPC: 805736051650 In the Box NEC NP-L102W LED Mobile DLP Projector USB Cable RGB Signal Cable Power Cord Remote Control CR2025 Battery Carry Case 1-Year or 500 Hours Lamp Warranty 3-Year Projector Warranty User Manual PDF 4.7mbsqwdafqzecwadwbwxrbbex Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-L102W LED Mobile DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-L102W Specs | | | Display System | 1-Chip 0.45" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
WXGA+ - 1440 x 900
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200 | | Max Brightness | 1000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 85 Hz | | | | Focus | Manual | | Lens | f/1.5 (f = 13.9 mm) | | Optical Zoom | 1.1x | | Throw Distance | 1.64 - 9.8' / 0.5 - 2.987 m | | Throw Ratio | 1.4:1 | | Projection Size | 17 - 100" / 431.80 - 2540.00 mm | | | | Keystone Correction | Auto-Vertical: ± 40° | | Picture-in-Picture | None | | Ceiling Mountable | None | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x Composite (RCA) Video (Input)
1 x USB Type-A Female
1 x Mini-USB Type-B Female
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Memory Card Slot | 1 x SD (Unspecified Type) | | Internal Storage | 1.0GB | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Security | Cable Lock Slot | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | DOC, DOCX, PDF, PPT, XLS, XLSX | | Supported Photo File Types | BMP, JPEG | | Supported Video File Types | 3GP, AVI, H.264, MJPEG, MOV, MP4, MPEG2, WMV | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 110 W
Low Brightness: 72 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 9.4 x 7.0 x 1.7" / 238.8 x 177.8 x 43.2 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 15.5 x 10.9 x 6.5" |
