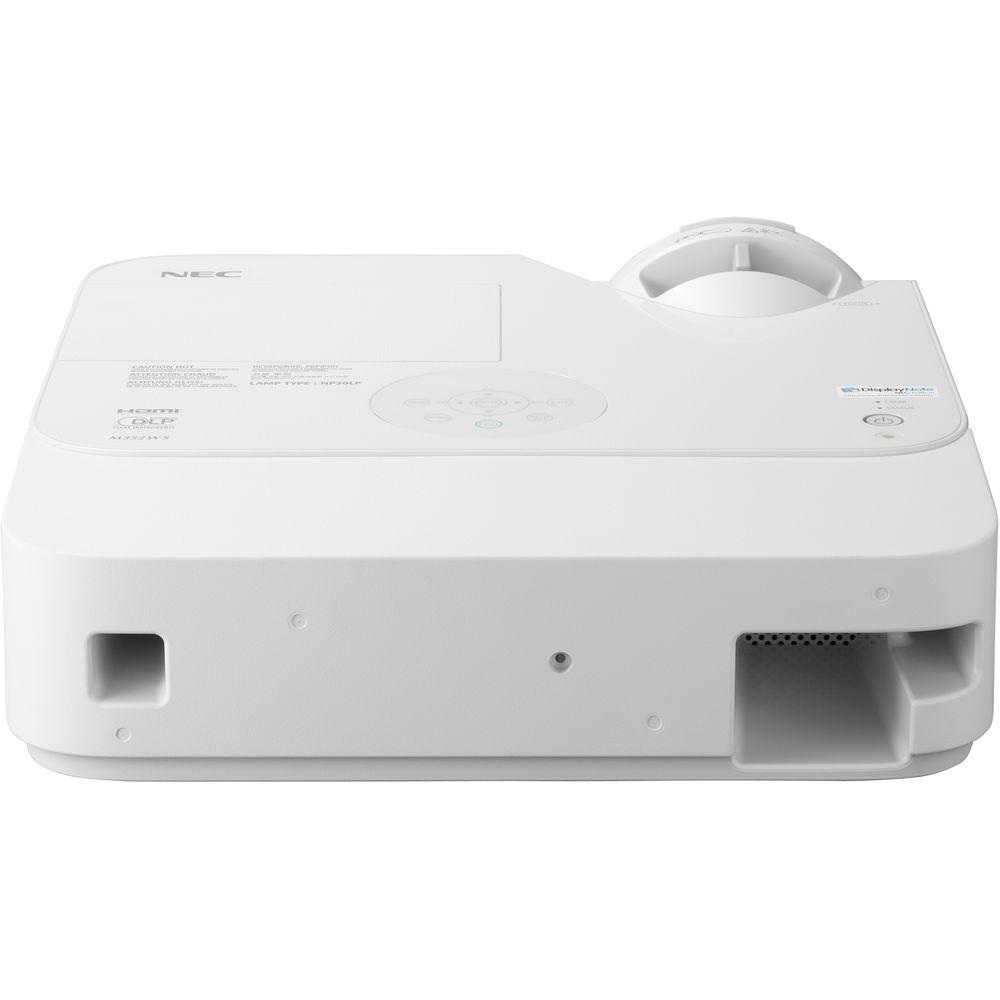

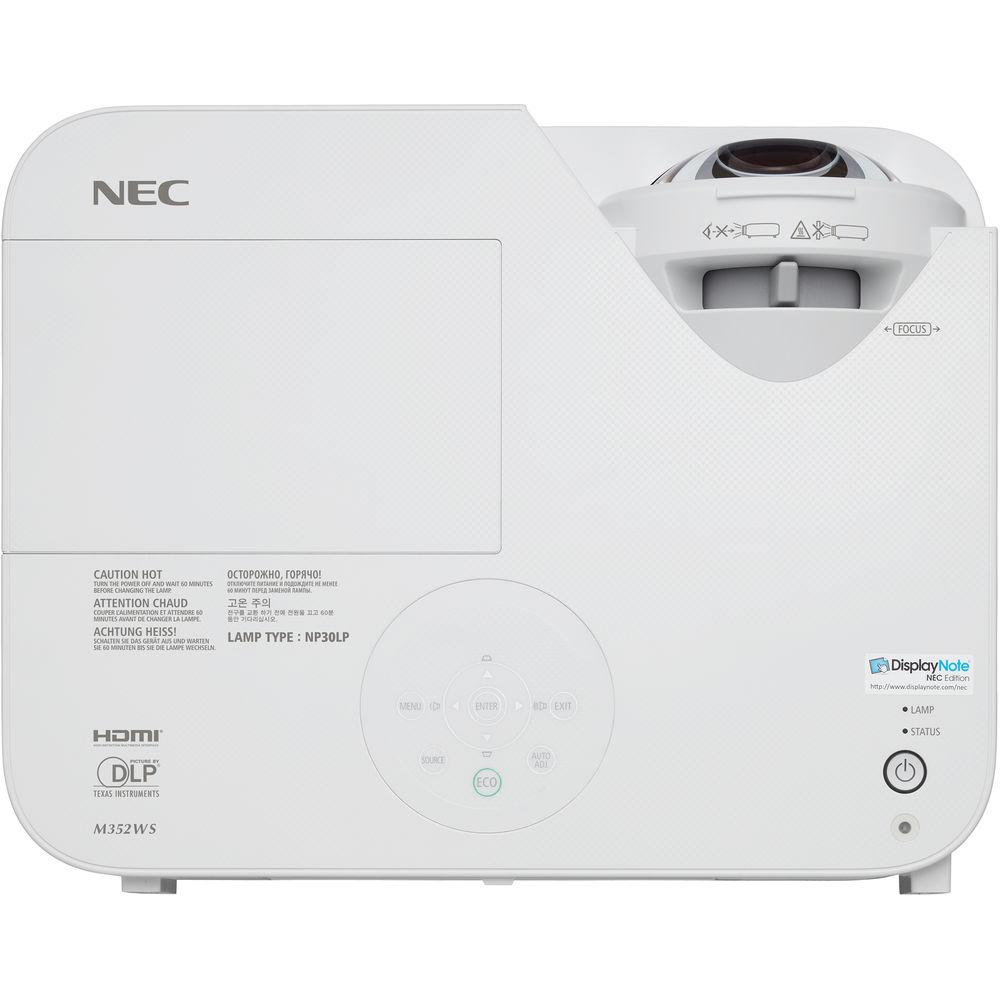

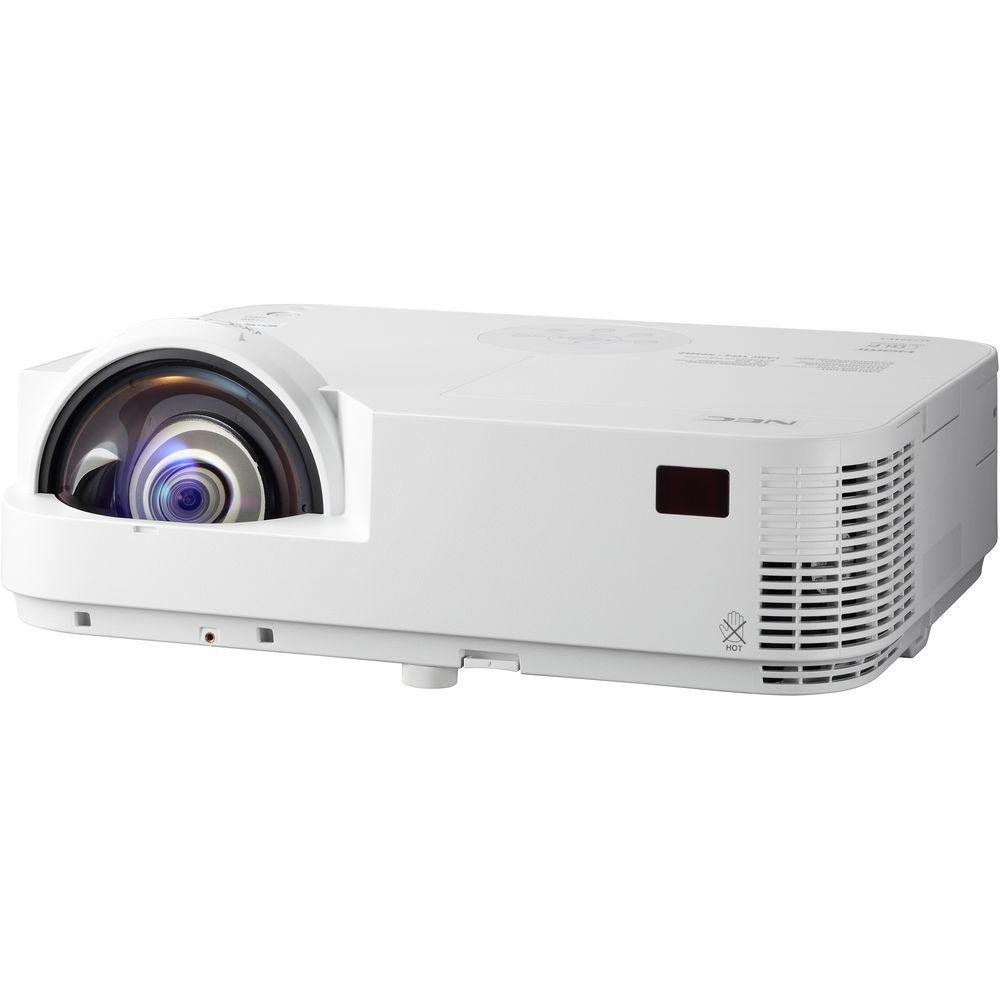

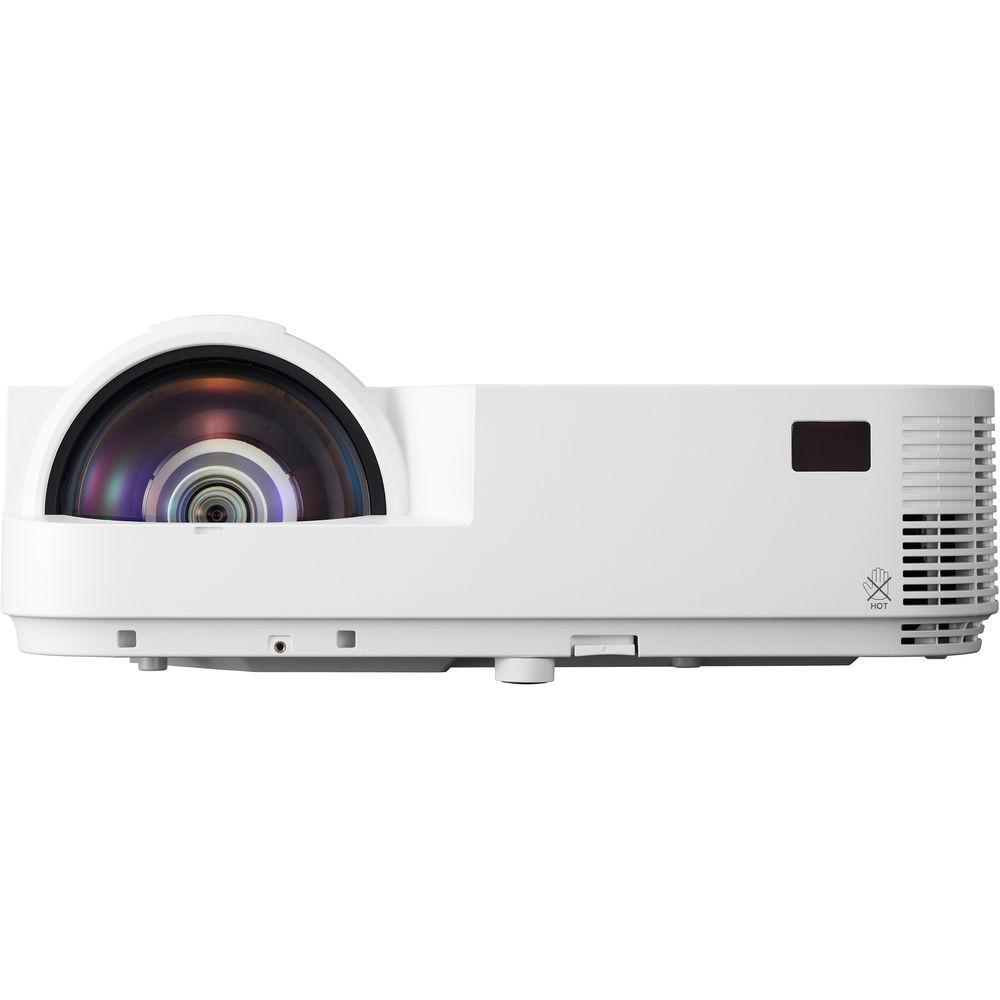

User Manual for NEC NP-M353WS 3500 Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-M353WS 3500 Lumen WXGA DLP
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-M353WS 3500 Lumen WXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The NEC NP-M353WS 3500 Lumen WXGA DLP Projector offers detailed images, network control, and efficient operation. It features 3500 lumens of brightness and a 10,000:1 contrast ratio with lamp control. Additionally, this projector sports a WXGA 1280 x 800 native resolution for viewing detailed content and supports up to WUXGA 1920 x 1200 video signals. The NP-M353WS is powered by a DLP display system, and the lamp features a long life of up to 8000 hours in ECO Mode. You can use the NP-M353WS to project up to a 150" diagonal screen size, and it features a 0.45:1 throw ratio.
With composite video, VGA, and dual HDMI inputs, this projector is well equipped for external video sources. As an added convenience, a VGA cable is included. It also supports MHL connectivity via HDMI, which allows you to mirror and charge compatible mobile devices. Other features include a 0.15W standby power consumption level and a 1.2x zoom with 64-step image magnification. - Advanced Eco Mode
- With a built-in ambient light sensor, brightness is automatically adjusted based on lighting conditions in your viewing environments. Automatically dim the image with the projector's auto-dim feature, which is designed to control the brightness of static images and extend lamp life. Constant brightness control prevents drop in brightness over time, while maximizing lamp life.
- Color Wall Correction Presets
- Built-in color wall correction presets provide for adaptive color tone correction to display properly on non-white surfaces.
- Multi-Screen Projection Function
- When paired with the optional wireless LAN module, the multi-screen projection function allows you to share screens from multiple devices on various split-screen displays. Display information from up to 16 computers, tablets, smartphones, and other network-connected devices.
- Top Cover Lamp
- This feature provides for easy lamp changes without removal of the projector from the mount.
- Shielded Optical Structure and Filter-Less Design
- The filter-free design and shielded engine minimize the hassle and time spent monitoring and/or changing filters. The key optical parts are shielded for dust protection, and a magnetic sensor is effective against dust.
- Remote Control
- Easy control from remote allows you to adjust lamp mode, aspect ratio, volume and image all with the touch of a button.
- Dual HDMI Inputs
- Among the projector's wide selection of inputs are 2 HDCP-compliant HDMI inputs for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and personal computers. One of the HDMI ports is MHL compliant.
- Variable Audio Output
- This input enables the remote control to be used to adjust volume of self powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers.
- Full HD 3D Video (144 Hz)
- When combined with sold separately active shutter glasses and 3D emitter, this projector can create 3D images from a computer or Blu-ray player. The projector utilizes a 3D sync line output to connect to the sold separately 3D emitter.
- USB Input
- Connect your computer directly to the projector using the USB port and a standard USB cable.
- USB Viewer
- Using the presentation conversion software included with the projector, simply place your file onto a USB drive and plug it into the projector's USB port. This allows you to display images stored as JPEGs from optional USB memory drives.
- Image Express Lite
- Dedicated projector software provides wired and wireless data and audio transmission via peer-to-peer or over the network.
- Educational Functionality
-
- Plug-and-play intuitive setup and operation
- Versatile, color-coded connections to computer, video sources, and external monitor
- Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
- AutoSense intuitively syncs the projector with most computer signals and features one-touch image optimization
- One-touch source changes and complete menu control using the intuitive projector keypad
- Powerful 20W speaker provides volume needed for large rooms
- Efficient Design
-
- Extended lamp life with ECO Mode technology increases lamp life up to 8,000 hours, while lowering power consumption
- Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
- Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
- Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup - a green ECO Mode button on the remote control makes the switch easy
- Quick start (3 to 4 seconds) lets you begin presenting in seconds
- Sleep timer can be set to automatically turn off the projector at set countdown times
- Low power consumption (0.2W in stand-by mode) minimizes energy costs
- Advanced Networking Capabilities
-
- Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
- Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
- PC CTL 4.0 controls the power switching input selection and other functions while managing lamp usage and other vital information over the network
- The included software also provides email notifications and projector scheduling for better asset management.
- Mac users can install the included PC CTL 5.0 software
- Support for Crestron RoomView and AMX
- Wireless Image Utility (WIU) sends images directly from an iPad to the projector (requires wireless LAN module NP05LM1)
- Simple Access Point feature makes it easy to send images from a computer or iPad to the projector
- Additional Features
-
- BrilliantColor advanced video processing from Texas Instruments offers vibrant and realistic colors
- DICOM Simulation enables users in medical training environments to display accurate diagnostic images
- Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
- Built-in closed captioning enables decoding and display of text information from a video
- 64-step image magnification with location control
- Countdown sleep timer can be set to automatically turn off the projector
UPC: 805736059199 In the Box NEC NP-M353WS 3500 Lumen WXGA DLP Projector Remote Control Remote Control Batteries RGB Cable Power Cord RGB Cable Limited 2-Year Warranty for Projector Limited 1-Year or 500-Hour Warranty for Lamp (Whichever Occurs First) User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-M353WS 3500 Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-M353WS Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3500 Lumens
2800 Lumens | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 100 kHz or 24 kHz
Vertical: 50 to 120 Hz
Vertical: 50 to 85 Hz | | | | Focus | Manual | | Lens | f/2.4 (f = 6.5 mm) | | Optical Zoom | Manual: 1.2x | | Throw Ratio | 0.45:1 | | Projection Size | 60 - 150" / 152.40 - 381.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

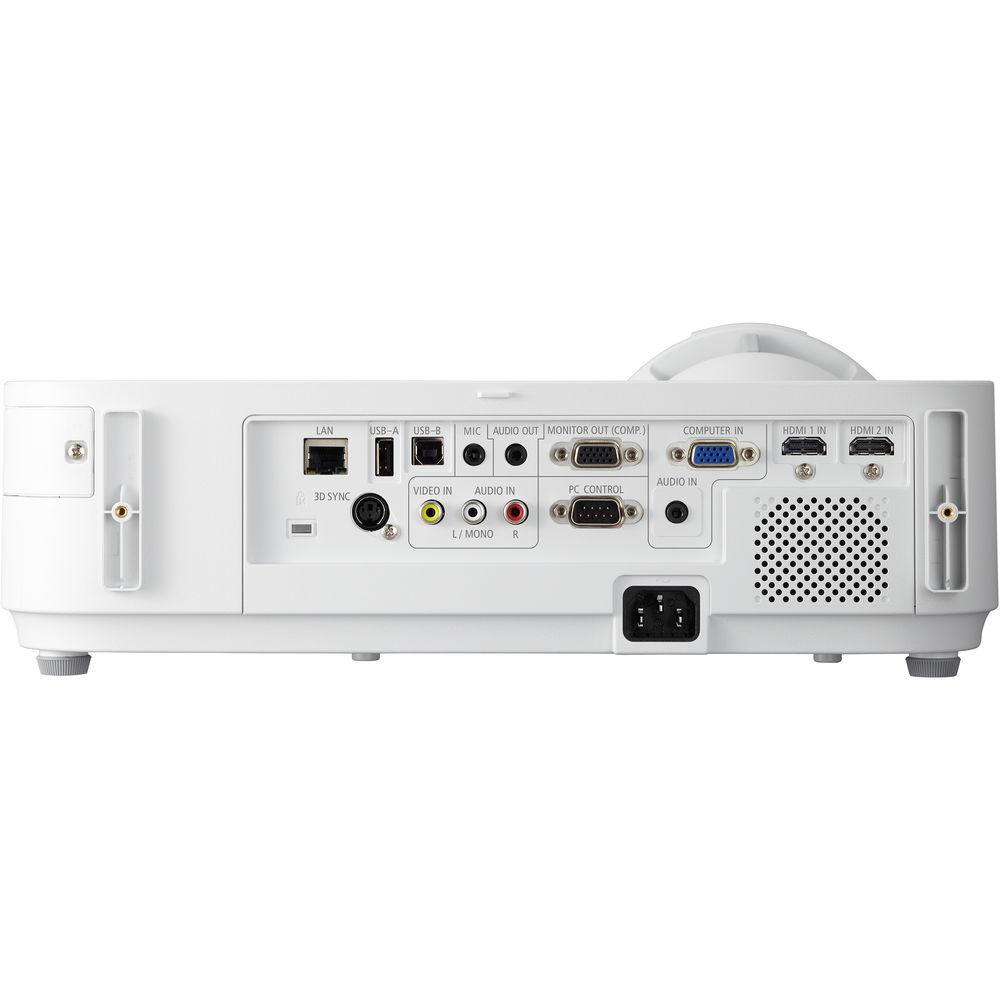

Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 20W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Ethernet (RJ45) Control
1 x USB Type-A Female
1 x USB Type-B Female
1 x 1/8" (3.5 mm) Mini Microphone
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RS-232C (Unspecified Connector) Control
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VESA 3D Sync Video
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 162 W
270 W | | Expected Lamp Life | Low Brightness: 8000 Hours
Medium Brightness: 3500 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 338 W
Low Brightness: 276 W
Standby Mode (Lamp Off): <0.5 W
Standby Mode (Lamp Off): <0.15 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | 14.5 x 5.3 x 11.5" / 368.0 x 134.0 x 291.0 mm | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 17.7 x 14.9 x 9.0" |
