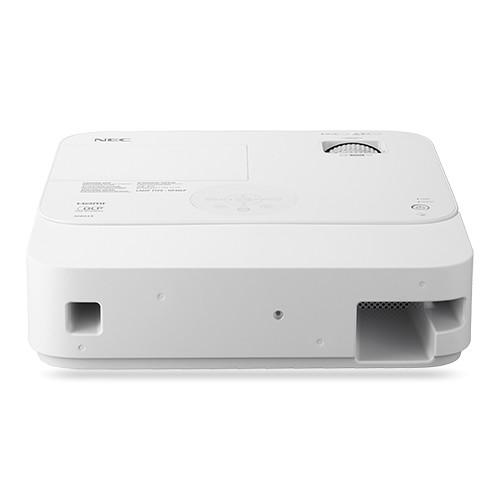

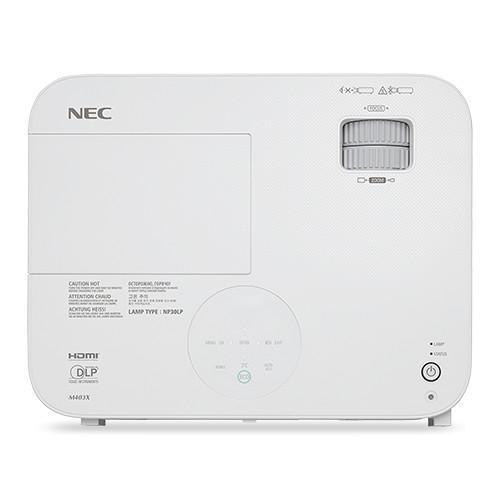

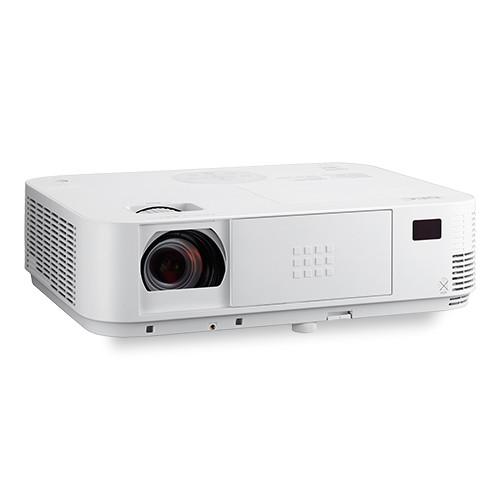

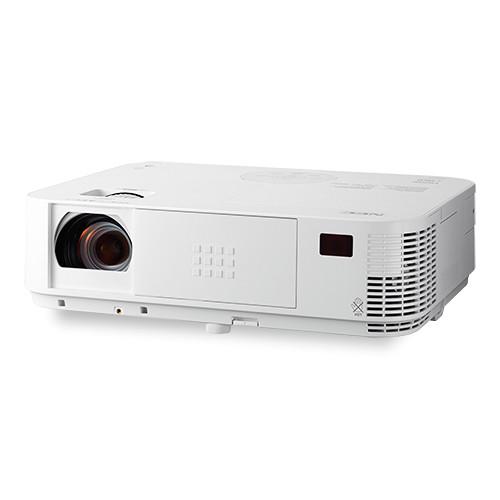

User Manual for NEC NP-M403H 4000-Lumen 1080p DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-M403H 4000-Lumen 1080p DLP Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-M403H 4000-Lumen 1080p DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Designed to be easy-to-use and require minimal maintenance, the NEC NP-M403H 4000-Lumen 1080p DLP Projector features a filter-free design and a shielded engine to protect the internal components without having to replace parts. Its two HDMI inputs will allow you to connect nearly any high definition device; it also has a VGA and a composite video input for added versatility. The projector's USB port will allow you to play your media directly from a flash drive, so no computer is required.
The projector has a throw ratio of 1.2 to 2.0:1 to provide a variety of possible placement options to achieve its 30 to 300" image size. Its 20W speaker will eliminate the need to carry around or set up an external speaker system. In addition to the video inputs, the NP-M403H has an analog audio input and output, plus a VGA output to daisy-chain multiple projectors from the same source. It is controllable via Ethernet, RS232, DDC/CI, or USB. The projector includes an RGB cable, a carrying case, and an IR remote control. - Dual HDMI inputs ensure the highest quality image from your sources
- Maintenance-free design, featuring a shielded engine, eliminates the hassle and time spent monitoring and/or changing filters
- USB viewer allows you to present without a PC using a USB flash drive
- 20W speaker provides volume needed for large rooms
- ECO Mode technology helps extend lamp life and lowers power consumption with constant brightness, which prevents the usual drop in brightness over time, while maximizing lamp life
- Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
- Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
- NaViSet Administrator 2 is a free software solution designed control, monitor, and manage your projector settings in an all-in-one support system
- Automatic keystone correction
- Cornerstone - available using geometric correction software
- Built-in wall color correction
UPC: 805736059205 In the Box NEC NP-M403H 4000-Lumen 1080p DLP Projector Remote Control with Batteries RGB Signal Cable CD-ROM Carrying Case Power Cord Limited 3-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-M403H 4000-Lumen 1080p DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-M403H Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4000 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/2.4 - 3.2 (f = 18.0 - 30.6 mm) | | Optical Zoom | 2x | | Throw Distance | 2.4 - 46.3' / 0.732 - 14.112 m | | Throw Ratio | 1.2 - 2.0:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 25°
Auto-Vertical: ± 30°

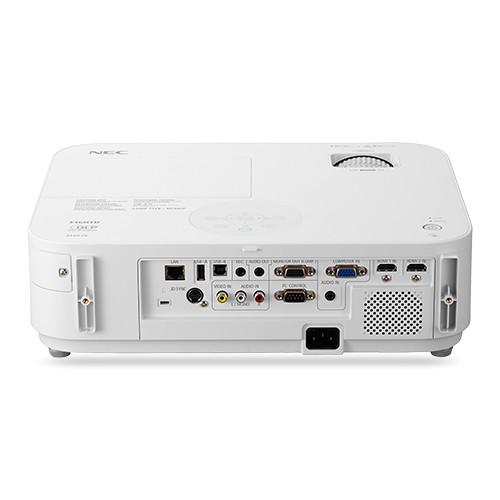

Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
2 x HDMI Audio/Video (Input)
1 x USB Type-A Female (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x USB Control (Input)
1 x VESA 3D Sync Control | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 270 W
162 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 8000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 30 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Photo File Types | JPEG | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 336 W
Low Brightness: 221 W
Standby Mode (Lamp Off): 2.5 W
Standby Mode (Lamp Off): 0.2 W | | Max Operating Altitude | 8000' / 2438 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-14 to 122°F (-25 to 50°C) | | Dimensions (W x H x D) | 14.5 x 4.3 x 11.5" / 36.8 x 10.9 x 29.2 cm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 17.7 x 14.9 x 9.0" |
