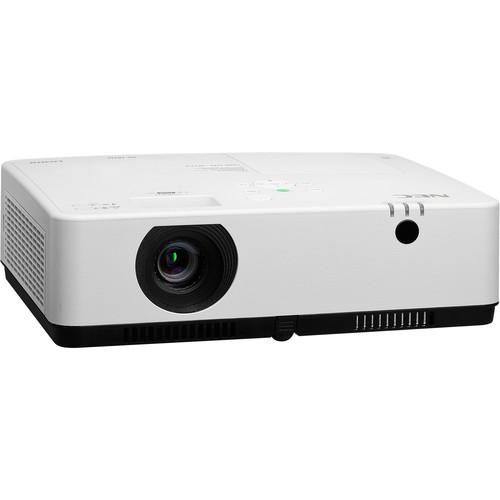

User Manual for NEC NP-MC372X 3700-Lumen XGA LCD Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-MC372X 3700-Lumen XGA LCD Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-MC372X 3700-Lumen XGA LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Enjoy bright, clear images with the NEC NP-MC372X 3700-Lumen XGA LCD Projector. Its 3700 lumens of brightness can overcome ambient light in most conference room and classroom settings, while its 16,000:1 dynamic contrast ratio can help ensure discernible detail in most images. The projector's native XGA 1024 x 768 resolution is suitable for most video and file formats, and will accept up to 4K UHD sources.
The NP-MC372X has VGA, composite video, and two HDMI inputs to support most input types, plus an analog audio input and built-in 16W speaker that will provide audio for your video. The 1.5 to 1.8:1 throw ratio and 1.2x zoom allow you to place the projector near the back of the room in most cases. It is controllable via Ethernet, RS-232, the included IR remote control, or Crestron RoomView software - Advanced AccuBlend
- This feature helps ensure detailed images when non-native resolution sources are projected.
- AutoSense
- AutoSense is designed to sync the projector with most computer signals. It also features one-touch image optimization.
- Wall Color Correction
- Presets provide for adaptive color tone correction for projection on non-white surfaces.
- Cornerstone Correction
- This feature allows for horizontal, vertical, and diagonal image correction to help you achieve aligned images when the projector is set up at an angle to the screen.
- Geometric Correction
- Geometric correction lets you project onto spheres, cylinders, corner angles, and more.
- Computer-Free Presentations
- Insert a compatible USB drive directly into the projector and flip through images using the remote control.
- Ready for 4K UHD
- The NP-MC372X accepts resolutions up to 4K UHD to offer a measure of future-proofing.
- Integrated Speaker
- The built-in 16W speaker is designed to provide the volume needed for most conference rooms.
- Multiple Inputs
- Having VGA, RCA, and two HDMI inputs enables you to quickly switch between presentations from different sources. The HDMI ports support HDCP, so you can project from Blu-ray players, cable boxes, satellite receivers, computers, and more.
- USB Viewer
- Play JPG files stored on your USB drive without a computer.
- Wired Network Connection
- The integrated Ethernet connection enables quick connection to your LAN via 10/100 base-T.
- Variable Audio Out
- You can adjust the volume of an external speaker system using the projector's remote control.
- Crestron RoomView Compatibility
- Crestron RoomView provides unified management, including the ability to turn the power on and off for multiple projectors connected to a network.
- Remote Diagnostics
- You can monitor and make adjustments to the projector from a remote location.
- Closed Captioning
- Closed captioning enables the decoding and display of text information from a video.
- Independent Source Keys
- The projector and remote feature direct access buttons for source selection.
- ECO Mode
- This mode helps extend lamp life, lower audible noise, and reduce total cost of ownership.
- Carbon Savings Meter
- This meter calculates the effects of operating the projector in ECO Mode. A green ECO Mode button on the remote control enables one-touch mode activation.
- Power Management
- Power management enables the projector to automatically turn off when an incoming signal is not detected from any of the inputs.
- Quick Startup and Quick Power-Off
- These features allow you to start presenting within four seconds and enables immediate power off with no cooling required after shutdown to help ensure efficient energy usage.
- Auto Power On
- This feature powers the projector on as soon as it's plugged into a power outlet.
- Direct Power Off
- Direct Power Off helps protect the lamp when the projector is accidentally unplugged by enabling the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on if it's too hot.
- Optional Wireless LAN
- Transmit images from your computer to the projector wirelessly with the optional NP05LM1 wireless LAN adapter.
- Additional Features
-
- The lamp lasts up to 15,000 hours to help reduce maintenance requirements, lowering the total cost of ownership
- LCD technology is designed to provide bright, colorful images
- Built-in MultiPresenter functionality allows for screen sharing of up to 16 Windows, Mac, Android, or iOS devices simultaneously via your LAN
- NaViSet Administrator 2 software helps ease administration and management of large display device installations
- Virtual Remote
- Sleep timer
UPC: 805736070248 In the Box NEC NP-MC372X 3700-Lumen XGA LCD Projector Remote Control with 2 x AAA Batteries VGA Cable Lens Cap Strap Power Cord Limited 3-Year Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-MC372X 3700-Lumen XGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-MC372X Specs | | | Display System | 0.63" LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: DCI 4K - 3840 x 2160 @ 30 Hz | | Max Brightness | 3700 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 16,000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.6 - 1.76 (f = 19.158 - 23.018 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.9 - 35.9' / 0.884 - 10.942 m | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 20°

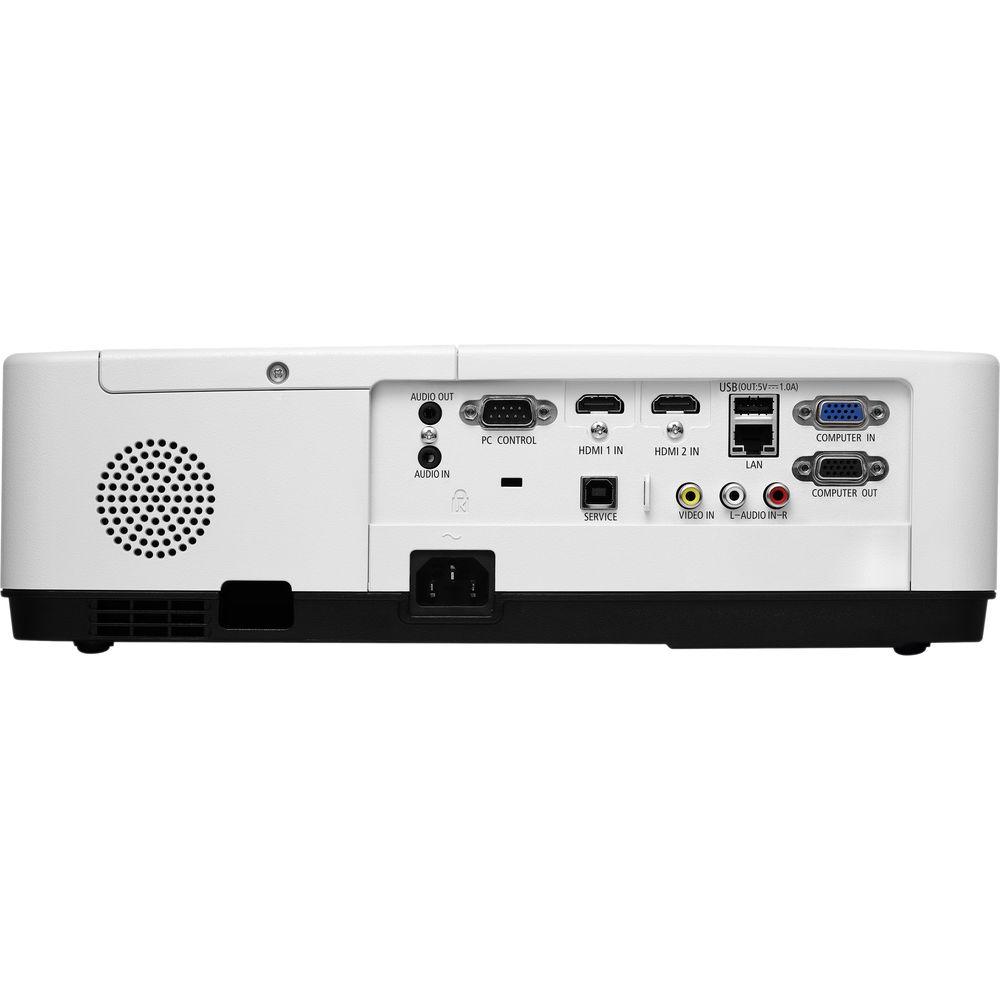

Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-B) Control, Video
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control Input | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 37 dB
Medium Brightness: 34 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot | | Supported Photo File Types | JPEG | | Supported Languages | Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 to 3.3 A | | Power Consumption | Medium Brightness: 267 W
Low Brightness: 196 W
Standby Mode (Lamp Off): 1.5 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 13.6 x 4.1 x 10.3" / 34.5 x 10.4 x 26.2 cm | | Weight | 7.1 lb / 3.22 kg | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 17.0 x 15.0 x 7.9" |
