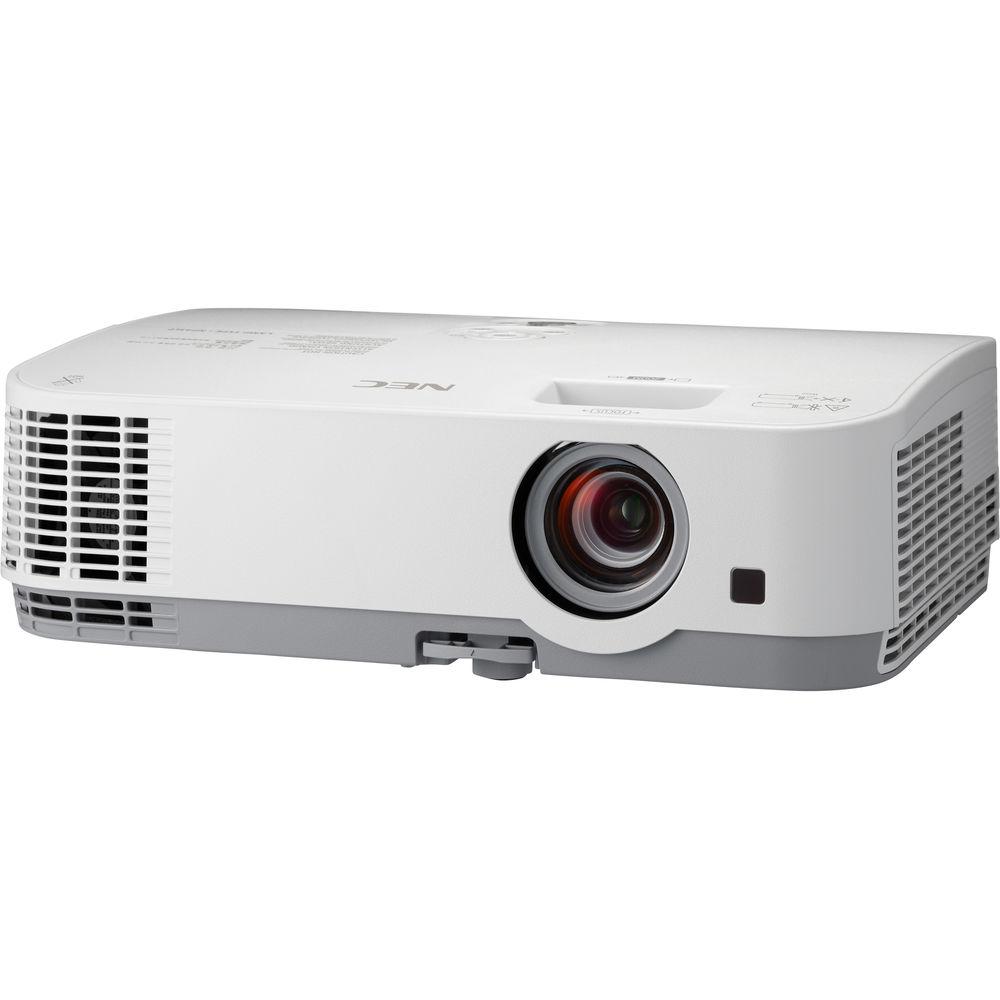

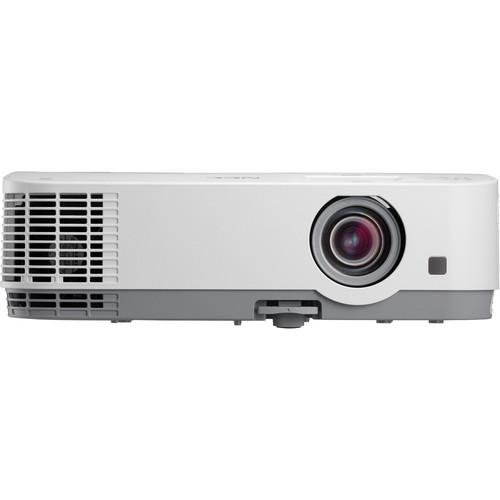

NEC NP-ME331X 3300-Lumen XGA LCD Projector

Search your instruction manual in PDF to download

User Manual for NEC NP-ME331X 3300-Lumen XGA LCD Projector

Click to enlarge the picture
NEC NP-ME331X 3300-Lumen XGA LCD Projector Contents of the user manual for the NEC NP-ME331X 3300-Lumen XGA LCD Projector
  • Product category: Multimedia Projectors NEC
  • Brand: NEC
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NEC Multimedia Projectors

NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector NEC NP-ME331X 3300-Lumen XGA LCD Projector
User manual for the NEC NP-ME331X 3300-Lumen XGA LCD Projector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NEC product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!



Product description

New NEC ME-Series Projectors Read More
  • NEC Display Solutions|ME Series Multimedia Projector
Enjoy bright, clear images with the NEC NP-ME331X 3300-Lumen XGA LCD Projector. Its 3300 lumens of brightness will overcome ambient light in many installations, while its 12,000:1 contrast ratio will help ensure discernible detail in most images. The projector's native XGA 1024 x 768 resolution is suitable for most video and file formats, and will accept up to WUXGA (1920 x 1200) sources.

The NP-ME331X has VGA, composite video, and two HDMI inputs to support most input types, plus an analog audio input and built-in 20W speaker that will provide audio for your video. The 1.3 to 2.2:1 throw ratio will allow you to place the projector near the back of the room in most cases. It is controllable via Ethernet, DDC/CI, USB, RS-232, the included IR remote control, or NaViSet Administrator 2 software
    Dual HDMI inputs with HDCP
  • Dual HDMI inputs help ensure quick switching between presentations and allow for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.
    Advanced AccuBlend
  • Helps ensure detailed images when non-native resolution sources are connected to the projector.
    Built-In Wall Color Correction
  • Presets provide for adaptive color tone correction, so your presentation will display properly on non-white surfaces.
    Cornerstone Correction
  • Allows for horizontal, vertical, and diagonal image correction for aligned images, even when the projector is set up at an angle to the screen.
    AutoSense
  • Intuitively syncs the projector with most computer signals and features one-touch image optimization.
    20W Speaker Built-In
  • A built-in 20W speaker provides volume for your presentations.
    Variable Audio Out
  • Adjusts the volume of an external speaker system using the projector's remote control.
    Auto Power On
  • Powers up the projector as soon as it is plugged into a power outlet.
    Direct Power Off
  • Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
    Quick Startup and Quick Power-Off
  • Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown, to help ensure efficient energy usage.
    ECO Mode
  • ECO Mode extends lamp life, lowers audible noise, and reduces total cost of ownership.
    Carbon Savings Meter
  • Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
    Crestron RoomView Controllable
  • Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
    Virtual Remote
  • Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
    Optional Wireless LAN
  • Allows you to transmit images from a computer wirelessly to the projector, eliminating the need for traditional cumbersome cables.
    Additional Features
    • USB Viewer allows you to present without a computer using a USB flash drive
    • LCD technology helps provide vibrant images
    • Keystone, Cornerstone, and Pincushion adjustments ensure the image fills the screen properly from almost any angle
    • MultiPrenter functionality allows for screen mirroring of up to 20 devices simultaneously (Android and Windows) via a wired or wireless connection (Windows, Mac, Android, iOS; no internet access or wireless LAN required)
    • NaViSet Administrator 2: Free software solution designed to ease administration and management of larger display device installations
UPC: 805736063868 In the Box NEC NP-ME331X 3300-Lumen XGA LCD Projector
  • Remote Control
  • 2 x AAA Batteries
  • VGA Cable
  • Strap
  • Power Cord
  • Limited 2-Year Warranty on Projector
  • Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NEC NP-ME331X 3300-Lumen XGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NEC NP-ME331X Specs

    Display System 3-Chip Micro Lens Array (MLA) LCD
    Native Chip Resolution 1024 x 768 (XGA)
    Supported Resolutions WUXGA - 1920 x 1200
    Max Brightness 3300 Lumens
    Aspect Ratio Native: 4:3
    Contrast Ratio 12000:1
    Scan Horizontal: 15 to 153 kHz
    Vertical: 24 to 120 Hz
    Focus Manual
    Lens f/1.7 - 2.1 (f = 17.5 - 29 mm)
    Optical Zoom 1.7x
    Throw Distance 2 - 45.3' / 0.61 - 13.807 m
    Throw Ratio 1.3 - 2.2:1
    Projection Size 30 - 300" / 76.20 - 762.00 cm
    Keystone Correction Horizontal: ± 30°
    Vertical: ± 30°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-In Speaker Yes
    Speaker Power 20W

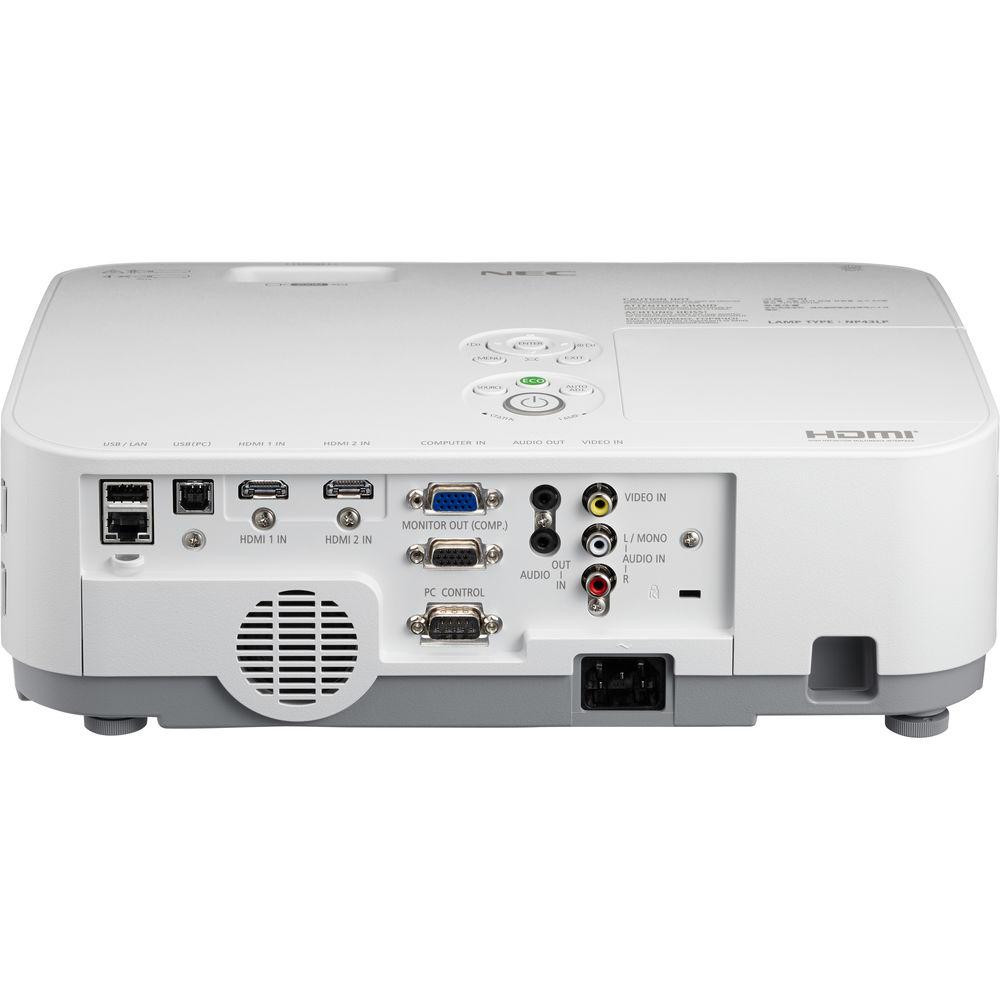

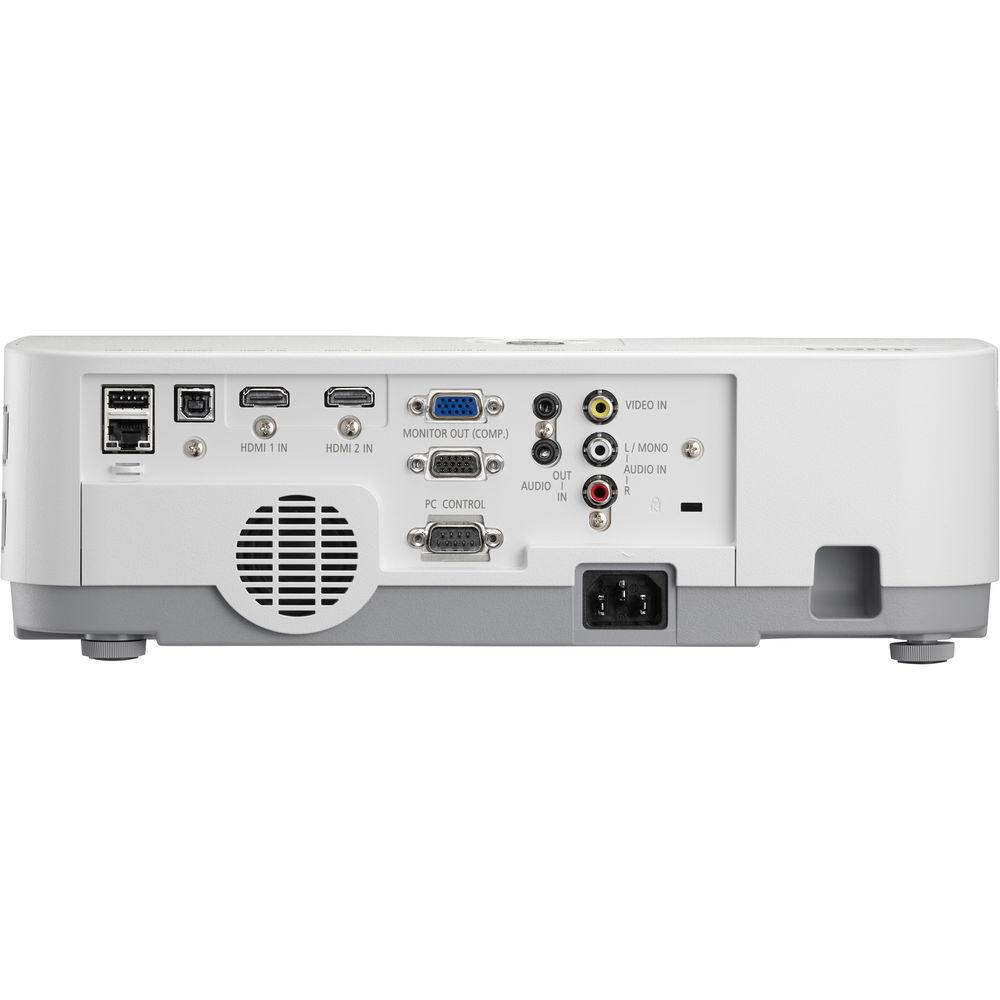

    Inputs/Outputs 2 x HDMI Audio/Video (Input)
    1 x VGA (DE-15) Video (Input)
    1 x Composite (RCA) Video (Input)
    1 x RCA Stereo (L/R) Audio (Input)
    1 x 1/8" (3.5 mm) Mini Audio (Input)
    1 x VGA (DE-15) Video (Output)
    1 x Ethernet (RJ45) LAN (Input)
    1 x USB Control (Input)
    1 x RS-232C (Unspecified Connector) Control (Input)
    1 x DDC/CI Control (Input)
    Wireless LAN / Wi-Fi None
    Lamp Power 240 W
    Expected Lamp Life Medium Brightness: 4000 Hours
    Low Brightness: 9000 Hours
    Fan Noise Medium Brightness: 36 dB
    Low Brightness: 29 dB
    Security Cable Lock Slot
    Password Protection
    Supported Photo File Types JPEG
    Supported Languages Bulgarian
    Croatian
    Czech
    Danish
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hindi
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Romanian
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    Vietnamese
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    Power Consumption Medium Brightness: 309 W
    Low Brightness: 201 W
    Standby Mode (Lamp Off): 1.9 W
    Standby Mode (Lamp Off): 0.23 W
    Max Operating Altitude 8500' / 2590 m
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 20 - 80%
    Storage
    -14 to 122°F (-25 to 50°C)
    Dimensions (W x H x D) 14.5 x 4.3 x 11.5" / 36.8 x 10.9 x 29.2 cm
    Weight 6.4 lb / 2.9 kg
    Package Weight 10.05 lb
    Box Dimensions (LxWxH) 16.7 x 14.2 x 8.0"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 43 owners. Add your rating and experience with the product.
