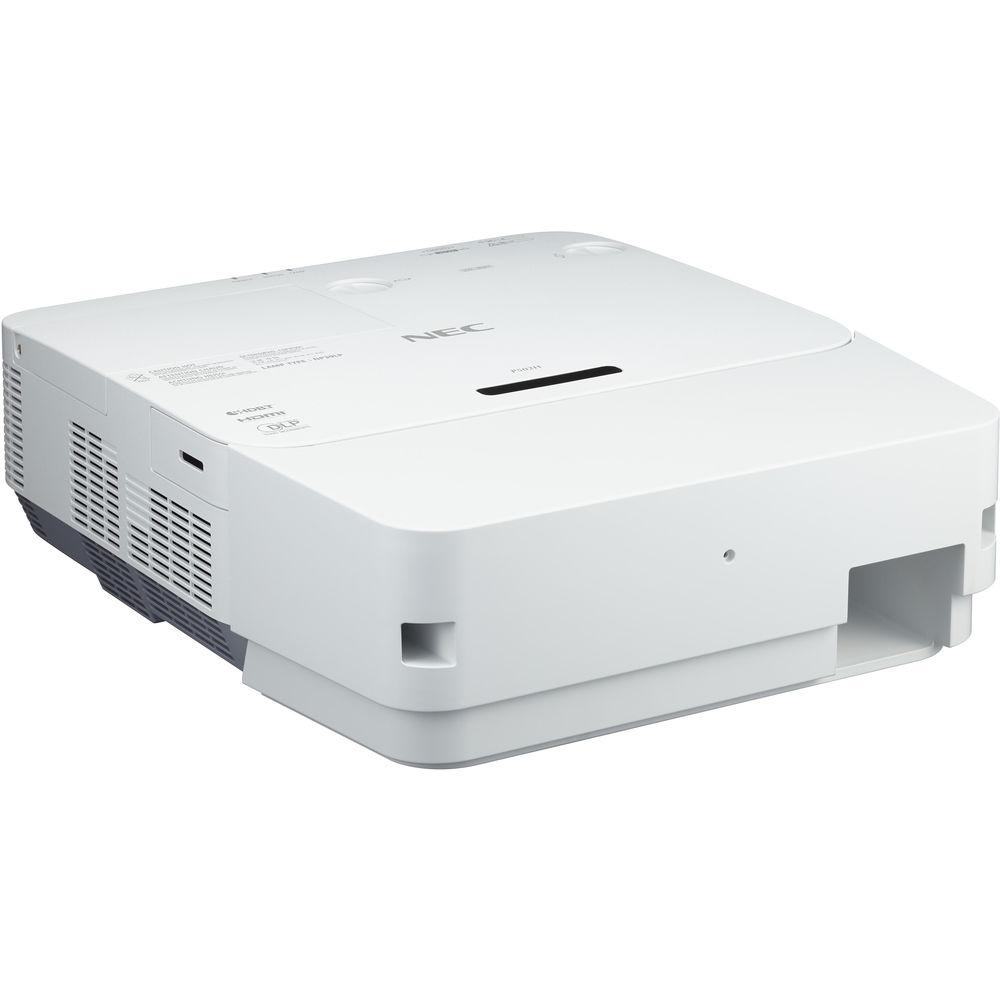

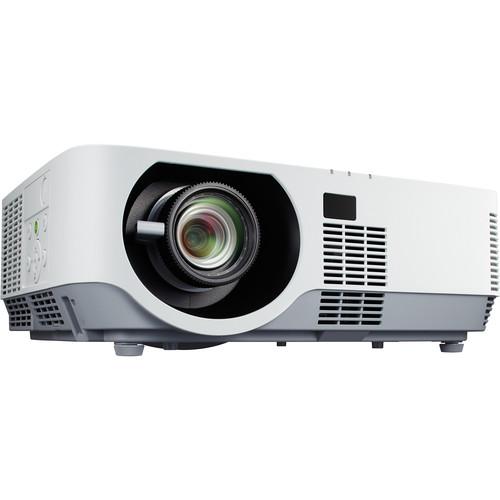

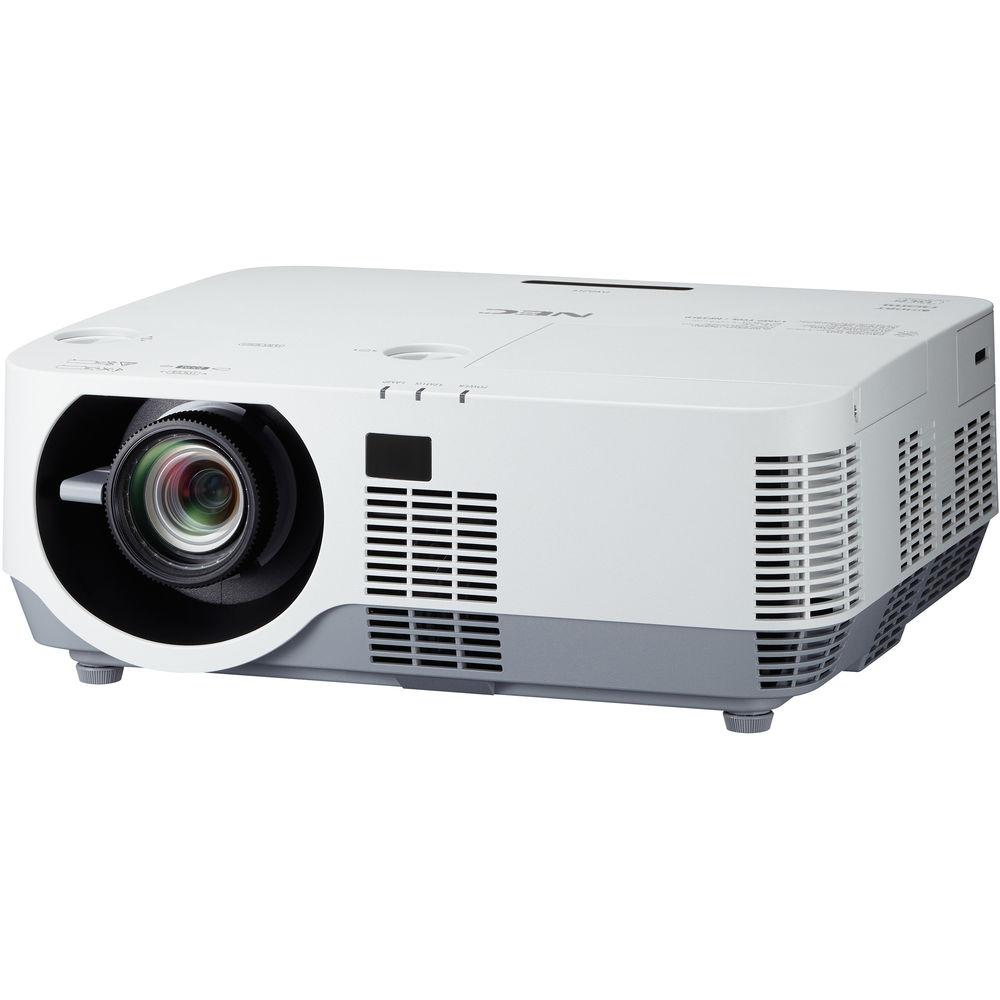

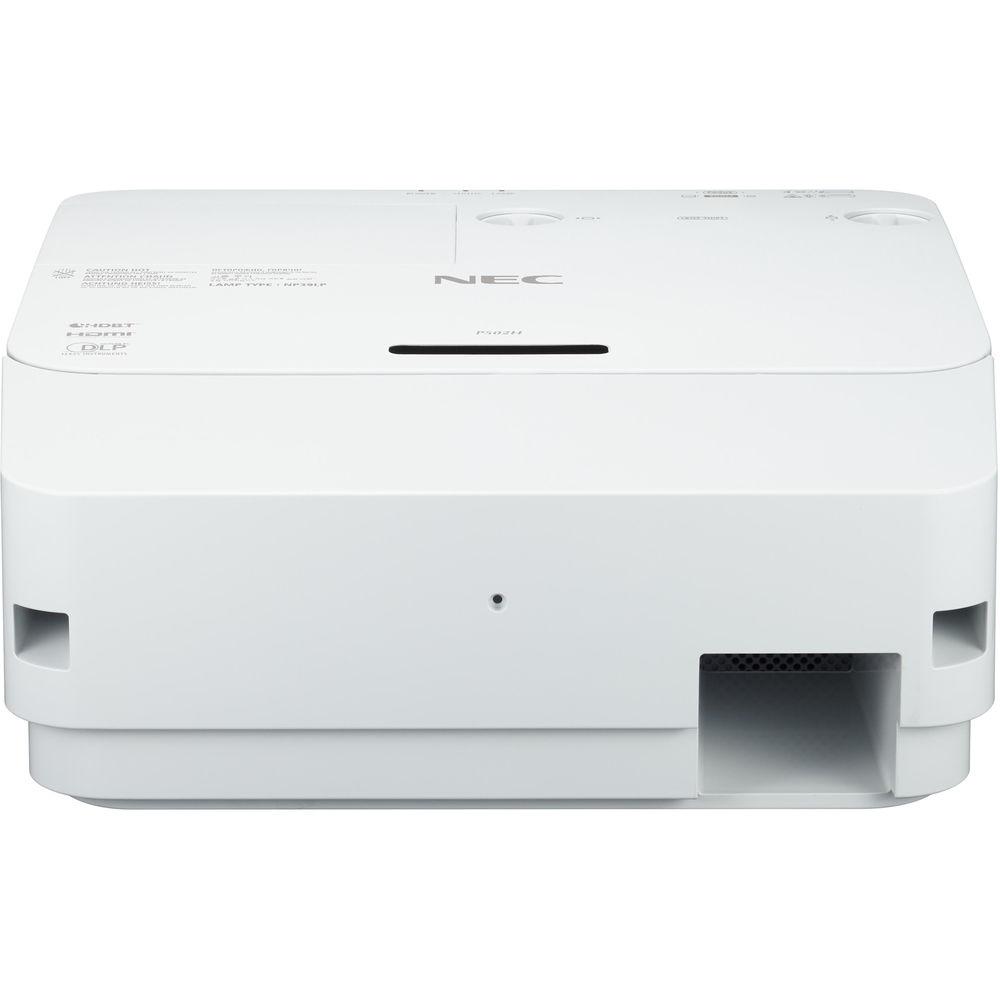

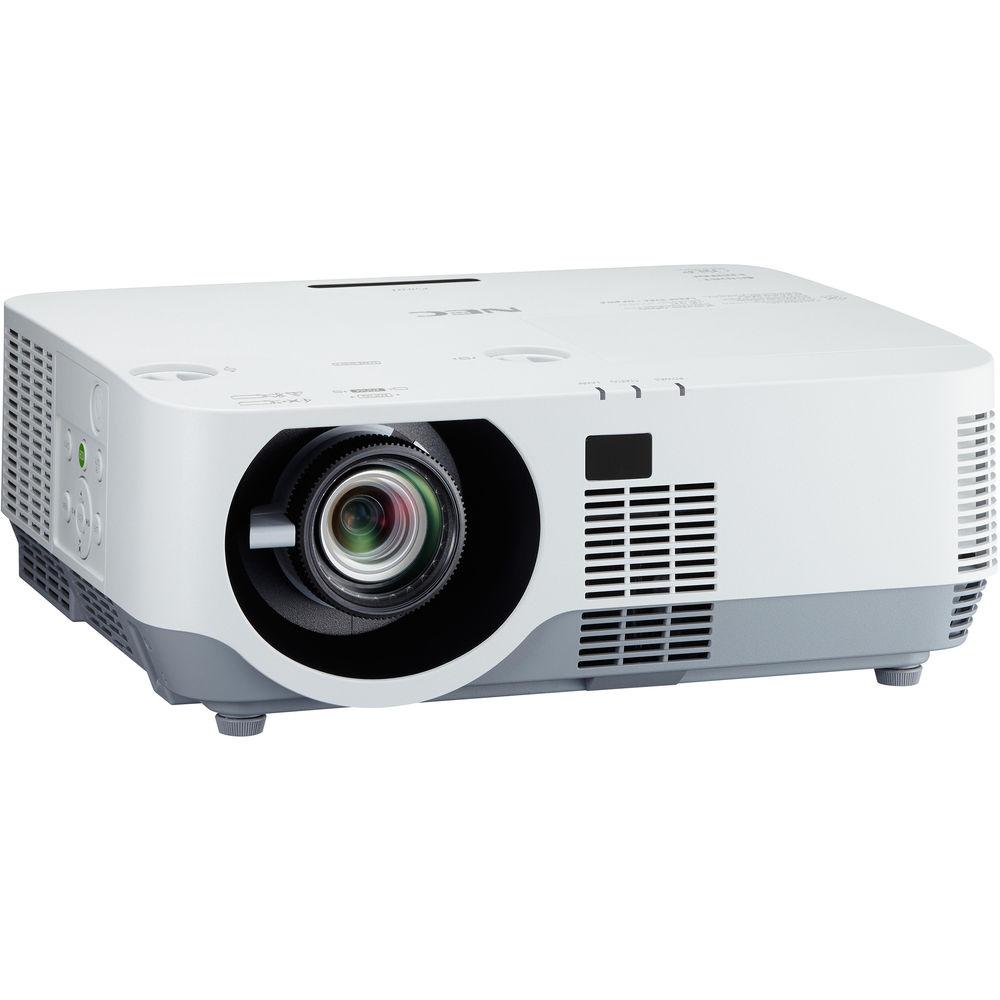

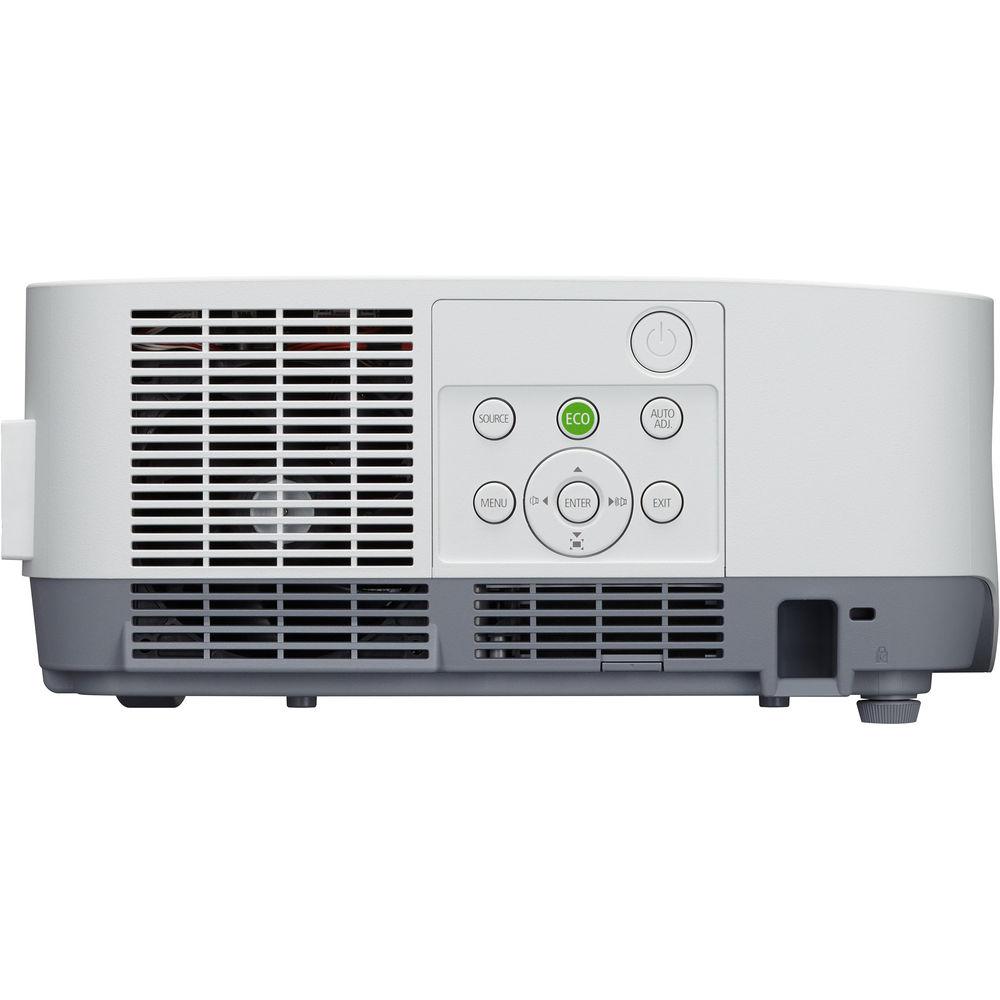

Product description Brighten up your presentations with the NEC NP-P452W 4500-Lumen WXGA DLP Projector. Whether in a boardroom or a classroom, its 4500-lumen brightness, combined with the 6000:1 dynamic contrast ratio, virtually guarantee a viewable image even in areas where you can't control the ambient light. For a more immersive experience, you can watch 3D content with separately-sold DLP Link 3D glasses.
The NP-M283X offers a throw ratio of 1.3 to 2.2:1 with 1.7x zoom. Its connections include HDBaseT, VGA, composite video via RCA, two HDMI, and an RCA stereo and 3.5mm mini input for audio. It also features 15-pin VGA video and 3.5mm mini audio outputs. Images can be shown via USB from an external drive for added versatility. The projector has a 20W speaker built in, and includes a VGA cable and remote control. - Dual HDMI inputs with HDCP ensures quick switching between presentations
- 6000:1 dynamic contrast ratio enhances detail
- Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals
- LAN connection for control and asset management over the network
- 5000-hour filter design to reduce cleaning frequency, decreasing total cost of ownership
- Variable audio-out allows the remote control to adjust speaker volume
- Eco-friendly features and minimal maintenance meet the demands for integration applications such as higher education and corporate
- Built-in 20W speakers eliminate the need for an external speaker setup
- Horizontal and vertical lens shift enables flexible projector placement
- Image Express Utility (IEU) Lite provides audio and video transmission from a computer to the projector over the network
- Compatible with NaViSet Administrator 2, a free software solution designed to ease administration and management of larger display device installations
UPC: 805736060683 In the Box NEC NP-P452W 4500-Lumen WXGA DLP Projector Remote Control 2 x AAA Batteries VGA Cable Lens Cap Strap Power Cord Limited 3-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First User Manual PDF 5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-P452W 4500-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-P452W Specs | | | Display System | -Chip 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 6000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p)
Frame Sequential | | Scan | Horizontal: 24 to 153 kHz or 15 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens | f/2.0 (f = 18.2 - 31.1 mm) | | Lens Shift | Vertical: + 0.59%
Horizontal: ± 0.28% | | Throw Distance | 2.6 - 47.6' / 0.792 - 14.508 m | | Throw Ratio | 1.3 - 2.2:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | -Horizontal: ± 25°

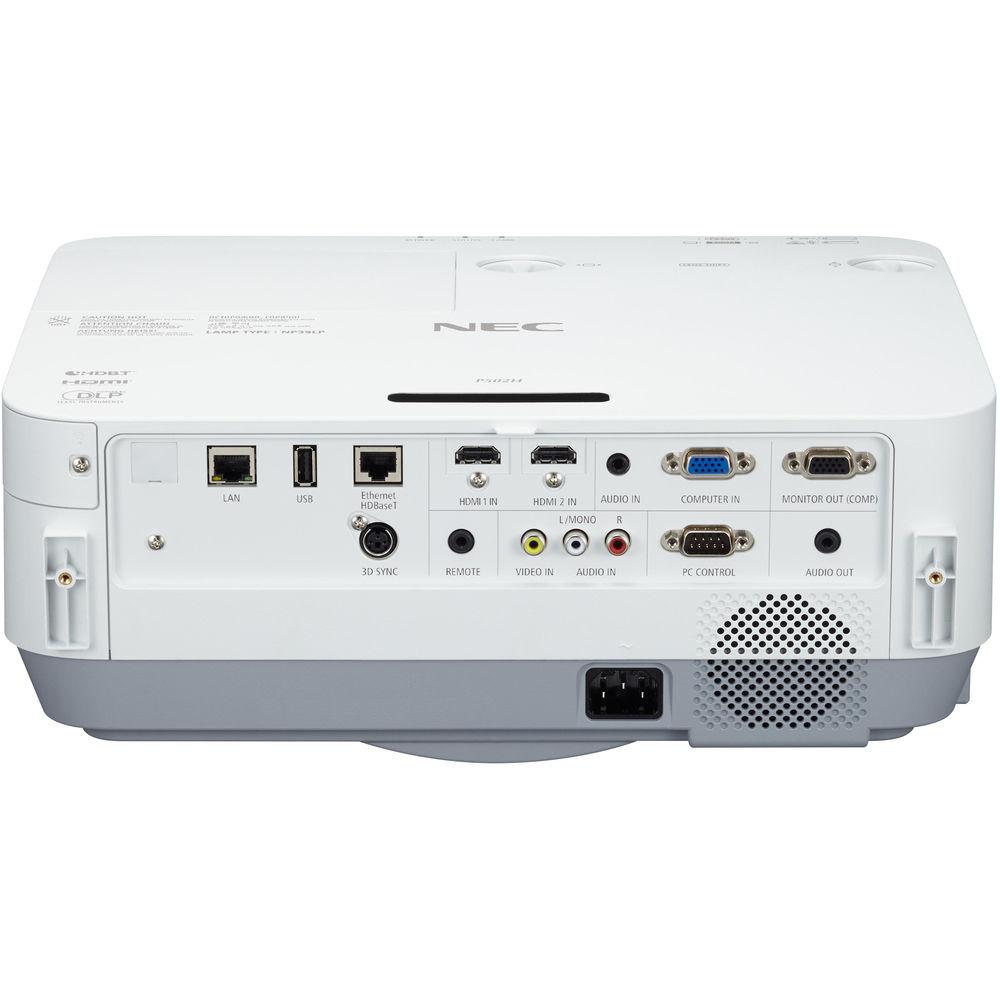

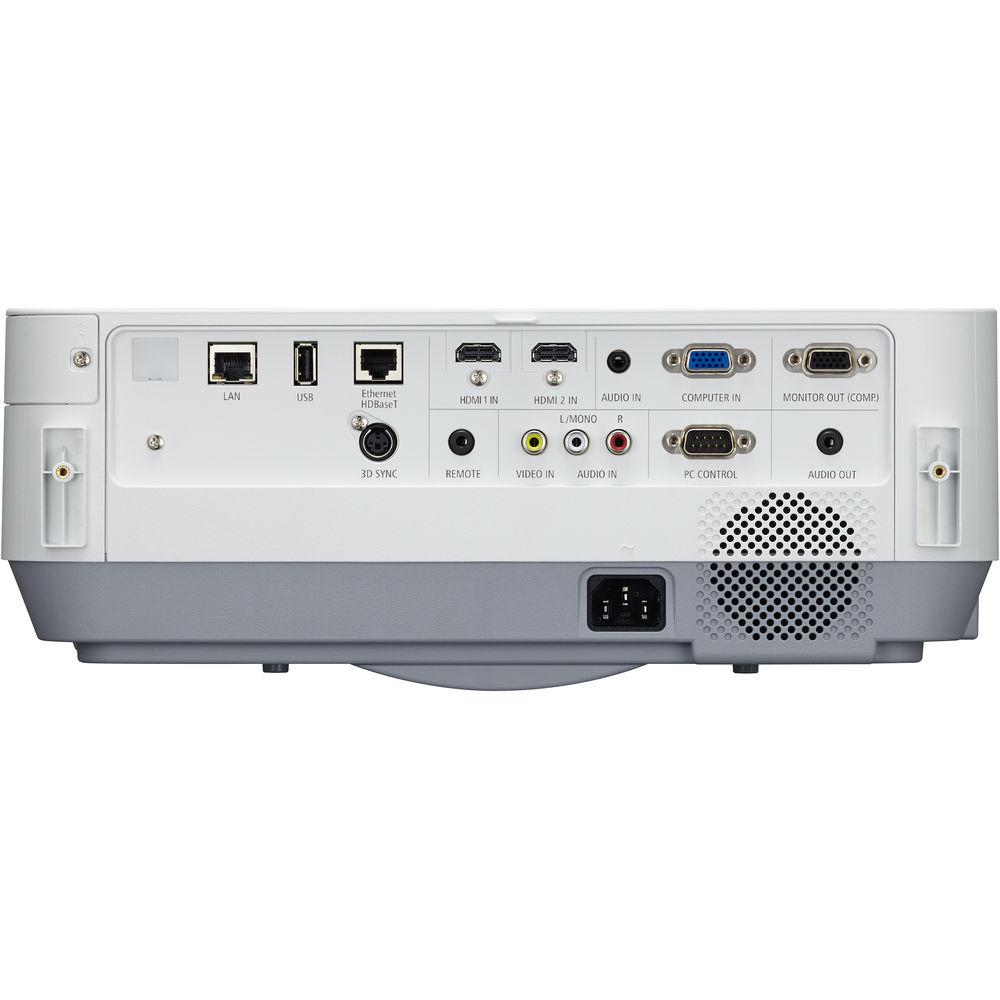

-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
2 x HDMI Audio/Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x DDC/CI Control (Input)
1 x USB Type-A Female (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) Control (Input) | | | | Lamp Power | 335 W | | Expected Lamp Life | Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 31 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | Power Consumption | Medium Brightness: 426 W
Low Brightness: 288 W
Standby Mode (Lamp Off): 2.7 W
Standby Mode (Lamp Off): 0.26 W | | Max Operating Altitude | 8000' / 2438 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 20 - 80% Non-condensing humidity | | Dimensions (W x H x D) | 14.3 x 5.1 x 11.9" / 36.3 x 13.0 x 30.2 cm Not including protrusion
14.3 x 5.5 x 12.1" / 36.3 x 14.0 x 30.7 cm Including protrusions | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 17.5 x 15.0 x 9.0" |
