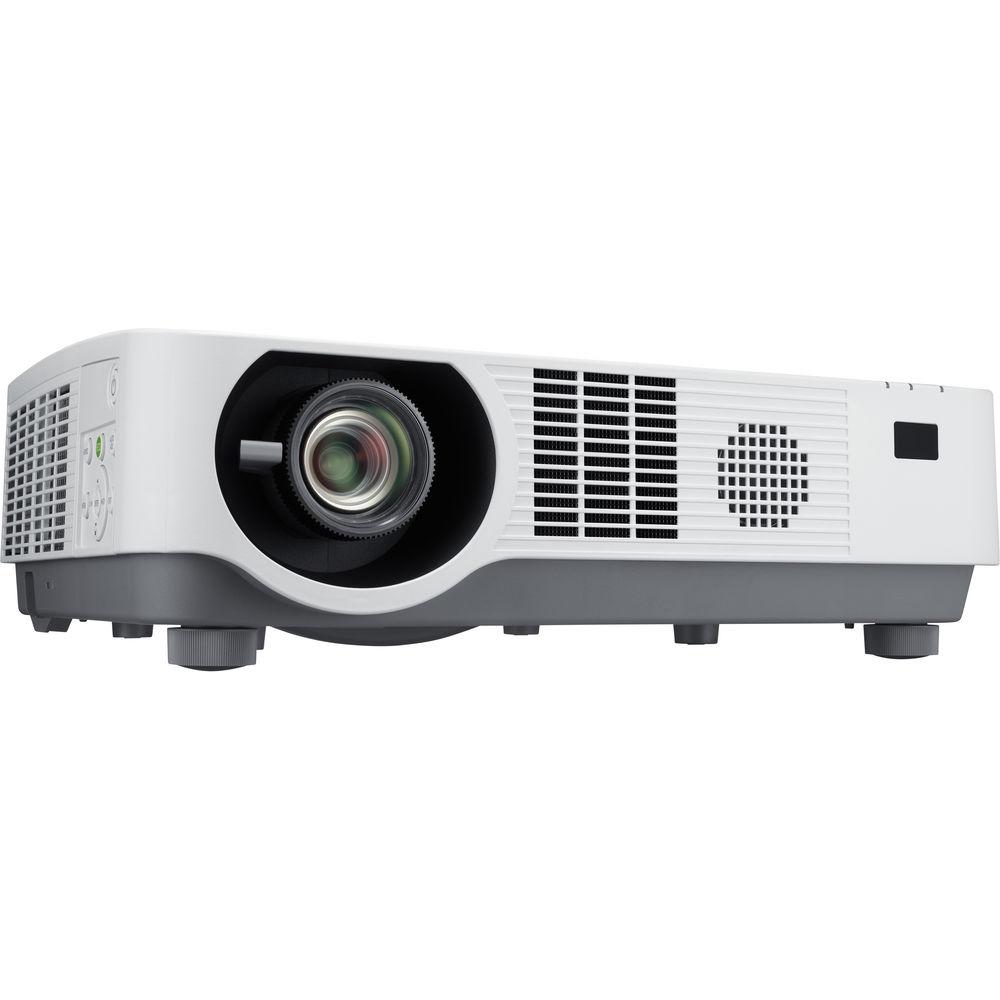

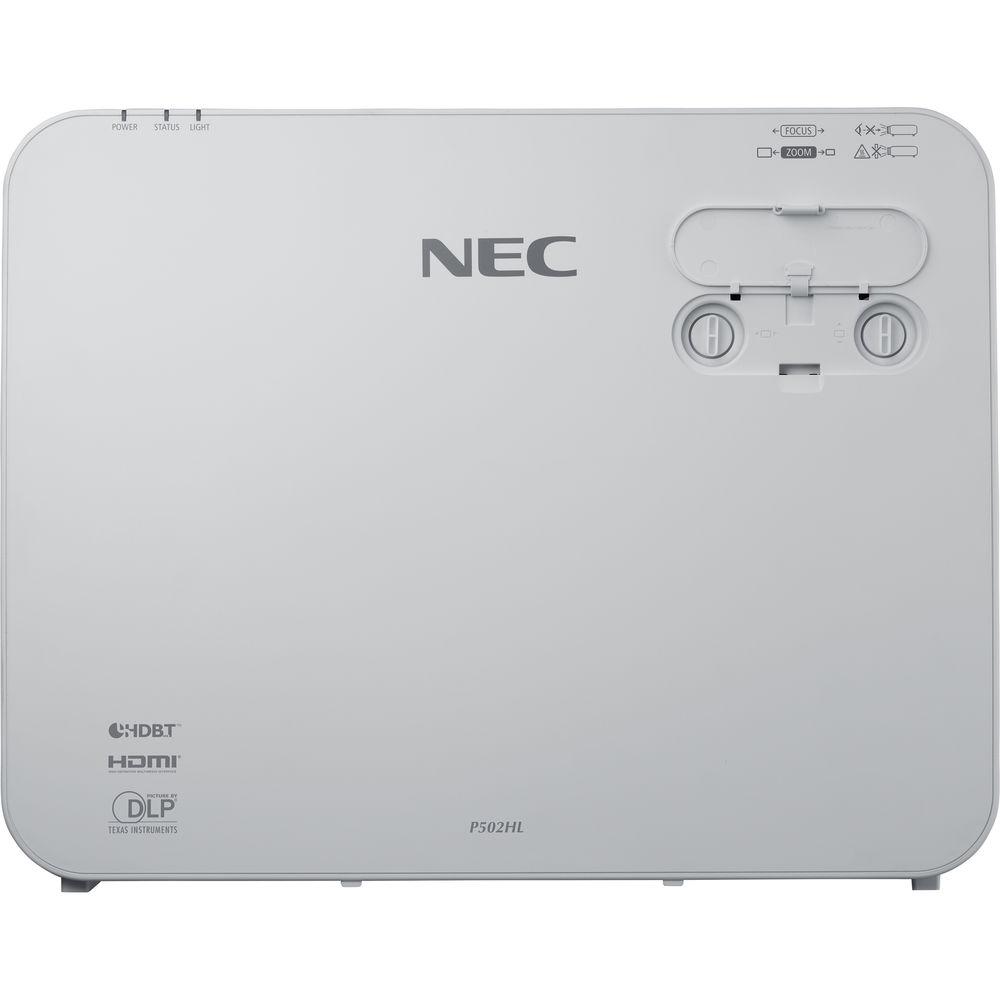

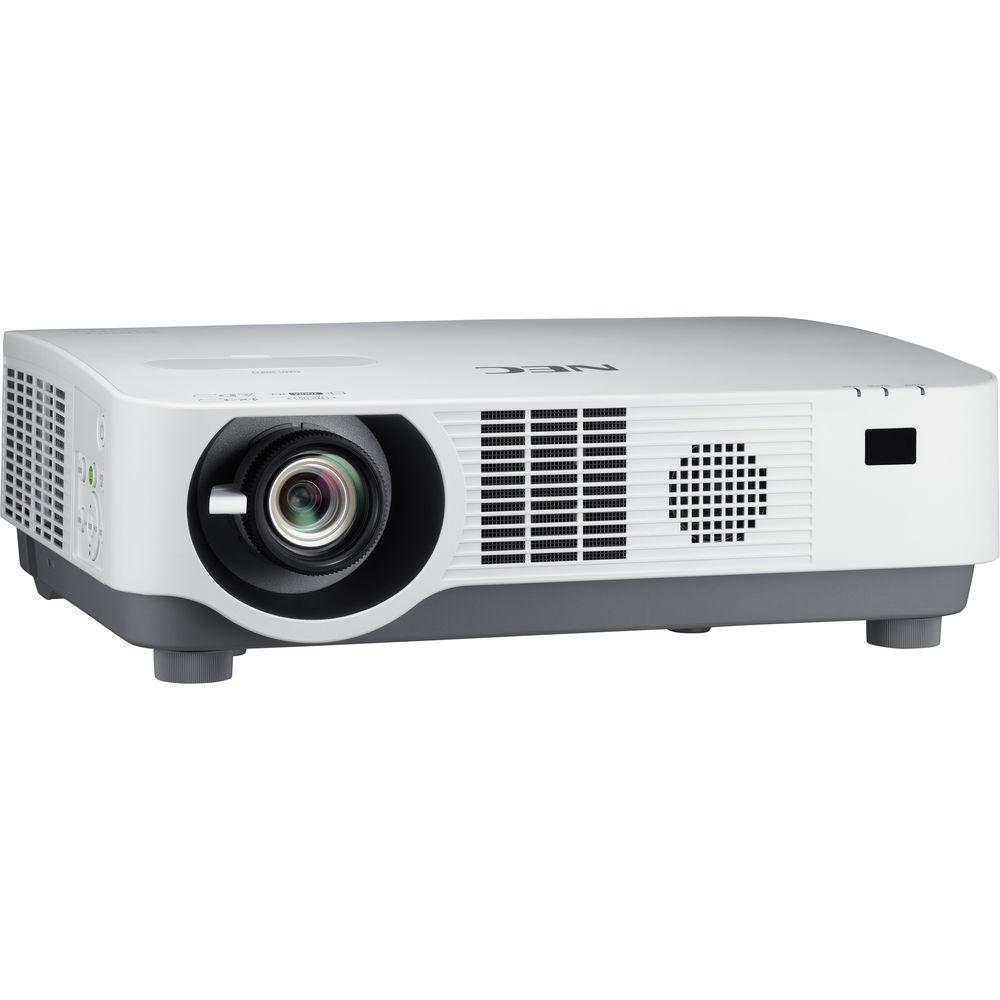

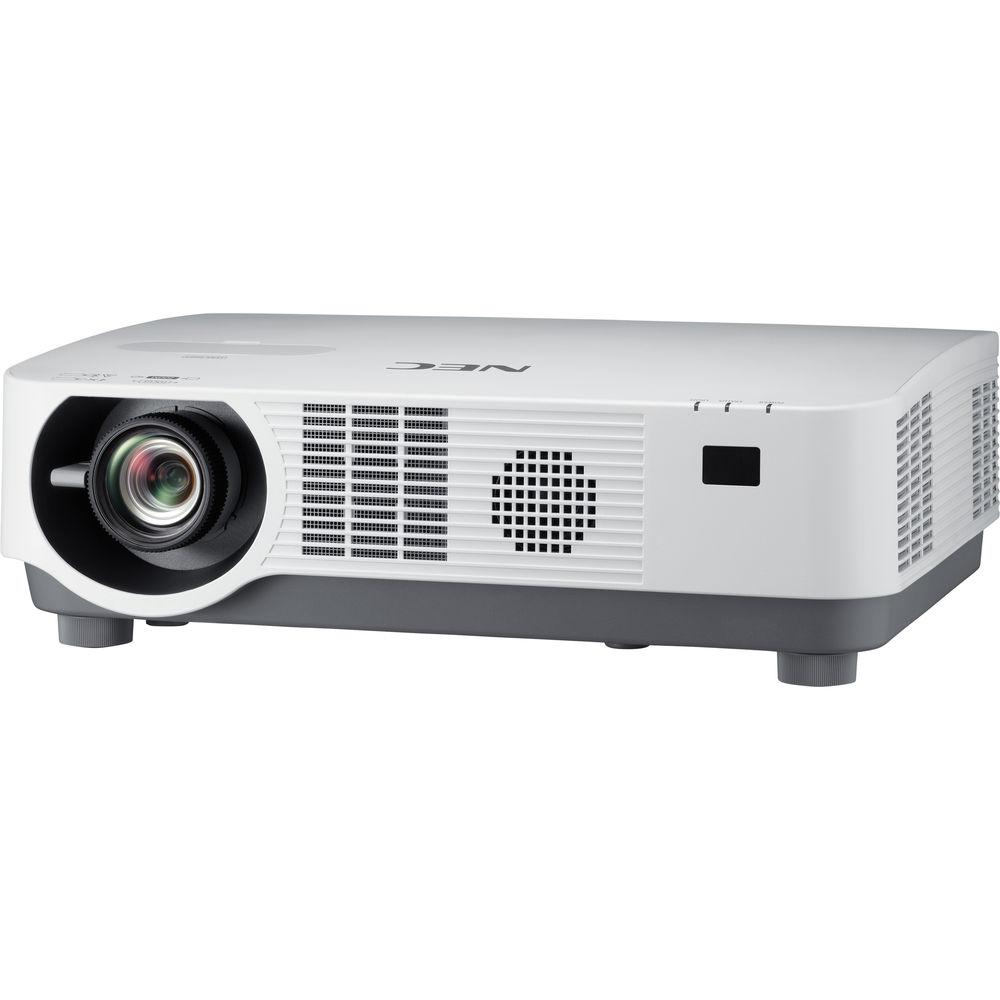

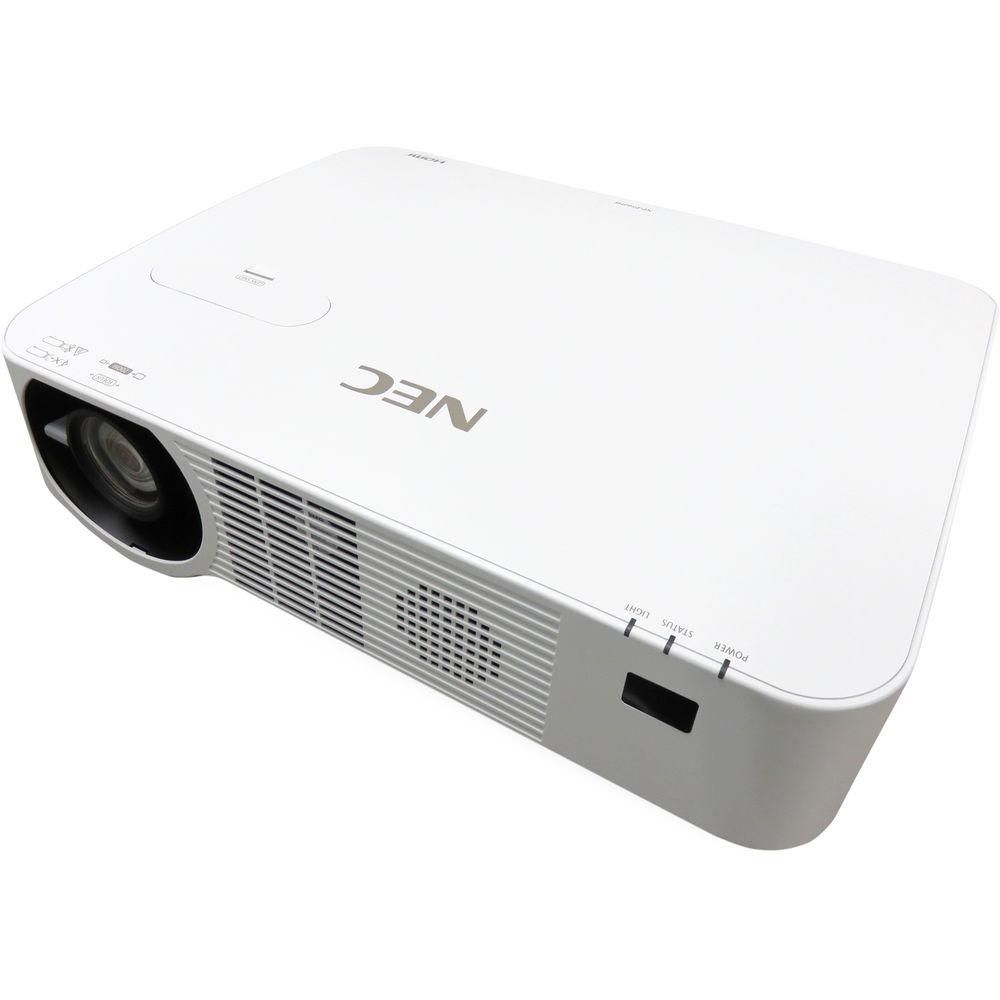

User Manual for NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Brighten up your presentations with the NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector. Whether in a boardroom or a classroom, its 5000-lumen brightness, combined with the 15,000:1 dynamic contrast ratio, will help provide a viewable image even in areas where you can't control the ambient light.

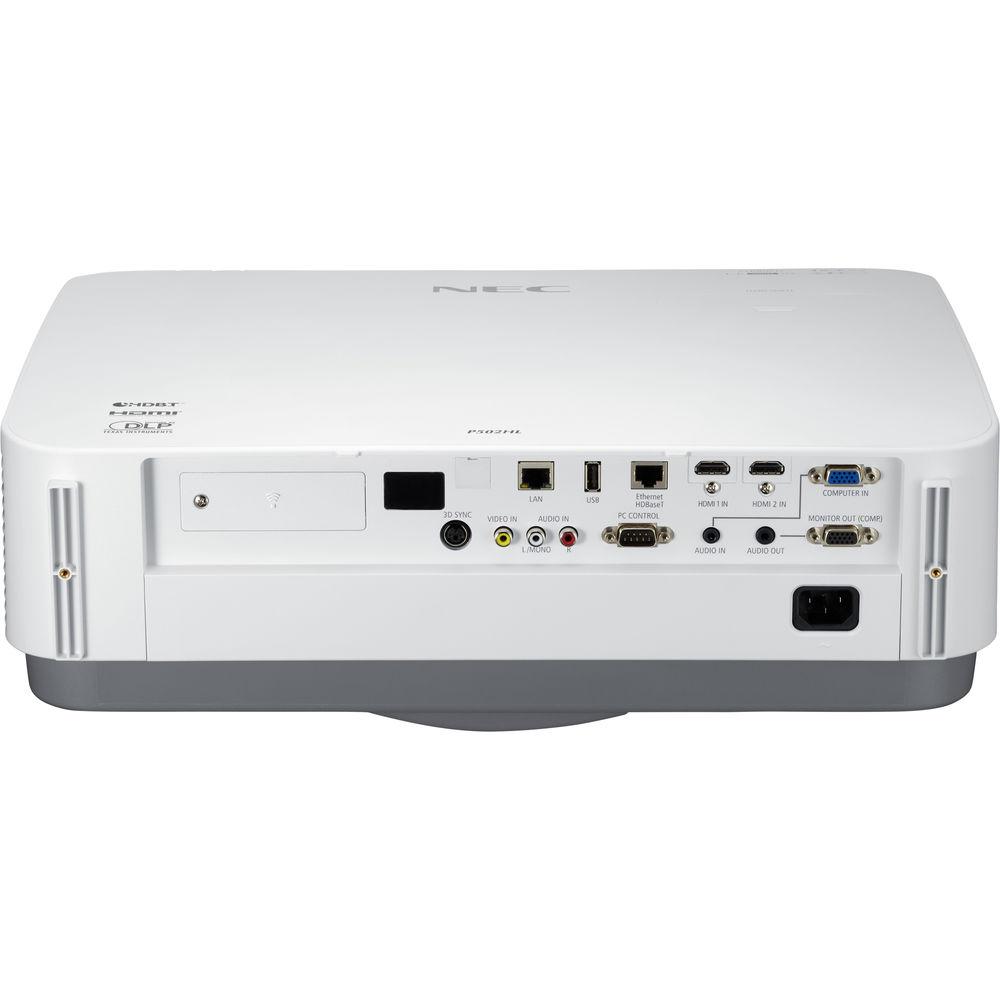

The NP-P502WL-2 offers a throw ratio of 1.3 to 2.2:1, with up to 1.7x zoom for versatile installation options. Its connections include HDBaseT, VGA, composite video via RCA, and two HDMI, plus an RCA stereo and 3.5mm input for audio. It also features 15-pin VGA video and 3.5mm audio outputs. JPG images can be shown via USB from an external drive for added versatility. The projector has a 20W speaker built in, and includes a remote control. - Landscape/Portrait Capable
- Allows for distortion-free display of content in various orientations. Portrait Mode allows the projector to sit on its side to create a 10:16 portrait image.
- Advanced AccuBlend
- Helps ensure detailed images when non-native resolution sources are connected to the projector.
- Lens Shift
- Vertical and horizontal lens shift enables flexible projector placement.
- AutoSense
- Syncs the projector with most computer signals, and features one-touch image optimization.
- BrilliantColor
- Designed to provide enhanced picture management control for both progressive and interlaced sources, helping to make images more vibrant, colors more realistic, and blacks richer with detail.
- Built-In Closed Captioning
- Enables decoding and display of text information from a video.
- Tilt-Free Installation
- Allows the projector to be rotated freely (360°) and point up or down, depending on the installation requirements.
- Built-In Wall Color Correction
- Presets provide for adaptive color tone correction to display properly on non-white surfaces.
- USB Viewer
- Permits playback of presentations or display images stored as JPG files from a USB flash drive without using a computer.
- Dual HDMI Inputs with HDCP
- Enables quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.
- Variable Audio Out
- Adjusts the volume of an external speaker system using the projector's remote control.
- Virtual Remote
- Used over the VGA cable to control the projector directly from a computer, without the need for additional control cables.
- Wired Network Connection
- Integrated RJ45 connection for quick connection to the LAN (10/100BASE-T capability).
- Wireless Imaging Utility
- Allows users to send an image from an iPad directly to the projector.
- Built-In 20W Speaker
- The built-in 20W speaker is designed to eliminate the need for an external speaker system.
- Crestron RoomView Compatibility
- The projector is compatible with Crestron RoomView software, which is designed to provide unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
- Remote Diagnostics
- Enables the user to monitor and adjust the projector from a remote location.
- Designed for Extended Use
- For use in applications up to and including 24/7 operation.
- Image Express Utility Lite with Audio Transfer
- Designed to provide wired and wireless data transmission via peer-to-peer or over the network.
- Auto Power On
- Powers on the projector as soon as it is plugged into a power outlet.
- Power Management
- Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
- Direct Power Off
- Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It also enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
- ECO Mode
- Designed to extend lamp life, lower audible noise, and reduce total cost of ownership.
- Carbon Savings Meter
- Calculates the positive effects of operating the projector in ECO Mode. A green ECO Mode button on the remote control makes the switch easy.
- Optional Wireless LAN
- Allows you to transmit images from a computer wirelessly to the projector, eliminating the need for cables.
- Additional Features
-
- High brightness designed to enhance the always-on capabilities of laser projection
- Suitable for unique applications, such as digital signage
- Lamp-less operation helps reduce TCO
- Eco-friendly features, minimal maintenance, and cost savings mean laser projectors are suitable for demanding integration applications, such as higher education and corporate
- Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals, with a LAN connection for control and asset management over the network.
- 15,000:1 contrast ratio helps provide detail in dark areas of images
- IEU Lite (Image Express Utility Lite) for audio and video transmission from a computer to the projector over the network
- NaViSet Administrator 2 is a free software solution designed to ease administration and management of larger display device installations
- Sleep timer
UPC: 805736064773 In the Box NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector Remote Control with Batteries RGB Signal Cable Security Sticker Power Cord Limited 5-Year or 20,000-Hour Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-P502WL-2 Specs | | | Display System | 0.66" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/2 (f = 18.2 - 31.1 mm) | | Lens Shift | Vertical: + 0.59%
Horizontal: ± 0.25% | | Optical Zoom | 1.7x | | Throw Distance | 2.6 - 46.6' / 0.792 - 14.204 m | | Throw Ratio | 1.3 - 2.2:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 25°
Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x DDC/CI Control (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 33 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 530 W
Low Brightness: 420 W
Standby Mode (Lamp Off): 6 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 18.5 x 5.4 x 14.4" / 47.0 x 13.7 x 36.6 cm | | Weight | 19.4 lb / 8.80 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 23.8 x 19.3 x 10.0" |
