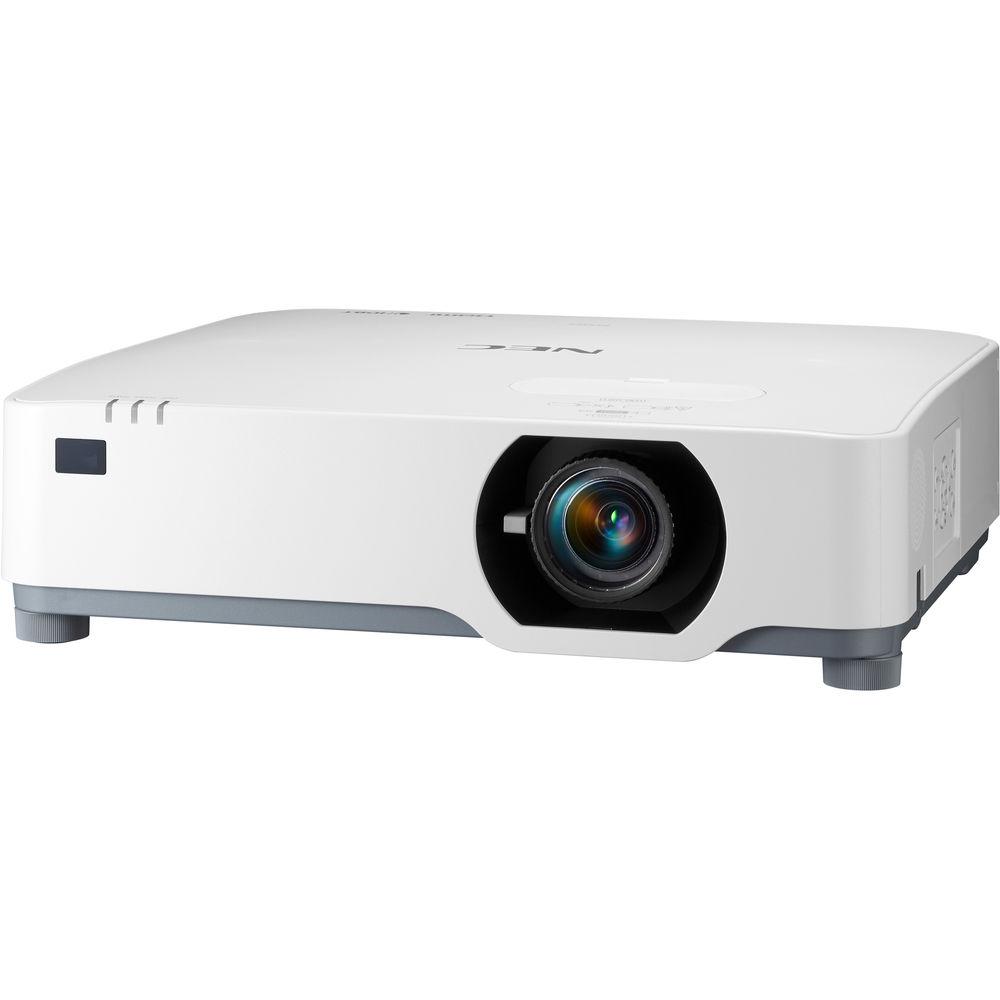

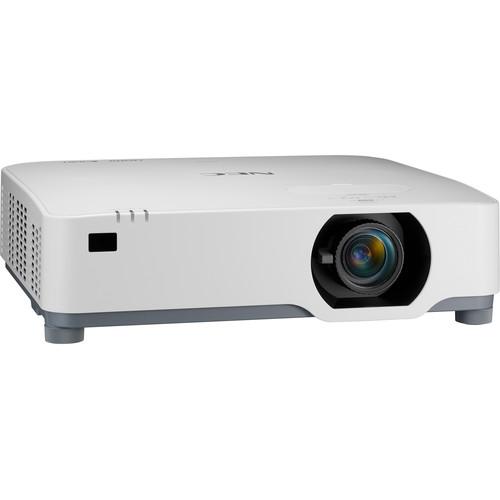

User Manual for NEC NP-P525WL 5200-Lumen WXGA Laser LCD Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-P525WL 5200-Lumen WXGA Laser LCD
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-P525WL 5200-Lumen WXGA Laser LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Two New NEC 5K LCD 5200-Lumen Laser Projectors Read More |
Upload User Manual
Have you got an user manual for the NEC NP-P525WL 5200-Lumen WXGA Laser LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-P525WL Specs | | | Display System | 3-Chip 0.64" Micro Lens Array (MLA) LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UHD 4K - 3840 x 2160 | | Max Brightness | 5200 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 500,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz or 24 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.5 - 2.1 (f = 17.2 - 27.6 mm) | | Lens Shift | Horizontal: ± 29%
Vertical: 0 to 60% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 2.6 - 44.3' / 0.792 - 13.503 m | | Throw Ratio | 1.23 - 2:1 | | Projection Size | 25 - 300" / 63.50 - 762.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 30°

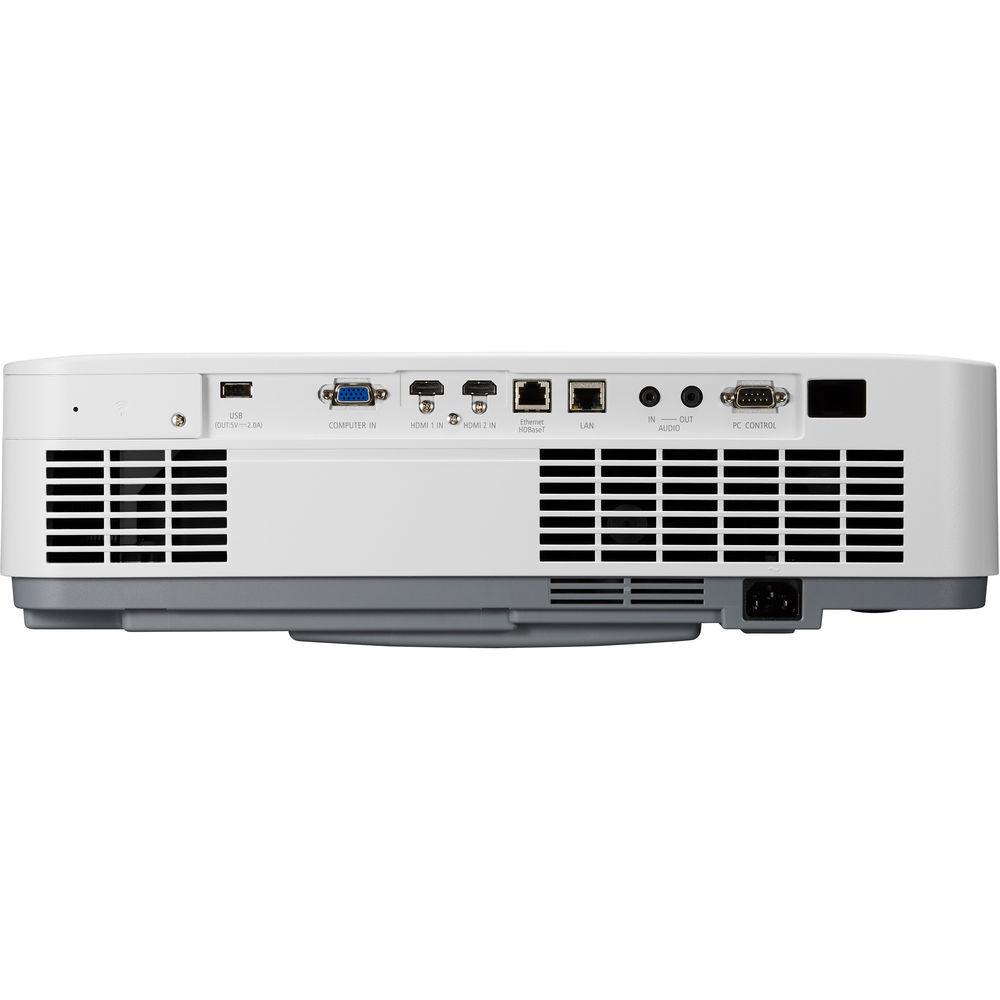

Manual-Vertical: ± 30° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Video Input/Output
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control Input

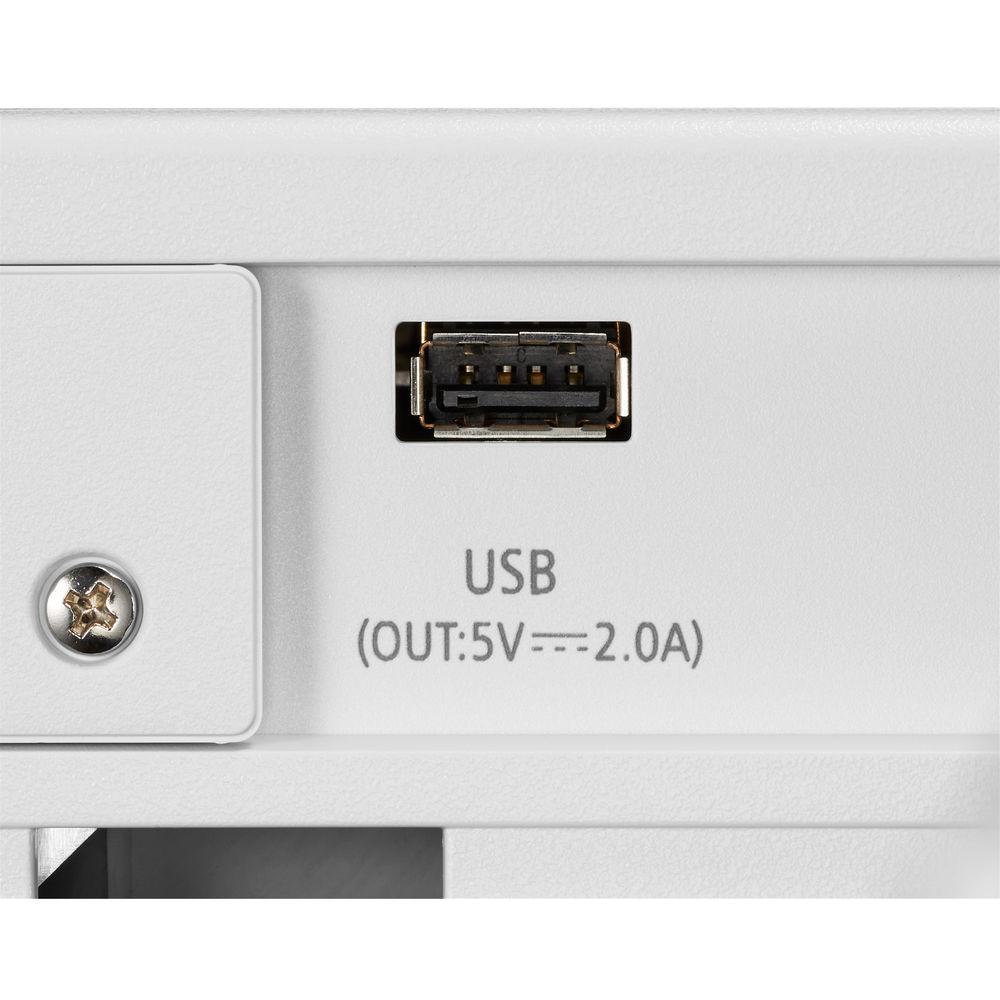

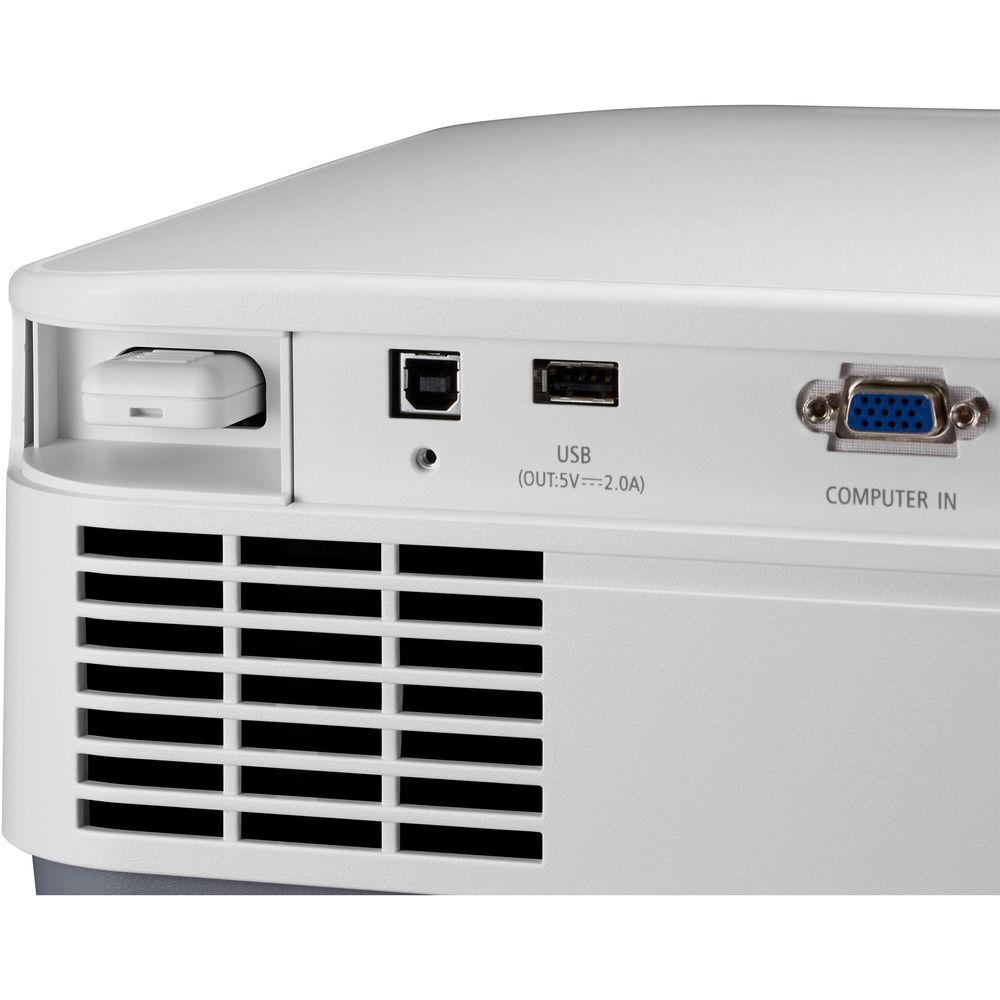

1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-B) Service Input | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 27 dB
Medium Brightness: 24 dB
Low Brightness: 22 dB | | Security | Cable Lock Slot
Security Bar | | Supported Photo File Types | JPE, JPEG, JPG, PNG | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.1 to 5 A | | Power Consumption | Full Brightness: 320 W
Medium Brightness: 234 W
Low Brightness: 232 W
Standby Mode (Lamp Off): 1.4 W | | Max Operating Altitude | 8500' / 2590 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 20 - 80% | | Dimensions (W x H x D) | 18.9 x 5.6 x 16.0" / 48.0 x 14.2 x 40.6 cm | | Weight | 21.3 lb / 9.66 kg | | | | Package Weight | 27.805 lb | | Box Dimensions (LxWxH) | 23.0 x 19.4 x 10.1" |
