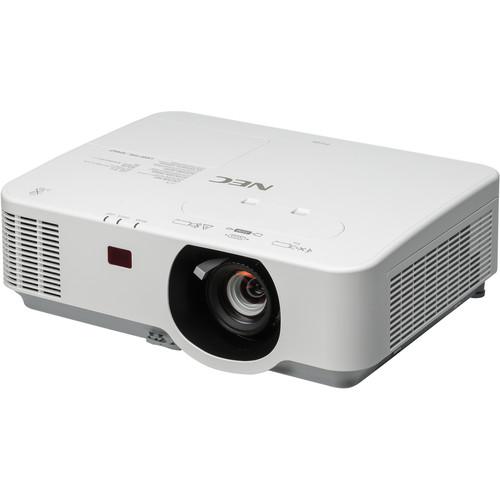

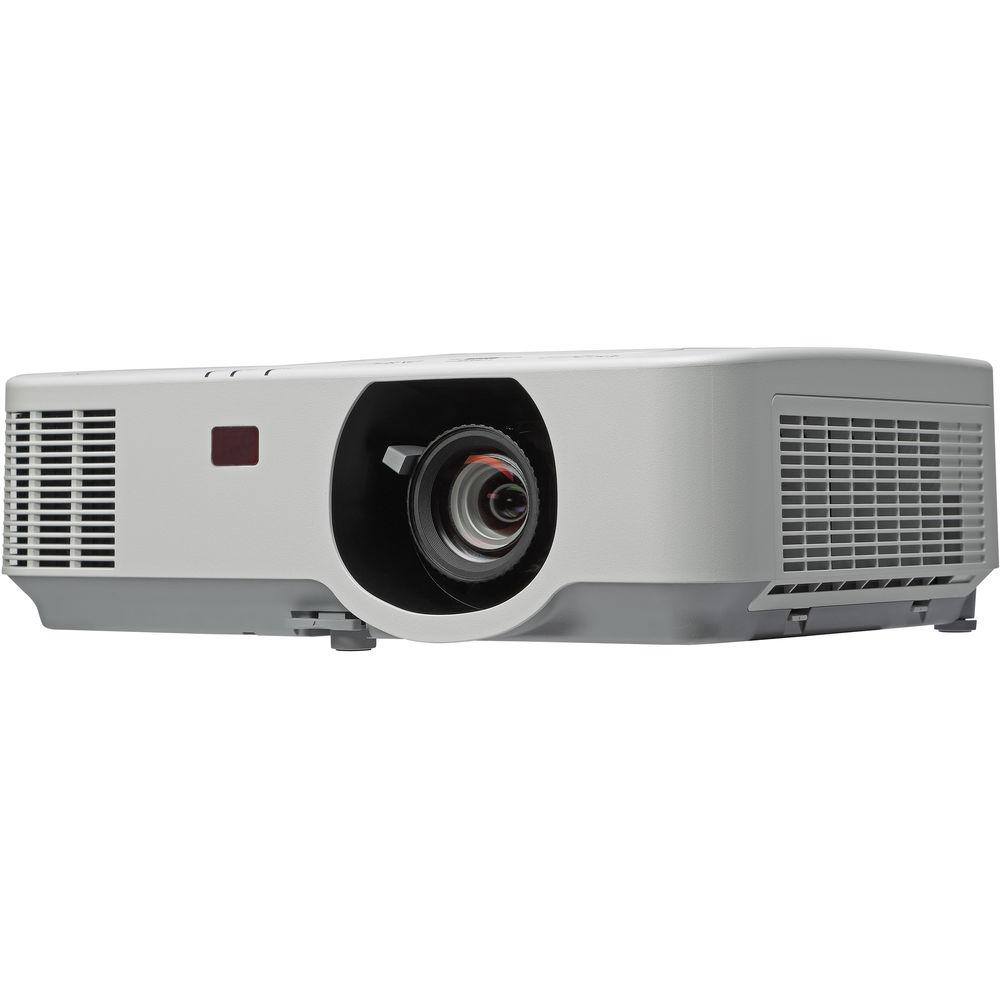

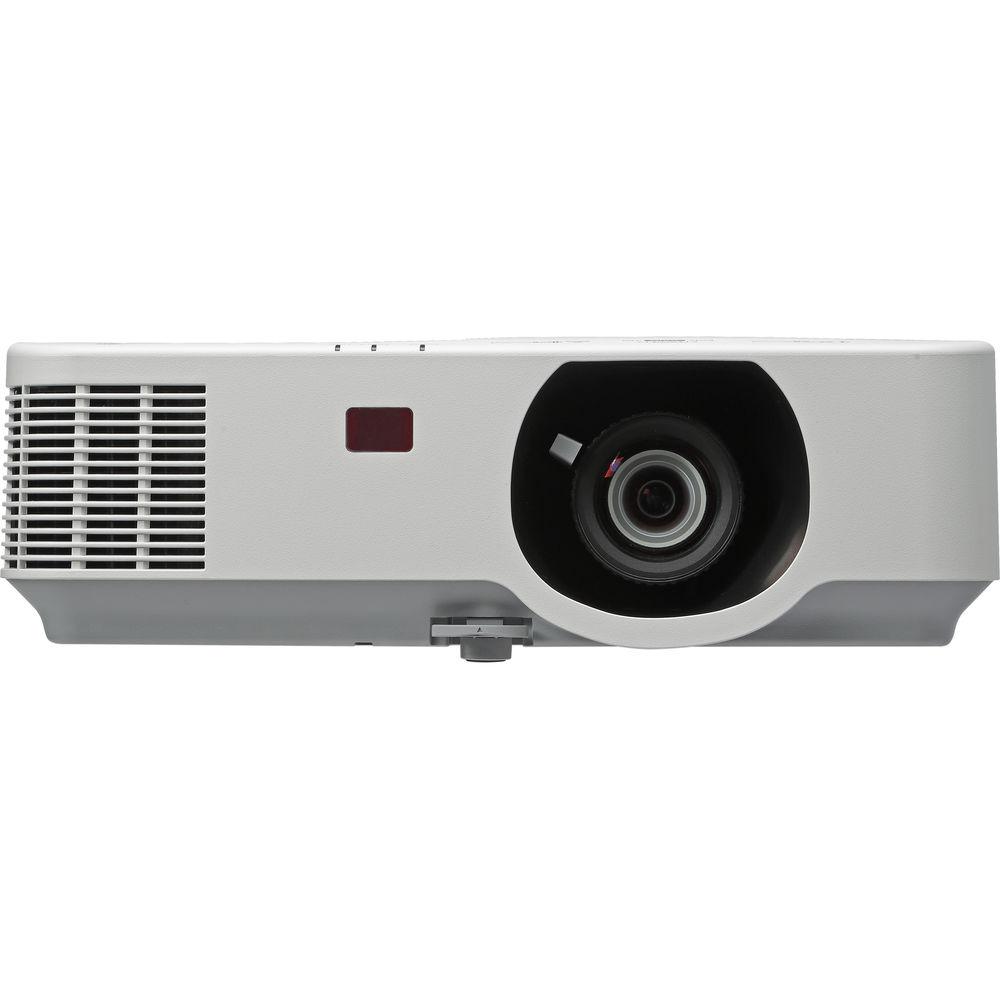

User Manual for NEC NP-P554W 5500-Lumen WXGA LCD Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-P554W 5500-Lumen WXGA LCD Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-P554W 5500-Lumen WXGA LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Brighten up your presentations with the NEC NP-P554W 5500-Lumen WXGA LCD Projector. Whether in a boardroom or a classroom, its 5500 lumens of brightness combined with the 20,000:1 dynamic contrast ratio will help provide a viewable image even in areas where you can't control the ambient light.

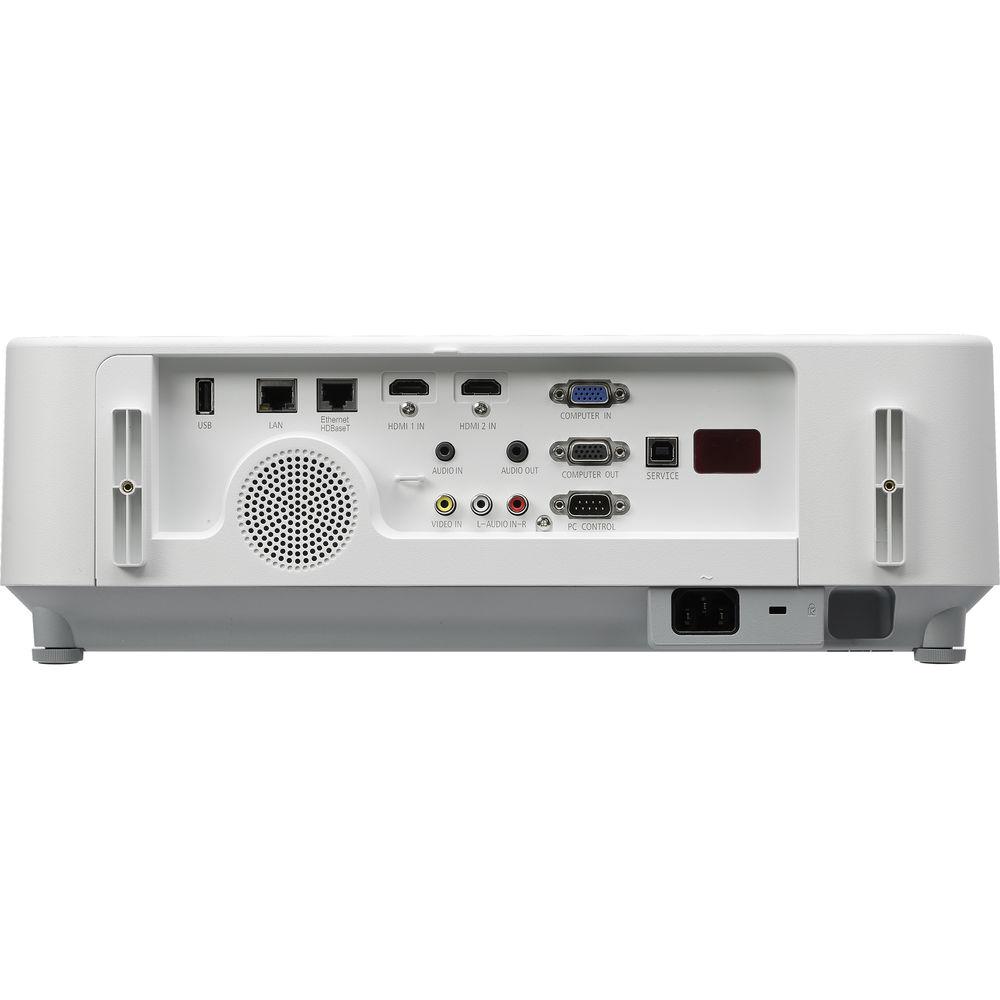

The NP-P554W offers a throw ratio of 1.2 to 2.1:1, with zoom capability for versatile installation options. Its connections include HDBaseT, VGA, composite video via RCA, and two HDMI, plus an RCA stereo and 1/8" input for audio. It also features 15-pin VGA video and 1/8" audio outputs. The projector has a 20W speaker built-in, and includes an RGB signal cable and a remote control. - 20W Speaker Built-In
- A 20-Watt speaker provides volume without necessitating an external speaker setup.
- Direct Power-Off
- Direct power-off protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It enables the fan to continue running until the lamp is properly cooled down, while internal sensors monitor lamp temperature and prevent the lamp from powering on.
- Advanced AccuBlend
- Advanced AccuBlend helps to ensure detailed images when non-native resolution sources are connected to the projector.
- Multiple Computer Inputs
- Having multiple computer inputs helps ensure quick switching between presentations.
- Auto Power-On
- Auto power-on turns the projector on as soon as it is plugged into a power outlet.
- Dual HDMI Inputs with HDCP
- Having two HDMI inputs helps ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.
- AutoSense
- AutoSense is designed to intuitively sync the projector with most computer signals and features one-touch image optimization.
- ECO Mode
- ECO Mode is engineered to extend lamp life, lower audible noise, and reduces total cost of ownership.
- Built-In Wall Color Correction
- Preset settings provide for adaptive color tone correction to display properly on non-white surfaces.
- Quick Startup and Quick Power-Off
- Quick startup and power-off features allow you to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to help ensure efficient energy usage.
- Carbon Savings Meter
- The carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
- Variable Audio-Out
- Adjusts the volume of an external speaker system using the projector's remote control.
- Cornerstone Correction
- Allows for horizontal, vertical, and diagonal image correction for aligned images when the projector is set up at an angle to the screen.
- Virtual Remote
- The Virtual Remote feature is used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
- Crestron RoomView
- Crestron RoomView compatibility provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
- Optional Wireless LAN
- The wireless LAN module, available separately, allows you to transmit images from a computer wirelessly to the projector, eliminating the need for traditional cumbersome cables.
- Additional Features
-
- Manual keystone correction
- USB Viewer
- Closed captioning
- Sleep timer
UPC: 805736066234 In the Box NEC NP-P554W 5500-Lumen WXGA LCD Projector Remote Control with Batteries RGB Signal Cable Security Sticker Power Cord Limited 3-Year Warranty on Projector with Registration Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-P554W 5500-Lumen WXGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-P554W Specs | | | Display System | 0.64" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 20,000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.7 - 2.2 (f = 17.4 - 29 mm) | | Lens Shift | Vertical: 0 to 55%
Horizontal: ± 15% | | Optical Zoom | 1.7x | | Throw Distance | 2.6 - 44.3' / 0.79 - 13.5 m | | Throw Ratio | 1.2 - 2.1:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 20°
Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) Control (Input)
1 x DDC/CI Control (Input)
1 x USB Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 330 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 8000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 34 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 448 W
Low Brightness: 280 W
Standby Mode (Lamp Off): 2 W
Standby Mode (Lamp Off): 0.16 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C) | | | | Package Weight | 14.95 lb | | Box Dimensions (LxWxH) | 19.3 x 15.8 x 8.9" |
