Product description

• PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector (No Lens) The PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector from NEC features multi-display support and TileMatrix technology. All processing is done internally and therefore eliminates the additional hardware typically required to produce 4K resolution. Built-in stacking correction capabilities (up to four projectors) allow the projector to boost an image's brightness up to 26,000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.The PA Series Projector features Edge blending, which lets the projector seamlessly blend multiple projected images to display a single high-resolution image. The built-in HDBaseT support simplifies your installations. The projector is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 328') to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
  Cornerstone
  • Keystone correction allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
  Geometric Correction
  • Geometric correction allows the projector to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.
  10,000-Hour Filter Life
  • Virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.
  Tilt-Free
  • The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
  Portrait Mode
  • The portrait mode allows the projector (and screen if necessary) to be rotated to a vertical alignment so that portrait content can be viewed without black bars on the sides when landscape mode is used.
  3D Ready
  • When combined with active shutter glasses and 3D emitter, the PA Series Projectors create 3D images from a computer or Blu-ray player. The PA Series utilizes the 3D sync line output from the projector to connect to the 3D emitter.
  Remote Control
  • Wired and wireless backlit remote allows you to adjust for complete control of the projector's menu structure in a well-lit or dark environment. Direct controls such as lamp mode, aspect ratio, volume, and input selection eliminates multiple button pushes.
  Digital Inputs
  • Among the PA Series' wide selection of inputs are dual HDMI with HDCP, and DisplayPort with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and personal computers.
  Other Features
  • • Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector
    • In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers
    • Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
    • 64-step image magnification with location control
    • Built-in HTTP page for control and monitoring over a LAN network
    • Email notification of error messages or lamp end-of-life can be sent to remote locations
    • Multi-display support with Picture by Picture / Picture Out Picture
    • TileMatrix (internal multi-screen splitter) enables 4K resolution utilizing four projectors without the need for external hardware
    • Built-in daisy chain capabilities support multi-display applications
    • Seamlessly blend multiple images with integrated edge blending capabilities
    • HDR10, BT.2020 signal format applicable for use with the Ultra HD Blu-ray and 4K TV broadcasting Project uncompressed FHD video with integrated HDBaseT
    • Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control
    • Up to 60% vertical lens shift and ±30% horizontal lens shift capabilities make alignment easy
    • Multiple Digital computer inputs ensure quick switching between presentations
    • Five audio inputs make it easy to add sound to enhance your presentation
  UPC: 805736064070
• 1.30-3.08 Zoom Lens for NEC PA Series Projectors The 1.30-3.08 Zoom Lens from NEC can be used with NEC PA Series Projectors. When used with this lens, the projector can achieve 50 to 500" projection size.
  • Compatible with NEC NP-PA653U, NP-PA803U, NP-PA853W, and NP-PA903X LCD Projectors

• Remote Control with Battery

• Power Cord

• Limited 3-Year Warranty

• Limited 1-Year or 500-Hour Warranty on Lamp

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector (No Lens)

  Display System	1-Chip 0.76" Micro Lens Array (MLA) LCD
  Native Chip Resolution	1280 x 800 (WXGA)
  Supported Resolutions	Maximum: 4096 x 2160 VGA SVGA XGA SXGA SXGA+ UXGA
  Max Brightness	8500 Lumens
  Contrast Ratio	10000:1
  Scan	Horizontal: 15 to 153 kHz Vertical: 24 to 120 Hz Horizontal Analog: 15 to 100 kHz Vertical Analog: 48 to 120 Hz

  Focus	Manual
  Throw Distance	2.5 - 68.5' / 0.762 - 20.879 m
  Projection Size	40 - 500" / 101.60 - 1270.00 cm

  Keystone Correction	Vertical: ± 40° Horizontal: ± 40°
  Picture-in-Picture	Yes
  Ceiling Mountable	Yes
  Rear Screen Projection	Yes
  Built-In Speaker	None

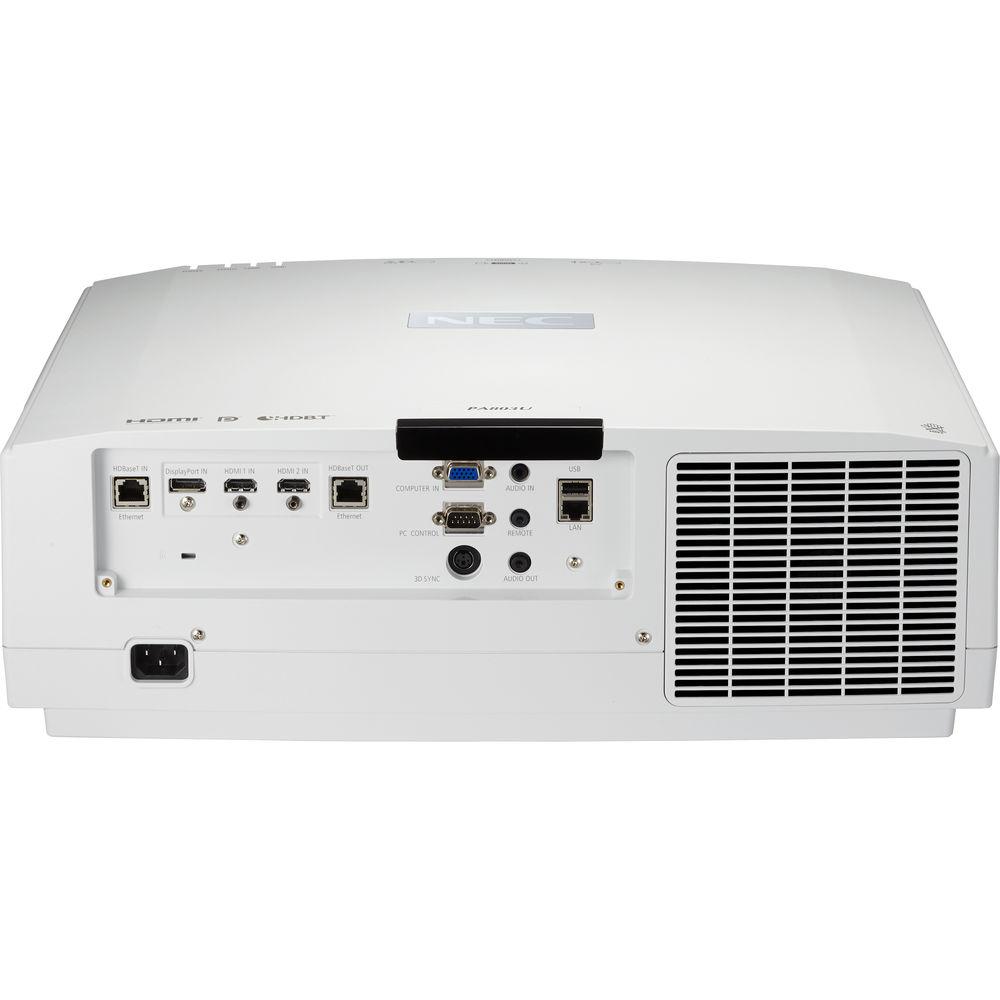

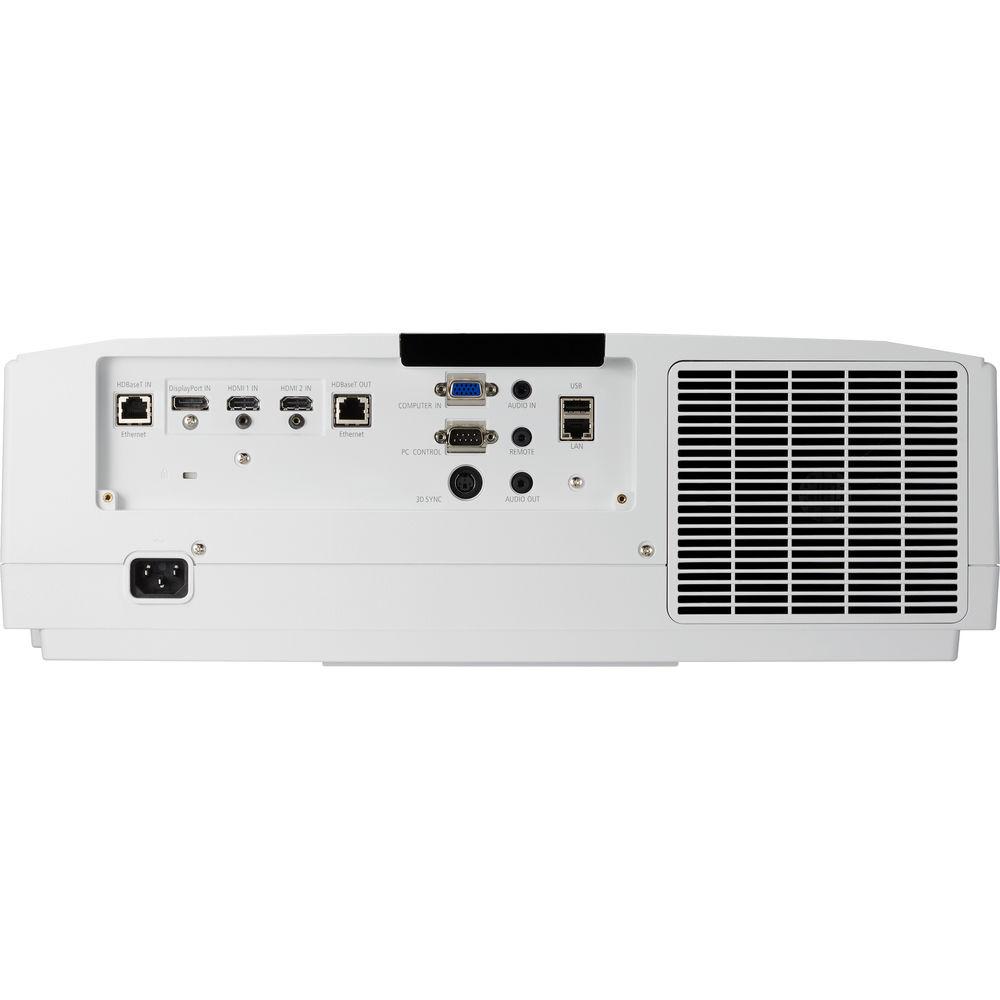

  Inputs/Outputs	1 x VGA (DE-15) Video (Input) 2 x HDMI Audio/Video (Input) 1 x DisplayPort Audio/Video (Input) 1 x HDBaseT (RJ45) Audio/Video (Input) 1 x 1/8" (3.5 mm) Mini Audio (Input) 1 x HDBaseT (RJ45) Audio/Video (Output) 1 x 1/8" (3.5 mm) Mini Audio (Output) 1 x VESA 3D Sync Video (Output) 1 x RS-232C (Unspecified Connector) Control 1 x 1/8" (3.5 mm) Mini Control 1 x DDC/CI Control 1 x Ethernet (RJ45) LAN

  Expected Lamp Life	Medium Brightness: 3000 Hours Low Brightness: 5000 Hours
  Fan Noise	Medium Brightness: 39 dB Low Brightness: 33 dB
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Consumption	Medium Brightness: 566 W Low Brightness: 390 W Standby Mode (Lamp Off): 0.7 W Standby Mode (Lamp Off): 0.3 W
  Temperature	Operating 41 to 104°F (5 to 40°C) Humidity: 20 - 80% Storage -14 to 122°F (-25 to 50°C) Humidity: 20 - 80%
  Dimensions (W x H x D)	19.8 x 6.6 x 16.2" / 50.3 x 16.8 x 41.1 cm
  Weight	22.5 lb / 10.2 kg

• 1.30-3.08 Zoom Lens for NEC PA Series Projectors

  Lens Type	Zoom
  Motorized	Yes

  Throw Ratio	1.30 to 3.08:1
  Aperture	f/2.2 to 2.7
  Focal Length	f = 21.8 to 49.7mm
  Projection Size	50 to 500" / 127 to 1270 cm

  Weight	4.2 lb / 1.9 kg

  Box Dimensions (LxWxH)	10.6 x 9.4 x 7.4"
