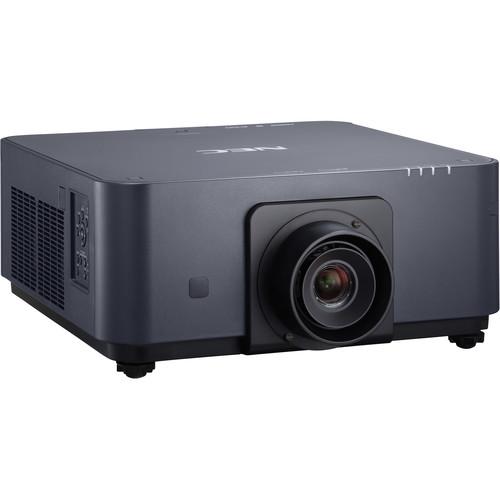

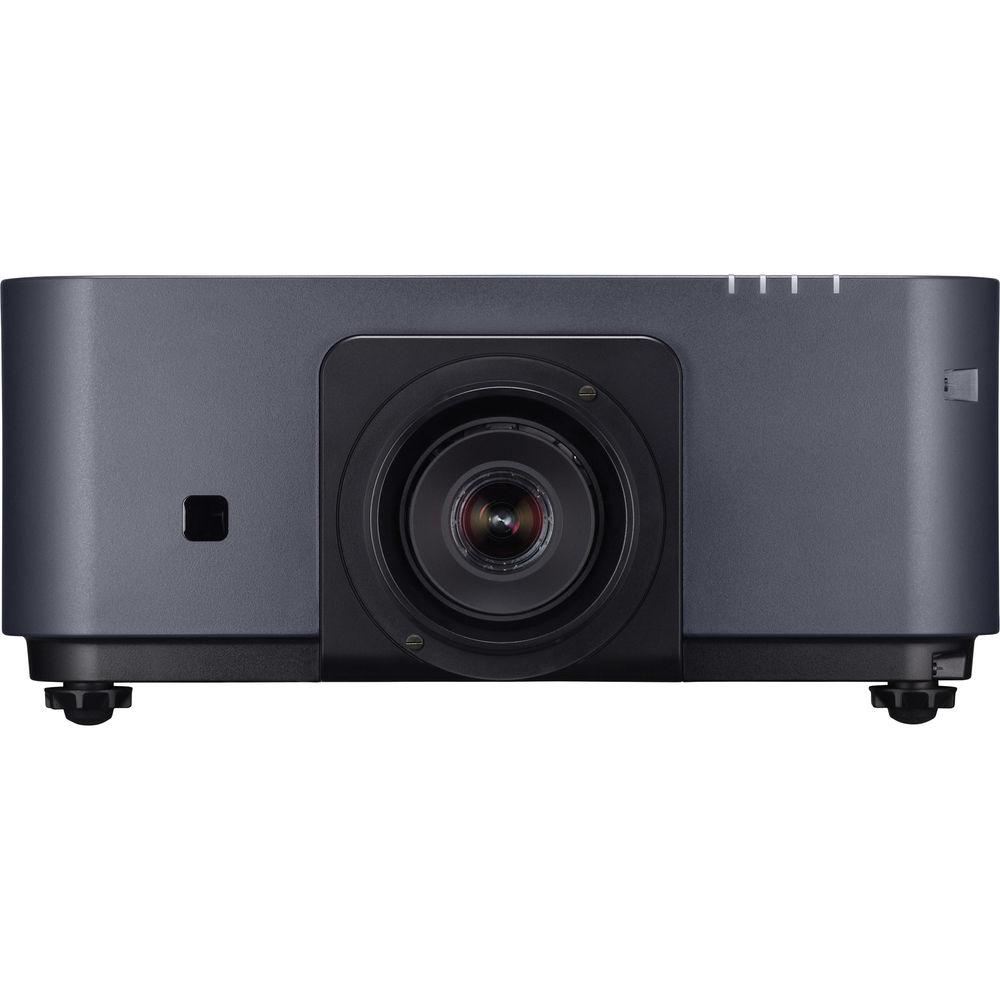

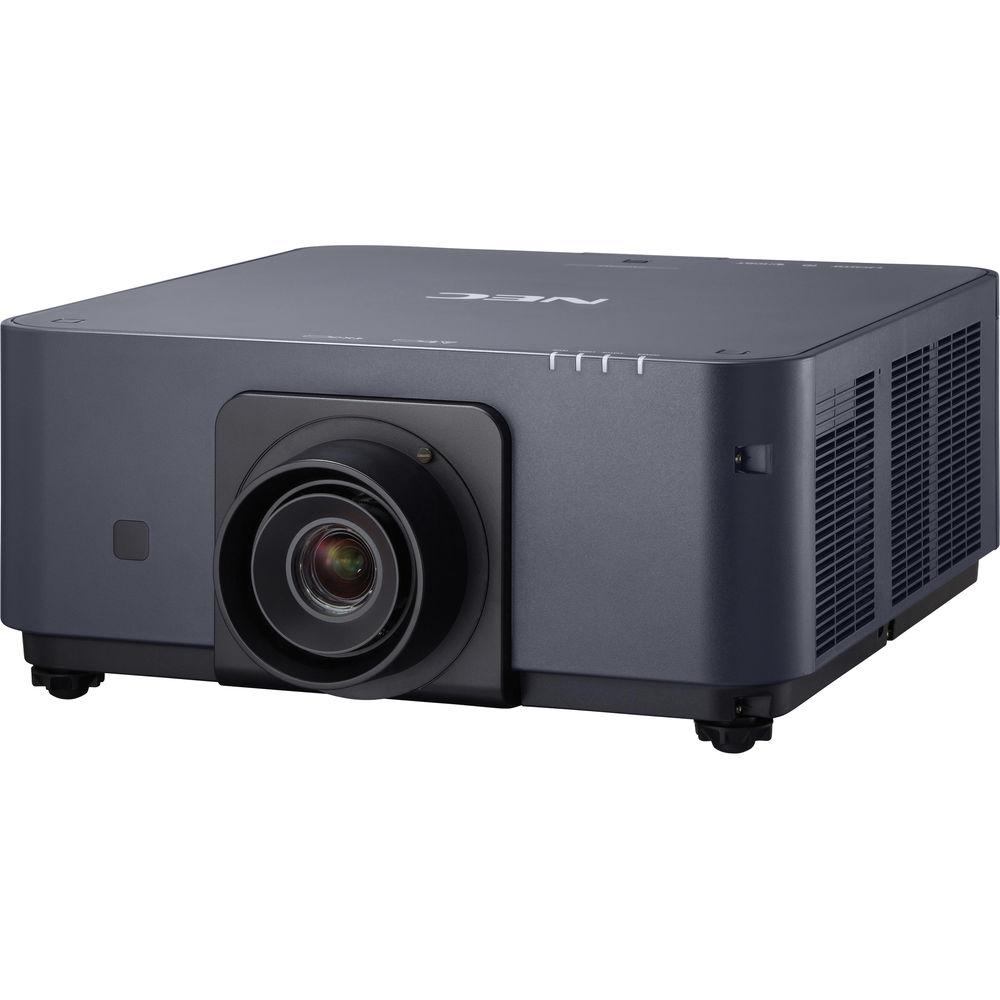

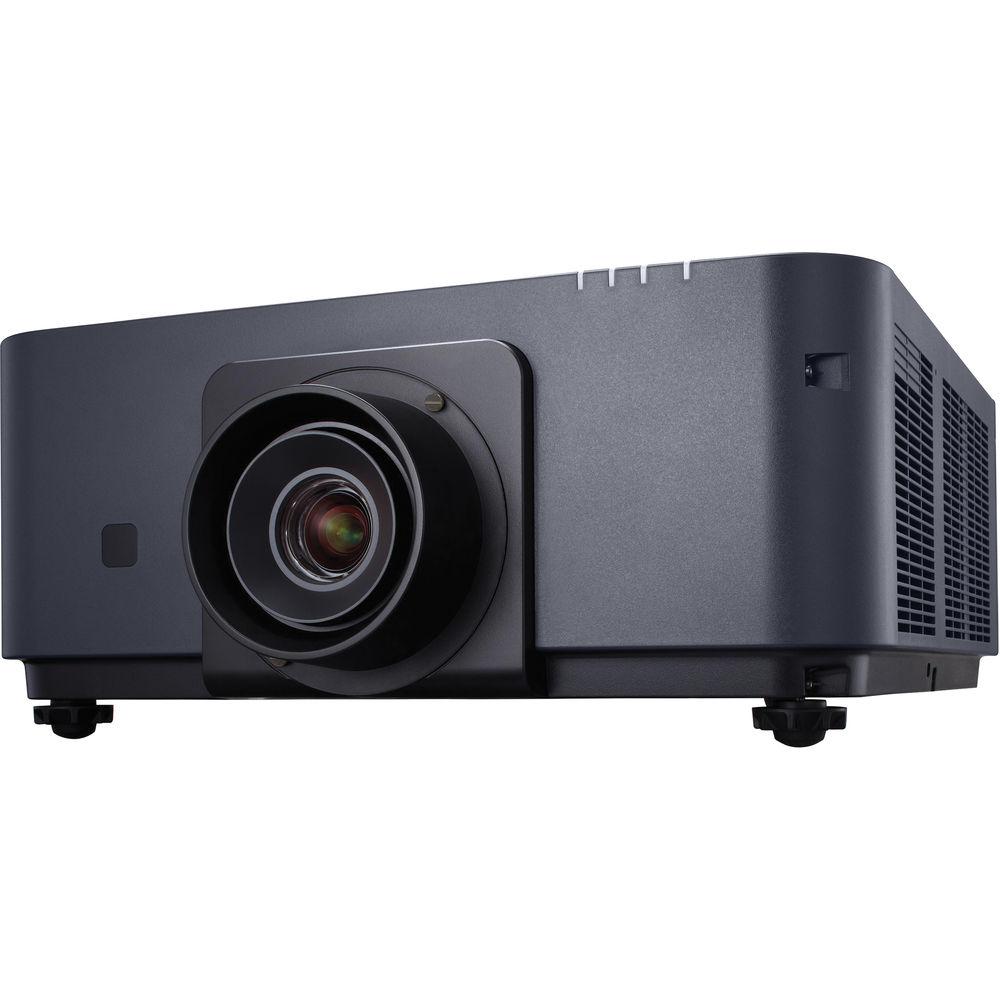

User Manual for NEC NP-PX602WL-BK 6000 Lumen WXGA Professional Installation Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-PX602WL-BK 6000 Lumen WXGA Professional
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-PX602WL-BK 6000 Lumen WXGA Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Enjoy high-performance and high-resolution images with the NEC NP-PX602WL-BK 6000 Lumen WXGA Professional Installation Laser DLP Projector in black. This professional projector features 6000 lumens of brightness and a 10,000:1 contrast ratio with auto iris. Additionally, the NP-PX602WL-BK sports a WXGA 1280 x 800 native resolution for viewing detailed images, and supports up to WUXGA 1920 x 1200 video signals. This DLP projector is powered by a laser light module, which delivers up to 20,000 hours of life. You can use the NP-PX602WL-BK to project up to a 300" diagonal screen size, making it suitable for large venues. Furthermore, the NP-PX602WL-BK is compatible with a variety of interchangeable NEC lenses.
With VGA, DisplayPort, BNC component video, and HDMI inputs, this projector is well equipped for a wide range of external video sources. An HDMI output is also available, which can be used to daisy chain up to 4 projectors. The NP-PX602WL-BK is also equipped with an Ethernet port and supports HDBaseT connectivity. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, and 64-step image magnification. - Laser Light Module
-
- Up to 20,000 hours of virtually maintenance-free operation
- High-brightness and low power consumption enhances applications such as retail, digital signage, and theme parks
- Ability to control brightness creating a stable image over longer time periods
- Integrated and Powerful
-
- Project uncompressed Full HD video with integrated HDBaseT
- High performance video processing/scaling is designed to create life-like images
- Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
- Tile Matrix enables 4Kx2K resolution
- Flexible
-
- Enjoy installation flexibility with a complete line of optional lenses (6 options) for quick and easy exchange
- Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
- +/- 30% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
- Screen Splitter
- The NP-PX602WL-BK incorporates multi-display and TileMatrix technologies. This processing is all done internally and therefore eliminates the additional hardware typically required to produce a 4K resolution image.
- Stacking Correction
- This projector incorporates built-in stacking correction, with support for up to 4 projectors. This allows the projectors to boost an image's brightness up to 24000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
- Edge Blending
- This function seamlessly blends multiple projected images to display a single high-resolution image.
- Built-In HDBaseT Support
- HDBaseT is optimized for video applications and supporting uncompressed Full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 100m) to run, you can increase operating efficiency and reduce cable clutter. With uncompressed HD video support, you can enjoy pristine images. Furthermore, control signals are contained in the same cable
- Remote Control
- Wired and wireless backlit remote gives you complete control of the projector's menu structure in a well lit or dark environment. Direct controls are also available such as lamp mode, aspect ratio, volume and input selection.
- Wall Color Correction Presets
- These presets provide adaptive color tone correction to display properly on non-white surfaces.
- Cornerstone
- Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
- 3D-Ready
- When combined with optional active shutter glasses and a 3D emitter, this projector can create 3D images from a computer or Blu-ray player. The NP-PX602WL-BK has a 3D sync line output to connect to the 3D emitter.
- Geometric Correction
- Geometric correction allows the NP-PX602WL-BK to project an image on spheres, cylinders, corner angles and other non-standard surfaces.
- Tilt-Free Design
- The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
- Portrait Mode
- Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
- 3D Reform
- 3D Reform allows you to square the image by adjusting it horizontally, vertically, or diagonally when the projector cannot be placed parallel or perpendicular to the screen.
- Virtual Remote
- Used via a network connection (wired/ wireless), you can control the projector directly from a computer without the need for additional control cables.
- Variable Audio-Output
- Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers.
- Advanced AccuBlend
- Advanced AccuBlend helps to ensure detailed image quality when non-native resolution sources are connected to the projector.
- AutoSense
- AutoSense automatically syncs with any computer signal and features one-touch image optimization.
- Remote Diagnostics
- Remote diagnostics enable the user to monitor and make adjustments to the projector remotely.
- Built-In HTTP Page
- Built-in HTTP page enables control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations.
- Additional Features
-
- Dual computer inputs ensure quick switching between presentations
- Supports NEC NP33ZL, NP34ZL, NP35ZL, NP36ZL, NP37ZL, and NP38ZL lenses
- Discrete source keys for source selection
- 64-step image magnification with location control
- Compatible with an optional input cover panel
UPC: 805736054644 In the Box NEC NP-PX602WL-BK 6000 Lumen WXGA Professional Installation Laser DLP Projector (Black, No Lens Included) Remote Control Remote Control Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-PX602WL-BK 6000 Lumen WXGA Professional Installation Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC PX602WL Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | WUXGA - 1920 x 1200
UXGA - 1600 x 1200
SXGA+ - 1400 x 1050
SXGA - 1280 x 1024
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480 | | Max Brightness | 6000 Lumens | | Contrast Ratio | 10000:1 | | Scan | Horizontal: 15 to 108 kHz
Vertical: 48 to 120 Hz | | | | Focus | Manual | | Lens Shift | Vertical: ± 30%
Horizontal: ± 15% | | Throw Distance | 3.3 - 65.5' / 1.006 - 19.964 m | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40°

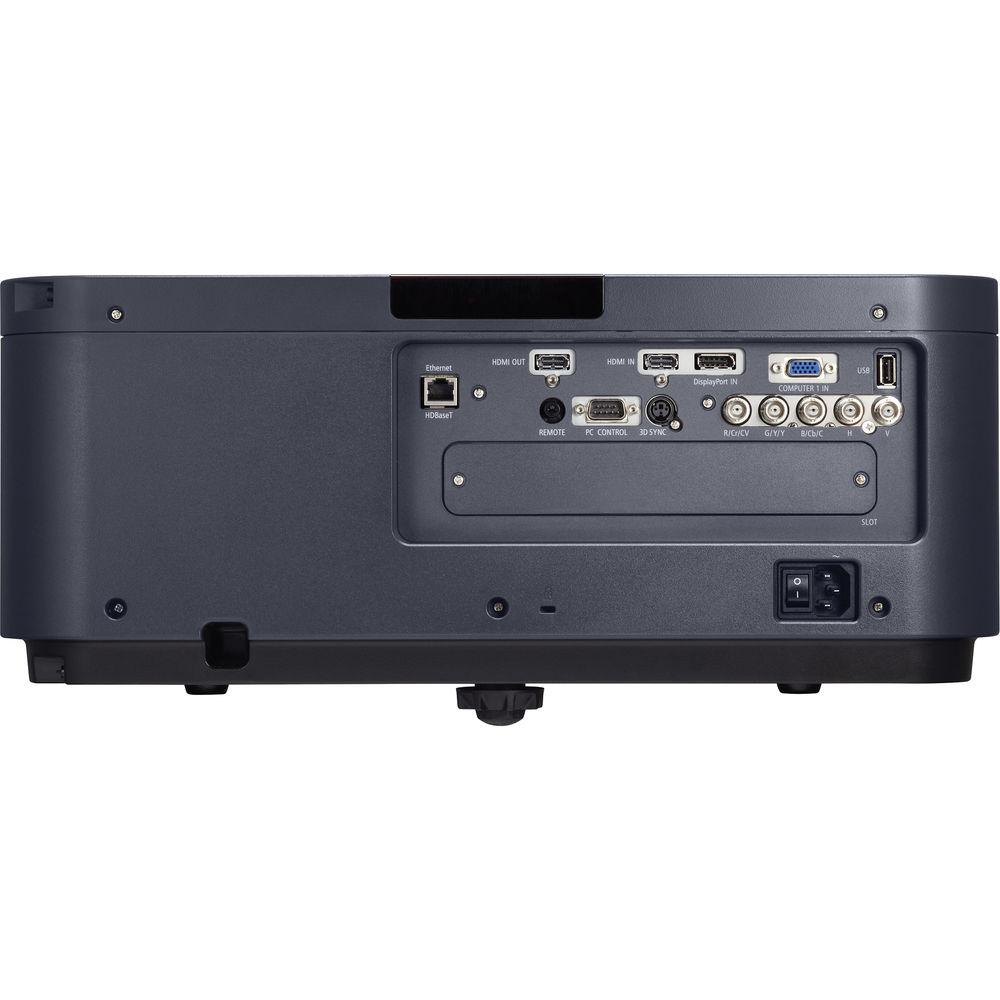

Horizontal: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | None | | | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN
1 x HDMI Audio/Video (Output)
1 x HDMI Audio/Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x USB Control
1 x 1/8" (3.5 mm) Mini Control
1 x VESA 3D Sync Control
1 x RS-232C (Unspecified Connector) Control
1 x 5BNC Video (Input) | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 34 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 590 W
Low Brightness: 460 W
Standby Mode (Lamp Off): 6 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-14 to 122°F (-25 to 50°C) | | Dimensions (W x H x D) | 19.1 x 8.5 x 22.6" / 484.0 x 217.0 x 575.0 mm | | Weight | 40.8 lb / 18.5 kg | | | | Package Weight | 50.8 lb | | Box Dimensions (LxWxH) | 26.8 x 23.5 x 15.5" |
