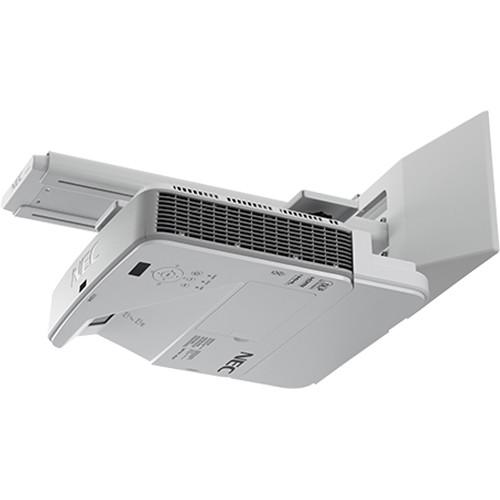

User Manual for NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw DLP Projector with Touch Module and Wall Mount Click to enlarge the picture
Contents of the user manual for the NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
|
User manual for the NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw DLP Projector features 3200 lumens of brightness with an ultra-short throw ratio of 0.25:1. It has HDMI, VGA, and composite video inputs, plus a VGA output for loop-through. The NP-U321HI-TM includes a wall mount, an interactive camera, a touch module, an RGB cable, and a remote control. UPC: 805736058611 In the Box NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw DLP Projector with Touch Module and Wall Mount NP04WI Interactive Camera Module with Dual Pens for NP-U321H/NP-U321H-WK Projectors rdafaftwcywdaxxbrsexuazuzqrzatzrtrfa NP01TM Interactive Touch Module for NEC Projectors NP04WK1 Wall Mount Kit for Select NEC Ultra-Short Throw Projectors RGB Cable Remote Control with Batteries Limited 2-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-U321HI-TM 3200-Lumen 1080p Ultra-Short Throw DLP Projector with Touch Module and Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-U321HI Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | None | | Supported 3D Formats | None | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.80 (f = 4.78 mm) | | Optical Zoom | 1.4x | | Throw Distance | 18.7 - 22" / 47.498 - 55.88 cm | | Throw Ratio | 0.25:1 | | Projection Size | 85 - 100" / 215.90 - 254.00 cm | | | | Keystone Correction | Vertical: ± 5° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 8W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x DDC/CI Control (Input)
1 x USB Type-A Female (Input)
1 x Mini-USB Service (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 323 W
Low Brightness: 272 W
Standby Mode (Lamp Off): 3 W
Standby Mode (Lamp Off): 0.18 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 15.1 x 3.3 x 12.1" / 383.0 x 85.0 x 308.0 mm | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 57.3 lb | | Box Dimensions (LxWxH) | 25.6 x 22.5 x 20.5" |
