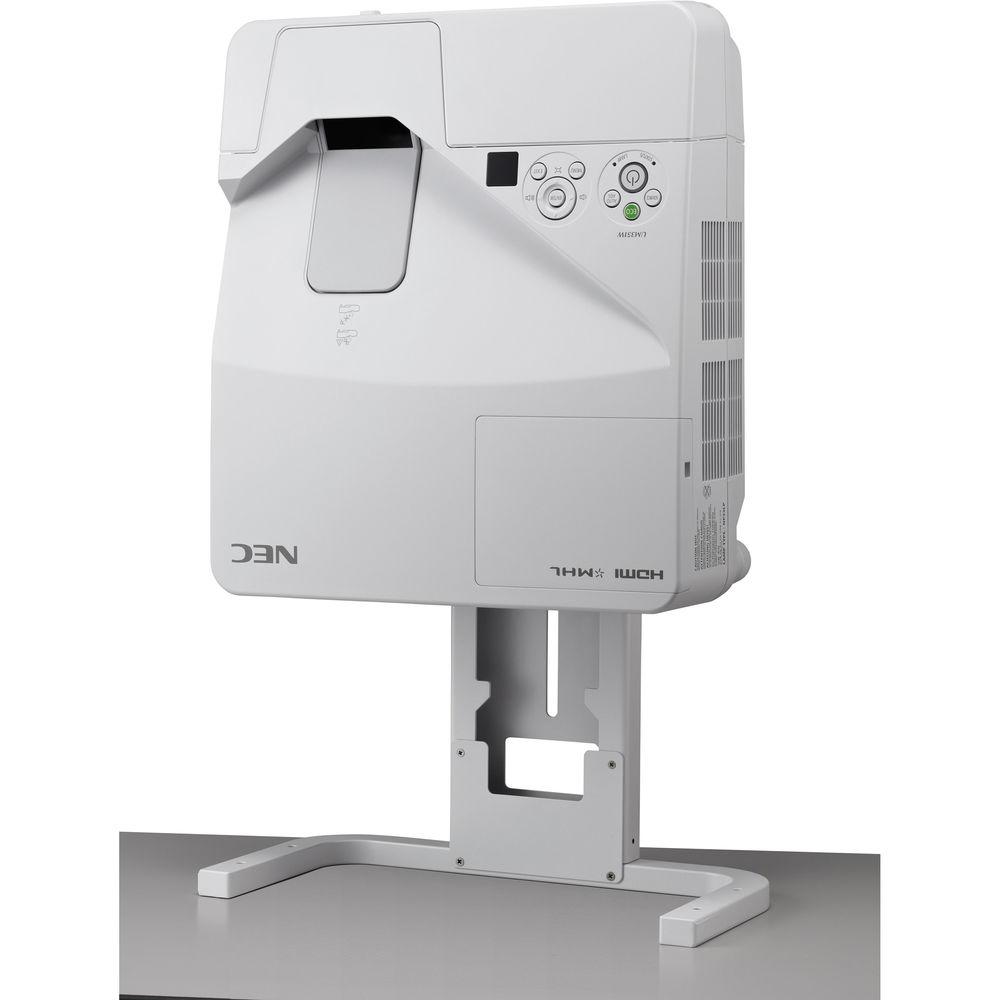

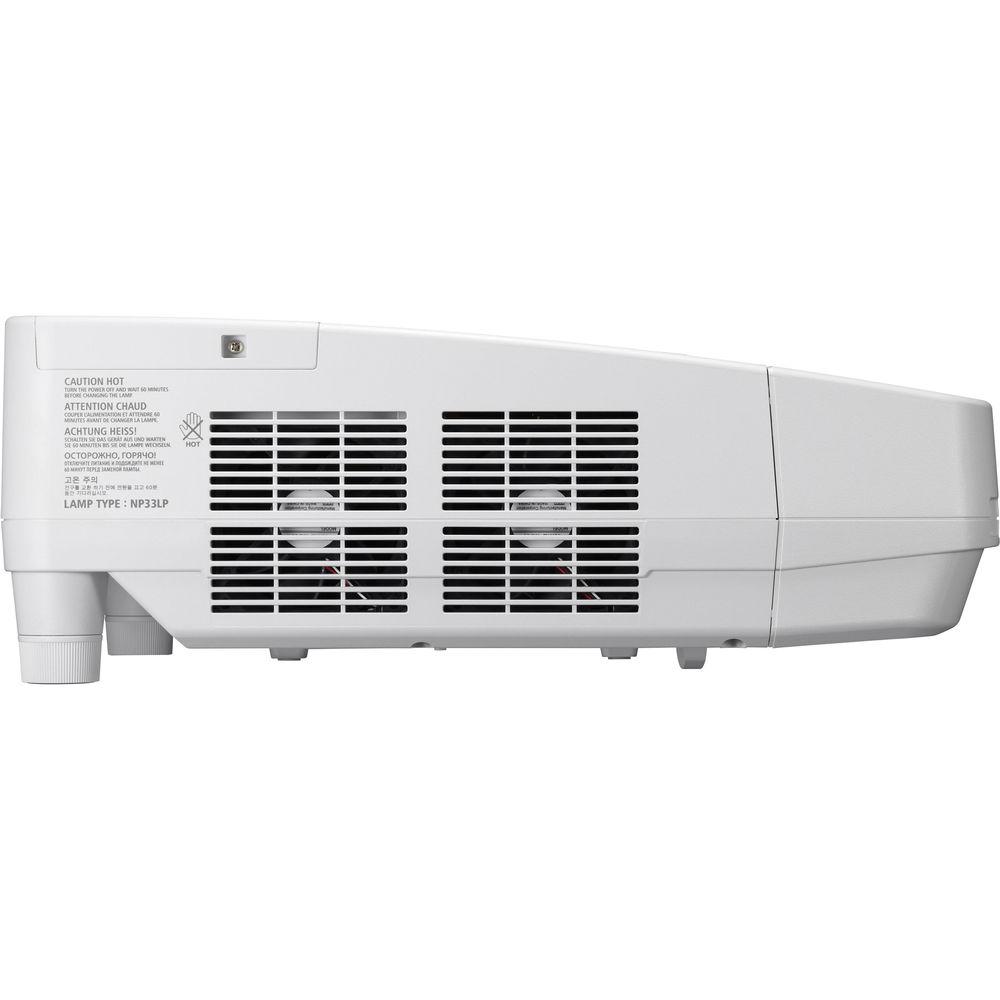

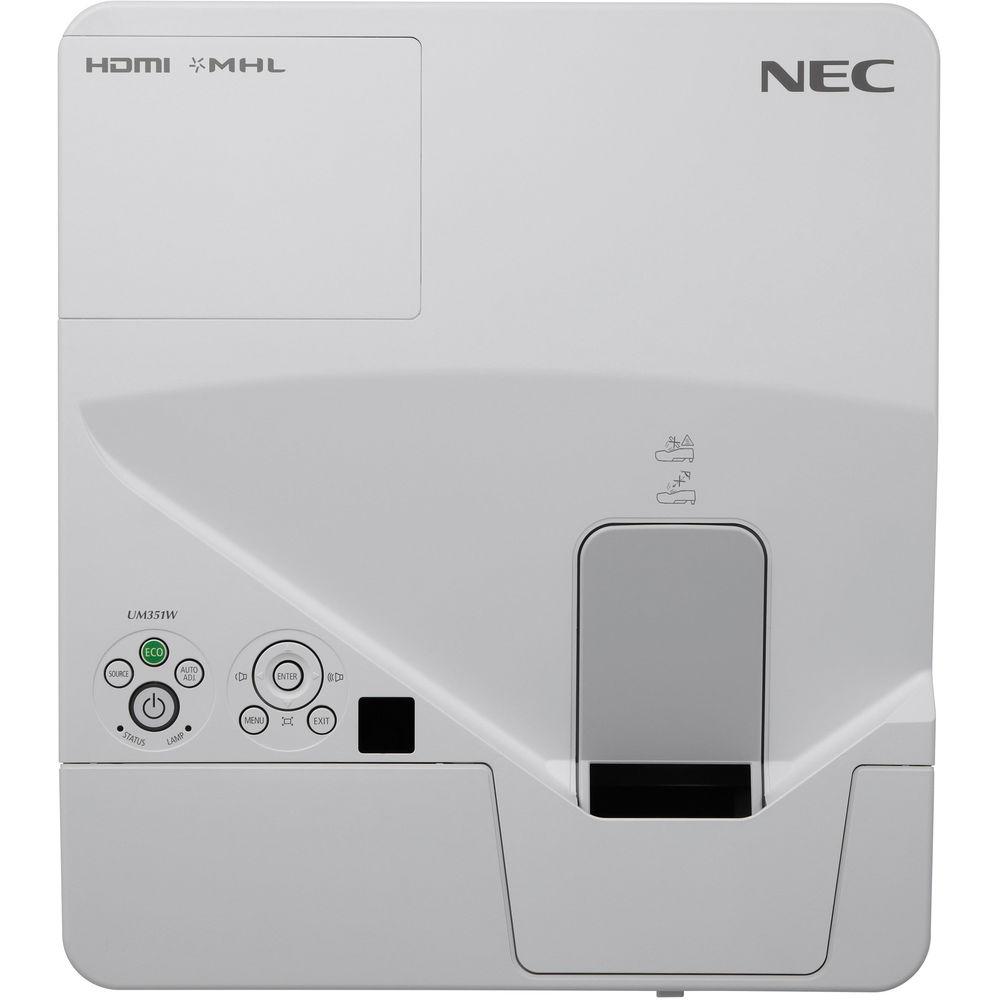

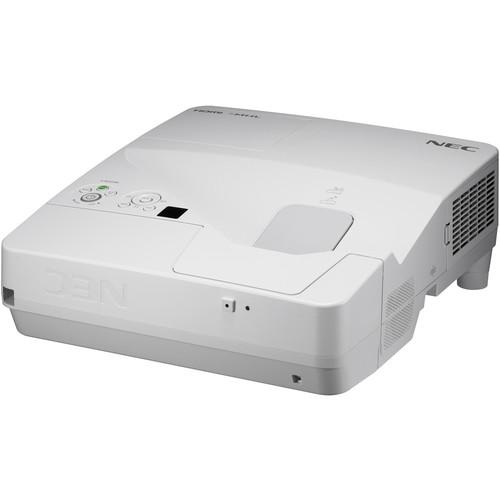

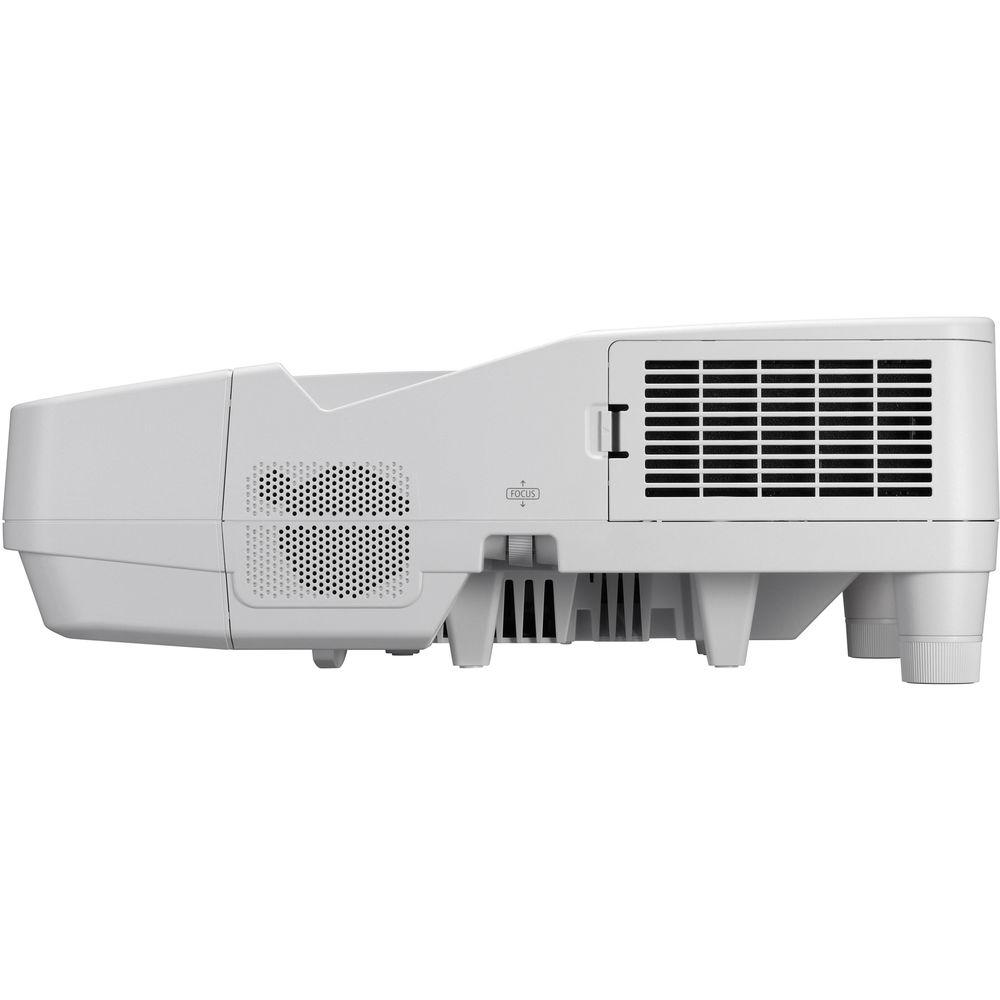

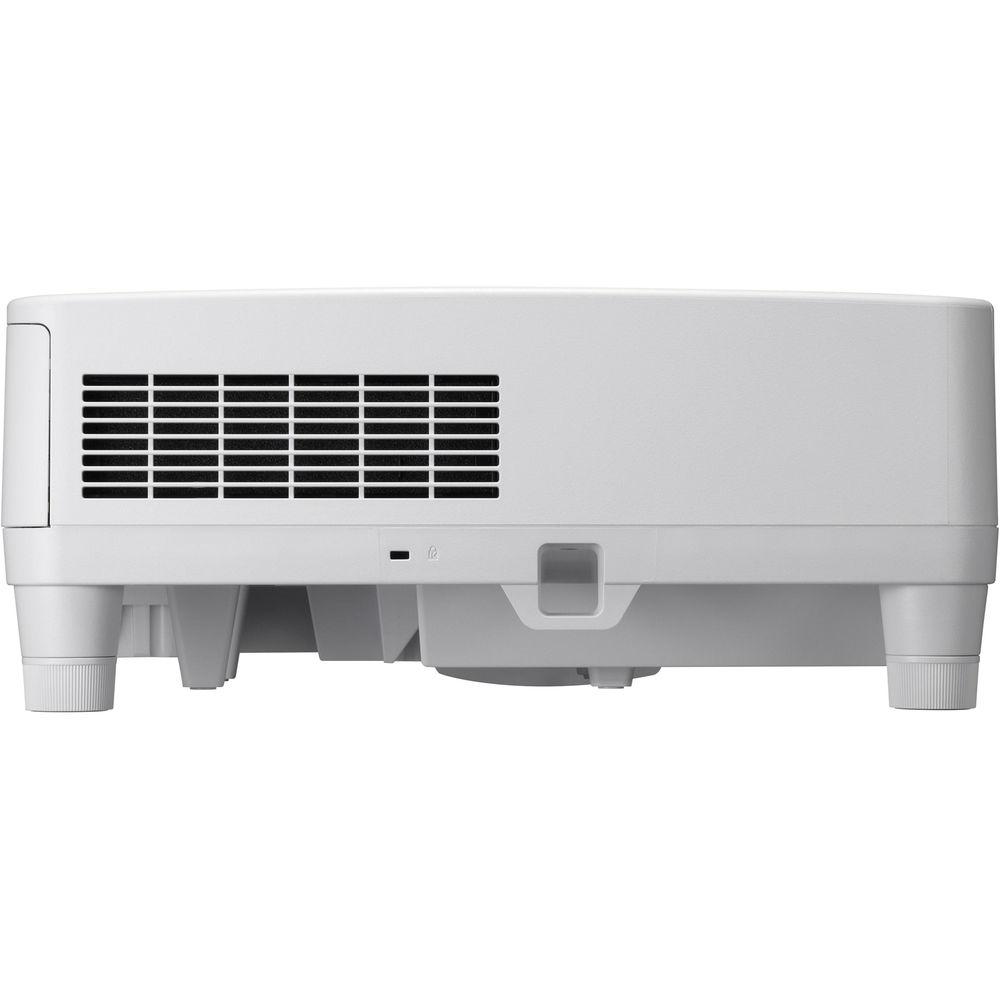

User Manual for NEC NP-UM351W 3500 Lumen WXGA Ultra-Short Throw LCD Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-UM351W 3500 Lumen WXGA Ultra-Short
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-UM351W 3500 Lumen WXGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Enjoy detailed high-resolution images with the NEC NP-UM351W 3500 Lumen WXGA Ultra-Short Throw LCD Projector. It features 3500 lumens of brightness and a 4000:1 contrast ratio. Additionally, this projector sports a WXGA 1280 x 800 native resolution for viewing detailed content and supports up to WUXGA 1920 x 1200 video signals. The NP-UM351W is powered by an LCD display system, and the lamp features a long life of up to 6,000 hours. You can use the NP-UM351W to project up to a 110" diagonal screen size, and it features a 0.36:1 ultra-short throw ratio.

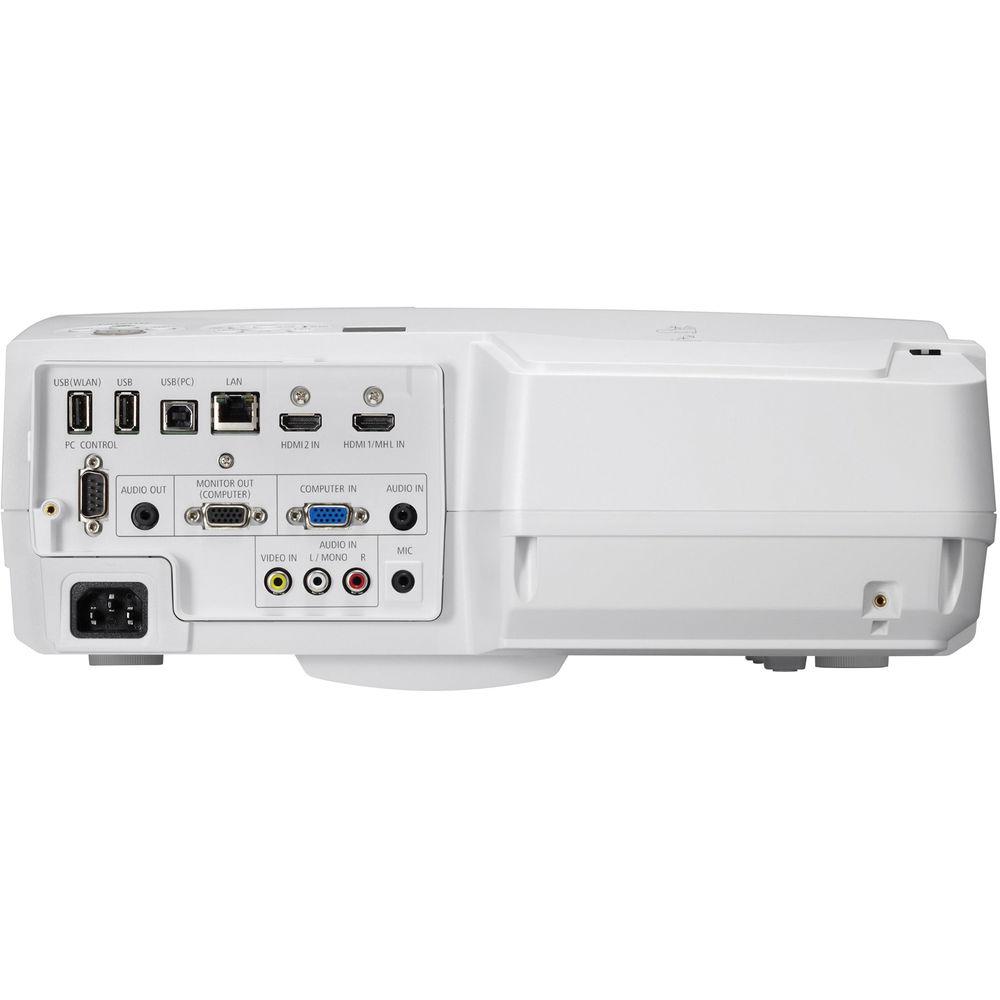

With two HDMI and single VGA, USB, and composite video inputs, this projector is well equipped for external video sources. As an added convenience, a VGA cable is included. It also support MHL connectivity via HDMI, which allows you to mirror and charge compatible mobile devices. Other features include a 0.2W standby power consumption level, optional ceiling mount compatibility, and a respectable 1.4x zoom with 10-step image magnification. Versatility and Performance - Powerful 20-watt speaker for use in large rooms
- Variable audio-out enables remote control to be used to adjust volume of self-powered external speakers that are connected to the projector - In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers
- Virtual Remote (DDC/CI) over the VGA cable or via the network connection (wired/wireless) allows you to control the projector directly from a computer without the need for additional control cables
- Flexible input panel connects with dual HDMI ports, as well as single computer, composite video, S-video and component video (using optional 15-pin adapter cable) ports
- USB input allows for connection directly from your computer to the projector using a standard USB cable
- USB Viewer uses the presentation conversion software included with your projector to convert presentations into .jpgs for playback using a USB flash drive (sold separately)
Ease of Use - Intuitive remote control provides one-touch source changes and complete menu control
- Integrated RJ45 connection for quick connection to the LAN (10/100base-T) capability
- Wireless LAN (optional) allows for image transmission from a computer or directly from an iPad, lowering the cost of the installation while providing collaboration with your audience
- Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
- Plug-and-Play setup and operation optimizes images displayed from computers and video sources
ECO Friendly - Extended lamp life with ECO Mode technology increases lamp life up to 6000 hours, while lowering power consumption
- Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
- Auto Power On, using the Direct Power On mode, turns on the projector when AC power is supplied
- Quick start (20 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage
Additional Features - 10-step image magnification with location control
- Supports ceiling, table top, and floor projection capable
- Built-in closed captioning enables decoding and display of text information from a video
- Kensington lock slot enables security cable to be attached to projector
UPC: 805736056242 In the Box NEC NP-UM351W 3500 Lumen WXGA Ultra-Short Throw LCD Projector Remote Control Remote Control Batteries VGA Cable Power Cord Limited 2-Year Warranty for Projector (1-Year of InstaCare) Limited 1-Year or 500-Hours Warranty for Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-UM351W 3500 Lumen WXGA Ultra-Short Throw LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC UM351W Specs | | | Display System | 1-Chip 0.59" Micro Lens Array (MLA) LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | WUXGA - 1920 x 1200
UXGA - 1600 x 1200
SXGA+ - 1400 x 1050
SXGA - 1280 x 1024
WXGA+ - 1440 x 900
WXGA - 1366 x 768
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480 | | Max Brightness | 3500 Lumens | | Contrast Ratio | 4000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.80 (f = 4.78 mm) | | Optical Zoom | 1.4x | | Throw Distance | 17.6 - 33.6" / 44.704 - 85.344 cm | | Throw Ratio | 0.36:1 | | Projection Size | 58 - 110" / 147.32 - 279.40 cm | | | | Keystone Correction | Vertical: ± 10°
Horizontal: ± 10° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 20W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x USB LAN
1 x USB Audio/Video
1 x USB Control
1 x Ethernet (RJ45) Control
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x RS-232C (Unspecified Connector) Control
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone | | | | Lamp Power | 255 W | | Expected Lamp Life | Medium Brightness: 3800 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 337 W
Low Brightness: 221 W
Standby Mode (Lamp Off): 8.0 W
Standby Mode (Lamp Off): 0.2 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 122°F (-20 to 50°C) | | Dimensions (W x H x D) | 14.9 x 6.3 x 16.9" / 378.0 x 160.0 x 428.0 mm | | Weight | 12.4 lb / 5.6 kg | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 23.0 x 19.25 x 9.2" |
