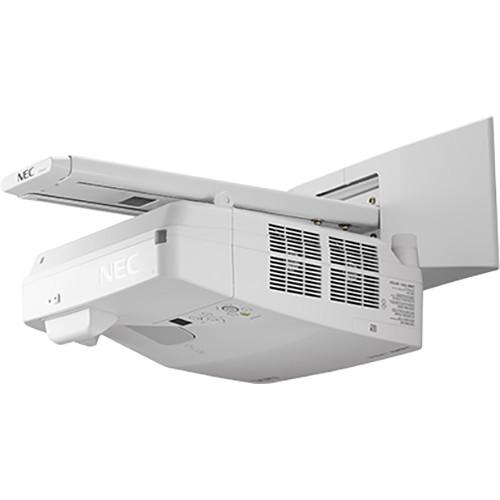

User Manual for NEC NP-UM352W-WK 3500L Ultra-Short Throw WXGA Interactive Projector with Wall Mount Click to enlarge the picture
Contents of the user manual for the NEC NP-UM352W-WK 3500L Ultra-Short Throw WXGA
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
|
User manual for the NEC NP-UM352W-WK 3500L Ultra-Short Throw WXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The NP-UM352W-WK 3500L Ultra-Short Throw WXGA Interactive Projector from NEC is a bright 3500-lumen projector that provides a complete interactive solution with a built-in whiteboard function, advanced collaboration capabilities, auto setup, and content delivery over wired or wireless LAN. The projector comes with a custom wall mount. With its ability to be mounted to the wall directly above the projection screen, this model helps eliminate the shadows and glare typically found with standard projection systems. Any flat surface can instantaneously be transformed into a digital whiteboard where participants can share information and annotations from computers, tablets, and smart phones from within the room or remotely. Concurrently, the NP-UM352W-WK can be used to control and annotate over any PC software, and is compatible with Mac. - 20W Audio
- Powerful 20 Watt speaker provides volume needed for a large room
- Advanced AccuBlend
- Ensures detailed images when non-native resolution sources are connected to the projector
- Auto Power On
- Powers on the projector as soon as it is plugged into a power outlet
- Direct Power Off
- Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on
- Power Management
- Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
- AutoSense
- Intuitively syncs the projector with most computer signals and features one-touch image optimization
- Built-In Closed Captioning
- Enables decoding and display of text information from a video
- Built-In Wall Color Correction
- Presets provide for adaptive color tone correction to display properly on non-white surfaces
- Carbon Savings Meter
- Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy
- Crestron RoomView
- Provides unified management, including the ability to switch the power on and off, to multiple projectors connected to a network
- Dual Computer Inputs
- Ensures quick switching between presentations
- Dual HDMI Inputs with HDCP
- Ensures quick switching between presentations and allows for simultaneous digital connections of HD sources, such as Blu-ray players, cable boxes, satellite receivers, and computers
- ECO Mode
- Extends lamp life, lowers audible noise, and reduces total cost of ownership
- Image Express Utility Lite with Audio Transfer
- Provides wired and wireless data transmission via peer-to-peer or over the network
- USB Viewer
- Permits playback (without a PC) of presentations or display images stored as JPG files, from a USB flash drive
- Variable Audio Out
- Adjusts the volume of an external speaker system using the projector's remote control
- Virtual Remote
- Used over the VGA cable to control the projector directly from a computer without the need for additional control cables
- Wired Network Connection
- Integrated RJ-45 connection for quick connection to the LAN (10/100 Base-T capability)
- Wireless LAN (Optional)
- Allows you to wirelessly transmit images from a PC to the projector, eliminating the need for unsightly cables
- Installation Orientation
- Floor/front, floor/rear, ceiling/front, and ceiling/rear options
- Regulations
- Follows USA UL 60950-1 FCC Class B and C-UL CSA 60950-1 ICES-003 Class B regulations
UPC: 805736056327 In the Box NEC NP-UM352W-WK 3500L Ultra-Short Throw WXGA Interactive Projector with Wall Mount Remote Control with Batteries RGB Cable AC Power Cord USB Cable 2 x Interactive Pens NP04WK1 Wall Mount Kit for Select NEC Ultra-Short Throw Projectors asbysubbefbttwctxrucxussfbw Limited 3-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-UM352W-WK 3500L Ultra-Short Throw WXGA Interactive Projector with Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-UM352W-WK Specs | | | Display System | 0.59" Micro Lens Array (MLA) LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200
VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA | | Max Brightness | 3500 Lumens | | Contrast Ratio | 4000:1 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/1.8 (f = 4.78 mm) | | Optical Zoom | Manual: 1.4x | | Throw Distance | 1.47 - 2.8' / 44.806 - 85.344 cm | | Throw Ratio | 0.36:1 | | Projection Size | 58 - 110" / 147.32 - 279.40 cm | | | | Keystone Correction | Horizontal: ± 10°
Vertical: ± 10° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
2 x HDMI Video (Input)
1 x USB Type-A Female (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Microphone (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Ethernet (RJ45) Control (Input)
1 x DDC/CI Control
1 x 1/8" (3.5 mm) Mini Control
1 x RS-232C (Unspecified Connector) Control
1 x USB Control | | | | Lamp Power | 255 W | | Expected Lamp Life | Medium Brightness: 3800 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 28 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 339 W
Low Brightness: 222 W
Standby Mode (Lamp Off): 8 W
Low Brightness: 0.2 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 122°F (-20 to 50°C) | | Dimensions (W x H x D) | 16.9 x 23.3 x 4.4" / 42.9 x 59.2 x 11.2 cm | | Weight | 12.8 lb / 5.8 kg | | | | Package Weight | 53.5 lb | | Box Dimensions (LxWxH) | 26.4 x 26.3 x 20.1" |
