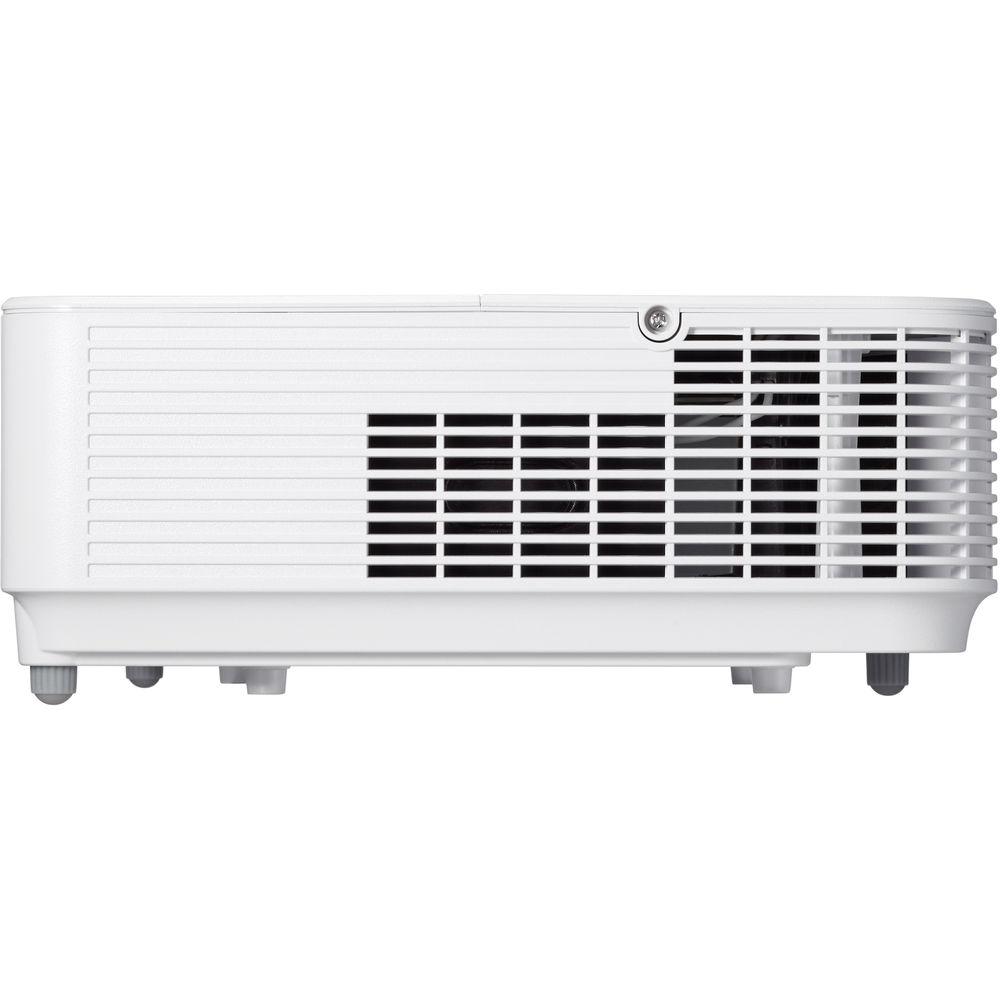

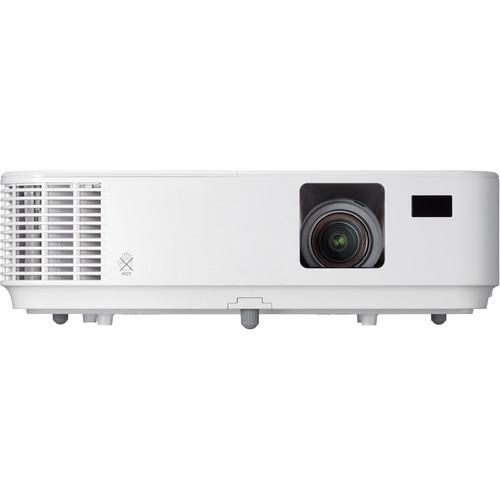

User Manual for NEC NP-VE303X 3000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC NP-VE303X 3000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC NP-VE303X 3000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Enjoy bright, clear images with the NEC NP-VE303X 3000-Lumen XGA DLP Projector. Its 3000 lumens of brightness will overcome ambient light in most installations, while its 10,000:1 contrast ratio will help ensure discernible detail in most images. The projector's native XGA 1024 x 768 resolution is suitable for most video and file formats and will accept up to 1080p (1920 x 1080) sources.
The NP-VE303X has HDMI, VGA, and composite video inputs to support most input types, plus an analog audio input and built-in 2W speaker that will provide audio for your video. The 1.95 to 2.15:1 throw ratio will allow you to place the projector near the back of the room in most cases. It is controllable via RS-232, the included IR remote control, or NaViSet Administrator 2 software. - Enhanced Image with Integrated Audio
- Enjoy a detailed image and sound reproduction thanks to the 10,000:1 contrast and built-in 2W speaker.
- Direct Power Off
- Direct Power Off allows the projector to be turned off (even when projecting an image) by using the Main Power Switch or by disconnecting the AC power supply.
- Save Energy with Integrated ECO Functions
- Reduce power consumption while ensuring optimal image performance and a lamp life that is extended to 6000 hours.
- DLP SmartSource 3D-Ready
- The projector can support the following 3D formats:
- HDMI 3D
- 120 Hz 3D (only available if your PC can output 120 Hz)
- HQFS 3D
- Includes Free NaViSet Administrator 2 Multi-Display Management Software
- This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality for many NEC display devices and Windows computers. It is designed for multi-device installations over larger infrastructures.
UPC: 805736060522 In the Box NEC NP-VE303X 3000-Lumen XGA DLP Projector Remote Control with Batteries Signal Cable Security Sticker Power Cord Limited 2-Year Warranty on Projector Limited 1-Year or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP-VE303X 3000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-VE303X Specs | | | Display System | 1-Chip DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 10000:1 | | Scan | Horizontal: 15 - 100 kHz

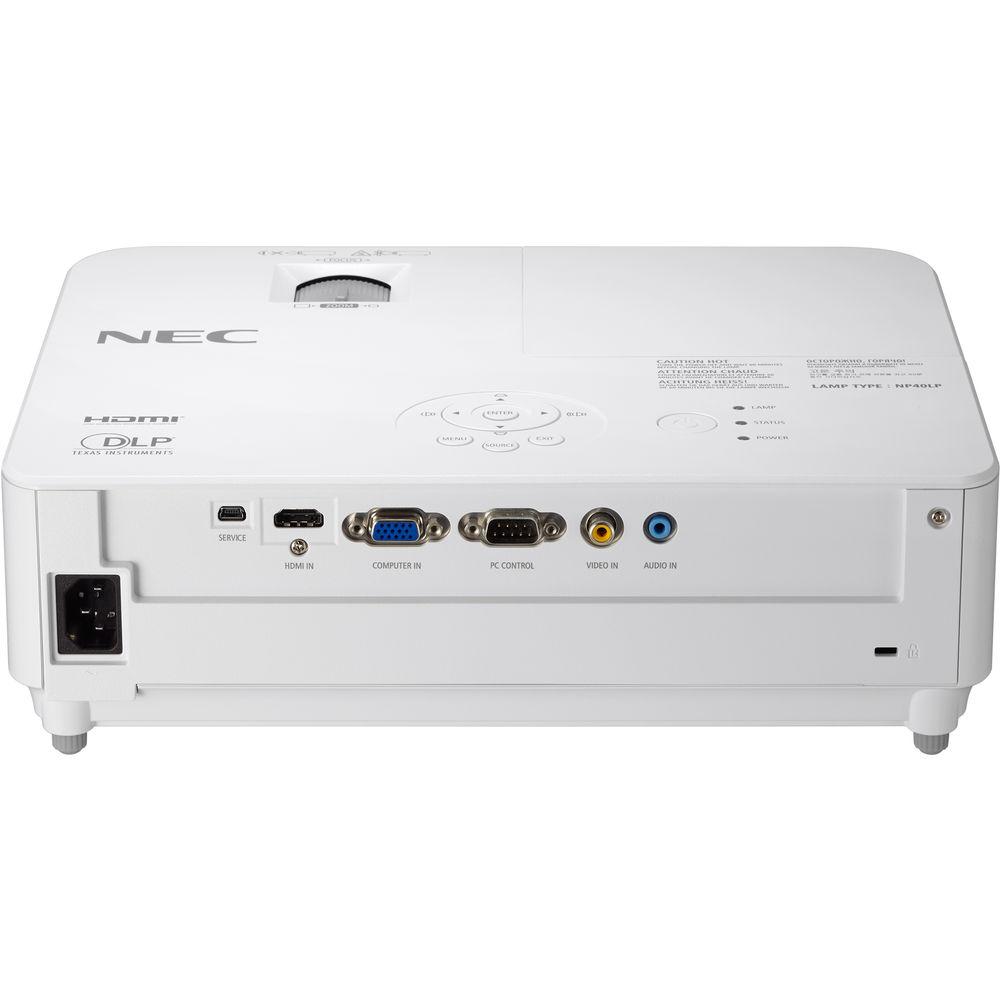

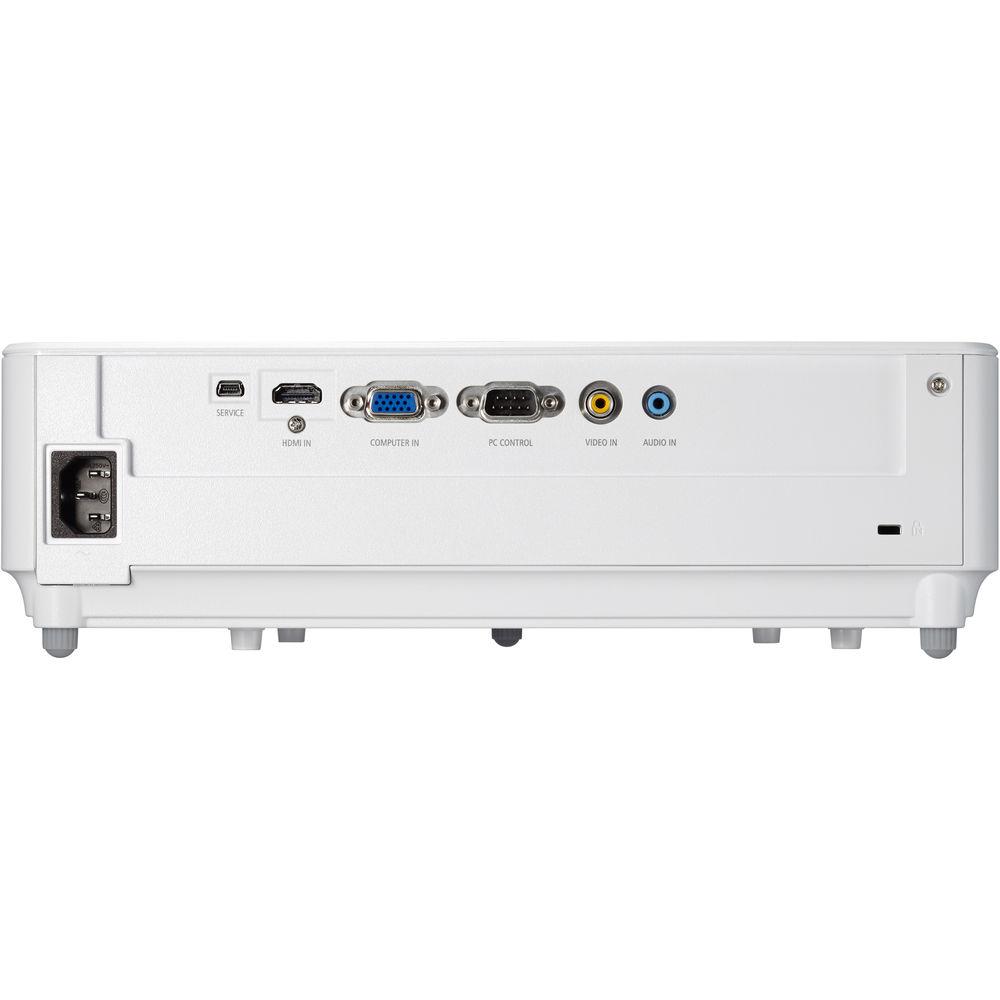

Vertical: 50 - 120 Hz | | | | Focus | Manual | | Lens | f/2.41 - 2.55 (f = 21.8 - 24.0 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 43.307 - 515.748" / 1.1 - 13.1 m | | Throw Ratio | 1.95 - 2.15:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Service (Input) | | | | Lamp Power | 195 W
60 W | | Expected Lamp Life | Medium Brightness: 4500 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 30 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 237 W
Low Brightness: 198 W
Standby Mode (Lamp Off): 0.23 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | 12.8 x 4.0 x 9.8" / 324.0 x 101.0 x 250.0 mm With protrusions
12.8 x 3.5 x 9.8" / 324.0 x 88.0 x 250.0 mm Without protrusions | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 18.1 x 13.5 x 7.1" |
