User Manual for NEC NP05LM1 Wireless LAN Unit for NEC Projectors Click to enlarge the picture
Contents of the user manual for the NEC NP05LM1 Wireless LAN Unit for
- Product category: Projector Accessories NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Projector Accessories
|
User manual for the NEC NP05LM1 Wireless LAN Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

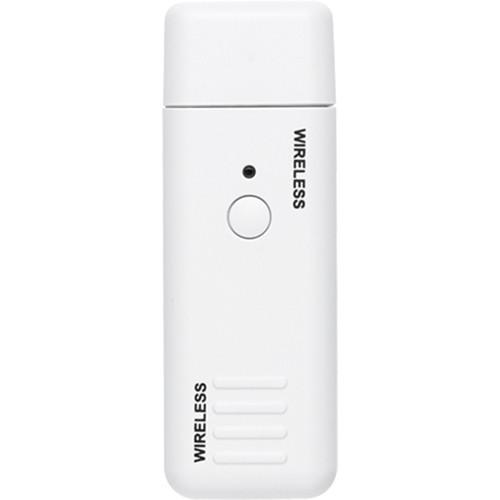

Product description The NEC NP05LM1 Wireless LAN Unit is designed for use with select NEC projectors. This module offers convenient wireless connectivity, and supports 802.11a/b/g/n networks. This unit connects to your projector via its integrated USB 2.0 interface. At 3.2" long, the NP05LM1 is small enough for daily travel. UPC: 805736053609 Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC NP05LM1 Wireless LAN Unit for NEC Projectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP05LM1 Specs | | | Operating Voltage | 5 V (power supplied from the projector) | | Amps | Maximum: 500 mA | | Interface | 1 x USB 2.0 (connected to USB wireless LAN port on the projector) | | Compatibility | NEC NP-UM351W
NEC NP-UM351Wi-WK
NEC NP-UM351W-WK
NEC NP-UM361X
NEC NP-UM361Xi-WK
NEC NP-UM361X-WK | | Wireless Connectivity | IEEE802.11b
1 to 11 channels (2412 to 2462 MHz)
IEEE802.11g
1 to 11 channels (2412 to 2462 MHz)
IEEE802.11a
36/40/44/48 channels (5180 to 5240 MHz)
52/56/60/64 channels (5260 to 5320 MHz)
100/104/108/112/116 channels (5500 to 5580 MHz)
132/136/140 channels (5660 to 5700 MHz)
149/153/157/161 channels (5745 to 5805 MHz)
IEEE802.11n
1 to 11 channels (2412 to 2462 MHz)
36/40/44/48 channels (5180 to 5240 MHz)
52/56/60/64 channels (5260 to 5320 MHz)
100/104/108/112/116 channels (5500 to 5580 MHz)
132/136/140 channels (5660 to 5700 MHz)
149/153/157/161 channels (5745 to 5805 MHz) | | Operating Conditions | Temperate: 41 to 104°F (5 to 40°C)
Humidity: 20 to 80% humidity (non-condensing) | | Storage Conditions | Temperate: 14 to 1227deg;F (-10 to 50°C)
Humidity: 20 to 80% humidity (non-condensing) | | Dimensions (HxWxL) | Including Cap: 1.1 x 0.4 x 3.2" (28.0 x 11.0 x 81.0 mm) | | Weight | Including Cap: 0.8 oz (22.0 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.213 x 6.457 x 1.339" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
