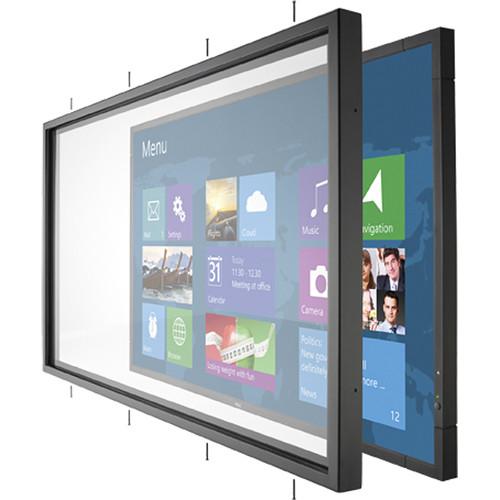

User Manual for NEC OL-V652 Protective Infrared Multi-Touch Overlay Accessory for V652 65" High-Performance LED-Backlit Commercial-Grade Display with Integrated Speakers Click to enlarge the picture
Contents of the user manual for the NEC OL-V652 Protective Infrared Multi-Touch Overlay
- Product category: Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Monitors
|
User manual for the NEC OL-V652 Protective Infrared Multi-Touch Overlay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The OL-V652 Protective Infrared Multi-Touch Overlay Accessory from NEC transforms your existing V652 65" High-Performance LED-Backlit Commercial-Grade Display with Integrated Speakers into an interactive touchscreen. While adding minimal depth, the OL-V652 accessory adds protective glass and multi-touch functionality to the high-performance V652 commercial-grade display. This overlay solution is HID compliant with a majority of operating systems, so loading extra drivers is not required. With the addition of this IR-touch overlay, you can experience up to 10 simultaneous points of touch. It is suitable for, but not limited to educational, retail, and corporate applications.
The OL-V652 overlay solution contains a black swipe zone that borders the active area of the display and allows for content to be moved in and out with Windows 8 swipe compatibility. This area also allows unrestricted access to the IR sensor, power LED, and the ambient light sensor portions of the display that are often covered up.
The overlay utilizes screw holes that are already located in the display, making full installation possible in just three primary steps that include removing screws, attaching the overlay, and replacing screws. Integration of the NEC overlay solution is simple and fast. - IR multi-touch technology enables up to 10 simultaneous touches for interaction and collaboration of content 1
Please Note: Number of touches depends on operating system. close - Maximize interactivity with multi-touch display support
- Ultra-fast response time enables split second reactions between touch point and screen
- Swipe zone around active area allows for full Windows 8 compatibility
- Promotes extended use with a high-performance design
- Sturdy full steel chassis combined with tempered protective glass ensures the safety of the LCD panel
- Maximum compatibility with full HID compliance for numerous Windows, Mac, and Android operating systems
- Simple design makes installation easier and faster
- Fits over existing bezel and attaches utilizing minimal hardware
UPC: 805736051117 In the Box NEC OL-V652 Protective Infrared Multi-Touch Overlay Accessory for V652 65" High-Performance LED-Backlit Commercial-Grade Display with Integrated Speakers 10' USB Extension Cable Installation Screws IR Overlay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC OL-V652 Protective Infrared Multi-Touch Overlay Accessory for V652 65" High-Performance LED-Backlit Commercial-Grade Display with Integrated Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC OL-V652 Specs | Compatible With | V652 65" High-Performance LED-Backlit Commercial-Grade Display with Integrated Speakers | | Touch Impact | 10 simultaneous touches Number of touches depends on operating system. | | Response Time | 6 to 16 ms | | OS Supported | Windows: Windows XP, Windows Vista, Windows 7, Windows 8
Mac: Up to Mountain Lion OS X
Android: Up to Jelly Bean 4.3 | | Dimensions (W x H x D) | Overlay: 61.5 x 37.0 x 2.8" (156.2 x 94.0 x 7.1 cm)
With Display: 61.4 x 36.3 x 4.9" (155.9 x 92.2 x 12.4 cm) | | Weight | Overlay: 55.1 lb (25.0 kg)
With Display: 169.8 lb (77.0 kg) |
