User Manual for NEC P Series 48" Full HD Professional-Grade Large Format Display with Integrated Tuner Click to enlarge the picture
Contents of the user manual for the NEC P Series 48" Full HD
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
 |
User manual for the NEC P Series 48" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

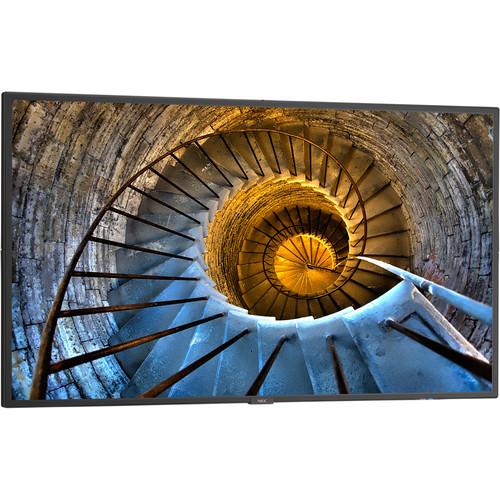

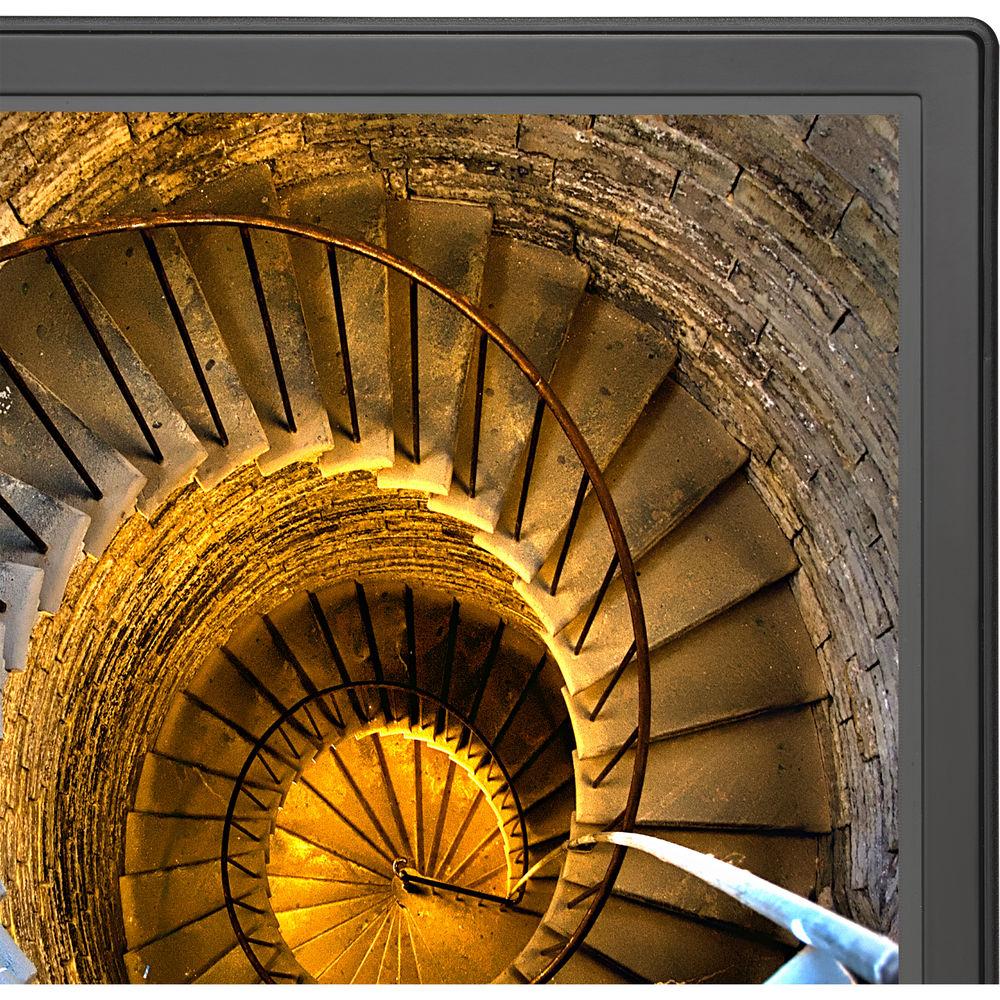

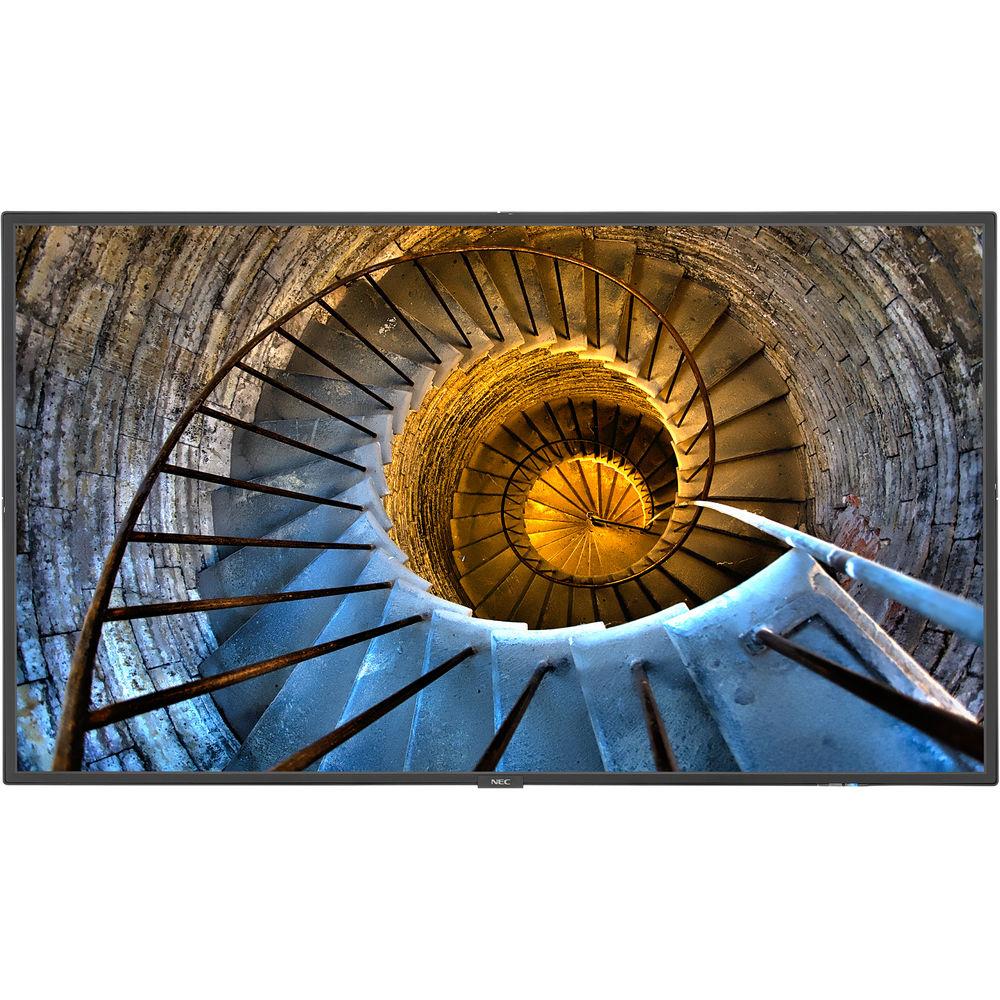

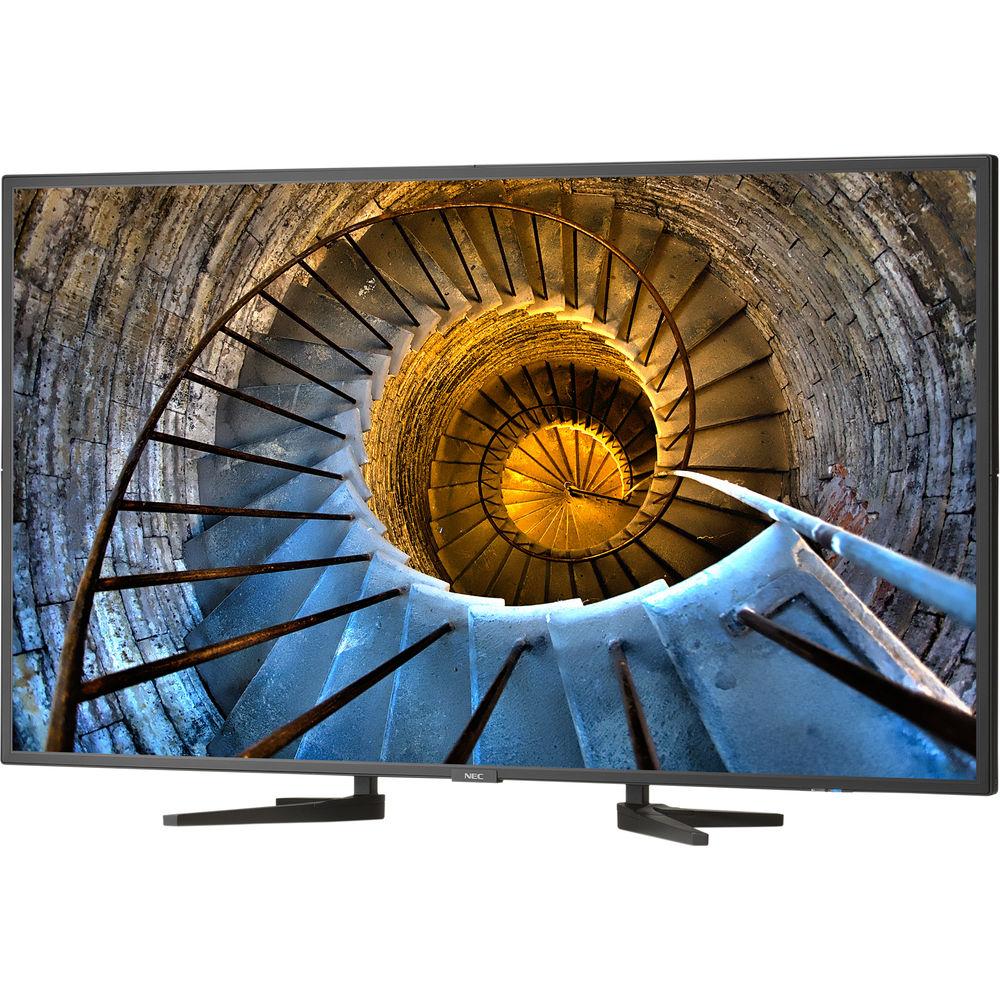

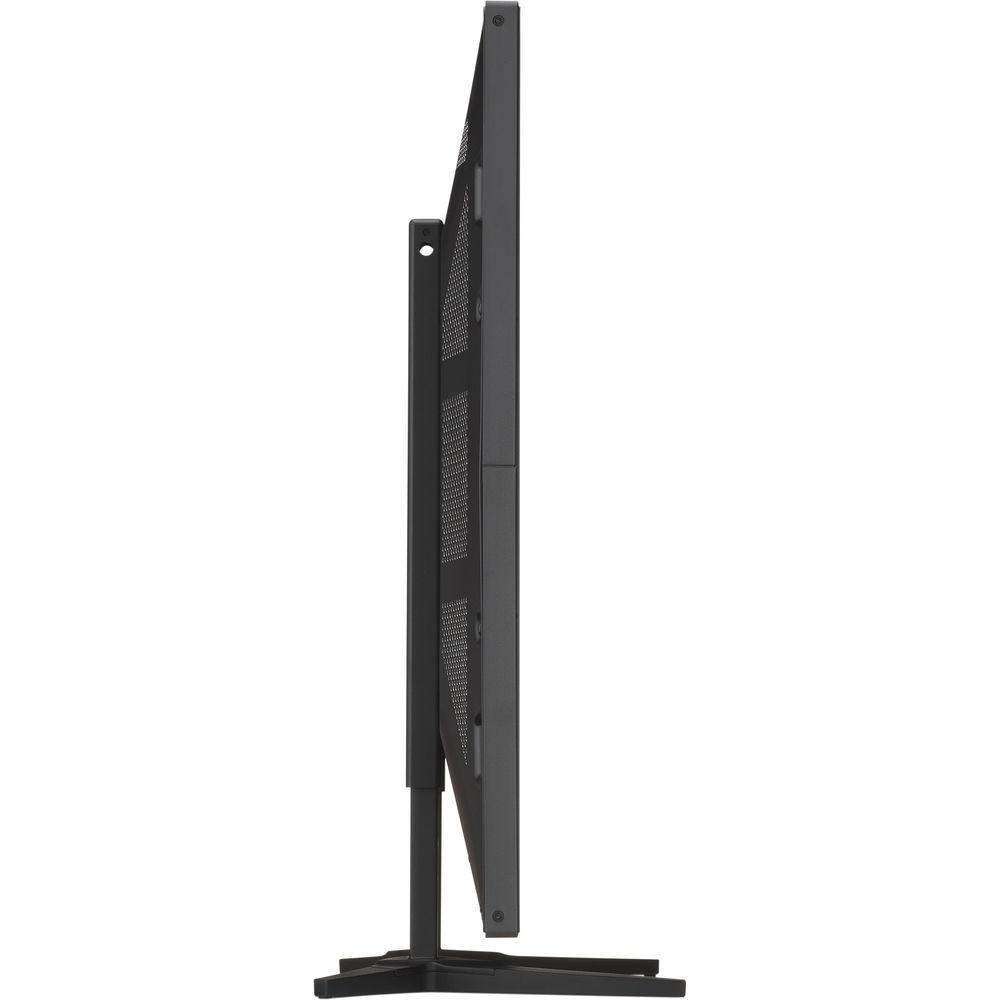

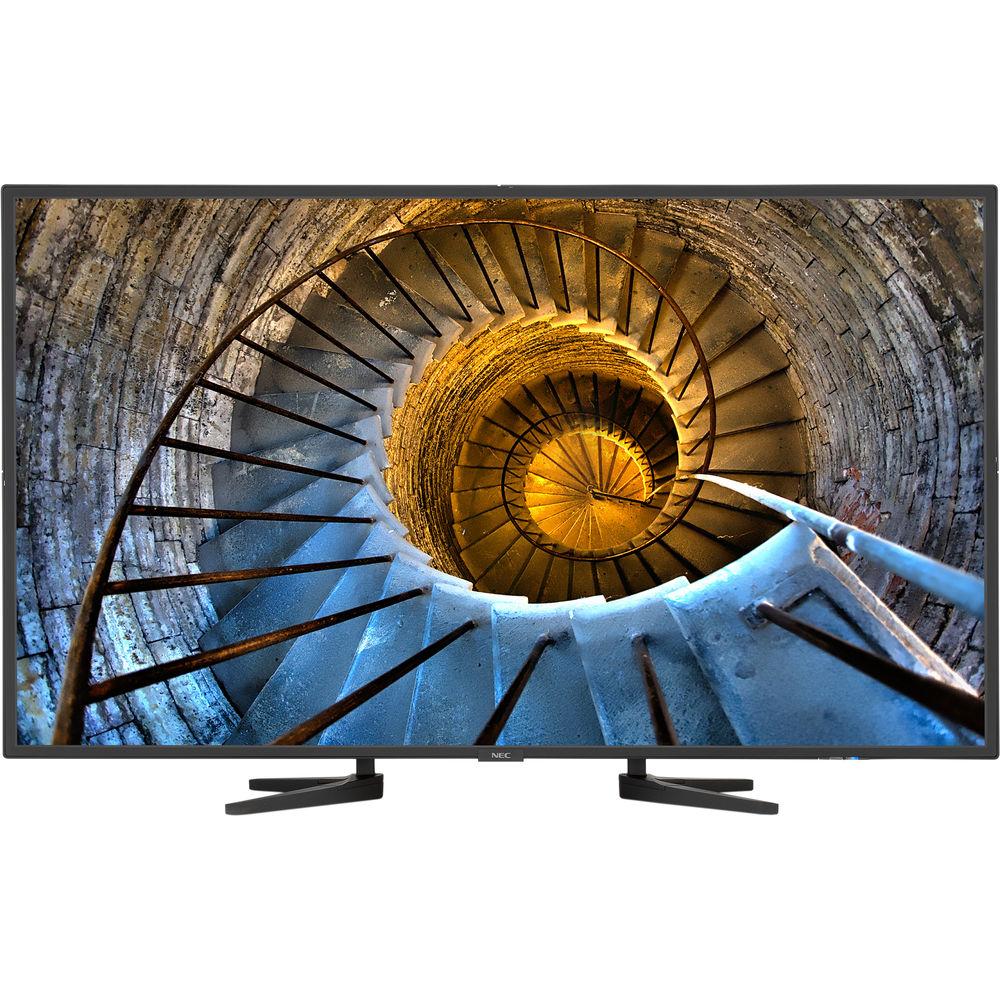

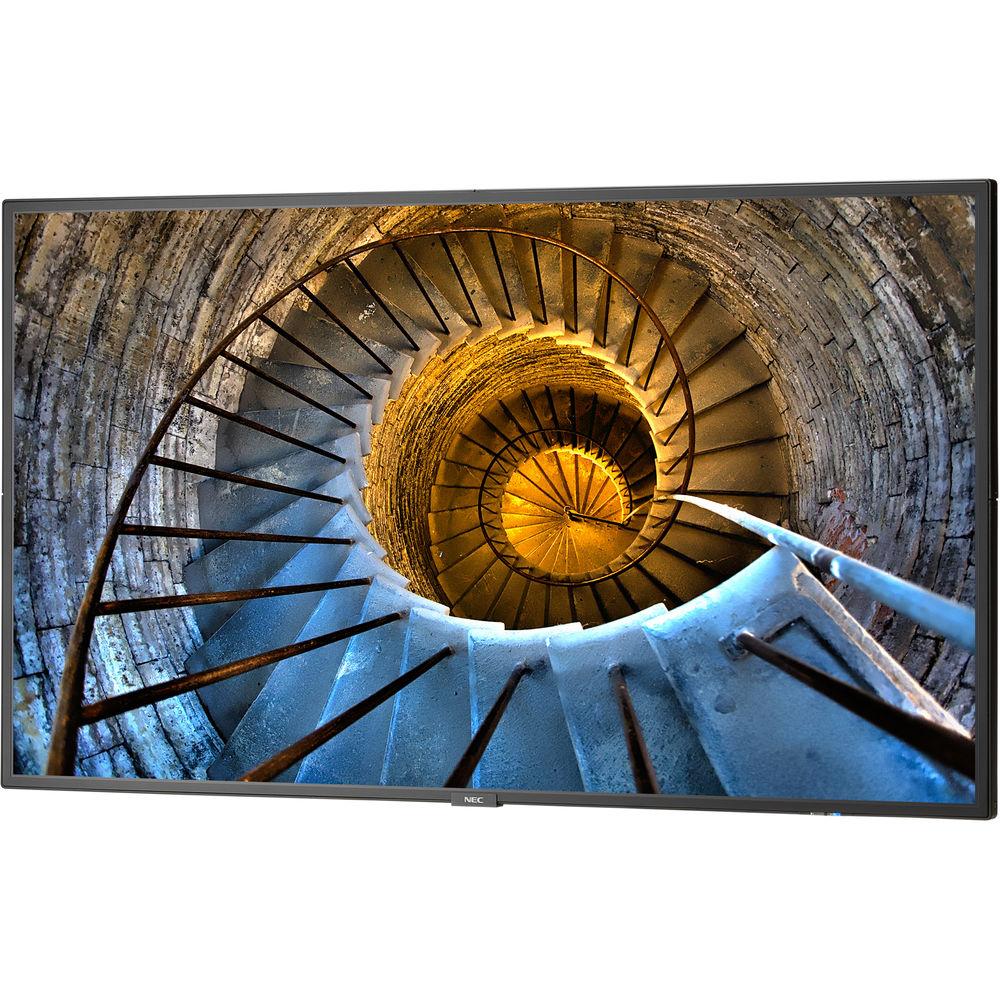

Product description The NEC P Series 48" Full HD Professional-Grade Large Format Display features 1920 x 1080 native resolution for viewing detailed images and 4000:1 contrast ratio showcases its ability to handle light and dark on-screen images. It offers 700 cd/m2 brightness along with an anti-glare surface that allows readability in higher ambient light situations and is suitable for 24/7 signage in airports, quick-serve restaurants, financial institutions, and command and control. It is a professional-grade, large-screen display suitable for boardrooms, conference rooms, and meeting room type of applications. The integrated ATSC digital tuner allows for high-definition broadcast capabilities. The display includes expandability options such as the OPS (Open Pluggable Specification) and Raspberry Pi Compute Module slots for source integration directly into the display. - Built-in 2 x 10W speakers
- Carbon footprint meter informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real-time
- Face up/down capable allows for the ability to install the displays in face-up orientation for table-type applications or face-down orientation for decorative signage
- SpectraView engine allows for complete color, intensity, gamma, or uniformity control for imaging performance
- Human sensor accessory helps deliver creative digital signage to end users by allowing for dynamic control of brightness, audio, and source inputs while saving operating costs. It also ensures digital signage is on and directed at a targeted audience
- Integrated multimedia player allows the ability to play video, audio, or image files directly off USB or through microSD card. There is also the ability to copy from USB to microSD card then lock down the microSD card for security purposes

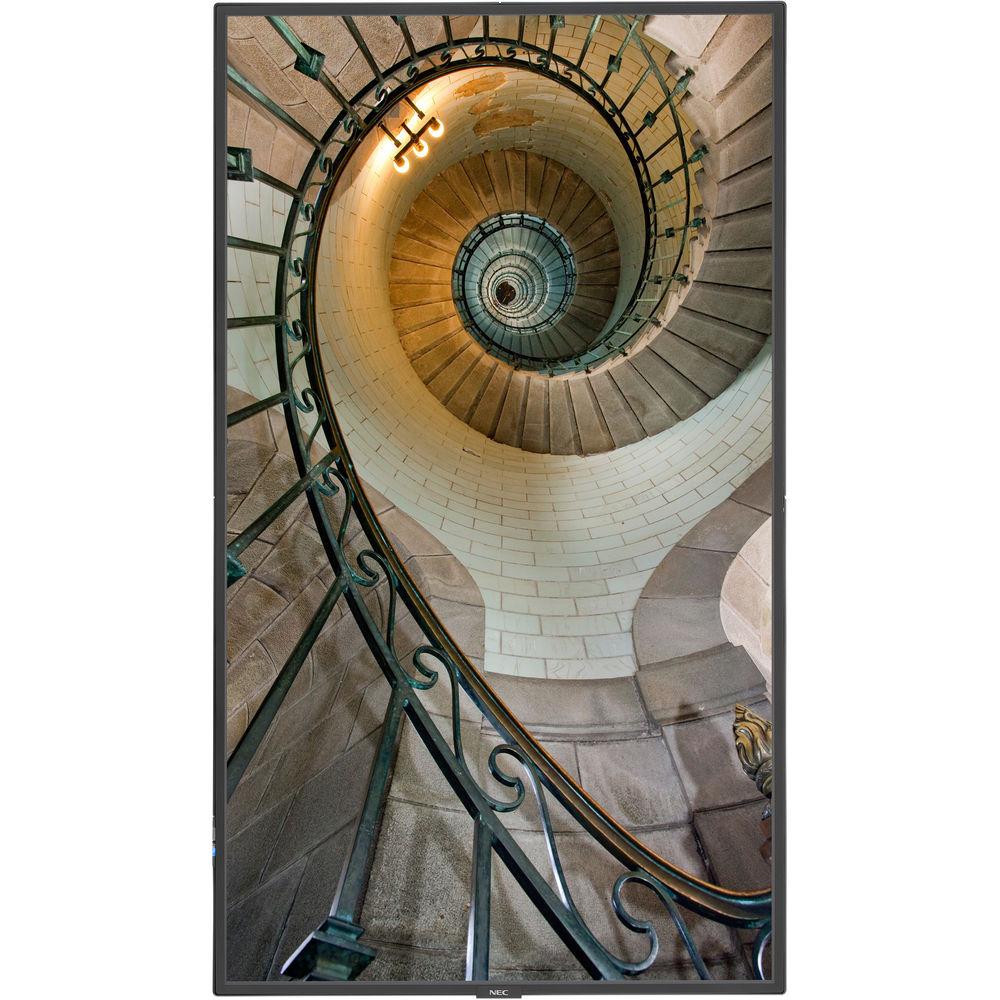

- Landscape/portrait capable allows for distortion-free display of content in various orientations, creating new application opportunities
- Use a smartphone with NFC capabilities to preconfigure the display. Configure displays once in the app and then just copy the settings to all displays in the install
- Display monitors multiple parameters once command to start proof of play has been issued to the display
- TileMatrix allows you to customize a video wall configuration using advanced on-screen display controls
- Integrated temperature sensors and cooling fans, Ethernet control and communication, RS-232 control and communication, Image flip, Holiday settings, Screen saver function, Multi-Picture mode, 25% haze panel, Screen saver function, Metal rear cabinet, Advanced video settings (noise reduction, adaptive contrast), Input labeling, Backlight adjust, aspect ratio control, LED edge-lit backlighting, NaViSet Administrator compatible, Auto ID/IP address control, Crestron roomview support, AMX Beacon, PJLInk support, 10-bit color over HDMI, OPS/expansion slot
In the Box NEC P Series 48" Full HD Professional-Grade Large Format Display with Integrated Tuner 9.8' Power Cord 5.9' DVI-D Cable Wireless Remote Control Batteries Mounting Hardware Limited 5-Year Warranty NEC Whitepaper: Commercial Monitors Vs. Consumer TVs PDF 2.8mbrebdfxxuxsxfsyzxubbafdbfxzaswrt Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC P Series 48" Full HD Professional-Grade Large Format Display with Integrated Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC P484 Specs | | | Screen Size (Diagonal) | 48" | | Native Resolution | 1920 x 1080 | | Supported Display Resolutions | Maximum: 4096 x 2160
Minimum: 640 x 480 | | Panel Type | VA LCD | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Brightness | 700 cd/m
