Product description

• OPS PC with Intel Celeron G3900E 2.4GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD)
  Key Features
  • • Full HD resolution
    • USB 3.0 ports
  UPC: 805736064834

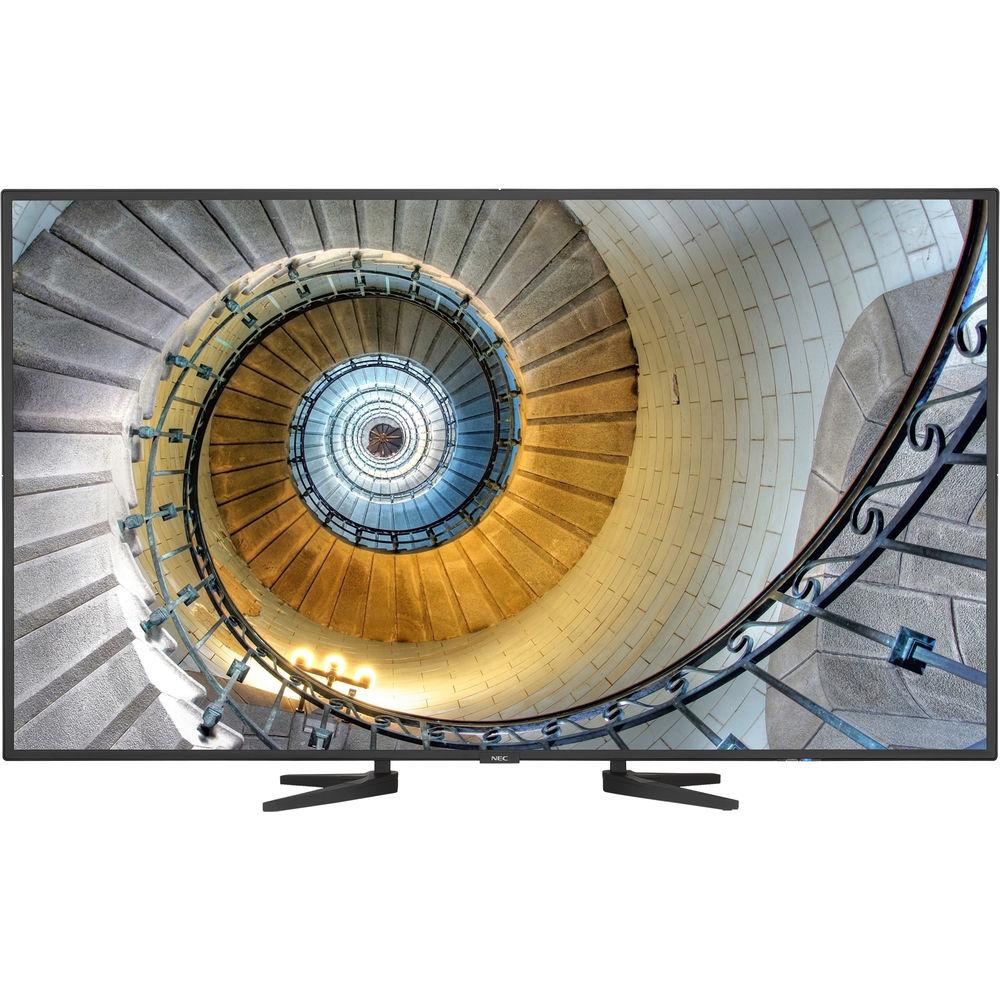

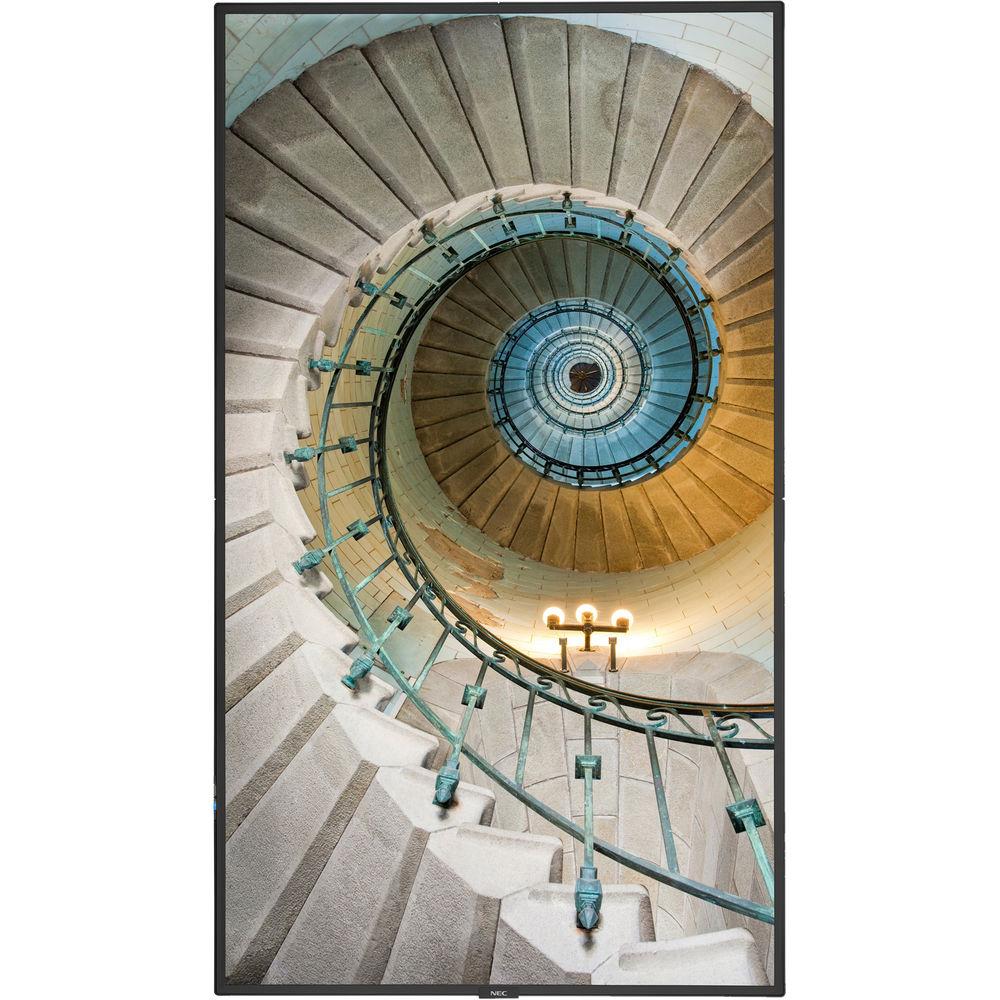

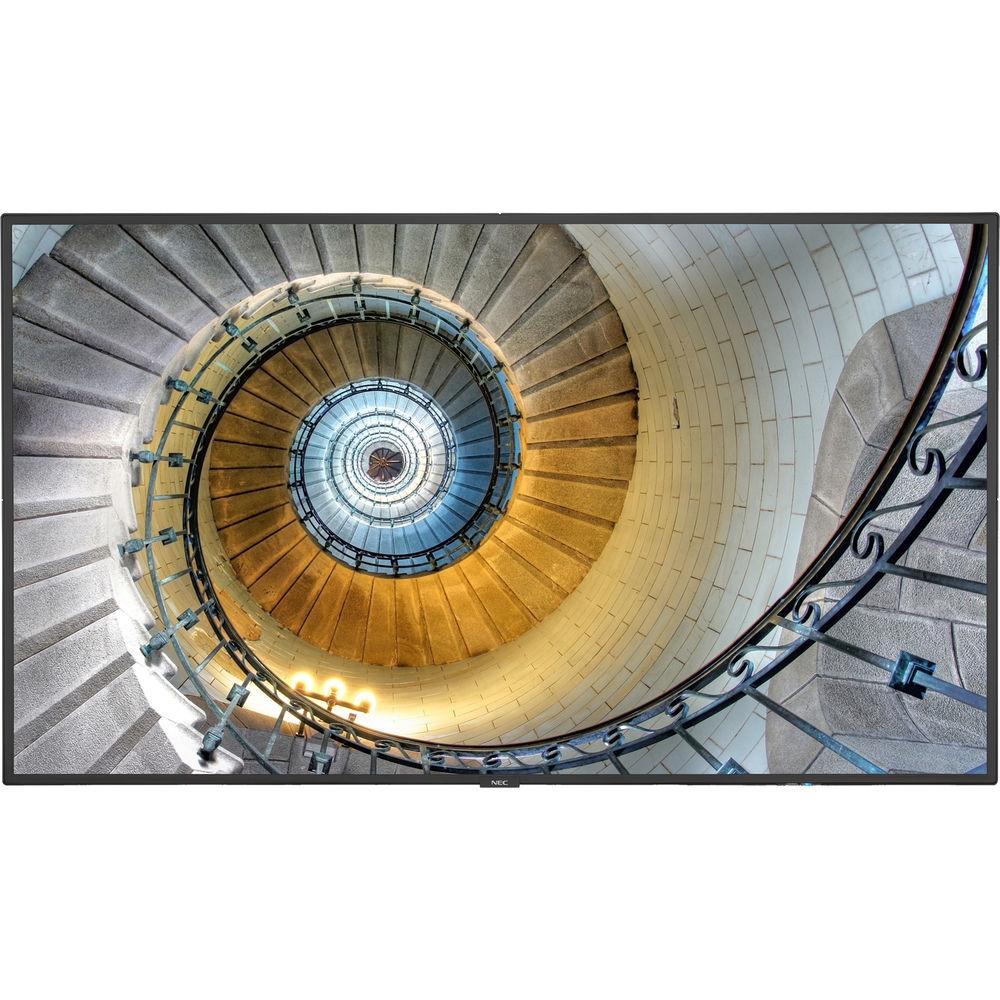

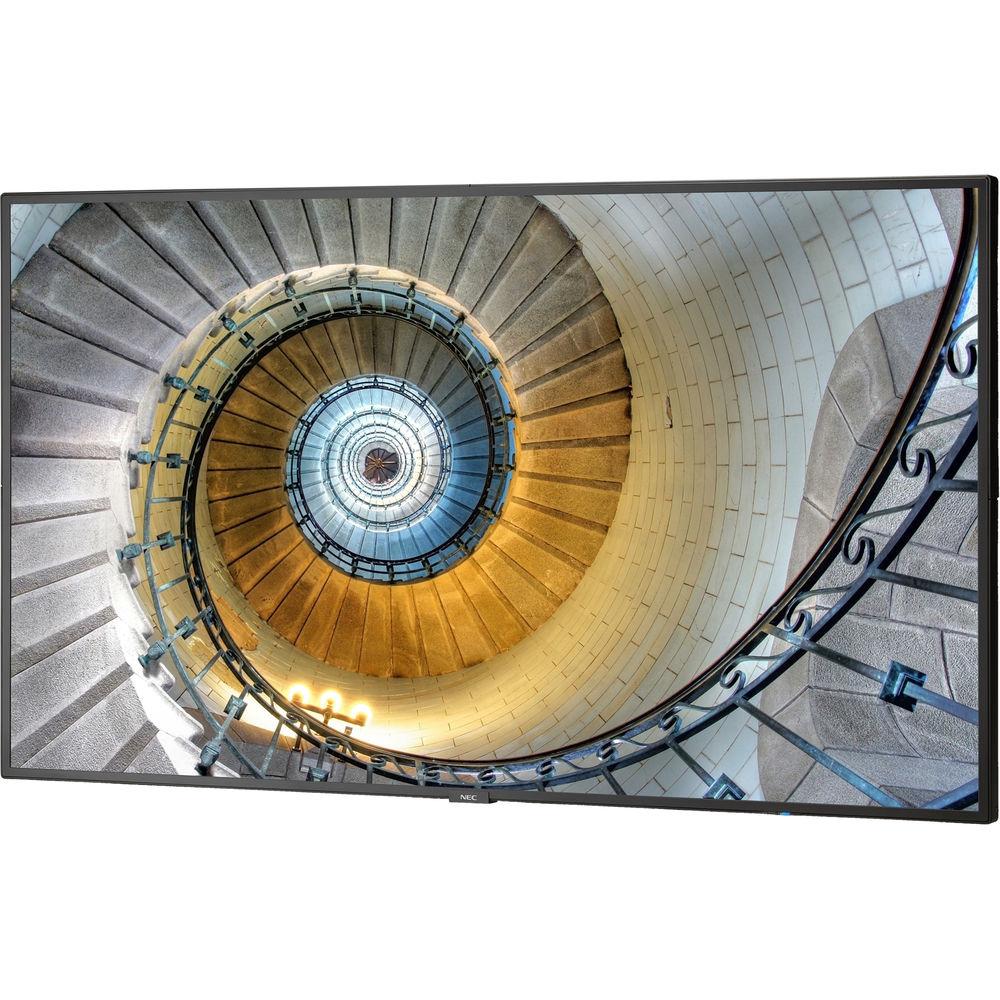

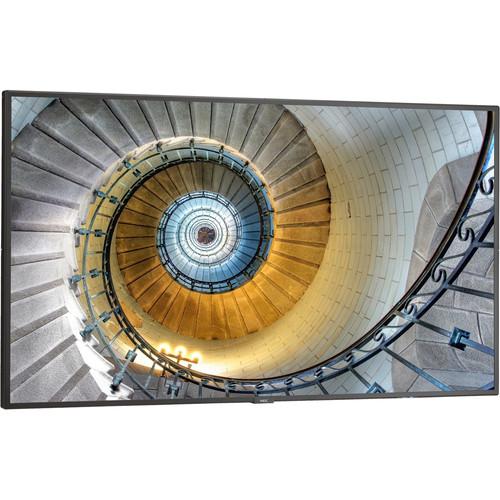

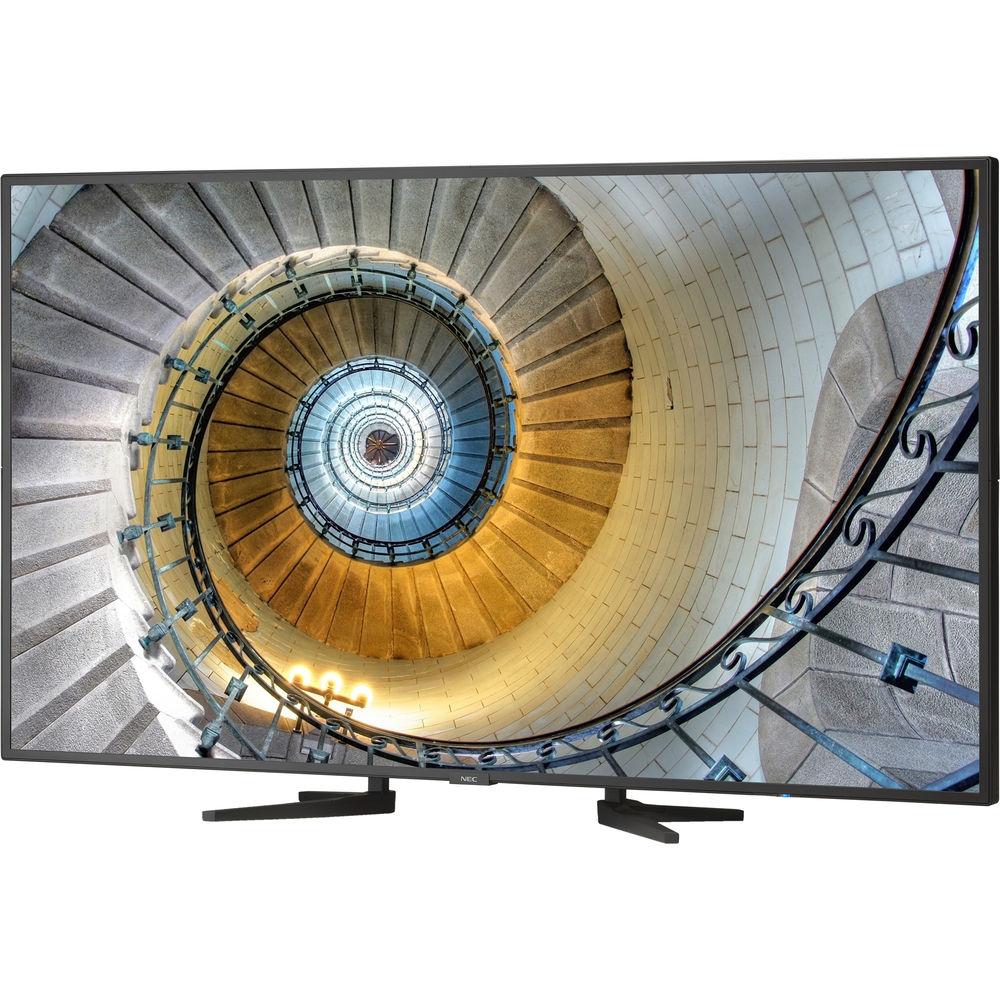

• P554 55"-Class Full HD Commercial IPS LED Display Display your business' content in 1080p with the NEC P554 55"-Class Full HD Commercial IPS LED Display. This commercial display features a 55" LED edge-lit LCD display with a 1920 x 1080 native resolution for viewing detailed Full HD images. It supports portrait and landscape viewing orientations and sports a 700 cd/m² maximum / 500 cd/m² brightness rating with a 1200:1 contrast ratio to showcase its ability to handle light and dark on-screen images. An anti-glare coating on the screen helps keep your content visible in well-lit environments.

  The P554 is equipped with a DVI-D, VGA, RCA, two DisplayPort, and two HDMI inputs for connecting a variety of video sources, as well as a DisplayPort output for daisy-chaining and an OPS slot for expansion options. For audio reproduction, the P554 is equipped with dual 10W speakers.
  Scalable Computing Power
  • Integrated computing options allow for cable-free signage for nearly any situation. The onboard multimedia player can be utilized for simple signage applications by allowing auto-play off USB drives or an SD card, or you can transfer content via your LAN. For more advanced signage systems, the P554 has a slot for a Raspberry Pi Compute module to support a variety of applications. Furthermore, this display adheres to the Open Pluggable Specification (OPS) that allows you to integrated a computer, HDBaseT receiver, or other option directly into the display.
  Heat Management
  • Monitoring and managing the temperature of each display helps ensure reliability and longevity. Thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation and protects the P554. Without thermal management, displays can be prone to damaging heat over time, lowering the picture quality and life expectancy of the display. Integrated cooling fans automatically turn on when high internal temperatures are detected, and will stay on until the heat is properly dissipated and the display remains under proper temperature thresholds.
  L-Shaped Connectivity
  • Connectivity is located on both the bottom and side of the display to facilitate easy access, regardless of orientation.
  Ambient Light Sensor
  • Auto dimming of the LED backlights can be utilized through the ambient light sensor allowing for the brightness to change depending on the light levels in the room.
  SpectraView Engine
  • Enhanced imaging performance through the setting of all relevant parameters allow virtually full control of brightness, color, gamma, and uniformity via an integrated color-critical chipset.
  Auto TileMatrix, Auto ID, and Auto IP Address Technologies
  • Auto IP Address is designed to simplify control setup by setting the static IP address on the first display, then setting up the IP addresses of consecutive displays following the LAN daisy chain. In the case of video wall installations, Auto TileMatrix and Auto ID can scale images up to UHD resolution across the entire wall through DisplayPort 1.2 while individually identifying each screen, helping to save time and overall cost of installation.
  Key Guide
  • The Key Guide function allows for easier access to buttons when manually controlling the display via the buttons on the back by adding an on-screen graphic directing you to the correct button layout in both landscape and portrait modes.
  Display Wall Calibrator Color Calibration Software
  • As the brightness and color temperature of the LCD change with time, colors may not match across multiple screens. NEC Display Wall Calibrator software helps ensure color uniformity and fidelity across multiple screens, helping to create a matched image in tiled environments.
  Intelligent Wireless Data Function
  • The built-in near-field communication (NFC) chip allows data to be read and written via a mobile phone or tablet. You can reduce installation costs as displays can be more easily configured and serviced using the NEC NFC Android app. This is particularly useful for large rollouts, as it can be utilized even when the display is powered off.
  Removable Logo
  • Whether you're mounting the display in landscape or portrait orientation, you can change the orientation of the logo or remove it altogether.
  NaViSet Administrator 2
  • This software is engineered to be an all-in-one remote support solution that runs from a central location and provide monitoring, asset management, and control functionality of a variety of NEC display devices and Windows computers, making it well suited for multi-device installations over large infrastructures.
  Proof of Play
  • This function provides proof that displays were working as intended when checking from an offsite location. Information regarding video source, time on, audio source, and more can be pulled through the display when coupled with NaViSet Administrator 2.
  Additional Features
  • • Sleek design allows for easy and unobtrusive integration into nearly any environment
    • Up to 700 cd/m² brightness, Full HD resolution, and an anti-reflective screen surface help capture the attention of the audience while allowing for clear visibility in normal ambient light conditions
    • Out-of-box uniformity calibration
    • Ethernet and RS-232 control and communication
    • Image Flip
    • Carbon footprint meter
    • 24/7 scheduler with real-time clock
    • Holiday settings
    • Screen saver function
    • Multi-Picture mode
    • Optional human sensor
    • Intelligent wireless data via NFC
    • Metal rear cabinet
    • Variable picture modes
    • Video noise reduction and adaptive contrast
    • Input labeling
    • Backlight adjust
    • Aspect ratio control
    • Crestron RoomView support
    • AMX Beacon
    • PJLink support
    • 10-bit color over HDMI
  UPC: 805736059021

• Remote Control with Batteries

• 5.9' DVI-D Cable

• SD Card Cover Slot with Screws

• 9.8' Power Cable

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• OPS PC with Intel Celeron G3900E 2.4GHz Dual Core CPU and Intel HD Graphics 4600 (64GB SSD)

  Device Type	Digital signage player
  Width	7.9 in
  Depth	4.7 in
  Height	1.2 in
  Weight	6.83 lbs
  OS Provided	Windows 10 Pro 64-bit Edition
  Interfaces	USB 2.0, USB 3.0
  Key Features	Digital audio player, digital photo viewer, digital video player

  Output Resolution	1080p

  Manufacturer	Intel
  Type	Celeron
  Installed Qty	1
  Processor Number	G3900E
  Clock Speed	2.4 GHz

  Technology	DDR3 SDRAM
  Installed Size	4 GB

  Storage Drive Type	SSD
  Capacity	64 GB

  Graphics Processor	Intel HD Graphics 4600

  Storage Drive Capacity	64 GB

  Connections	DisplayPort output USB 2.0 2 x USB 3.0 Microphone Audio line-out

  Service & Support	Limited warranty - 3 years

  Box Dimensions (LxWxH)	7.1 x 4.9 x 1.4"

• P554 55"-Class Full HD Commercial IPS LED Display

  Screen Size (Diagonal)	55"
  Native Resolution	1920 x 1080
  Supported Display Resolutions	Maximum: 4096 x 2160
  Panel Type	IPS-Type LCD
  Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
  Brightness	700 cd/m Rating 100% users recommend this product to others. And what about you? This product has already been rated by 54 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
