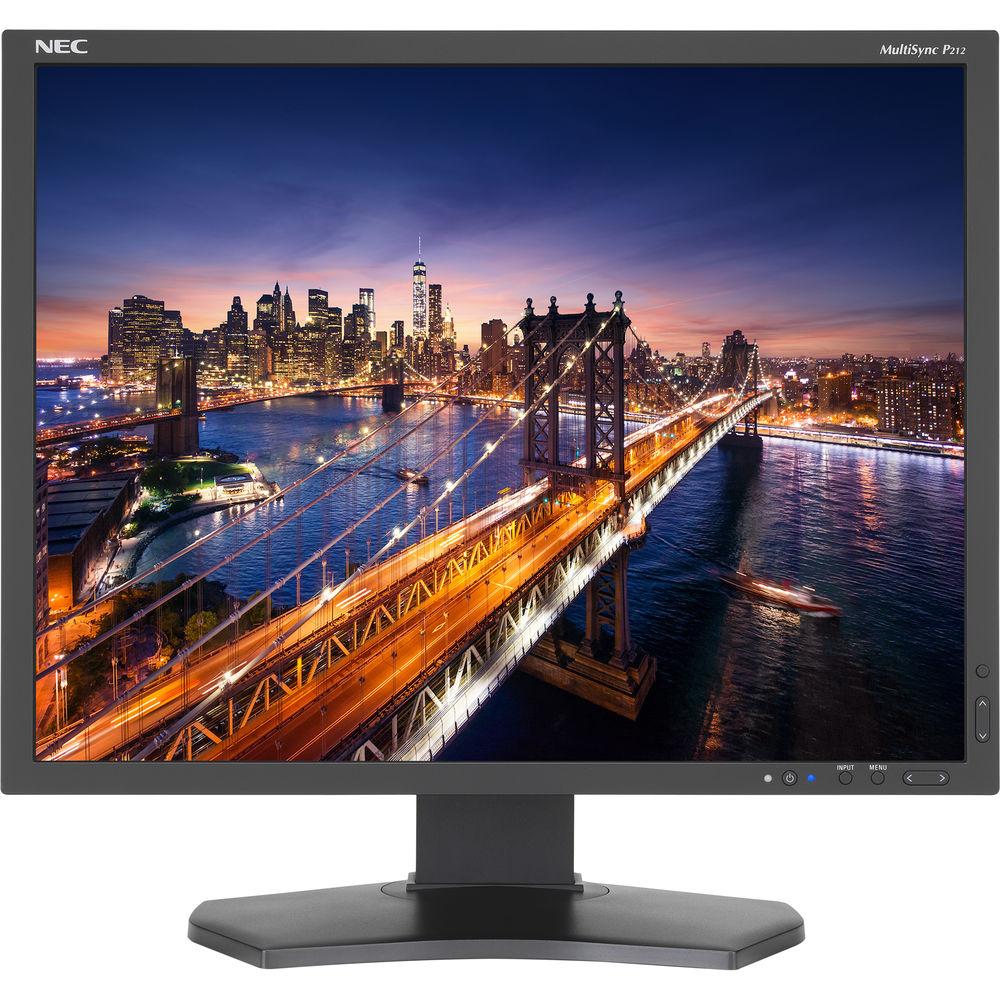

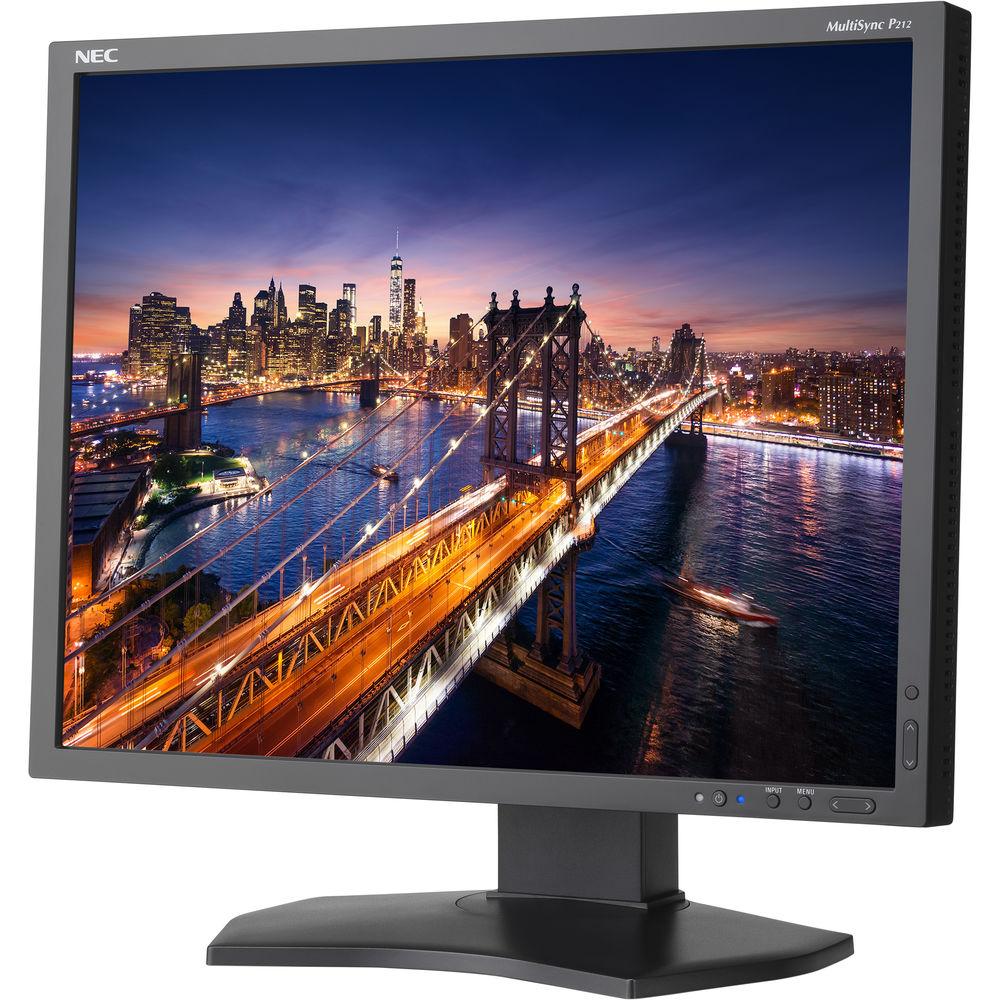

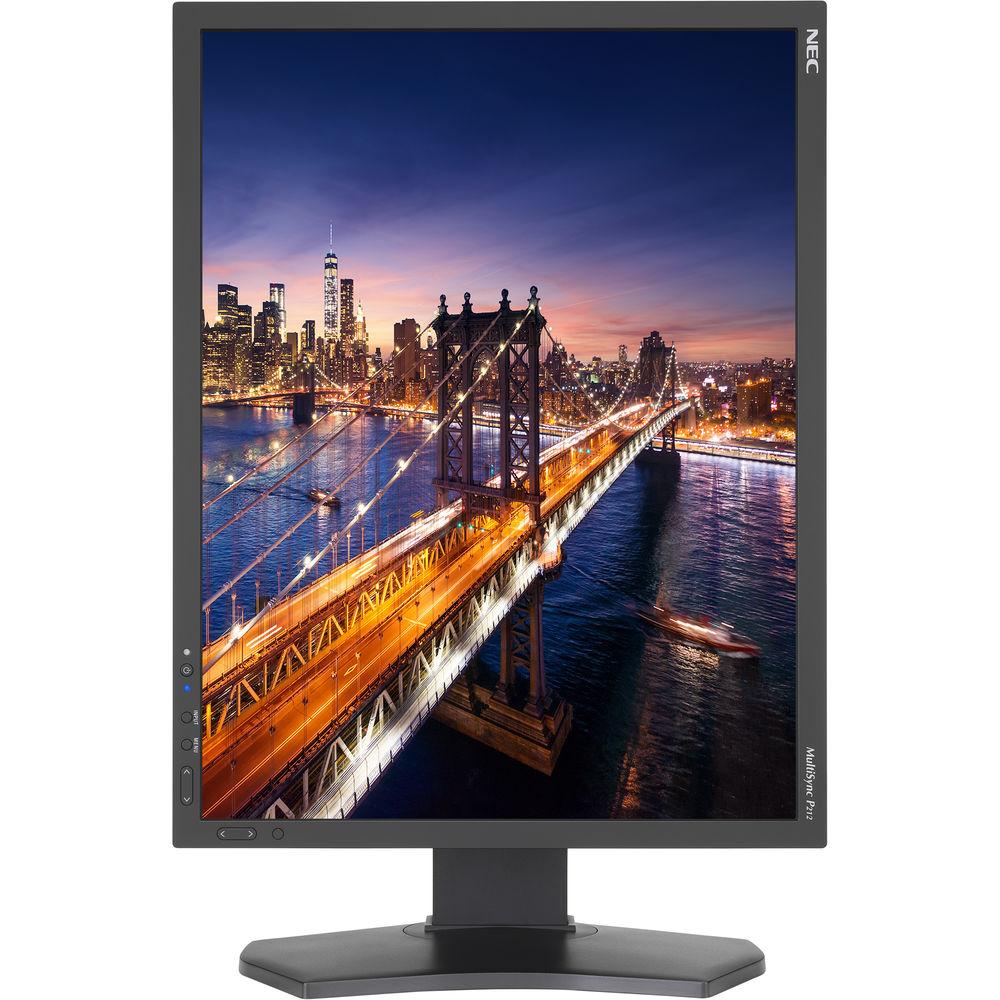

User Manual for NEC P212-BK-SV 21" 4:3 LED Backlit Professional IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC P212-BK-SV 21" 4:3 LED Backlit
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC P212-BK-SV 21" 4:3 LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

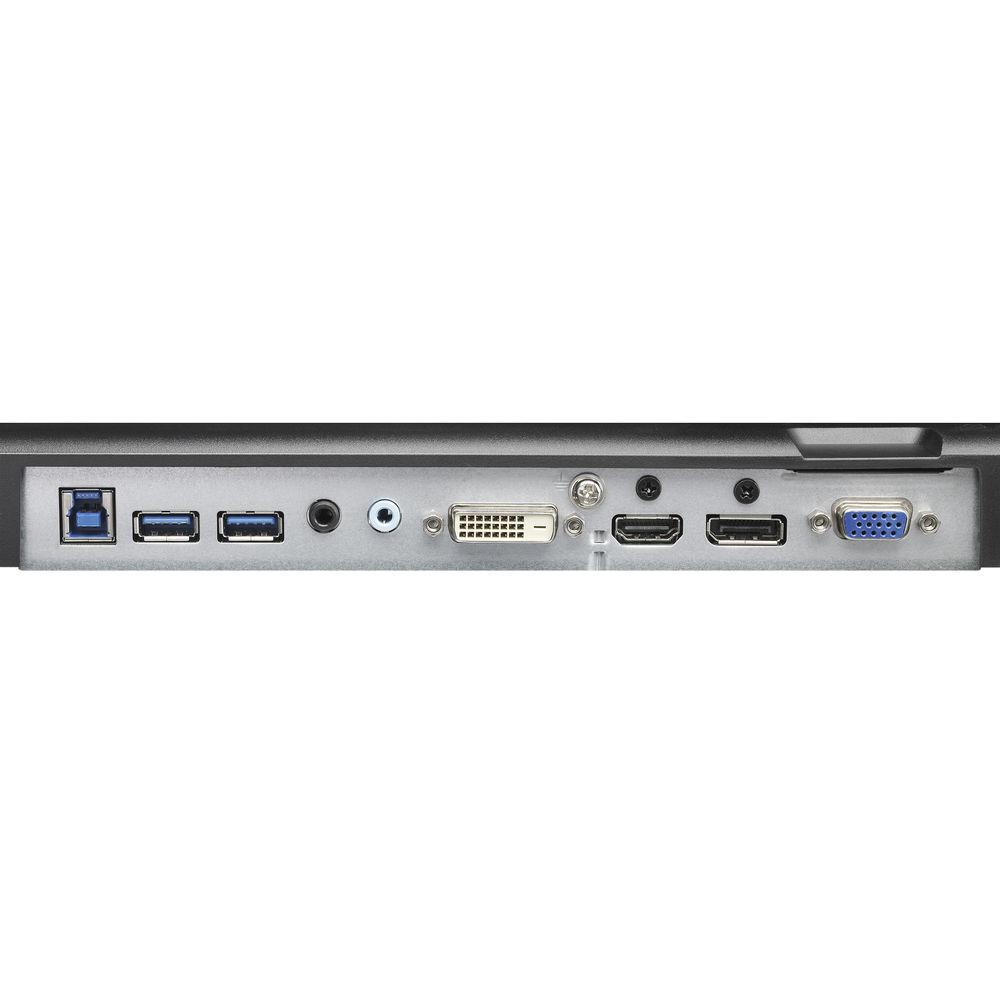

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With 97% coverage of the sRGB color space, this P212-BK-SV 21" 4:3 LED Backlit Professional IPS Monitor from NEC provides enhanced color accuracy, a range of customizable presets, and 14-bit 3D lookup tables for display calibration. Along with enhanced color accuracy, the display of the P212-BK-SV features a 1600 x 1200 resolution, 1500:1 contrast ratio, and an enhanced 440 cd/m² brightness rating. On the back of the monitor you will find DisplayPort, DVI-D, HDMI, and VGA connectors to incorporate it into a variety of computer configurations. Once configured, you can mount this NEC monitor to the wall to take full advantage of the 178° horizontal and vertical viewing angles made available using In-Plane Switching (IPS) display technology.
Included with this NEC monitor is the SpectraViewII Color Calibration Bundle. This color calibration tool is designed to provide enhanced color accuracy, repeatability, and increased device longevity. Technologies - Digital Uniformity Compensation
- Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.
- Ambix4
- Allows up to four inputs (DisplayPort, VGA and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
- XtraView+
- Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left, and right) with less color shift and without any glare, reflection, or distortion.
- Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
- AmbiBright
- Automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also tells the monitor to enter power saving mode whenever the ambient lighting falls below a predetermined value (like when lights are shut off at the end of the day), which can significantly reduce energy consumption.
Features - IPS LCD panel with nearly full coverage of sRGB color space
- Enhanced screen performance (1500:1 contrast ratio, 1600 x 1200 native resolution, 440 cd/m² brightness)
- Includes internal programmable 14-bit 3D lookup tables (LUTs) for calibration
- Includes a 3-port USB 3.0 hub
- Five programmable Picture Mode profiles for quick access to multiple color spaces
- Wide connectivity includes DisplayPort, VGA, HDMI, and DVI-D inputs
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- SpectraViewII Color Calibration Solution, which includes software and colorimeter, helps the display achieve accurate, consistent, and repeatable color performance

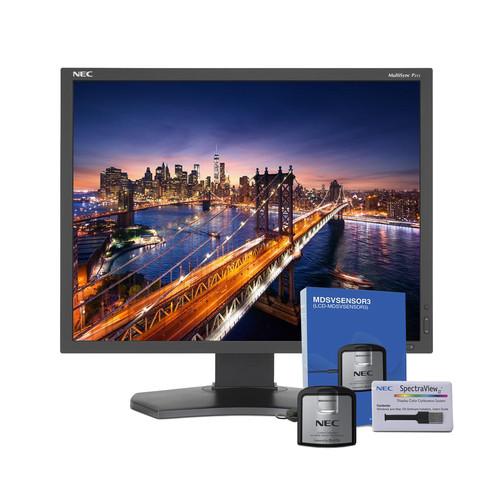

UPC: 805736059410 In the Box NEC P212-BK-SV 21" 4:3 LED Backlit Professional IPS Monitor (Black) Power Cord DVI-D Cable USB 3.0 Cable DisplayPort Cable Mounting Screws SpectraViewII Software MDSVSENSOR3 Color Sensor Limited 4-Year Warranty User Manual PDF 4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC P212-BK-SV 21" 4:3 LED Backlit Professional IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC P212 Specs | | | Size | 21.3" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1600 x 1200 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 440 cd/m2 | | Contrast Ratio | 1500:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 99.5 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | Color Gamut | 77% Adobe RGB
74.4% NTSC
97.9% sRGB | | Response Time | 8 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | | | Power Consumption | 0.5 W (Standby)

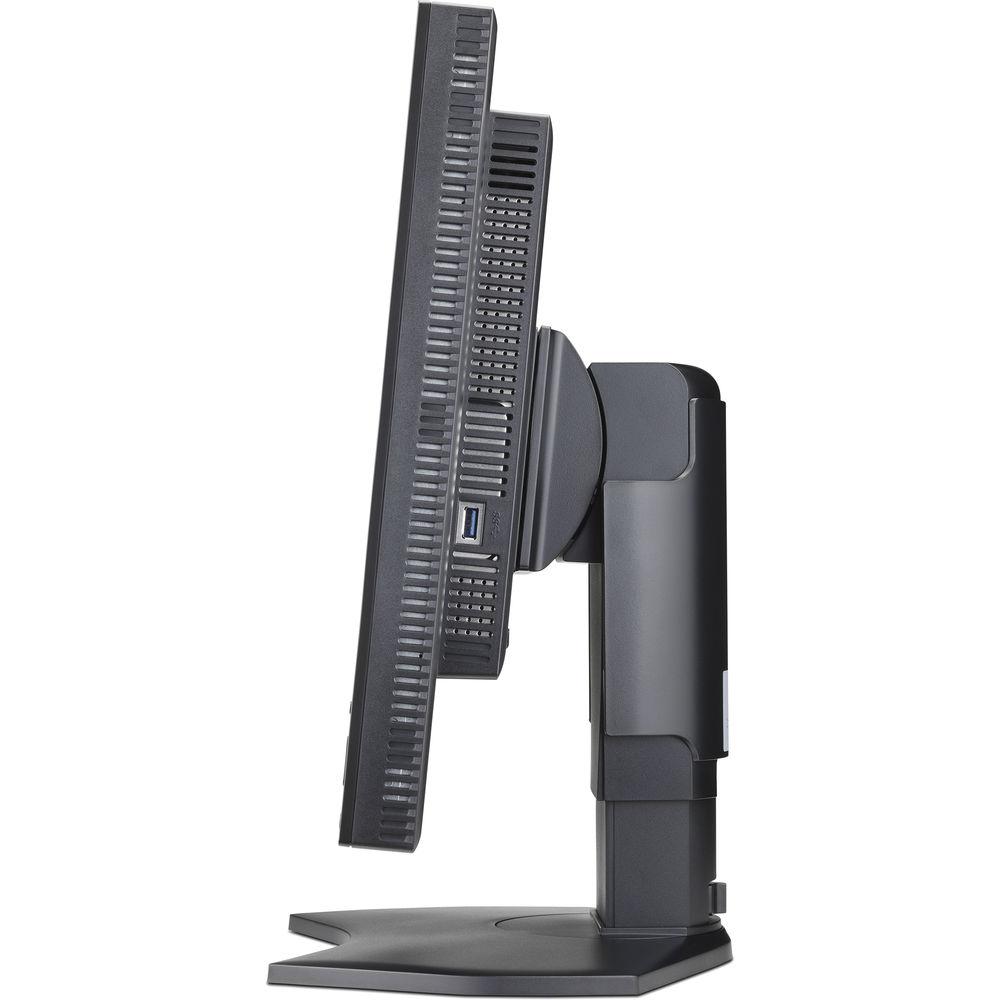

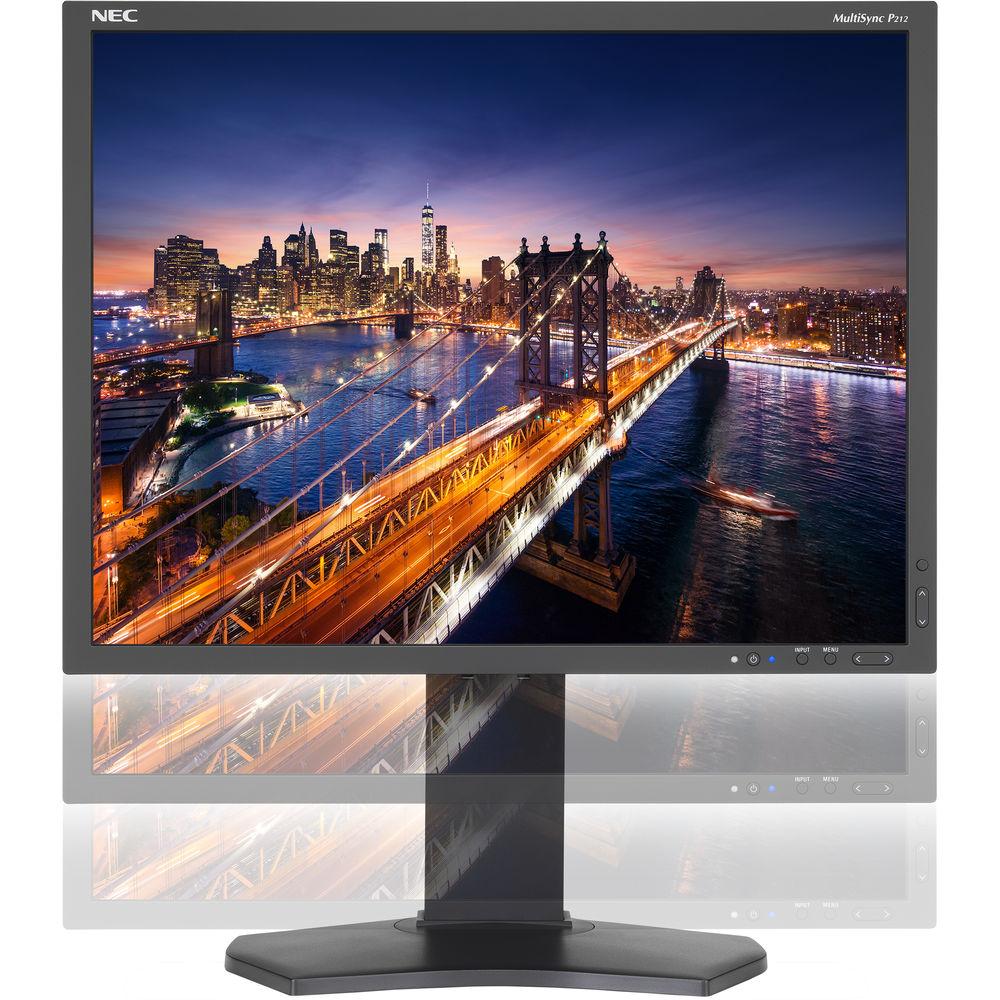

57 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 6" / 15.2 cm | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 18.4 x 14.7 x 9.0" / 46.6 x 37.5 x 22.8 mm (With Stand)
18.4 x 14.1 x 2.5" / 46.6 x 35.9 x 6.4 mm (Without Stand) | | Weight | 10.6 lb / 4.8 kg (Without Stand)
17.6 lb / 8 kg (With Stand) | | | | Package Weight | 25.6 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 12.0" |
