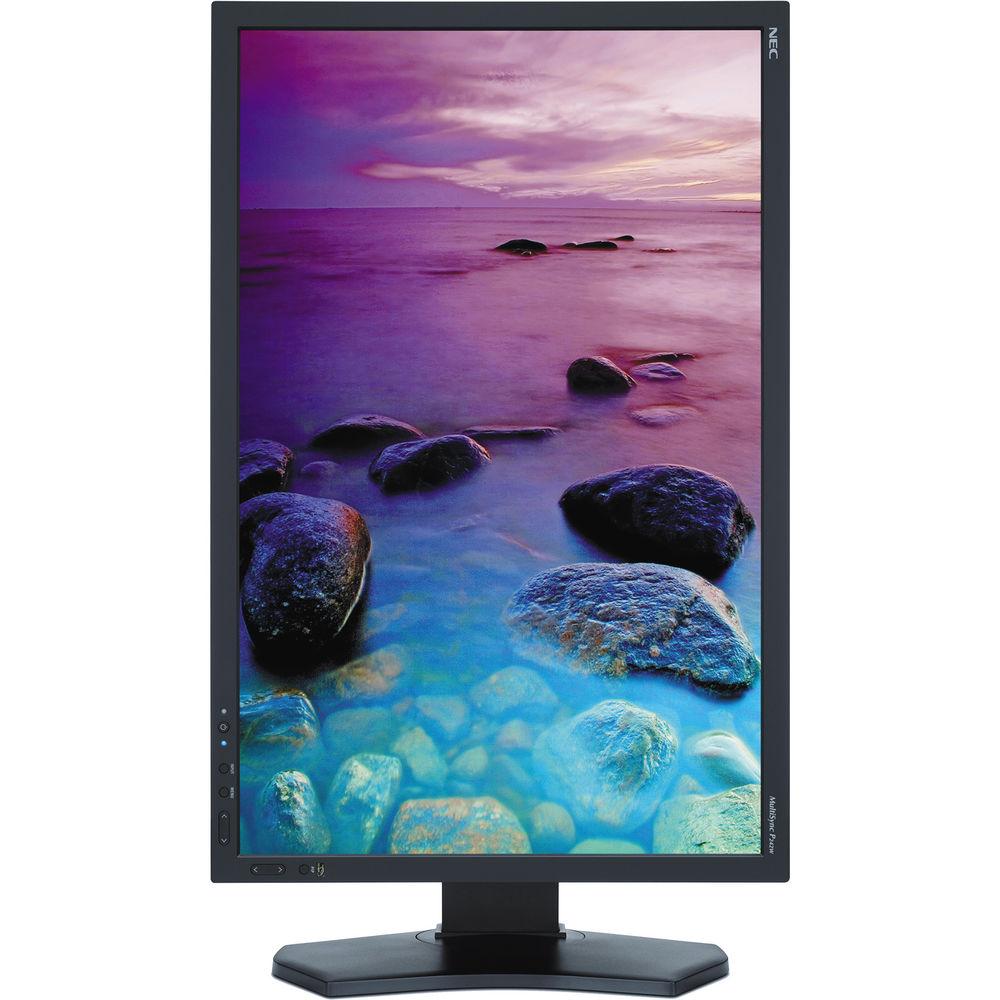

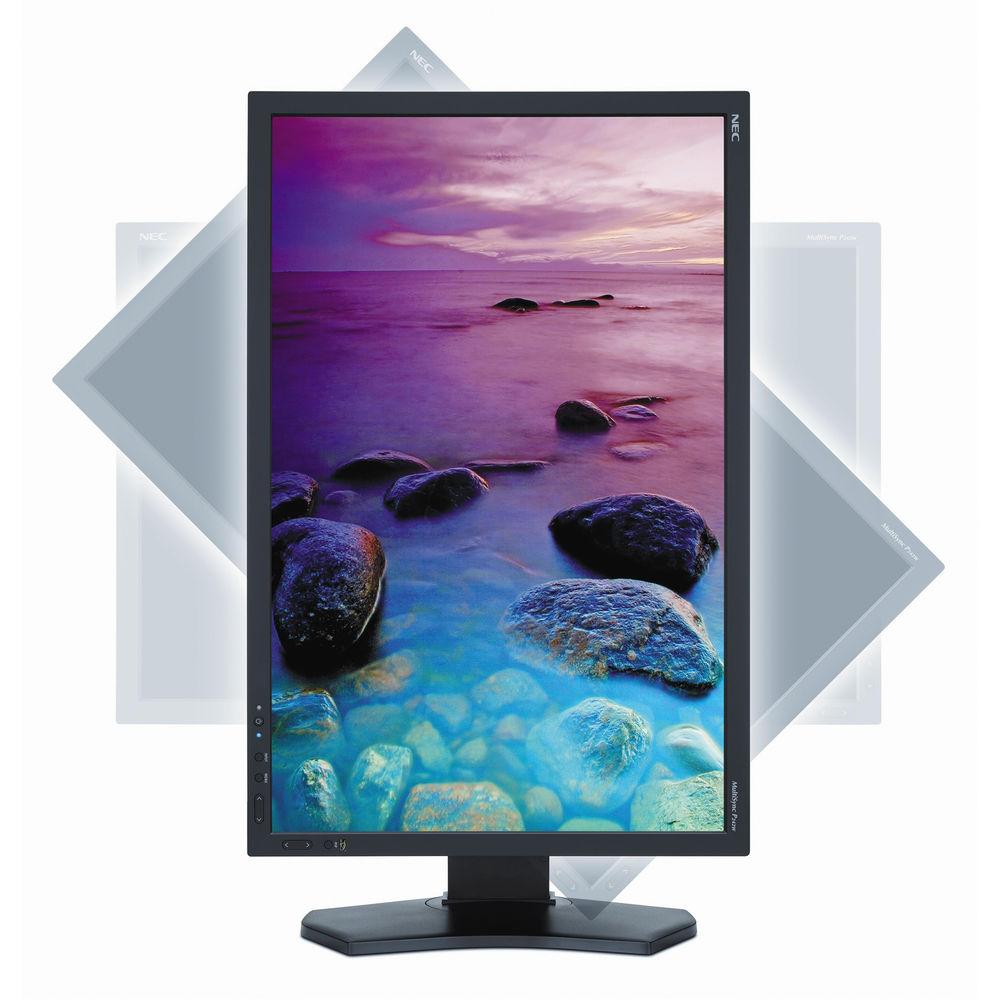

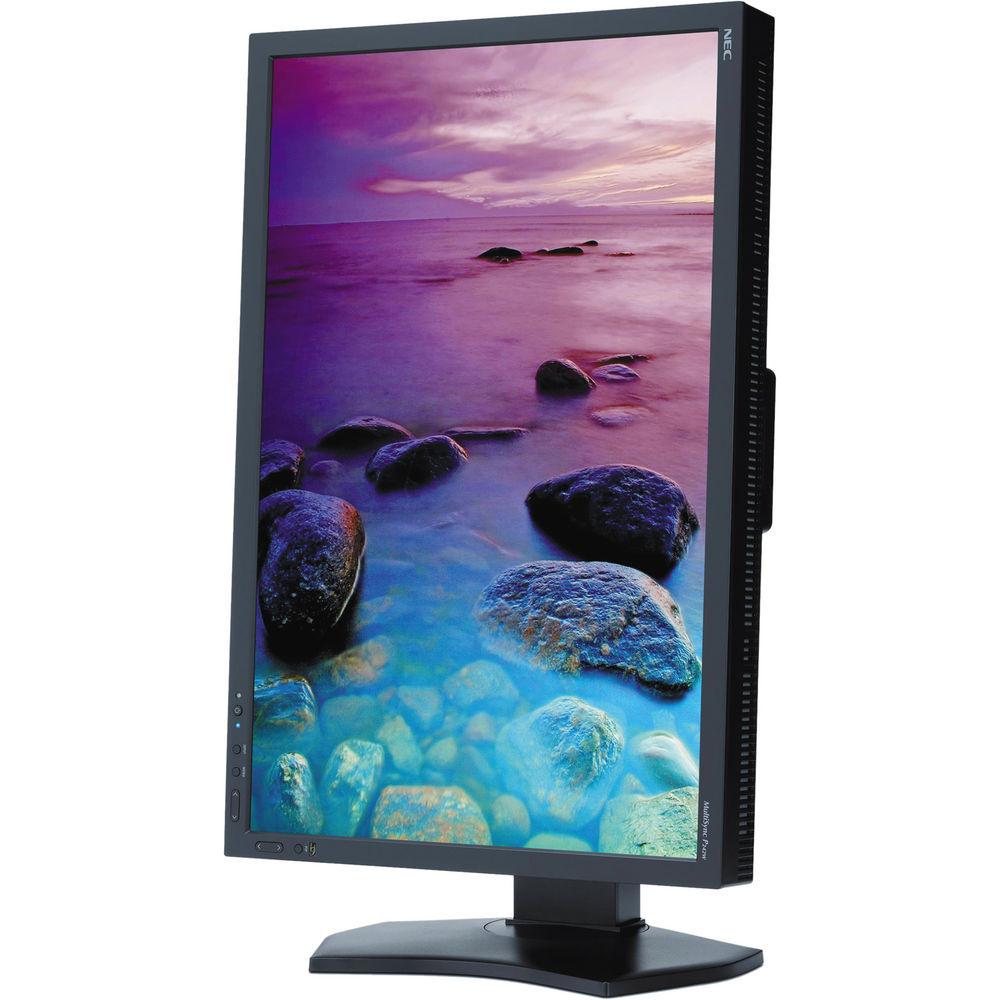

Auto Image Rotation

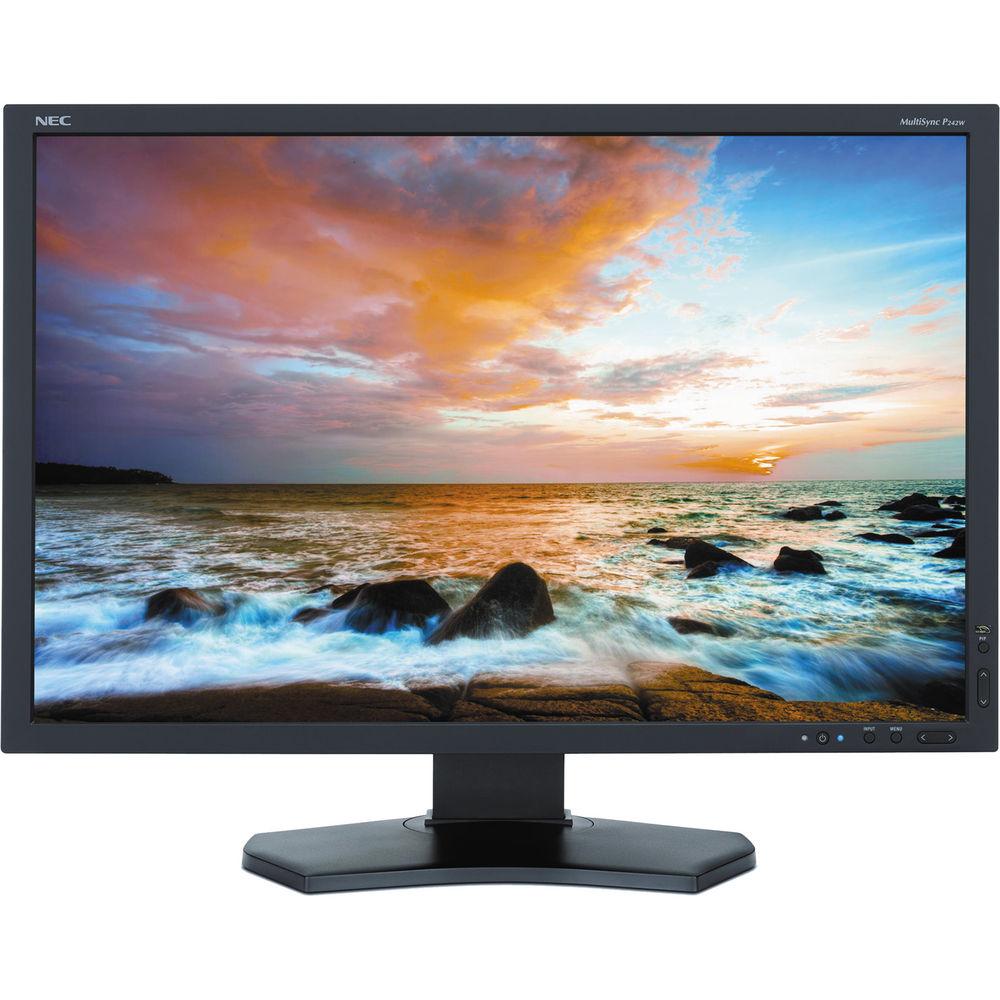

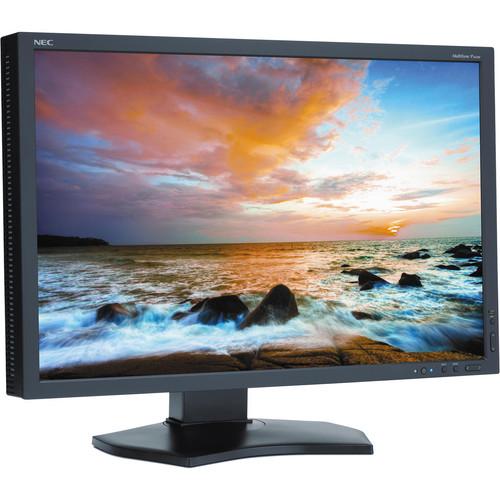

The P242W-BK 24" LED Backlit Wide Gamut IPS Monitor from NEC is an LED backlit IPS (in-plane switching) LCD monitor featuring a high definition resolution of 1920 x 1200 for enhanced picture quality along with an 8 ms response time to help ensure reduced lag and blur when viewing movies and videos. To further enhance picture quality, you benefit from a 1,000:1 contrast ratio and up to 16.7 million displayable colors.
This VESA-compatible monitor can easily be mounted to a wall allowing you to take full advantage of the 178° horizontal and vertical viewing angles. Once mounted, you can easily plug this monitor into a variety of devices with a variety of inputs including DisplayPort, DVI-D, HDMI, and VGA ports.
3D LUT
Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 16.7 million colors out of a palette of 1.05 billion to provide accurate color, smooth images and enhanced hardware calibration.
XtraView
Delivers wide viewing angles of up to 178° horizontally and vertically (up to 88° up, down, left and right) without any glare, reflection, or distortion.
Ambix4
Allows up to four inputs (DisplayPort, VGA and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
Digital Uniformity Compensation
Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using enhanced signal processing circuitry.
Rapid Response
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
6-Axis Color Control
Allows for precise and simplified color, color temperature, and saturation adjustment.
CableComp
Equalizes the video signal to eliminate color halos on long cable runs.
MultiProfiler
This software provides an intuitive interface to control the display's technologies, such as loading any ICC profile directly into the display for optimal color space matching.
Picture-In-Picture
Allows two sources to be displayed on the screen at one time in either a picture-in-picture or side-by-side configuration.
NaViSet Software
Free software solution that greatly eases administration and management of larger display device installations.
Additional Features

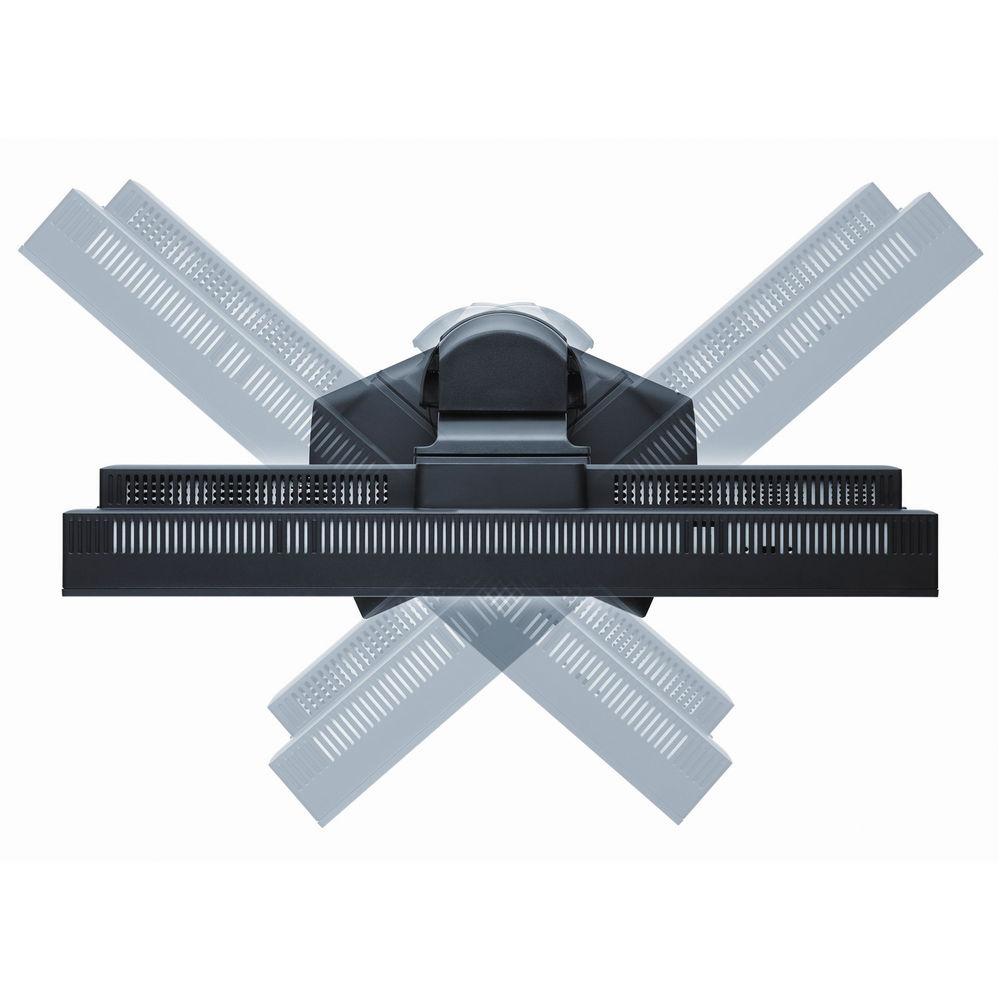

ECO Mode, Carbon footprint meter, Tilt, Swivel, Pivot, Height-adjustable stand, Quick-release stand, Carrying handle, Rapid Response, XtraView+, OSD user controls, Cable management, Touch-integratable, VESA mount, HDCP, DDC/CI, No Touch Auto Adjust, Black Level adjustment, AmbiBright, CableComp, GammaComp MD QA software, SpectraView software-ready
In the Box NEC P242W-BK 24" LED Backlit IPS LCD Monitor
Power Cord
DisplayPort Cable
DVI-D Cable
VGA Cable
USB A to B Cable
CD (Manual, MultiProfiler, Monitor Driver)
Limited 4-Year Warranty
Guides & Manuals Table of Contents
Upload User Manual
Have you got an user manual for the NEC P242W-BK 24" LED Backlit IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User Manual
The user manual for the NEC P242W-BK 24" LED Backlit IPS LCD Monitor can be downloaded in PDF format at the link stated below.
2 x USB Input 3 x USB Type-A Output 1 x DVI-D 1 x DisplayPort Input 1 x HDMI 1 x VGA
Power Consumption
0.2 W (Standby) 29.5 W (Typical)
Operating Temperature
41 to 95°F / 5 to 35°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
10 to 85%
Operating Altitude
0 to 16,404' / 0 to 5000 m
Storage Altitude
0 to 40,000' / 0 to 12,192 m
Certifications
ENERGY STAR, RoHS, as per Manufacturer
Height Adjustment
5.9" / 15 cm
Mounting-Hole Pattern
100 x 100 mm
Dimensions (W x H x D)
21.9 x 14.3 x 3.3" / 55.6 x 36.3 x 8.4 mm (Without Stand) 21.9 x 14.9 x 9.0" / 55.6 x 38.0 x 22.9 mm (With Stand)
Weight
15 lb / 6.8 kg (Without Stand) 22.5 lb / 10.2 kg
Package Weight
31.5 lb
Box Dimensions (LxWxH)
25.6 x 20.0 x 12.5"
