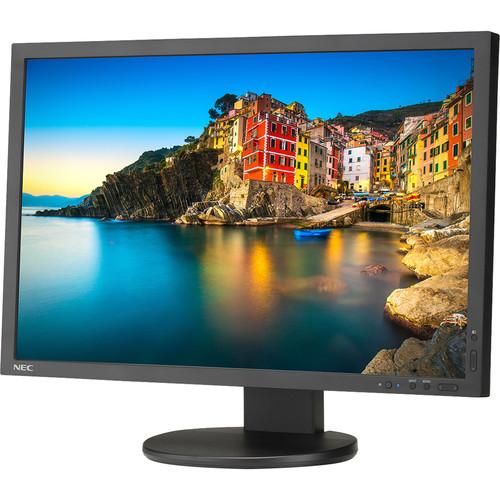

User Manual for NEC P243W-BK Professional sRGB Gamut 24" 16:10 IPS Monitor with SpectraView II Color Calibration Solution Click to enlarge the picture
Contents of the user manual for the NEC P243W-BK Professional sRGB Gamut 24"
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC P243W-BK Professional sRGB Gamut 24" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed to handle sRGB graphics projects with confidence, the LED-backlit P243W-BK Professional sRGB Gamut 24" 16:10 IPS Monitor from NEC ships with their SpectraView II Color Calibration Kit, a color calibration sensor, and SpectraView software, all of which help the display achieve accurate, consistent, and repeatable color performance.
This monitor is made for web, high-end desktop, and photograph applications. It features a native resolution of 1920 x 1200 @ 60 Hz, In-Plane Switching (IPS) and Thin Film Transistor (TFT) technology, support for 1.07 billion colors, a widescreen 16:10 aspect ratio, a static contrast ratio of 1000:1, 350 cd/m2 brightness, 93 pixels per inch, and an 8 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one DisplayPort 1.1a input, one 24-pin DVI-D input, one 15-pin mini D-Sub VGA input, and one HDMI input. There are also two upstream USB 3.0 Type-B ports and two downstream USB 3.0 Type-A ports, each of which supports a maximum load of 0.9A. The DisplayPort and HDMI inputs both support 10-bit color and 1.07 billion colors, while the DVI-D port supports 16.7 million colors. The DisplayPort and HDMI port support digital audio (2-channel PCM / 32, 44.1, and 48 kHz / 16-, 20-, and 24-bit), and analog audio is supported with one 3.5mm input and one 3.5mm output.

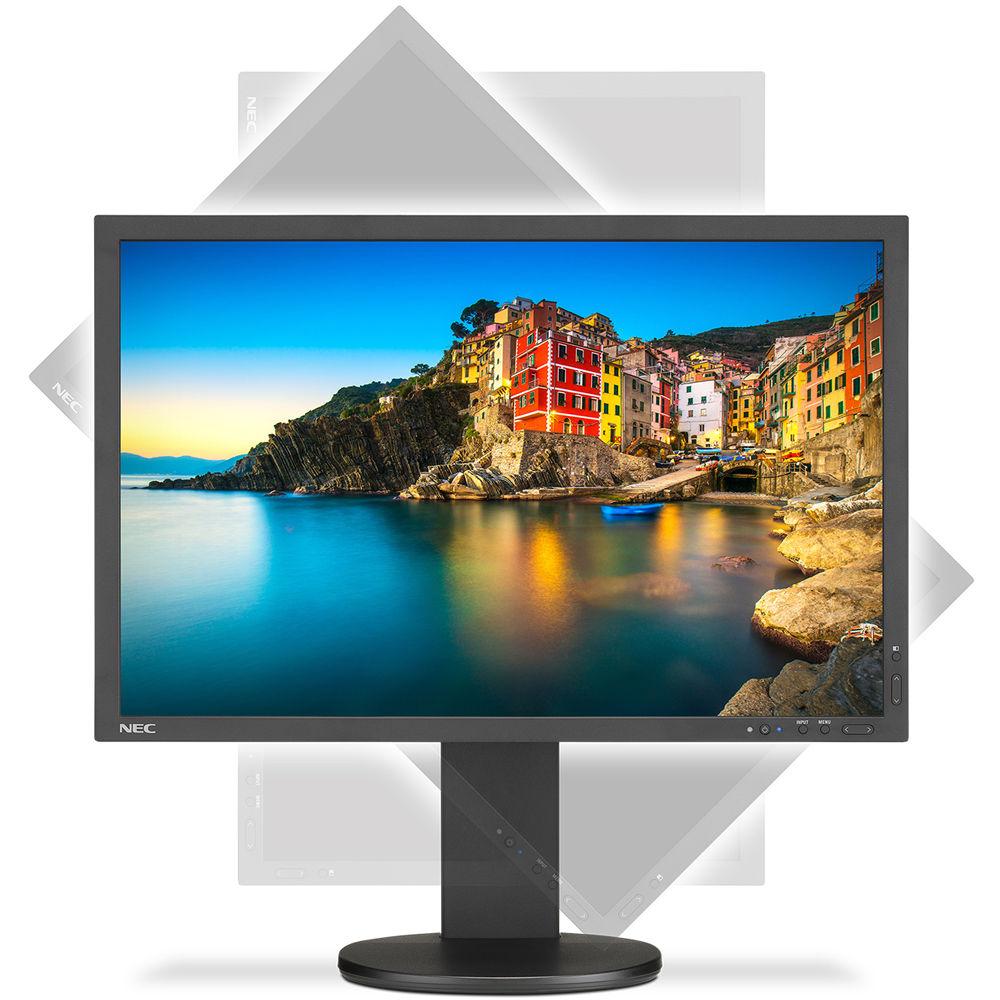

NEC has engineered the P243W-BK with support for 99.8% of the sRGB gamut, 77% of the Adobe RGB gamut, and 73.1% of the NTSC gamut. The PA32UC supports HDCP 1.3 for DisplayPort and HDCP 1.4 for DVI-D and HDMI, a 14-bit internal 3D lookup table, Picture-in-Picture, Picture-by-Picture, and more. To further help improve viewing and accessibility, the P243W-BK features a tilt of -5 to 30°, a swivel of 340°, a rotation of 90°, and a height adjustment of 5.9". General Features - AH-IPS LCD panel with 99.8% coverage of sRGB color space
- 1000:1 contrast ratio, 1920 x 1200 native resolution, and 350 cd/m2 brightness
- Supports internal programmable 14-bit 3D lookup tables (LUTs) for calibration
- Two-port USB hub with DisplaySync Pro controls two computers with only one keyboard and mouse
- Five programmable Picture Mode profiles for quick access to multiple color spaces
- Picture-in-Picture and Picture-by-Picture modes help increase productivity by displaying two sources simultaneously
- Wide connectivity options include DisplayPort, VGA, HDMI, and DVI-D inputs
- SpectraViewII Color Calibration Solution, which includes software and colorimeter, helps the display achieve accurate, consistent, and repeatable color performance
- Includes NaViSet Administrator 2, a free software solution that eases administration and management of larger display device installations
Technologies - Rapid Response
- Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
- 3D LUT
- Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images, and hardware calibration.
- AmbiBright
- Automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also tells the monitor to enter power saving mode whenever the ambient lighting falls below a predetermined value, like when lights are shut off at the end of the day, which can reduce energy consumption.

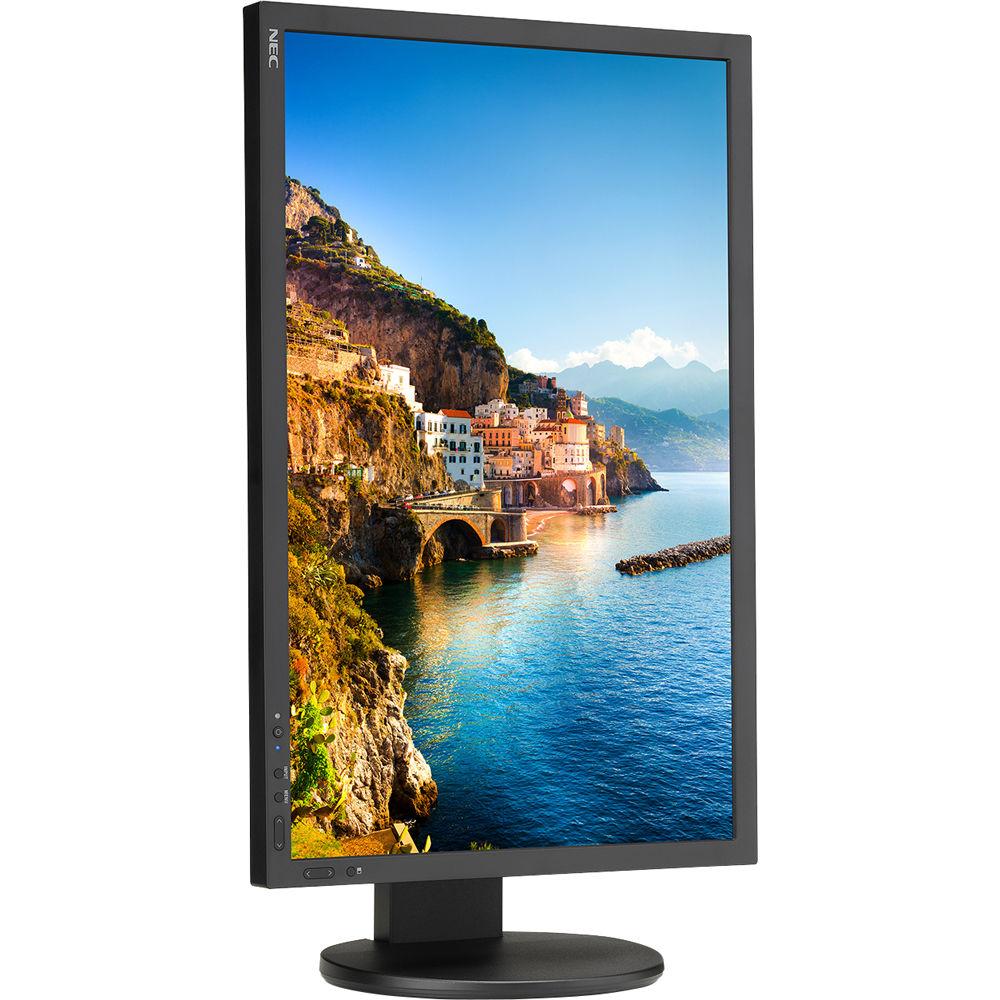

- Auto Image Rotation
- Automatic rotation of the displayed image based on the orientation of the monitor head.
- Digital Uniformity Compensation
- Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.
- Kensington Lock
- Enables a security cable to be attached to the projector.
- MultiSync P/PA Series Picture-by-Picture
- Displays either second video source or the same video source in a window beside the main video source. The Picture-by-Picture window can display the video source in the same or an alternate color space.
- MultiSync P/PA Series Picture-in-Picture
- Displays either second video source or the same video source in an adjustable sub-window over the main video source. The Picture-in-Picture window can display the video source in the same or an alternate color space.
- Picture-in-Picture
- Allows two sources to be displayed on the screen at one time in either a picture-in-picture or side-by-side configuration.
- XtraView
- Delivers wide viewing angles of up to 176° horizontally and vertically (up to 88° up, down, left, and right), while helping to reduce glare, reflection, and distortion.
- 6-Axis Color Control
- Allows for precise and simplified color, color temperature, and saturation adjustment.
- Ambix4
- Allows up to four inputs (DisplayPort, VGA, and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
- CableComp
- Equalizes the video signal to help eliminate color halos on long cable runs.
- DisplaySync Pro
- DisplaySync Pro is a type of KVM (keyboard, video, mouse) switch. It allows multiple computers to be connected to the monitor through USB and share the attached USB devices, such as a keyboard and mouse, saving desktop space and helping to increase productivity.
- MultiProfiler
- This software provides an intuitive interface to control the display's sophisticated technologies, such as loading any ICC profile directly into the display for improved color space matching.
Supported Resolutions - 1024 x 768 at 60 to 75 Hz
- 1600 x 1200 at 65 to 75 Hz (analog)
- 480p (720 x 480 at 60 Hz)
- 576p (720 x 576 at 60 Hz)
- 720p (1280 x 720 at 50 to 60 Hz)
- 1080p (1920 x 1080 at 50 to 60 Hz)
UPC: 805736069297 In the Box NEC P243W-BK Professional sRGB Gamut 24" 16:10 IPS Monitor with SpectraView II Color Calibration Solution Color Sensor and SpectraView II Software Kit SpectraSensor Pro Color Calibration Sensor SpectraView II Display Calibration Software DisplayPort Cable Mini DisplayPort to DisplayPort cable USB Type-A to USB Type-B Cable Power Cord 4 x VESA Mounting Screws Factory Calibration Report 48-Hour Advanced Exchange Limited 4-Year Parts & Labor Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC P243W-BK Professional sRGB Gamut 24" 16:10 IPS Monitor with SpectraView II Color Calibration Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC P243W-BK-SV Specs | | | Size | 24.1" | | Screen Area | 20.41 x 12.76" / 518.4 x 324.0 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 93.8 kHz
31.5 to 91.1 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | None | | Color Gamut | 99.8% sRGB
77% Adobe RGB
73.1% NTSC | | Response Time | 8 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DisplayPort 1.1a Input
1 x HDMI Input
1 x DVI-D Input
1 x Mini-VGA Input
2 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | | | Power Consumption | 25 W (Typical)
0.2 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.55 to 1.05 A | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0.00 to 4999 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 5.9" / 149.86 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 340° | | Tilt Adjustment | -5 to 30° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 21.9 x 20.8 x 9.2" / 556.3 x 528.3 x 233.7 mm (With Stand)
21.9 x 14.2 x 2.3" / 556.3 x 360.7 x 58.4 mm (Without Stand) | | Weight | 18.1 lb / 8.21 kg (With Stand)
11.9 lb / 5.40 kg (Without Stand) | | | | Package Weight | 26.3 lb | | Box Dimensions (LxWxH) | 25.8 x 19.8 x 12.8" |
