User Manual for NEC P703 70" LED Backlit Professional-Grade Display Click to enlarge the picture
Contents of the user manual for the NEC P703 70" LED Backlit Professional-Grade
- Product category: Commercial Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Commercial Monitors
 |
User manual for the NEC P703 70" LED Backlit Professional-Grade contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

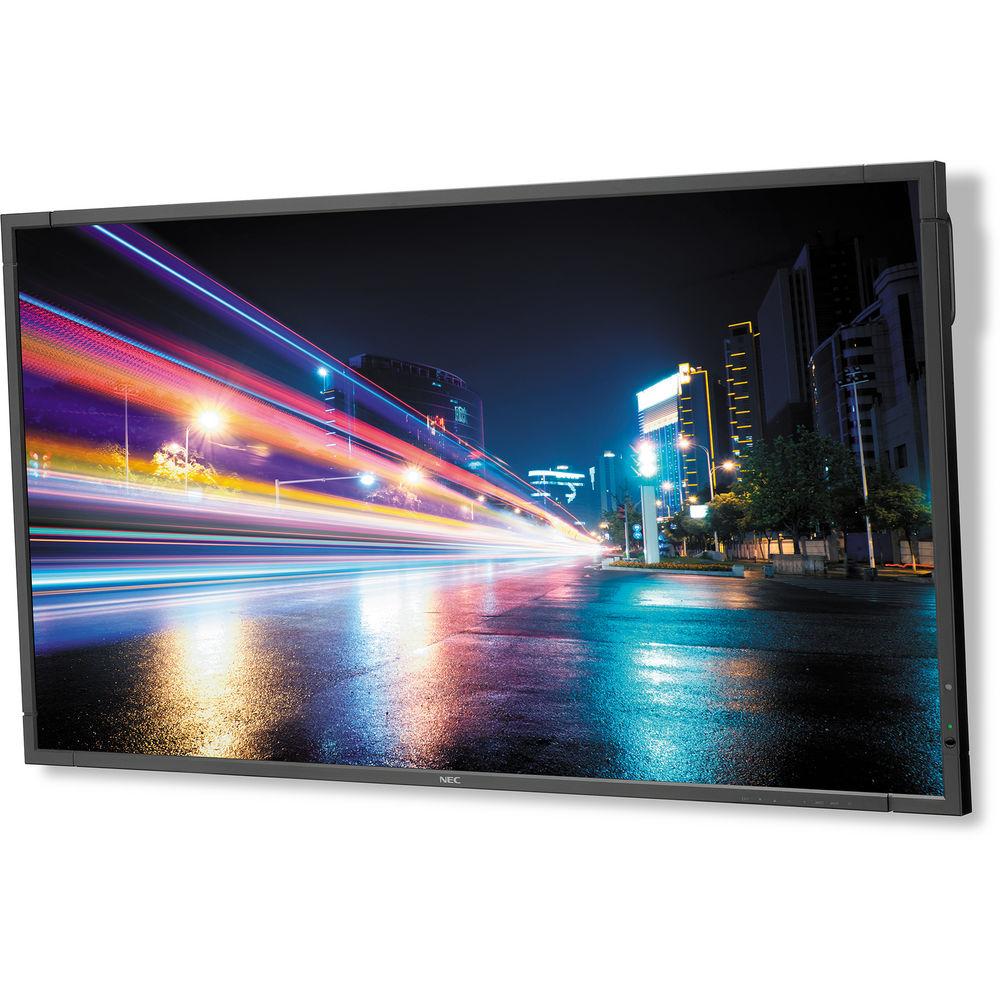

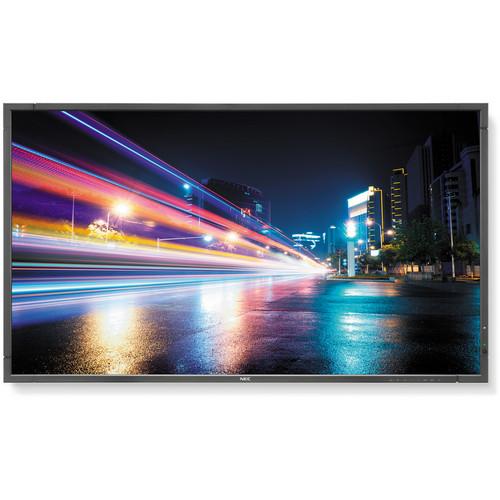

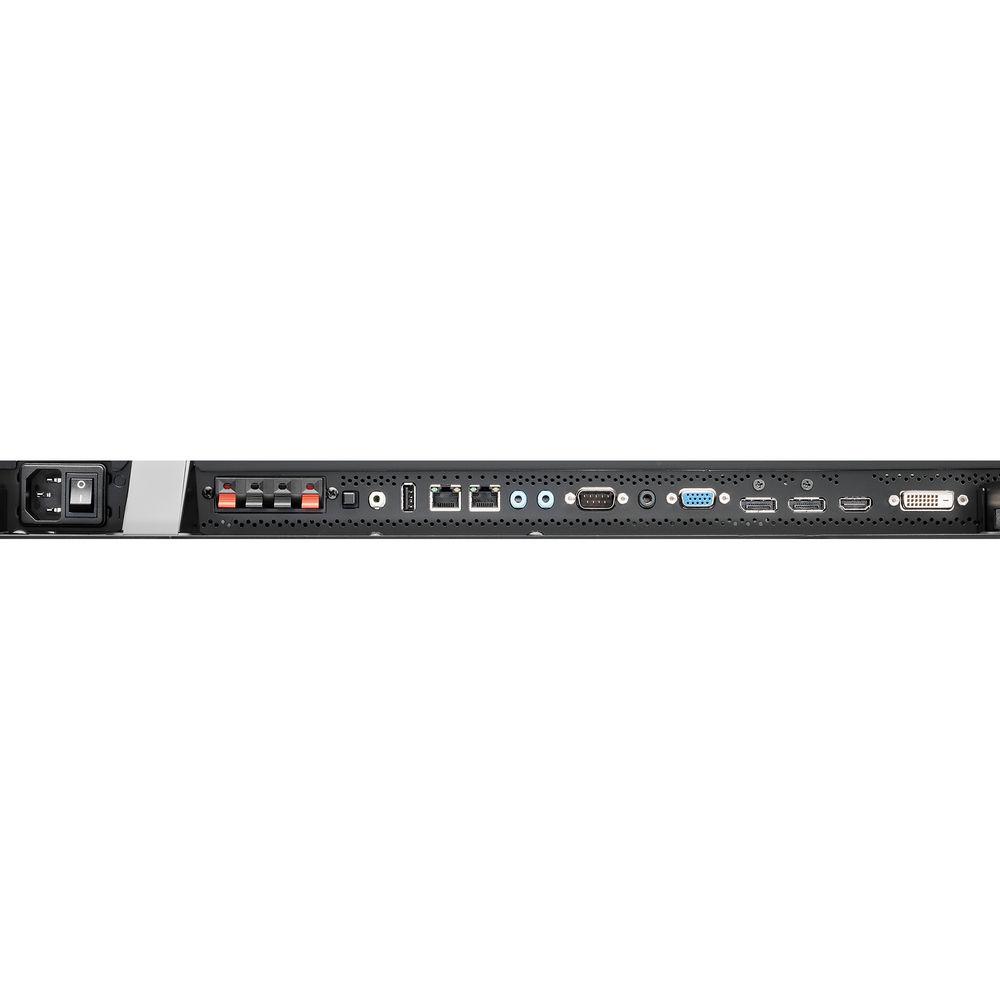

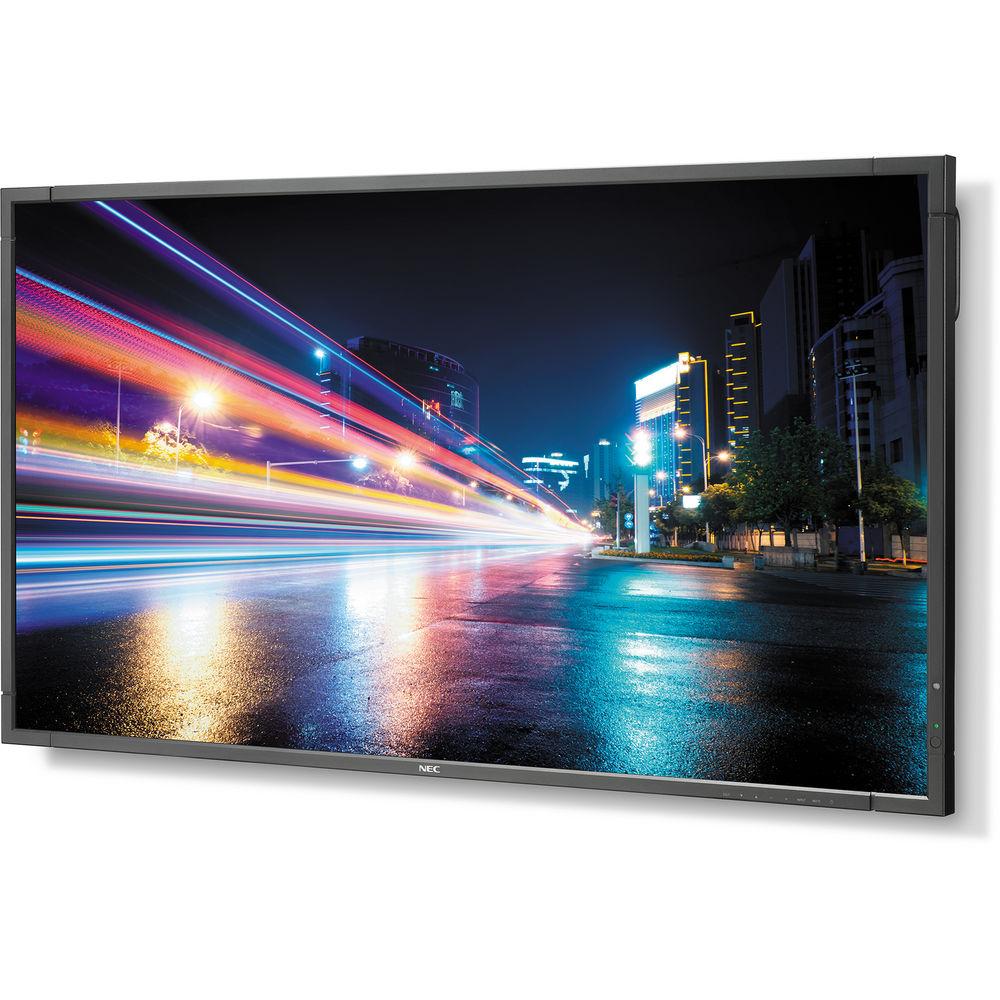

Product description The P703 70" LED Backlit Professional-Grade Display from NEC is an LED backlit monitor with 1920 x 1080 HD resolution along with 700 cd/m2 maximum brightness. The thin lightweight cabinet with its LED edge lighting and customizable connectivity options delivers an environmental, economic, and aesthetic impact. It features a 4000:1 typical contrast ratio and an aspect ratio of 16:9. It has multiple input ports including a DisplayPort, an HDMI, a DVI-D, and a VGA port. This display has received a full chassis upgrade with the addition of a second expansion slot, faster processing times, evolved daisy chain performance, and near field communication capabilities*. It features multiple advanced technologies including programmable gamma, input switching speed, human sensor accessory, near field communications, auto tile matrix, and more. Its second expansion slot is designed to add and customize analog and digital connectivity. Note: *For setup and servicing only - LED Backlighting Technology
- LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
- Brightness
- Maximum 700 cd/m2 brightness combined with full HD resolution captures the attention of the audience
- Industrial-Strength, Premium-Grade Panel
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
- Input Switching Speed
- Input switching speed minimizes downtime between source transitions
- Daisy Chain Options
- Expanded daisy chain options with DisplayPort 1.2
- Open Pluggable Specification
- The industry-wide standardization in optional slots allows easy installation, use, and maintenance of digital signage.
- Advanced Cooling System
- Prevents the likeliness of image retention and improves color uniformity.

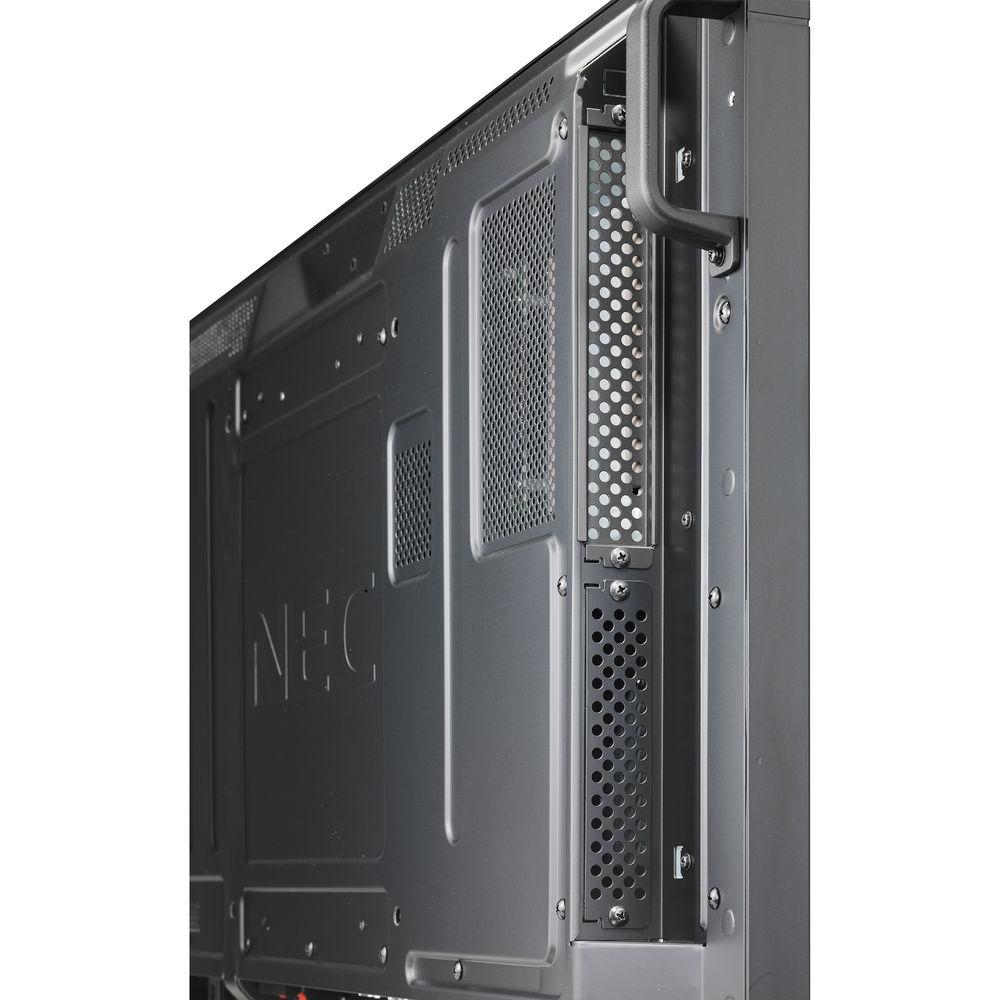

- Interface Extension Slot
- It is a second expansion slot designed to add and customize analog and digital connectivity. This second slot in combination with the OPS expansion slot, offers multiple connectivity and player combinations.
- Improved Daisy Chain
- The P series supports video daisy chaining up to 100 pieces via DisplayPort loop-through capabilities. LAN, IR, and RS232 can be looped simultaneously via LAN.
- Programmable Gamma
- Three Look-Up-Table (LUT) banks allow the P series to save multiple calibration settings. This improves display flexibility as displays do not have to be recalibrated each time requirements change. It is also useful for rental and staging.
- Input Switching Speed
- It features multiple settings for input switching speed. Select among "normal, quick or super" settings. If multiple sources are used and visible waiting times with black screens impact viewing, the fast input switching can be convenient and can avoid distraction.
- Human Sensor Accessory
- The human sensor accessory helps to deliver creative digital signage to end users, by allowing for dynamic control of brightness, audio, and source inputs while saving operating costs. It also ensures that the digital signage is on and directed at a target audience.
- Near Field Communications
- Reduce installation and servicing costs with the on-board Near Field Communication (NFC) sensor. Use a smartphone with NFC capabilities to pre-configure the display. Configure displays once in the app and then just copy the settings to all displays in the installation before they go up. For service, this app can be used to read relevant information such as serial numbers and log files which can be emailed and analyzed. This makes failure reporting more convenient and less expensive.
- Proof of Play
- The display monitors multiple parameters once a command to start proof of play has been issued. Twenty four hours of monitor data can be recorded to prove that the content paid for was shown.
- Auto Tile Matrix
- A feature that saves time and cost at set up. the Auto tile matrix does an auto setup of the video wall via DP and LAN daisy chain. Just run auto ID on the first display, choose the number of horizontal and vertical displays, and press "SET".
UPC: 805736046670 In the Box NEC P703 70" LED Backlit Professional-Grade Display Power Cord 6' DVI-D Cable Wireless Remote Control Batteries Screws CD-ROM (User Manual) Thumbscrews Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC P703 70" LED Backlit Professional-Grade Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC P703 Specs | | | Screen Size (Diagonal) | 70" | | Native Resolution | 1920 x 1080 | | Panel Type | VA LCD | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Brightness | 700 cd/m
