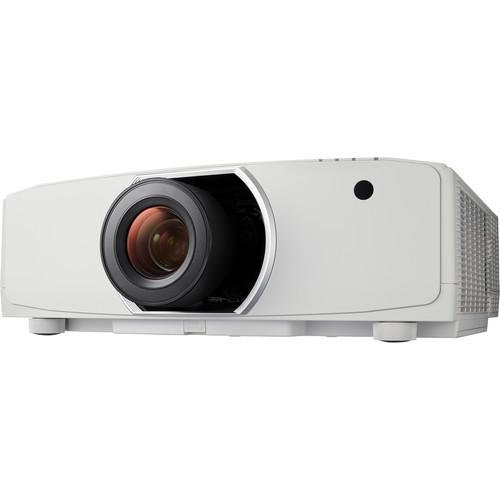

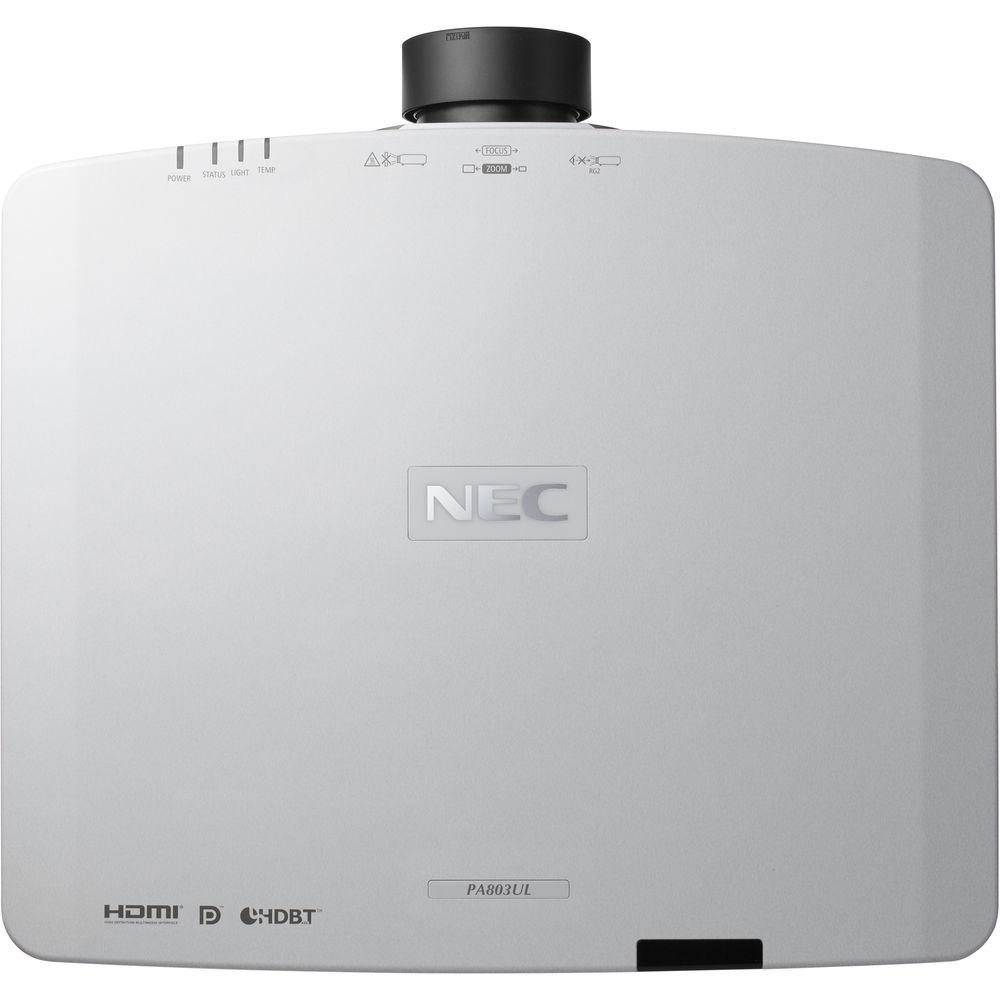

User Manual for NEC PA Series NP-PA803UL 8000-Lumen WUXGA LCD Professional Installation Laser Projector Click to enlarge the picture
Contents of the user manual for the NEC PA Series NP-PA803UL 8000-Lumen WUXGA
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC PA Series NP-PA803UL 8000-Lumen WUXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description The PA Series NP-PA803UL 8000-Lumen WUXGA LCD Professional Installation Laser Projector from NEC features multi-display capabilities and TileMatrix technology. This processing is all done internally and therefore eliminates the additional hardware typically required to produce a 4K resolution image. Built-in stacking correction capabilities (up to four projectors) allow the projector to boost an image's brightness up to 32,000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector. The projector's laser lamp provides up to 20,000 hours of laser life.The PA Series projectors feature edge blending, which lets the projector seamlessly blend multiple projected images to display a single high-resolution image. The built-in HDBaseT support simplifies your installations. The projector is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 328') to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. - Cornerstone
- Keystone correction allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
- Geometric Correction
- Geometric correction allows the projector to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.
- Tilt-Free
- The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
- Portrait Mode
- The portrait mode allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
- 3D Ready
- When combined with active shutter glasses and 3D emitter, the PA Series Projectors create 3D images from a computer or Blu-ray player. The PA Series utilize the 3D sync line output from the projector to connect to the 3D emitter.
- Remote Control
- Wired and wireless backlit remote allows you to adjust for complete control of the projectors menu structure in a well lit or dark environment. Direct controls such as mode, aspect ratio, volume, and input selection eliminates multiple button pushes.
- Digital Inputs
- Among the PA Series' wide selection of inputs are dual HDMI with HDCP and DisplayPort with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and personal computers.
- Laser Technology
- The projector uses a laser phosphor light source that improves the white balance and enables fast display of images.
- Other Features
-
- Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector
- In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers
- Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
- 64-step image magnification with location control
- Built-in HTTP page for control and monitoring over a LAN network
- Email notification of error messages or lamp end-of-life can be sent to remote locations
- Multi-display support with Picture by Picture/Picture Out Picture
- TileMatrix (internal multi-screen splitter) enables 4Kx2K resolution utilizing four projectors without the need for external hardware
- Built-in daisy chain capabilities support multi-display applications
- Seamlessly blend multiple images with integrated edge blending capabilities
- HDR10, BT.2020 signal format applicable for use with the Ultra HD Blu-ray and 4K TV broadcasting Project uncompressed FHD video with integrated HDBaseT
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control
- Up to 60% vertical lens shift and ±30% horizontal lens shift capabilities make alignment easy
- Multiple Digital computer inputs ensure quick switching between presentations
- Five audio inputs make it easy to add sound to enhance your presentation
UPC: 805736066111 In the Box NEC PA Series NP-PA803UL 8000-Lumen WUXGA LCD Professional Installation Laser Projector (No Lens) Remote Control with Battery Power Cord Cable Cover Limited 5-Year Warranty on Projector or 20,000 Hours Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PA Series NP-PA803UL 8000-Lumen WUXGA LCD Professional Installation Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-PA803UL Specs | | | Display System | 1-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: DCI 4K - 4096 x 2160
VGA
SVGA
XGA
SXGA
SXGA+
UXGA | | Max Brightness | 8000 Lumens | | Contrast Ratio | 2500000:1 | | Scan | Horizontal: 15 to 153 kHz
Vertical: 24 to 120 Hz Horizontal Analog: 15 to 100 kHz
Vertical Analog: 48 to 120 Hz | | | | Focus | Manual Powered | | Throw Distance | 2.5 - 68.5' / 0.762 - 20.879 m | | Projection Size | 50 - 500" / 127.00 - 1270.00 cm | | | | Keystone Correction | Vertical: ± 40°

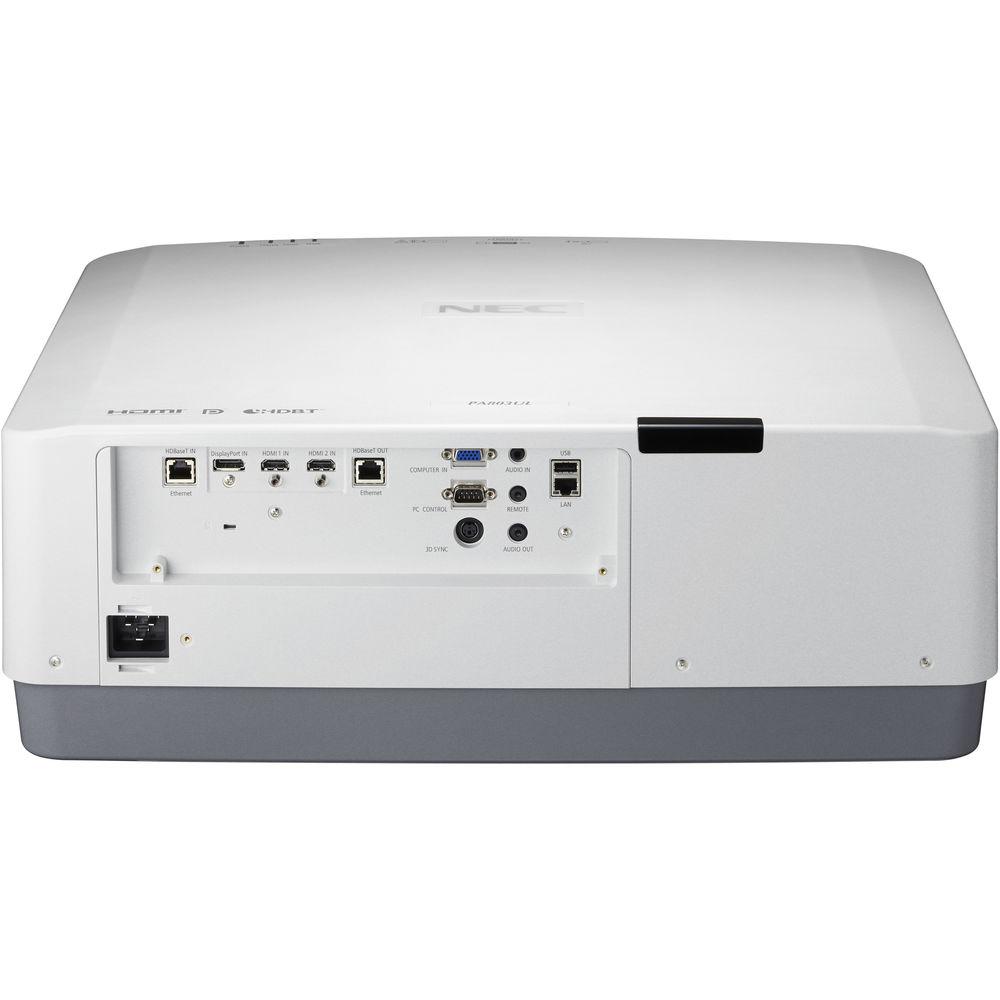

Horizontal: ± 40° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
2 x HDMI Audio/Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x HDBaseT (RJ45) Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x HDBaseT (RJ45) Audio/Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VESA 3D Sync Video (Output)
1 x RS-232C (Unspecified Connector) Control
1 x 1/8" (3.5 mm) Mini Control
1 x DDC/CI Control
1 x Ethernet (RJ45) LAN | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours Laser life. | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 33 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 798 W
Low Brightness: 470 W
Standby Mode (Lamp Off): 0.64 W
Standby Mode (Lamp Off): 0.11 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 22.8 x 8.2 x 19.4" / 57.9 x 20.8 x 49.3 cm | | Weight | 40.1 lb / 18.2 kg | | | | Package Weight | 53.1 lb | | Box Dimensions (LxWxH) | 32.5 x 27.0 x 12.0" |
