User Manual for NEC PA243W 24.1" 16:10 Wide Gamut IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC PA243W 24.1" 16:10 Wide Gamut
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC PA243W 24.1" 16:10 Wide Gamut contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - | NEC Display Solutions|MultiSync PA Series Desktop_Accurate Color on Location
- NEC Display Solutions|Auto Rotate MultiSync PA Series_40 Second Product Feature

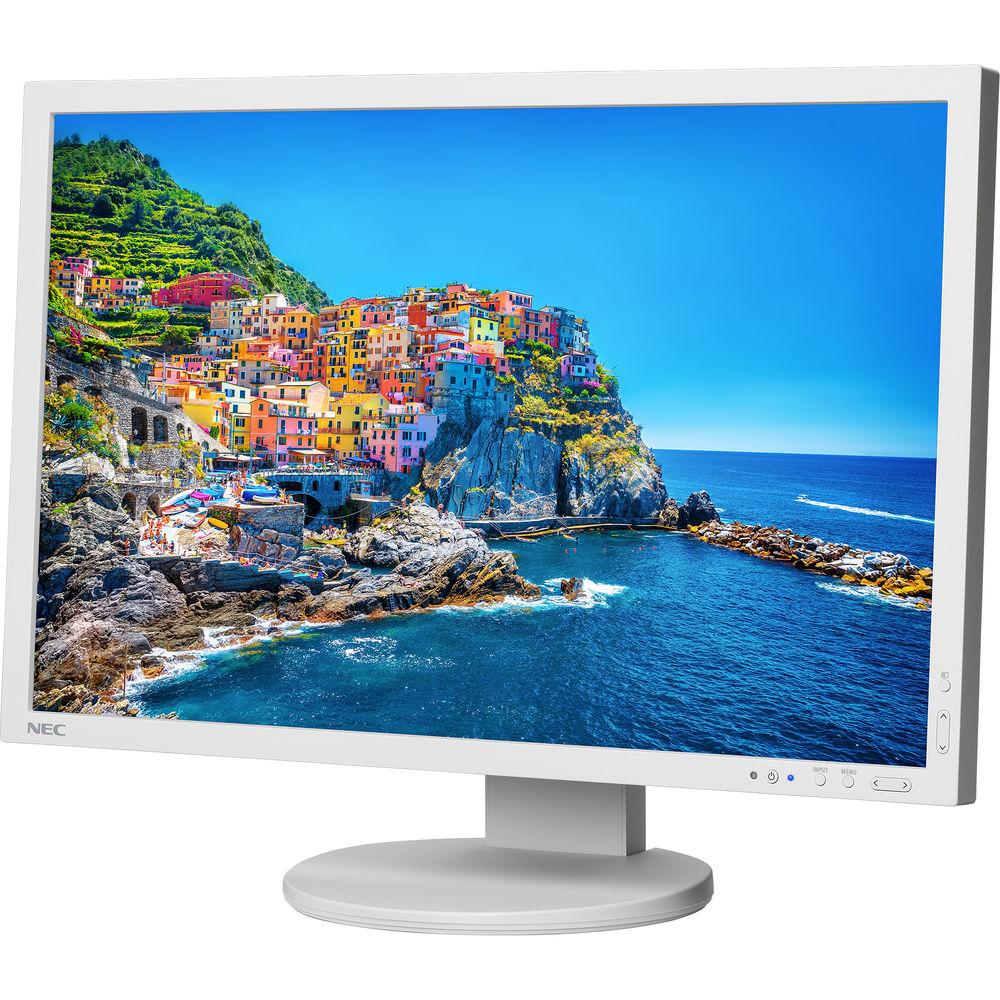

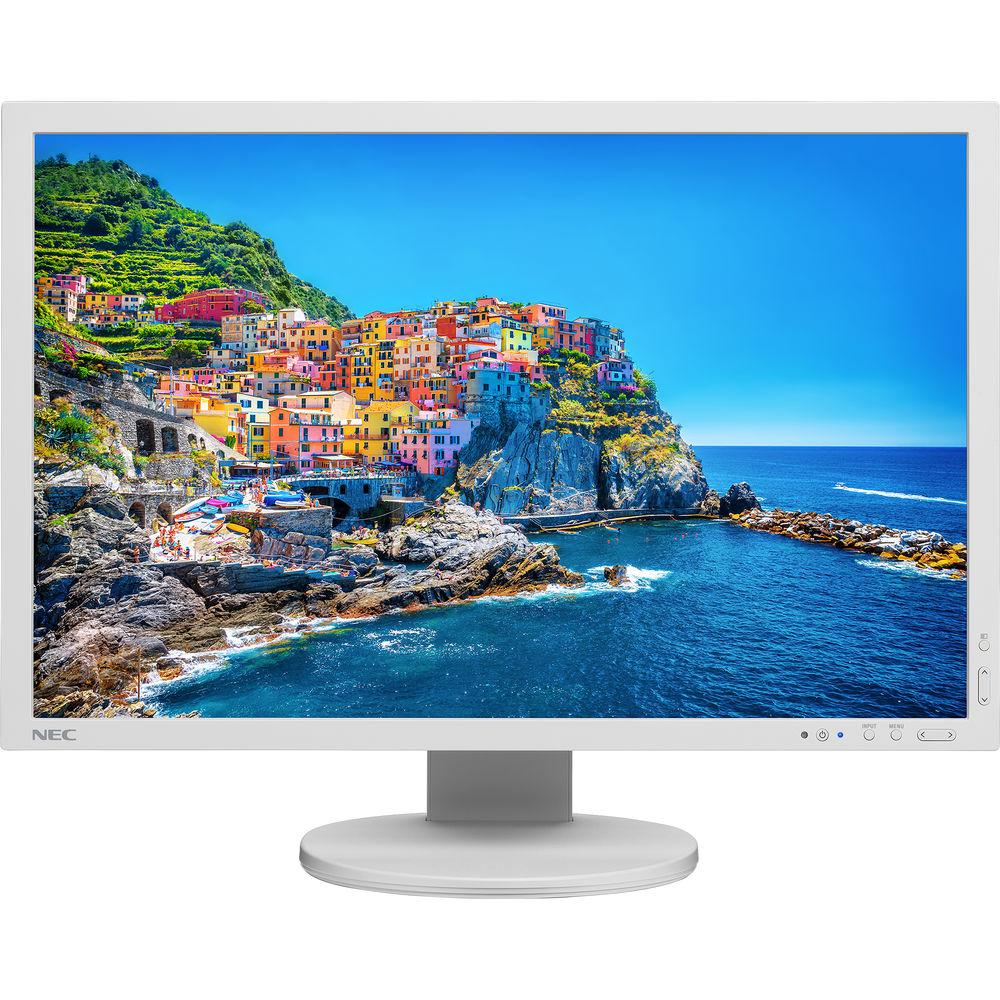

With support for a wide variety of color standards and a 14-bit 3D LUT, the white PA243W 24.1" 16:10 Wide Gamut IPS Monitor from NEC is designed to ensure you receive accurate on-screen color representation.
In addition to the wide color gamut supported by this IPS (In-Plane Switching) display, users can also take advantage of 5 programmable Picture Mode profiles to match the content on the display. Additionally, picture-in-picture and picture-by-picture capabilities allow you to view two sources alongside one another to help compare content.
Setup and configuration of the NEC PA243W is simple as it comes equipped with DisplayPort, DVI-D, HDMI, and VGA inputs as well as a built-in USB 3.1 hub. Once configured, viewers can marvel at the 1900 x 1200 resolution display with a 1000:1 contrast ratio, a 350 cd/m² brightness rating, an 8 ms response time, and support for up to 1.07 billion displayable colors to ensure color sharpness and accuracy. This IPS panel can also be tilted, swiveled, and pivoted into place to take advantage of the 178° horizontal and vertical viewing angles. General Features -
- IPS LCD panel with wide viewing angles and excellent color reproduction and superior screen performance
- Internal programmable 14-bit 3D lookup tables (LUTs) ensure accurate color rendition
- Three-port USB 3.1 hub with DisplaySync ProTM controls two computers with only one keyboard and mouse
- Five programmable Picture Mode profiles for quick access to multiple color spaces
- Picture-in-Picture and Picture-by-Picture modes increase productivity by displaying two sources simultaneously
- MultiProfiler provides complete control over picture modes, enables real-time print emulation and can automate changing settings with keyboard shortcuts
- Built-in low blue light filter technology and flicker-free certified

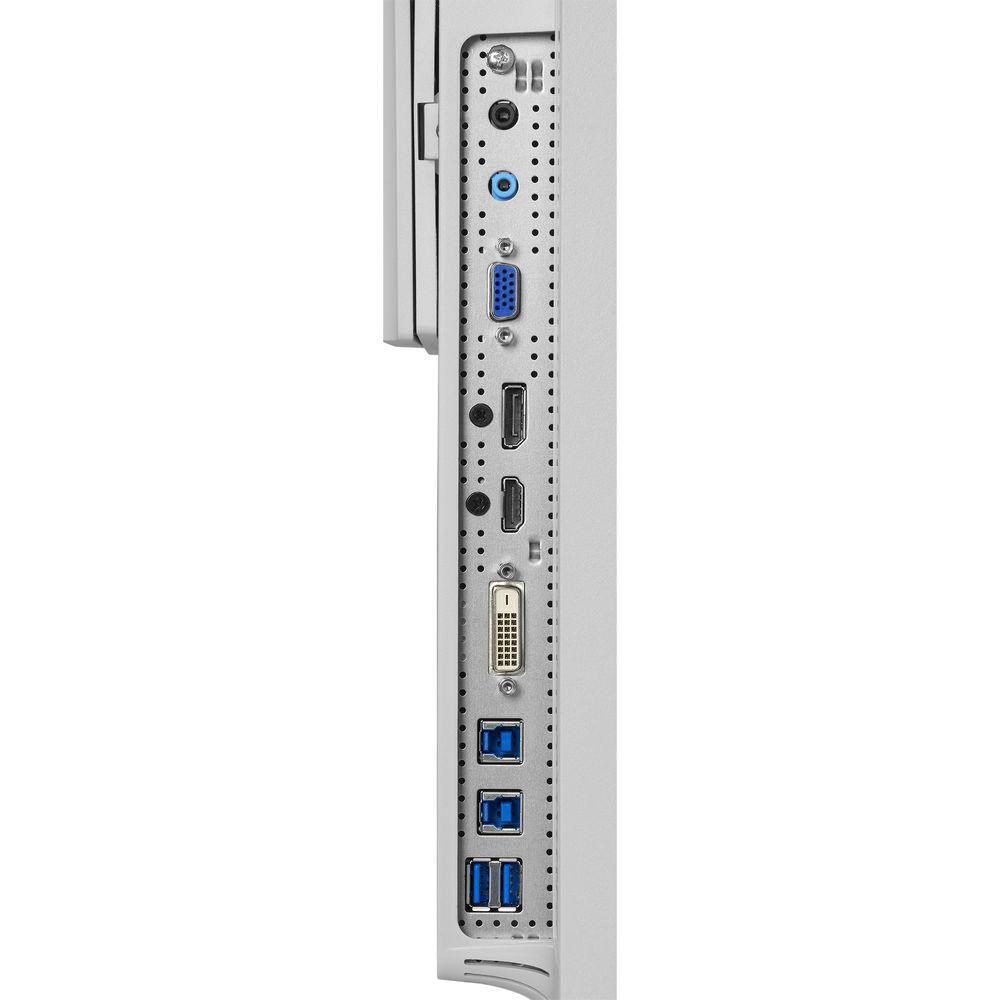

- Wide connectivity includes 10-bit DisplayPort and HDMI as well as VGA, and DVI-D inputs
- MultiProfiler
- USB hub with DisplaySync Pro KVM function
- 14-bit 3D LUT

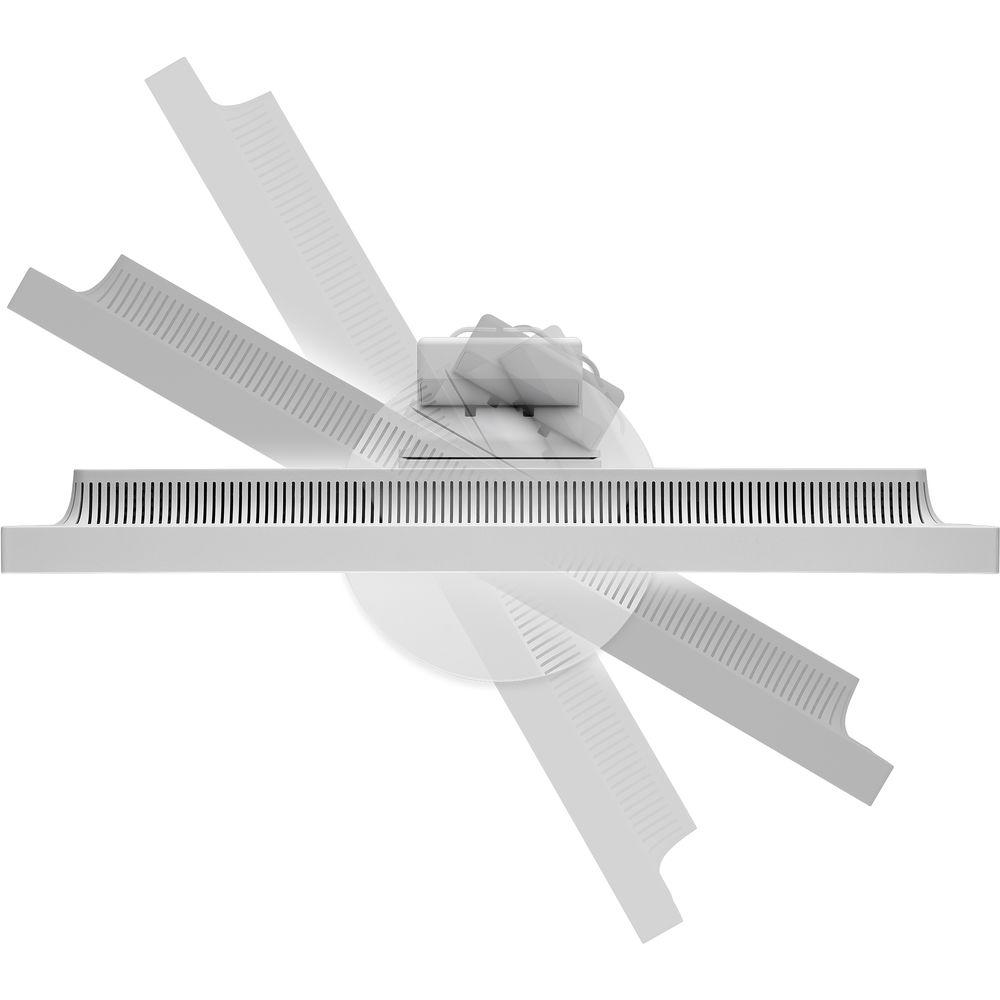

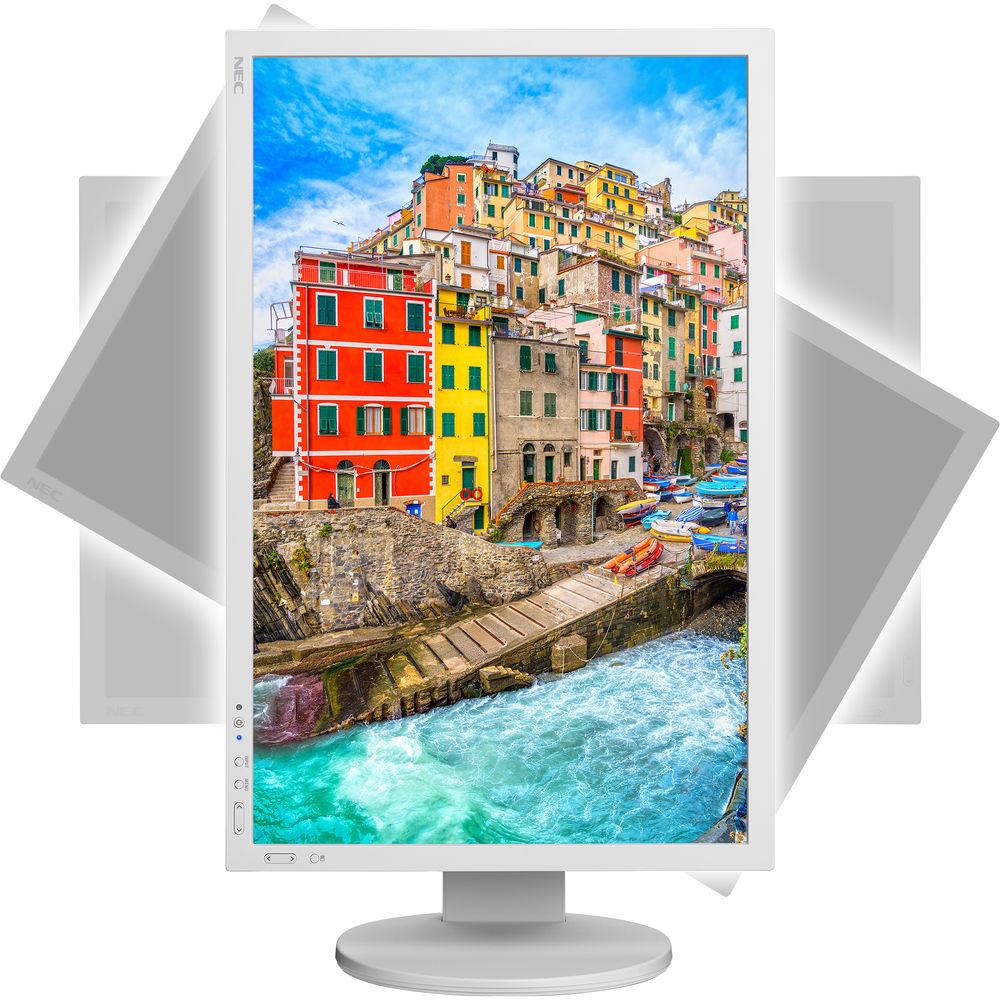

- Tilt/Swivel/Pivot
- Height-adjustable stand
- Quick-release stand
- Rapid Response
- XtraView+

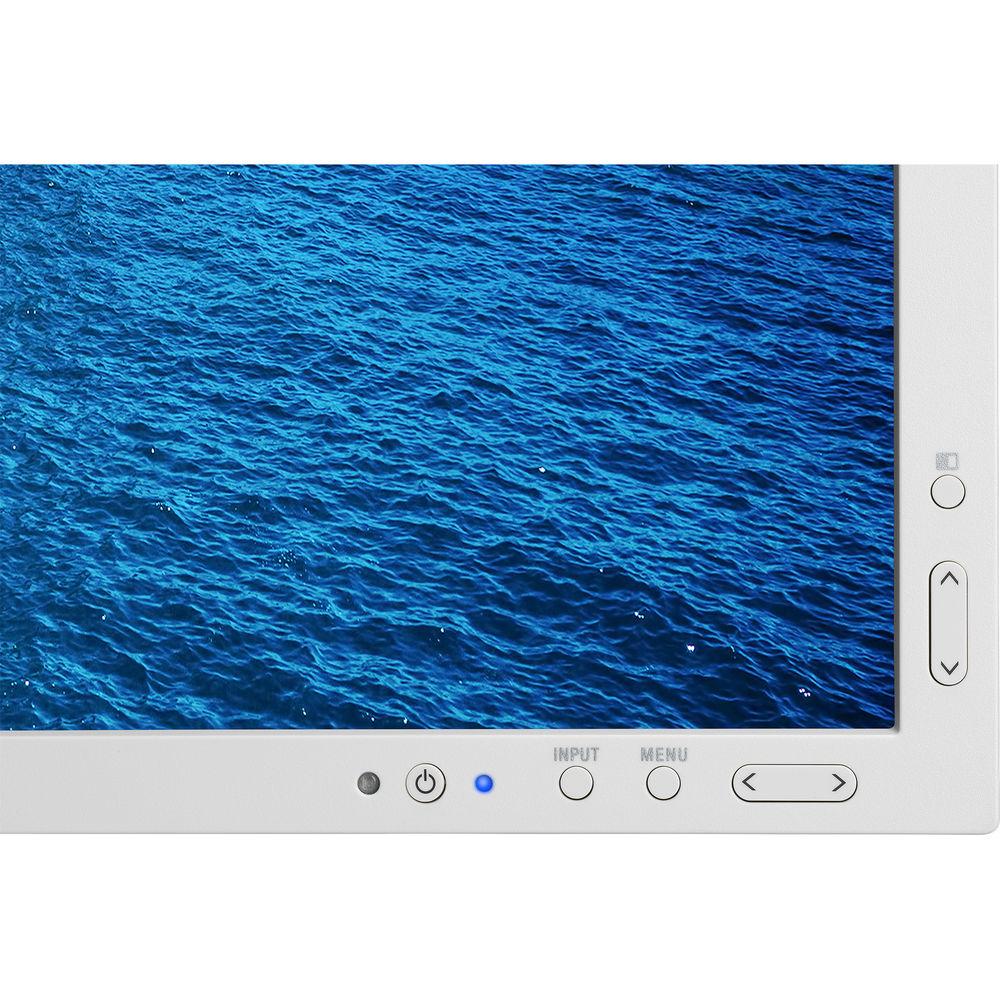

- OSD user controls
- NaViSet Administartor 2.0 software compatible
- Cable management
- VESA mount
- HDCP
- DDC/CI
- No Touch Auto Adjust
- 14-bit 3D LUT
- Black Level adjustment
- AmbiBright
- CableComp
- SpectraView software-ready
- Color Calibration
- There are a few key factors to consider when determining whether a monitor meets your color-critical needs. They are color gamut, color depth, brightness, white point, and black level. Calibrating your monitor is necessary for color-critical work, and can help to deliver more accurate images. NEC's SpectraViewII provides hardware for a user-friendly calibration and can be customized for color gamut, white point, and gamma corrections, as well as other settings.
UPC: 805736066357 In the Box NEC PA243W 24.1" 16:10 Wide Gamut IPS Monitor (White) Power Cord DisplayPort Cable Mini DisplayPort Cable USB Type-A to USB Type-B Cable Individual Factory Calibration Sheet Limited 4-Year Warranty Guides & Manuals vwyvyesfcqcszecxqsfwfrbaezzewbxvfbb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PA243W 24.1" 16:10 Wide Gamut IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC PA243W 24.1" 16:10 Wide Gamut IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC MultiSync PA243W Specs | | | Size | 24.1" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 118 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | None | | Color Gamut | 100% Adobe RGB
97% NTSC
100% sRGB | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DisplayPort Input
1 x DVI-D Input
1 x HDMI
1 x VGA
2 x USB Type-A (USB 3.1 Gen 2) Input
3 x USB Type-A (USB 3.1 Gen 2) Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 35 W (Typical)
0.3 W (Standby) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 21.9 x 20.8 x 9.2" / 55.6 x 52.8 x 23.4 cm (With Stand)
21.9 x 14.2 x 2.3" / 55.6 x 36.1 x 5.8 cm (Without Stand) | | Weight | 17.6 lb / 7.98 kg (With Stand)
11.5 lb / 5.22 kg (Without Stand) | | | | Package Weight | 25.45 lb | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 12.0" |
