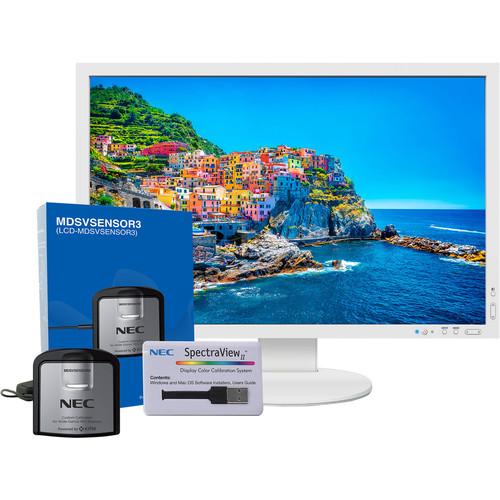

User Manual for NEC PA243W-SV 24.1" 16:10 Wide Gamut IPS Monitor Click to enlarge the picture
Contents of the user manual for the NEC PA243W-SV 24.1" 16:10 Wide Gamut
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
|
User manual for the NEC PA243W-SV 24.1" 16:10 Wide Gamut contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With support for a wide variety of color standards and a 14-bit 3D LUT, the PA243W-SV 24.1" 16:10 Wide Gamut IPS Monitor from NEC is designed to ensure you receive accurate on screen color representation.
In addition to the wide color gamut supported by this IPS (In-Plane Switching) display, users can also take advantage of five programmable Picture Mode profiles to match the content on the display. Additionally, picture-in-picture and picture-by-picture capabilities allow you to view two sources alongside one another to compare content.
Setup and configuration of the NEC PA243W-SV is simple as it comes equipped with DisplayPort, DVI-D, HDMI, and VGA inputs as well as a built-in USB 3.1 hub. Once configured, viewers can marvel at the 1900 x 1200 resolution display with a 1000:1 contrast ratio, a 350 cd/m² brightness rating, an 8 ms response time, and support for up to 1.07 billion displayable colors to ensure color sharpness and accuracy. This IPS panel can also be tilted, swiveled, and pivoted into place to take advantage of the 178° horizontal and vertical viewing angles. -
- The SpectraView II system uses a color sensor to take color measurements of the display screen during calibration. The software analyzes these measurements and sends color adjustment commands directly to the display monitor. This means that color adjustments are made in the monitor rather than in the video graphics adapter. With SpectraView II, the video graphics adapter is not used at all to make any gamma or Tone Response Curve corrections to the display, so the fidelity of the system is maintained
- IPS LCD panel with wide viewing angles and excellent color reproduction and superior screen performance
- Internal programmable 14-bit 3D lookup tables (LUTs) ensure accurate color rendition
- Three-port USB 3.1 hub with DisplaySync ProTM controls two computers with only one keyboard and mouse
- Five programmable Picture Mode profiles for quick access to multiple color spaces
- Picture-in-Picture and Picture-by-Picture modes increase productivity by displaying two sources simultaneously
- MultiProfiler provides complete control over picture modes, enables real-time print emulation and can automate changing settings with keyboard shortcuts
- Wide connectivity includes 10-bit DisplayPort and HDMI as well as VGA, and DVI-D inputs
- MultiProfiler
- USB hub with DisplaySync Pro KVM function
- 14-bit 3D LUT
- Tilt/Swivel/Pivot
- Height-adjustable stand
- Quick-release stand
- Rapid Response
- XtraView+
- OSD user controls
- NaViSet Administartor 2.0 software compatible
- Cable management
- VESA mount
- HDCP
- DDC/CI
- No Touch Auto Adjust
- 14-bit 3D LUT
- Black level adjustment
- AmbiBright
- CableComp
- SpectraView software-ready
UPC: 805736067668 In the Box NEC PA243W-SV 24.1" 16:10 Wide Gamut IPS Monitor (with SpectraView II, White) Power Cord DisplayPort Cable Mini DisplayPort Cable USB Type-A to USB Type-B Cable Individual Factory Calibration Sheet SpectraView Software USB Drive NEC Custom Calibrator Limited 4-Year Warranty User Manual PDF 2.4mbdbdarafazybcff Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PA243W-SV 24.1" 16:10 Wide Gamut IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC MultiSync PA243W-SV Specs | Panel Technology | AH-IPS | | Viewable Image Size | 24.1" / 61.2 cm | | Aspect Ratio | 16:10 | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.27 mm | | Pixels Per Inch | 93 @ native resolution | | Backlight Type | White gamut W-LED
PWM Frequency: 20 kHz | | Brightness | 350 cd/m² | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° (89U/89D/89L/89R) @ CR>10 | | Response Time | 8 ms | | Color Gamut | Adobe RGB Coverage/Size: 112.4% / 99.6%
NTSC Coverage/Size: 107.4% / 97.1%
sRGB and Rec. 709 Coverage / Size: 151.6% / 100.0%
DCI P3 Size/Coverage: 111.7% / 96.9%
Rec. 2020 Size/Coverage: 80.2% / 80.1%
SMPTE: 163.7% / 100.0%
ISO Coated V2 Size/Coverage: 163.7% / 100.0% | | Lookup Table | 14-bit (3D) | | Displayable Colors | 1.07 billion out of 4.3 trillion (10-bit DisplayPort or HDMI)
16.7 million out of 1.05 billion (8-bit) | | Synchronization Range | Horizontal (Analog/Digital): 31.5-118.4 kHz/31.5-118.4 kHz
Vertical: 50-85 Hz | | Input Signal | Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate Sync: TTL Level (positive/negative)
Composite Sync: TTL Level (positive/negative)
Composite Sync on Green: (0.3 Vp-p negative/0.7 Vp-p positive) | | Speakers | 2 x 1 W | | Input Connectors | 1 x DisplayPort
1 x DVI-D
1 x HDMI
1 x VGA
USB 3.1 Hub: 2 x up / 3 x down with DisplaySync Pro | | Power Consumption | On: 35 W
Power Savings Mode: 0.3 W | | VESA Mount Standard | 100 x 100 mm | | Environmental Conditions | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 20 to 80%
Operating Altitude: 16,404' / 5000 m
Storage Temperature: 14 to 140°F / -10 to 60°C
Storage Humidity: 10 to 85%
Storage Altitude: 40,000' / 12,192 m | | Environmental Compliance | RoHS | | Dimensions | With Stand: 21.9 x 14.9-20.8 x 9.2" / 55.6 x 37.9-52.9 x 23.3 cm
Without Stand: 21.9 x 14.2 x 2.3" / 55.6 x 36.2 x 5.9 cm | | Weight | With Stand: 17.6 lb / 8 kg
Without Stand: 11.5 lb / 5.2 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 25.5 x 19.5 x 12.0" |
