Product description NEC Develops MultiSync PA271Q 27" Display for Color-Critical Work Read More - NEC Display Solutions|Auto Rotate MultiSync PA Series_40 Second Product Feature
- | NEC Display Solutions|MultiSync PA Series Desktop_Accurate Color on Location

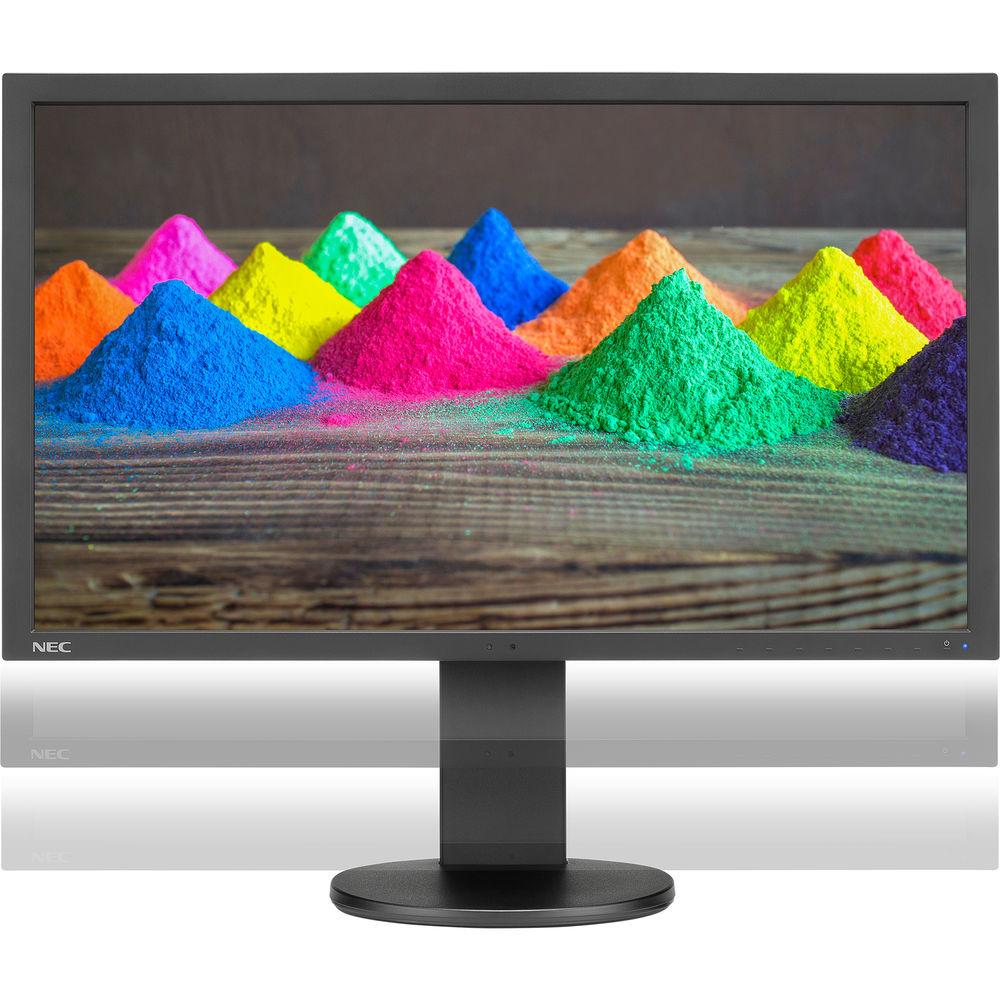

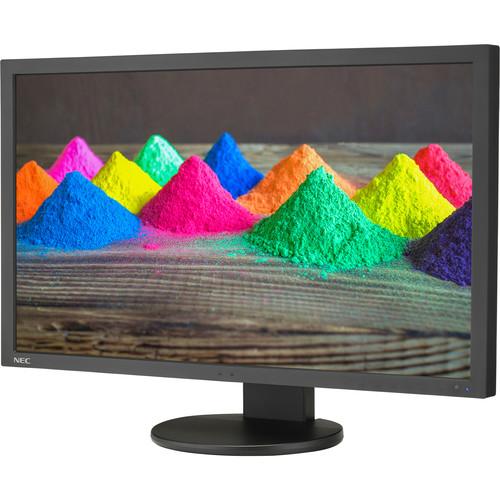

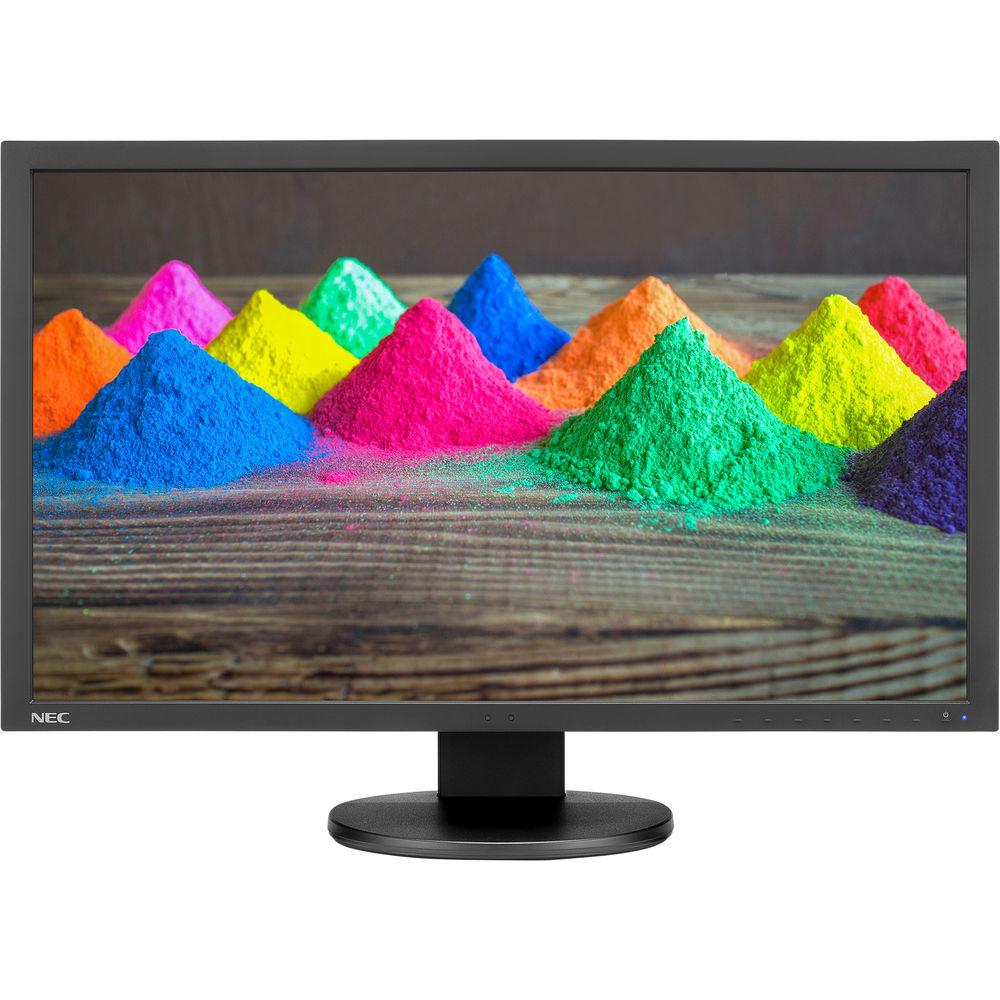

Designed for use in color-critical applications such as photography, advertising, and video production, the PA271Q-BK 27" 16:9 Color-Critical IPS Monitor from NEC covers 98.5% of the Adobe RGB color space, 96.1% of the NTSC color space, and 100.0% of the sRGB color space.

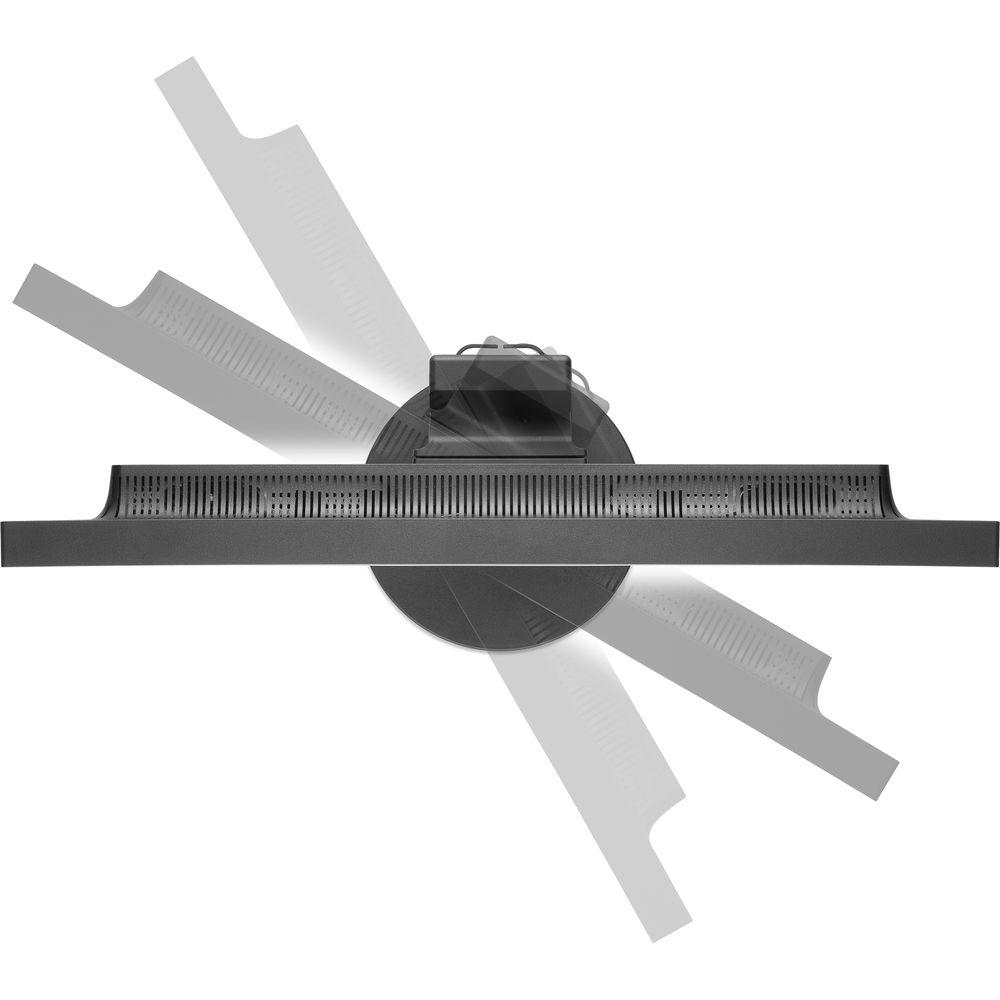

In addition to color accuracy, this NEC monitor also features a 2560 x 1440 resolution, a 1500:1 contrast ratio, an 8 ms response time, a 350 cd/m² brightness rating, 109 pixels per inch, and support for up to 1.07 billion colors with a 14-bit lookup table. Setup has been greatly simplified thanks to the multiple inputs including DisplayPort, Mini DisplayPort, HDMI, USB Type-C, and USB 3.1 connectors, so you can connect this display to nearly any computer configuration. Once configured, the PA271Q-BK offers a wide range of features designed to allow you to get the most out of this color accurate display including SpectraView Engine color management and MultiProfiler software. To ensure your viewing experience is a comfortable one, this NEC monitor can be tilted, swiveled, pivoted, and the height can be adjusted to ensure you can take full advantage of the 178° horizontal and vertical viewing angles. - Features
-
- 98.5% coverage of AdobeRGB color space and 81.1% coverage of Rec 2020
- 1500:1 contrast ratio, 2560 x 1440 native resolution, 350 cdm² brightness
- 14-bit 3D internal programmable lookup tables (LUTs) for calibration
- Picture-in-Picture and Picture-by-Picture modes increase productivity by displaying two sources simultaneously
- MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
- DisplaySync Pro controls three computers with only one keyboard and mouse
- Wide connectivity includes both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, and USB Type-C with 30W of power delivery
- Human Sensor saves power when not in use
- DisplayPort cable compatibility notice
- Built-in low blue light filter technology and flicker-free certified
- Greatly ease administration and management of larger display device installations with NaViSet Administrator 2
- Additional Features
-
- SpectraView Engine color management
- MultiProfiler software—USB hub (3 up / 3 down) with DisplaySync Pro
- 14-Bit 3D LUT—Digital Uniformity Correction
- Wide Color Gamut
- Adobe RGB
- sRGB
- Rec 709
- Rec 2020
- Human Sensor
- ECO mode
- Carbon footprint meter
- Thin frame
- Tilt
- Swivel

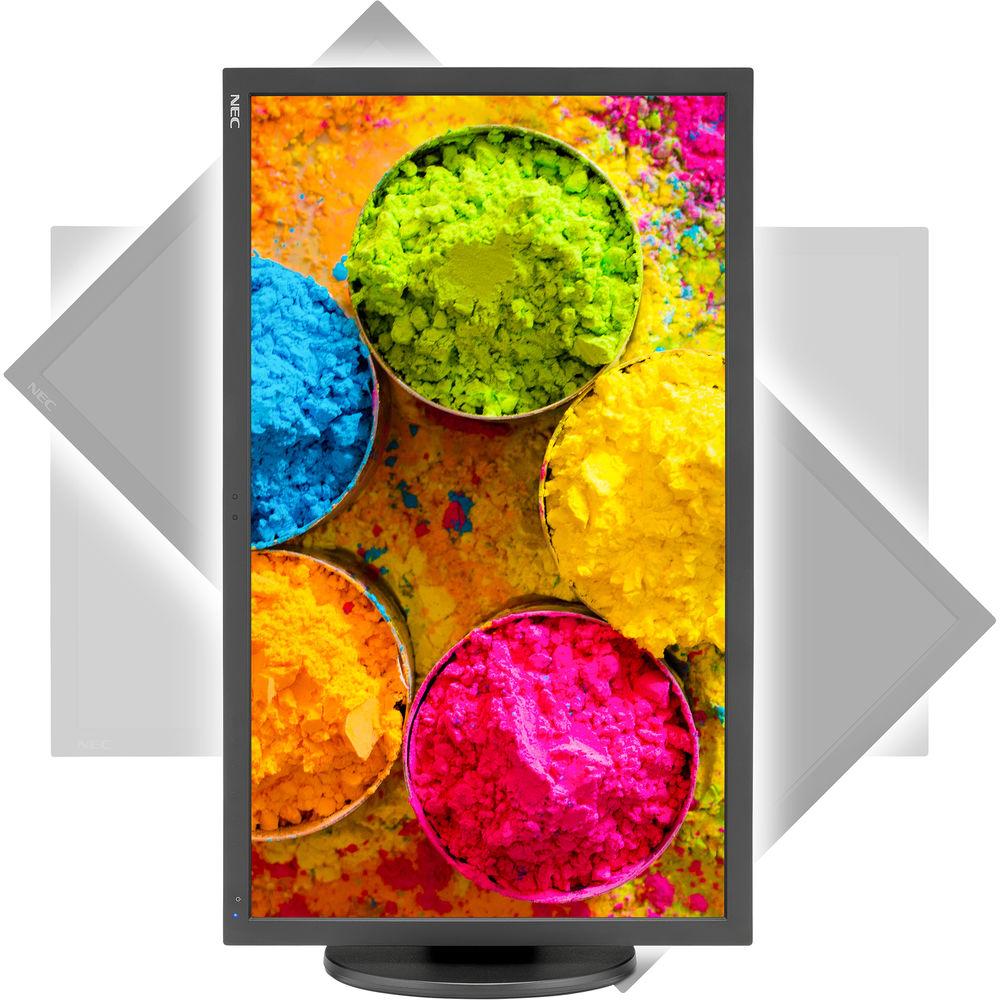

- Pivot
- Height-adjustable stand with locking base
- Quick release stand

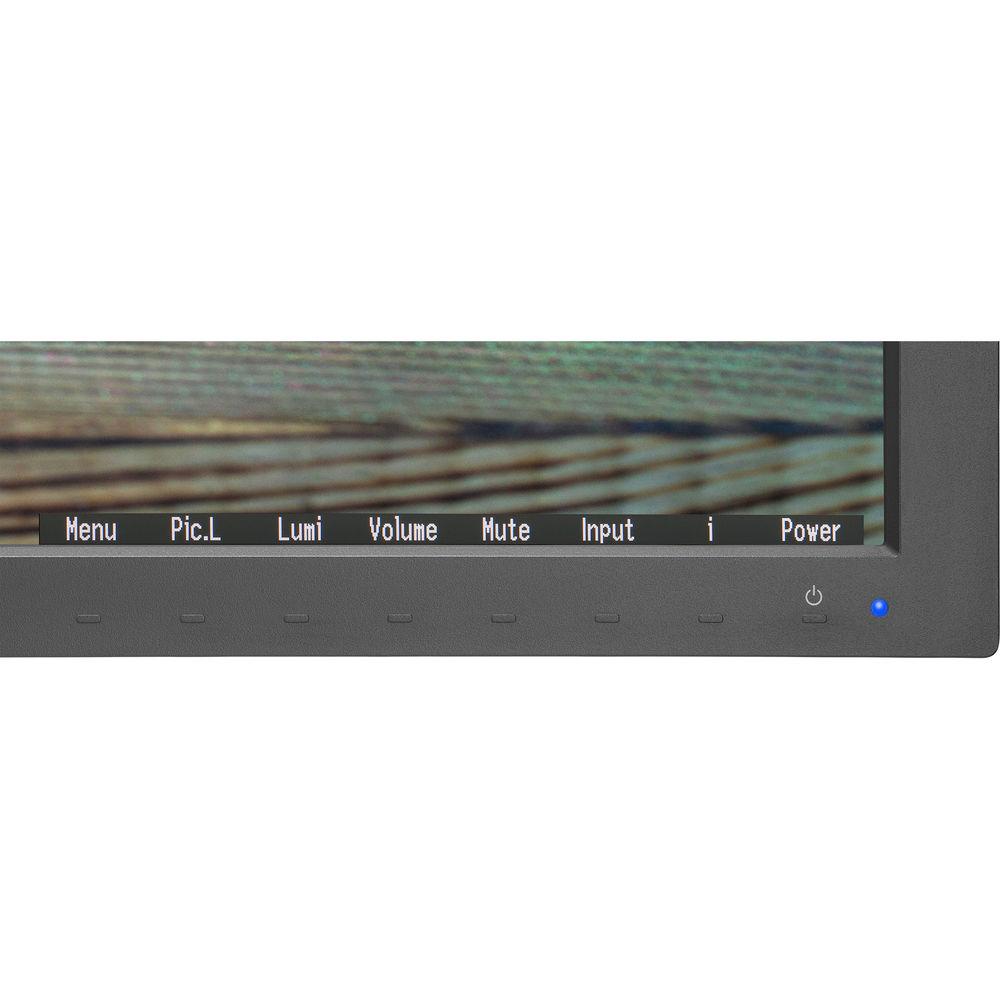

- Carrying handle—Rapid Response—Ambix4—XtraView+—Touch OSD user controls
- Cable management—VESA mount
- HDCP
- DDC/CI—Black Level adjustment
- AmbiBright
- TileMatrix
- SpectraView II software ready
UPC: 805736068047 In the Box NEC PA271Q-BK 27" 16:9 Color-Critical IPS Monitor Power Cable Mini DisplayPort to DisplayPort Cable USB Cable DisplayPort Cable Mounting Screws Limited 4-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 xwbbqaxytxex Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PA271Q-BK 27" 16:9 Color-Critical IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the NEC PA271Q-BK 27" 16:9 Color-Critical IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersNEC PA271Q-BK Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1500:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 15 to 92 kHz | | Vertical Frequency | 23 to 86 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | None | | Color Gamut | 99% Adobe RGB
96% NTSC
100% sRGB | | Response Time | 8 ms | | Viewing Angle | Horizontal: 178° (89/89)

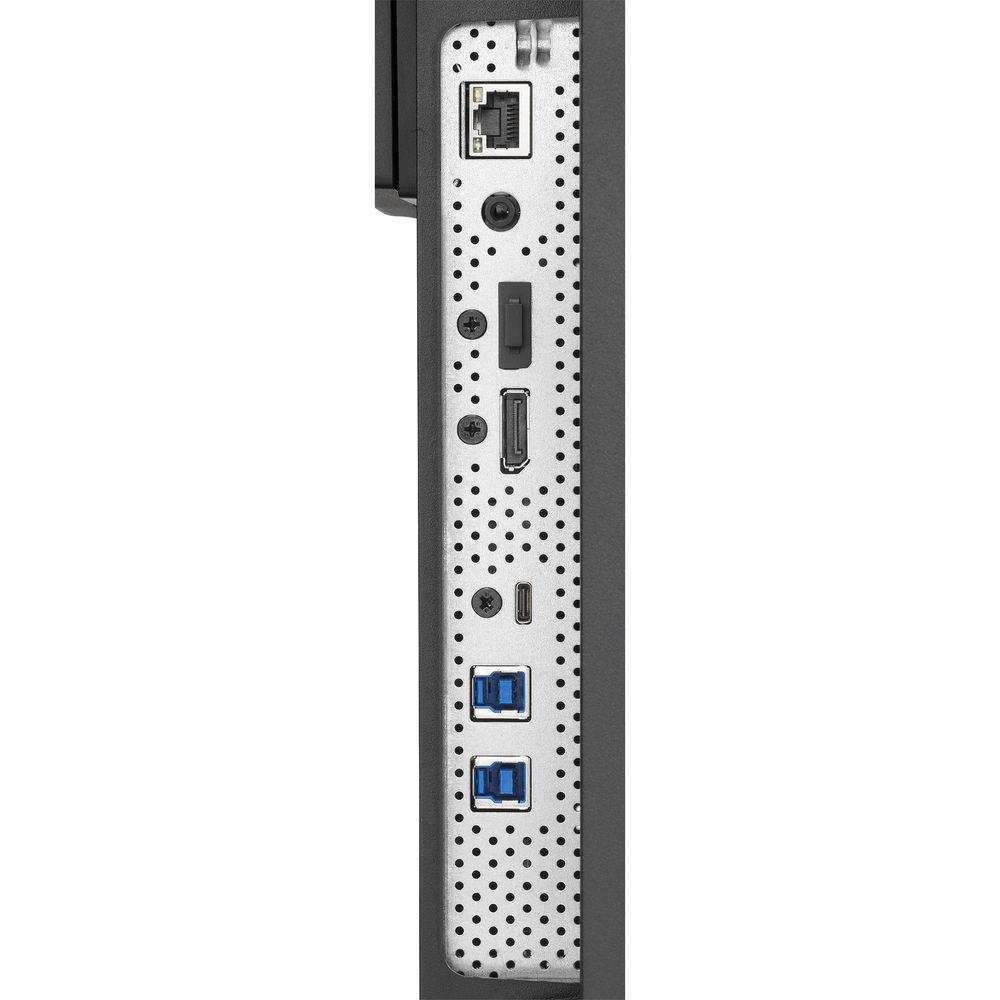

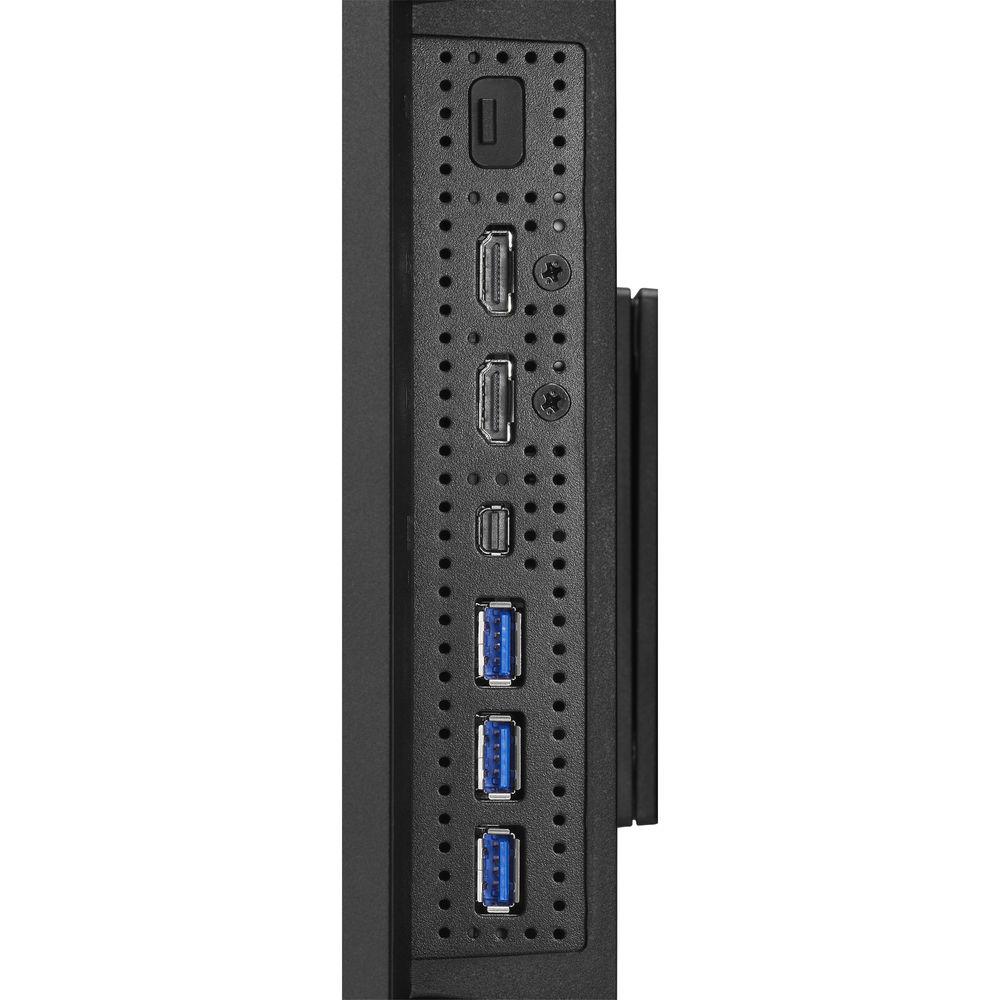

Vertical: 178° (89/89) | | Dot Pitch | 0.23 x 0.23 mm | | | | Connectivity | 1 x DisplayPort
1 x Mini DisplayPort
2 x HDMI
1 x USB Type-C
3 x USB (USB 3.1 Gen 2) Input
3 x USB (USB 3.1 Gen 2) Output | | Built-In Speakers | None | | | | Power Consumption | 50 W (Typical)
0.5 W (Standby) | | USB Power Delivery | 30 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 16,404' / 5000 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm, 200 x 100 mm | | Dimensions (W x H x D) | 25.2 x 21.5 x 9.2" / 64.0 x 54.6 x 23.4 cm (With Stand)
25.2 x 14.9 x 2.6" / 64.0 x 37.8 x 6.6 cm (Without Stand) | | Weight | 21.4 lb / 9.71 kg (With Stand)
15.2 lb / 6.89 kg (Without Stand) | | | | Package Weight | 29.3 lb | | Box Dimensions (LxWxH) | 29.5 x 21.0 x 12.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
