User Manual for NEC PA302W-SV 30" 16:10 IPS Monitor with SpectraView II Click to enlarge the picture
Contents of the user manual for the NEC PA302W-SV 30" 16:10 IPS Monitor
- Product category: Computer Monitors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Computer Monitors
 |
User manual for the NEC PA302W-SV 30" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - Backlight Stabilization | NEC Display Solutions

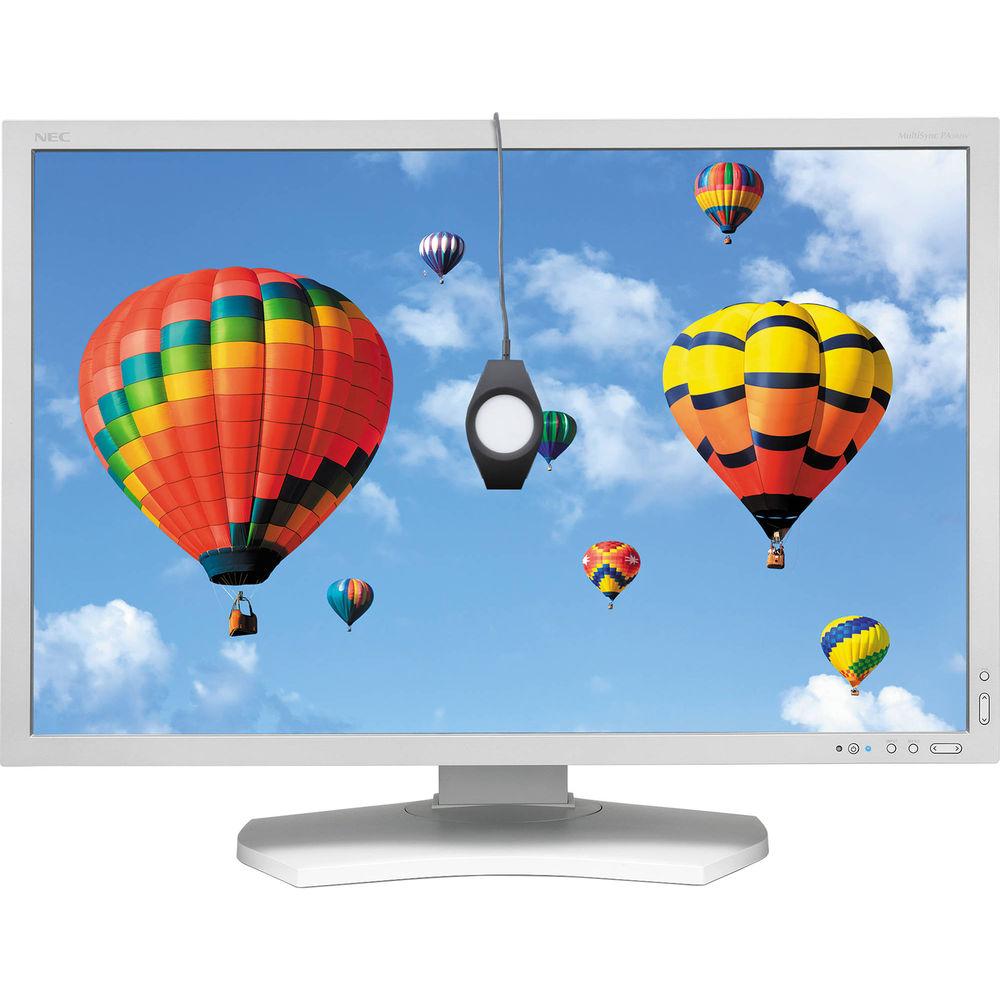

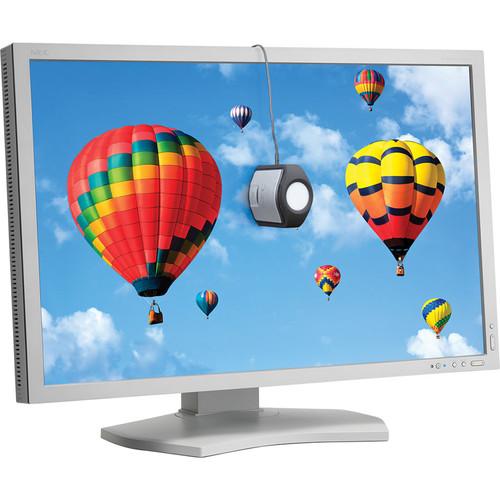

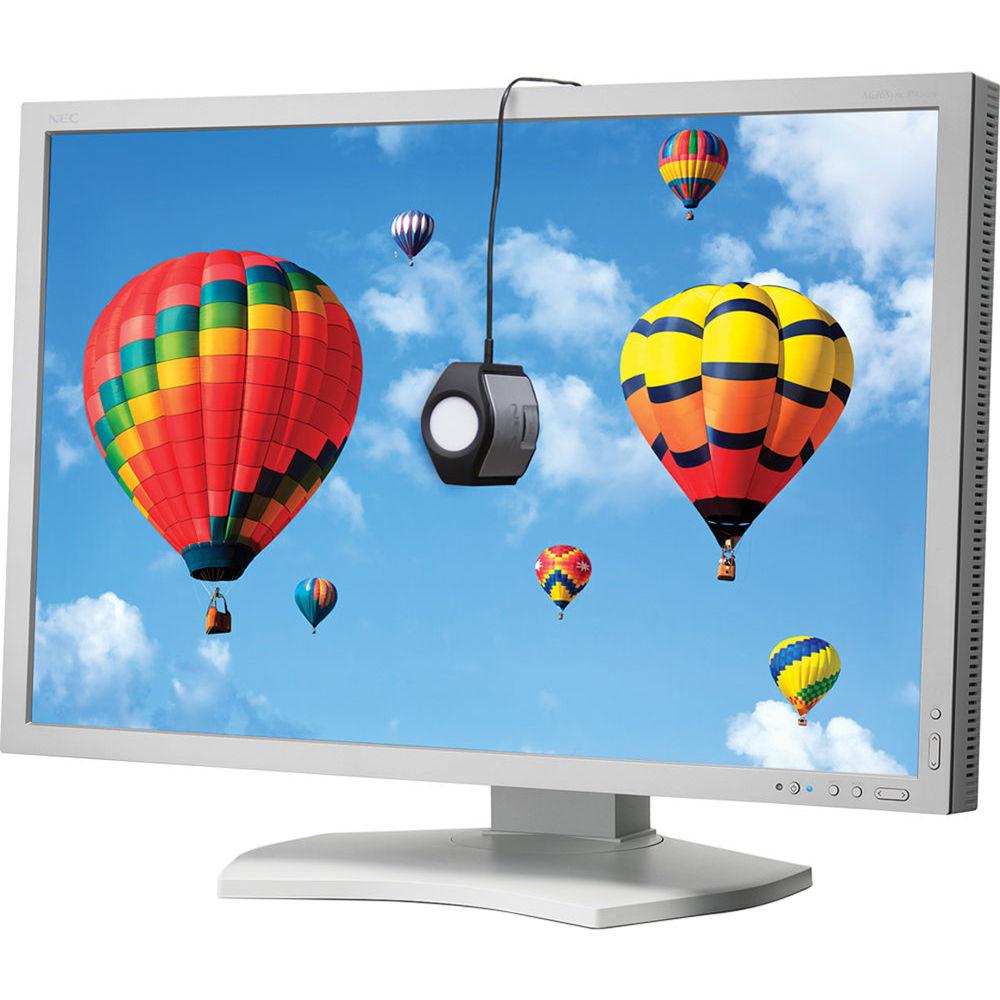

The white PA302W-SV 30" 16:10 IPS Monitor with SpectraView II from NEC is an ultimate desktop display for color-critical applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 44% less power than comparable CCFL backlights. The monitor is equipped with the SpectraView II color calibration solution. In addition, it utilizes a high-performance AH-IPS LCD panel combined with the SpectraSensor Pro Color Calibration Sensor. The monitor features the MultiProfiler software that provides complete control over five picture modes, plus the loading of any ICC profile directly into the monitor for optimal color space matching. In addition, it features DisplaySync Pro technology, which allows you to control two computers with a single keyboard and mouse. The monitor also provides wide connectivity options, including both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub. - SpectraView II calibrates the 14-bit 3D internal programmable lookup tables for precise color.
- The monitor provides 99.3% coverage of the AdobeRGB color space.
- It features superior screen performance with a 1000:1 contrast ratio, 2560 x 1600 native resolution and 340 cd/m² brightness.
- The MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching.
- DisplaySync Pro allows you to control two computers with a single keyboard and mouse.
- The monitor provides wide connectivity options, including both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub.
- The thin-frame monitor features a height-adjustable and quick-release stand with locking base along with tilt and swivel angles.
- Ambix4 allows up to three inputs (VGA, DVI-I, and DVI-D) to be connected to a single monitor and enables each of the three signals to be displayed with the press of a button. In addition, Digital Uniformity Compensation reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.
- The XtraView+ technology delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left, and right) with less color shift and without any glare, reflection, or distortion.
- The AmbiBright technology automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also enables the monitor to enter the power saving mode whenever the ambient lighting falls below a predetermined value (like when lights are shut off at the end of the day), which can significantly reduce energy consumption.
- The auto-adjust feature allows the monitor to be automatically adjusted to optimal image settings when initially turned on.
- Multiprofiler Application
- A variety of Monitor controls: MultiProler allows you to control the brightness, black level and color gamut directly from the software in addition to many other settings. Changes to settings are made instantly to the monitor.
Picture Mode preset editing: Multiple picture modes can be quickly congured using MultiProler. Choose from the simplicity of built-in sRGB, Adobe RGB, DCI, DICOM, REC-BT709 and High Brightness modes, or load an ICC prole for color matching an existing printer or display. In addition, MultiProler helps you create a completely custom Picture Mode conguration, including controlling the gamma characteristics, color gamut and white point.
Picture-in-Picture (PIP) conguration: The PIP modes can be completely congured directly in MultiProler, including the PIP mode, the video inputs and the Picture Mode for the second video input. This greatly simplies the management of multiple computer congurations.
DisplaySync Pro and USB hub conguration: The integrated USB hub in MultiSync PA Series monitors also can be managed through MultiProler to function as a keyboard/ video/mouse (KVM) switch. This feature maps the USB upstream ports to the various display inputs, which is useful for managing controlling computers attached to the display.
Quick print preview: Create a print preview Picture Mode for your printer by loading its ICC prole in MultiProler. The Picture-in-Picture or Picture-by-Picture function can then be used to view the print preview in real-time.
Automatic generation of ICC proles: MultiProler automatically generates and updates ICC proles as the color modes are selected or adjusted, reducing the need for a proling package to prole the monitor. UPC: 805736048179 In the Box NEC PA302W-SV 30" 16:10 IPS Monitor with SpectraView II (White) Power cable DisplayPort Cable Mini DisplayPort to DisplayPort Cable DVI Cable USB Cable Mounting Screws SpectraView II USB Drive Color Calibration Sensor Limited 4-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PA302W-SV 30" 16:10 IPS Monitor with SpectraView II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC PA302W Specs | | | Size | 29.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1600 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 101 ppi | | Maximum Brightness | 340 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31.5 to 98.7 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | Color Gamut | 99.3% Adobe RGB
94.8% NTSC
146.4% sRGB | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.25 x 0.25 mm | | | | Connectivity | 2 x USB Input
3 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x Mini DisplayPort
1 x HDMI | | | | Power Consumption | 1.4 W (Standby)
87 W (Typical) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 10 to 85% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 5.9" / 15 cm | | Mounting-Hole Pattern | 100 x 100 mm, 200 x 100 mm | | Dimensions (W x H x D) | 27.1 x 17.6 x 3.2" / 68.8 x 44.7 x 8.2 mm (Without Stand)
27.1 x 18.4 x 11.9" / 68.8 x 46.6 x 30.2 mm (With Stand) | | Weight | 37.5 lb / 17 kg
23.6 lb / 10.7 kg (Without Stand) | | | | Package Weight | 52.45 lb | | Box Dimensions (LxWxH) | 33.0 x 25.0 x 16.5" |
