User Manual for NEC PX1004UL 10,000-Lumen Professional Installation Projector without Lens Click to enlarge the picture
Contents of the user manual for the NEC PX1004UL 10,000-Lumen Professional Installation Projector
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC PX1004UL 10,000-Lumen Professional Installation Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

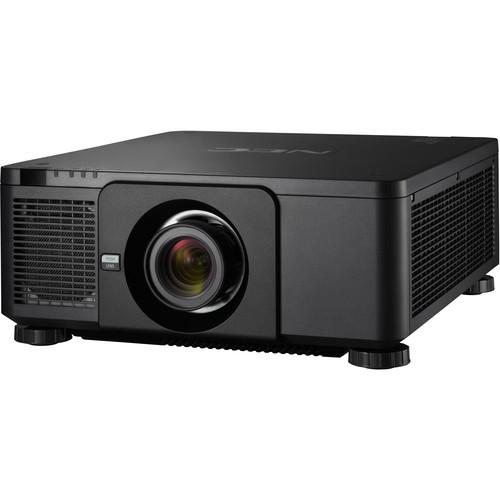

Product description The black PX1004UL 10,000-Lumen Professional Installation Projector from NEC is a powerful projector with a laser/phosphor light source. It comes with many features like stacking correction, edge blending, geometric correction, and more. The stacking correction capability allows up to four projectors to boost an image's brightness up to 40,000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of image which can happen when using only one projector. The edge blending function seamlessly blends multiple projected images to display a single high-resolution image.Projecting an image isn't confined to a standard flat screen or wall with the PX1004UL projector. Geometric correction allows the image to be projected on spheres, cylinders, corner angles, and many other non-standard surfaces. Since the projector comes without a lens, you have the option of using eight different lenses as per your application's need. With 20,000 expected hours of operation, the projector is suitable for retail, simulation, and theme park installations. - Laser Light Module
-
- 20,000-plus hours of operation
- High-brightness, low-power consumption
- Suitable for applications such as retail, digital signage, and theme parks
- Ability to control brightness, creating a stable image over longer time periods
- Wall color correction presets provide for adaptive color tone correction to display properly on non-white surfaces
- Screen Splitter
-
- Integrated with multi-display capabilities and TileMatrix technologies
- Since processing is done internally, all the additional hardware typically required to produce 4K resolution image is avoided
- Cornerstone and 3D Function
-
- Allows for horizontal, vertical, and diagonal image correction for aligned images, even when the projector is set up at an angle to the screen
- When combined with active shutter glasses and 3D emitter (available separately), the projector can create 3D images from a computer or Blu-ray player
- PX1004UL utilizes the 3D sync line output from the projector to connect to the 3D emitter
- Integrated and Flexible
-
- Project uncompressed FHD video with integrated HDBaseT
- High performance video processing/scaling creates lifelike images
- Integrated software applications such as DisplayNote, Crestron RoomView, AMX Beacon, and PJ Link allow for complete interactivity and control
- Tile Matrix enables 4K resolution
- Tilt-free installation capabilities make these projectors ideal for almost any install environment, including portrait orientation
- ±50% vertical lens shift and ±15% horizontal lens shift capabilities make alignment easy
- Tilt-Free and Portrait Mode
-
- Projector can be rotated freely (360°) to orient the image depending on the installation requirements
- Portrait mode allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used
- Built-In HDBaseT Support
-
- Optimized for video applications and supporting uncompressed Full HD digital video, audio, Ethernet, power, and various control signals
- With only a single 328' cable to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage
- Control signals are contained in the same cable
- Simple Control
-
- Wired and wireless backlit remote allows you to adjust for complete control of the projector's menu structure in a well-lit or dark environment
- Direct controls such as lamp mode, aspect ratio, volume, and input selection eliminate multiple button pushes
- DisplayPort provides PX Series models with expanded connectivity with advanced technology
- With optional input panel cover, create a clean look for your installation by hiding signal cables and the power cord
- Other Features
-
- 3D Reform allows you to square the image by adjusting horizontally, vertically, or diagonally when the projector cannot be placed parallel or perpendicular to the screen
- Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
- AutoSense automatically syncs with any computer signal and features one-touch image optimization
- 64-step image magnification with location control
- Discreet source keys for source selection
- Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
- Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations
UPC: 805736062823 In the Box NEC PX1004UL 10,000-Lumen Professional Installation Projector without Lens (Black) Remote Control with Batteries Power Cord Lens Anti-Theft Screw Limited 5-Year or 20,000-Hour Warranty, Whichever Comes First Limited 1-Year InstaCare Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC PX1004UL 10,000-Lumen Professional Installation Projector without Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC PX1004UL Specs | | | Display System | 0.67" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: 4096 x 1200 | | Max Brightness | 10,000 Lumens | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 153 kHz

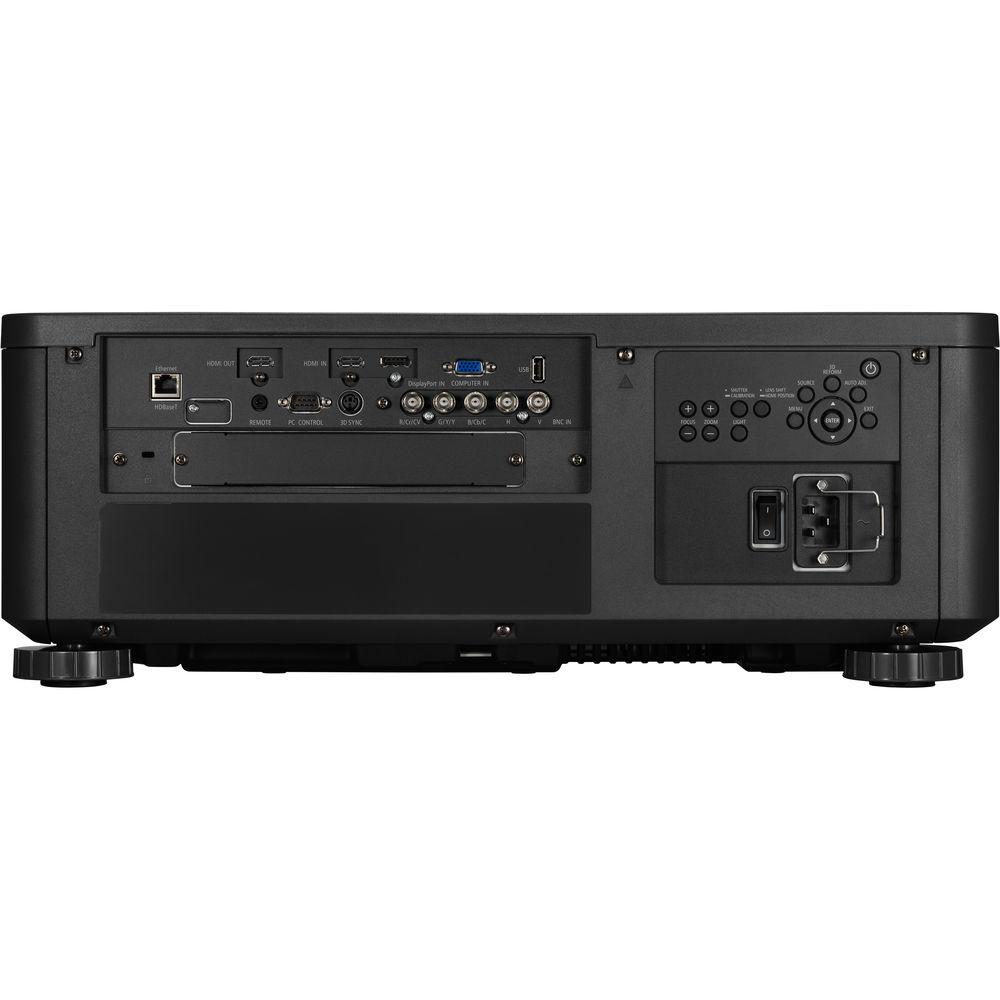

Vertical: 24 to 120 Hz | | | | Keystone Correction | : ± 40° | | Ceiling Mountable | Yes Using NC1100CM bracket (not included). | | | | Inputs/Outputs | 1 x VGA (DE-15) Video
1 x 5BNC Video
1 x HDMI Audio/Video
1 x DisplayPort Audio/Video
1 x HDBaseT (RJ45) Audio/Video
1 x HDMI Audio/Video (Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 42 dB
Low Brightness: 37 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 1220 W
Low Brightness: 625 W
Standby Mode (Lamp Off): 4.3 W
Standby Mode (Lamp Off): 0.2 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-14 to 122°F (-25 to 50°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 19.7 x 22.8 x 8.5" / 50.0 x 57.9 x 21.6 cm | | Weight | 63.9 lb / 29.0 kg |
