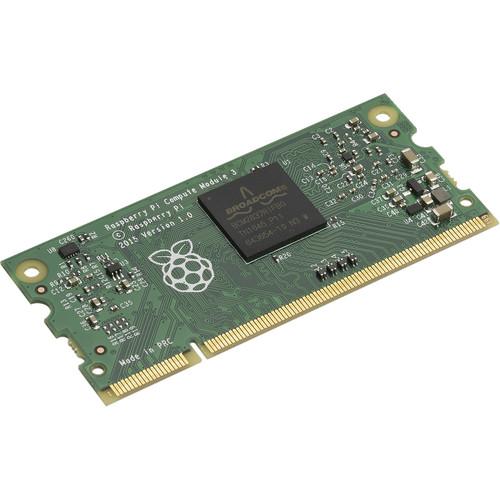

User Manual for NEC Raspberry Pi Compute Module 3 Click to enlarge the picture
Contents of the user manual for the NEC Raspberry Pi Compute Module 3
- Product category: Modules & Interface Cards NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Modules & Interface Cards
|
User manual for the NEC Raspberry Pi Compute Module 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|
Product description Boost the performance of your NEC large-format display to suit a variety of visual applications by embedding the Raspberry Pi Compute Module 3 into it. This open-platform module offers flexibility in creating customized display applications. Software providers and users can benefit from the wide range of open-source solutions available from the global Raspberry Pi developers' community. The NEC edition tops the standard Raspberry Pi's performance with 16GB of onboard memory and intelligent Digital Signage functionality. The Ethernet and USB interfaces of the display hosting the module allow for easy integration into a network, or connection to external devices such mice, keyboards, and touch screens. - Open Source Design
- Adding the Raspberry Pi Compute Module 3 to an NEC Display gives users access to a robust global open-source development community offering innovative and creative uses for computing.
- Powerful Possibilities
- The quad-core 1.2 GHz processor allows for crisp 1920 x 1080 playback.
- Designed for Professional Digital Signage
- The Raspberry Pi Compute Module 3 provides 16GB of onboard memory and the necessary hardware decoders to meet the demands of professional signage applications.
- Versatility
- Supporting various operating systems, this open platform offers considerable flexibility for digital signage software providers and system integrators.
- Seamless Integration with Select NEC Large-Format Displays
- The Compute Module is installed internally into the display for a fully integrated cable-free solution. It offers internal connection for power, video, audio, data, and control interfaces.
The internal serial connection between the display and the Raspberry Pi Compute Module allows full control and monitoring of the display from the software running on the Compute Module. A Python-based SDK for easy software development is available separately. - Reliability
- The use of industrial-grade components and advanced heat management makes this solution suited for 24/7 operation.
UPC: 805736064841 In the Box NEC Raspberry Pi Compute Module 3 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC Raspberry Pi Compute Module 3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC RPI3CM16GB Specs | Compatibility | Displays:
P404
P404-AVT2
P404-R
P484
P484-AVT2
P484-R
P554
P554-AVT2
P554-R
V404
V404-AVT2
V404-R
V404-T
V484
V484-AVT2
V484-R
V484-T
V554
V554-AVT2
V554-R
V554-T | | Processor | Quad-core 64-bit ARM Cortex A53 at 1.2 GHz, VideoCore IV GPU | | Graphics | Hardware video encode/decode (MPEG-2, MPEG-4, H.264, VC-1 up to 1080p60), 1.2 Gpixel/sec OpenGL ES 2.0 3D | | Memory | 16 GB on-board eMMC | | RAM | 1G GB LPDDR2 SDRAM | | Pre-Installed Operating System | Raspbian Jessie with PIXEL | | Resolution | 1920 x 1080 (displays' native resolution) | | Compression | MPEG-2, MPEG-4, and VC-1 | | Certifications | CE, FCC | | Dimensions | 2.6 x 1.2 x 1.1" / 67.7 x 31.0 x 30.0 mm | | Weight | 0.25 oz / 7.3 g | | | | Package Weight | 0.015 lb | | Box Dimensions (LxWxH) | 2.7 x 1.6 x 1.0" |
