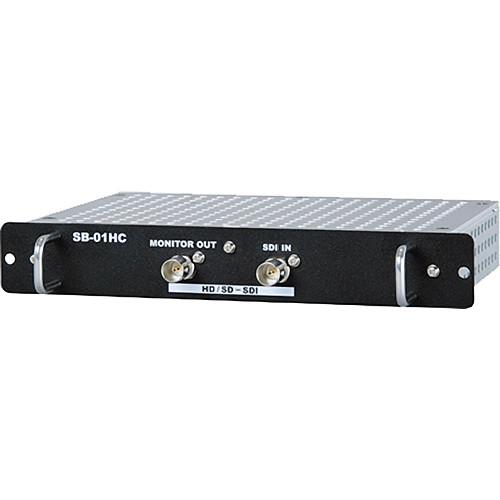

Product description The NEC SB-01HC Internal HD/SD-SDI Option Card adds an SD-SDI or HD-SDI input plus loop output for several of NEC's large-screen displays and installation projectors. With loop output, the SDI signal can be shared with another display so they can be daisy-chained.With SDI input, suddenly your NEC flat-screen display or projector is compatible with high-end video sources such as decks and digital cinema recorders, for applications such as client approval and digital dailies. The SB-01HC follows the Open Pluggable Specification (OPS) for easier installation. The option card is compatible with NEC's V422, V462, V551, V651, P402, P462, X461S, X551S & X551UN large-screen displays and NEC's PX750U & PH1000U installation projectors. UPC: 805736038989 In the Box NEC SB-01HC Internal HD/SD-SDI Option Card 2 x Ferrite Core 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC SB-01HC Internal HD SD-SDI Option Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC SB-01HC Specs | Compatibility | Displays: NEC V422, V462, V551, V651, P402, P462, X461S, X551S, X551UN
Projectors: PX750U, PH1000U | | Video Input | 1x BNC: SD-SDI (SMPTE 272M @ 270 Mb/s) or HD-SDI (SMPTE 299M @ 1.485 Gb/s) | | Video Processing | 24-bit, 4:4:4 | | Video Output | 1x BNC: HD-SDI (active looping signal, equalized & reclocked) | | Digital Audio Extraction | 1x stereo channel for SD/HD-SDI | | Sample Rate (Audio) | 32 kHz, 44.1 kHz, 48 kHz | | Input & Output Signal | 480i SD-SDI @ 60 Hz Input: 1440 x 480 interlace DVI-D or HDMI output @ 60Hz
576i SD-SDI @ 50 Hz Input: 1440 x 576 DVI-D or HDMI output @ 50Hz
720p HD-SDI @ 24/25/30/50/60 Hz Input: 720-line progressive DVI-D or HDMI output @ same frame rate as input
1080p HD-SDI @ 24/25/30 Hz or 24 PsF Input: 1080-line progressive DVI-D or HDMI output @ same frame rate as input | | Regulatory Approvals | USA: FCC Part 15 Class B
Canada: ICES-003 Class B | | Operating Temperature | 41 to 95° F (5 to 35° C) | | Storage Temperature | 32 to 140° F (0 to 60° C) | | Humidity | 10-80% | | Dimensions (HxWxD) | 5.7 x 7.9 x 1.2" (14.5 x 20.0 x 3.0 cm) | | Weight | 0.75 lb (0.34 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.9 x 7.9 x 2.0" |
