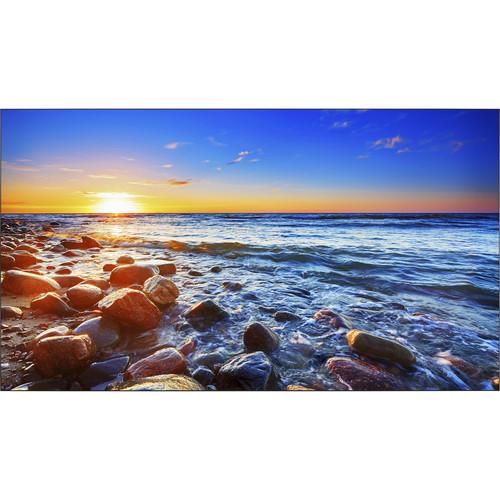

Product description With the UN551S-TMX4P 55" Display TileMatrix Video Wall Bundle from NEC you can create a virtually seamless video wall as each display features a 0.9mm inactive border. Setup is simple thanks to an easy-to-use daisy chain option with UHD passthrough via DisplayPort enabling UHD resolution across the entire wall.
Once configured, this video wall solution offers a Full HD 1920 x 1080 resolution along with a 1200:1 contrast ratio, a maximum brightness of 700 cd/m², and an 8 ms response time. Setup is simple as this video wall supports HDMI, DisplayPort, and DVI-D inputs, as well as a variety of audio and video outputs for seamless connectivity. You can even connect the TileMatrix Video Wall to a local network via the built-in LAN port. Once configured, this video wall is designed to provide digital signage directed at a target audience with support NEC's Human Sensor Accessory. Near field communication support streamlines the setup process while the NaviSet Administrator 2 software solution simplifies device administration and management. -
- Bundled solution with everything required for a 2 x 2 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies
- A mere 0.9mm inactive border allows for an even more homogenous image across the entire wall
- Auto ID feature reduces install time in the single press of a button
- Expanded daisy chain options with UHD passthrough via DisplayPort enables UHD resolution across the entire wall
- Display wall calibration kit, Overframe Bezel Kit and IR/Human sensor complete the solution
- Overnight onsite exchange warranty ensures minimum downtime for maximum impact
- Input Switching Speed minimizes downtime between source transitions
- Human sensor accessory ensures digital signage is directed at a targeted audience
- Near field communication capabilities for setup and service
- NaViSet Administrator 2 is a free software solution that greatly eases administration and management of larger display device installations
- Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
- S-IPS Panel Technology
- Direct LED Backlighting
- Advanced thermal capabilities
- UHD Daisy Chain Capabilities up to 100 displays
- 10-bit color panel
- Ethernet Control and Communication
- RS-232 Control and Communication

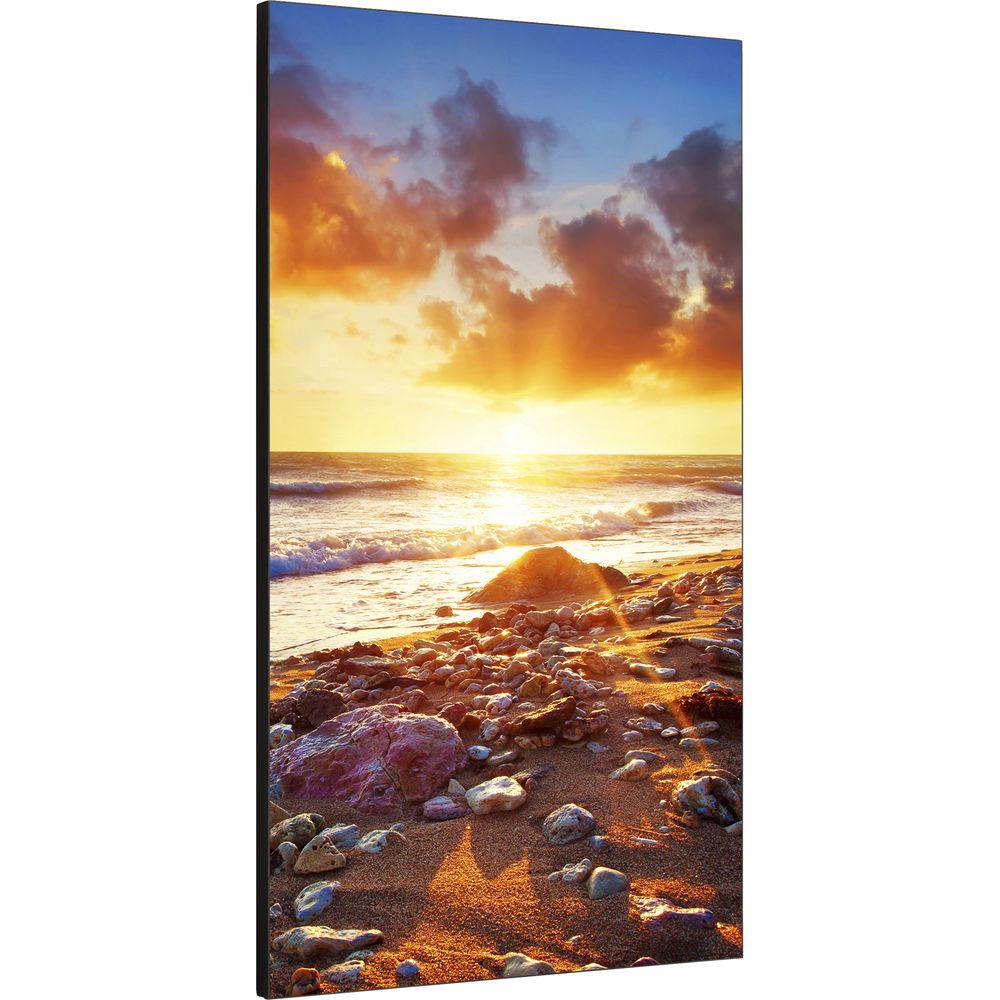

- Landscape/portrait capable
- Carbon footprint meter
- Plug-and-Play (DDC/CI, DDC2B)
- Scheduler (w/ real-time clock)
- Screen saver function
- Ambient light sensor
- Screen saver function
- Optional human sensor
- Intelligent Wireless Data (Near Field Communications)

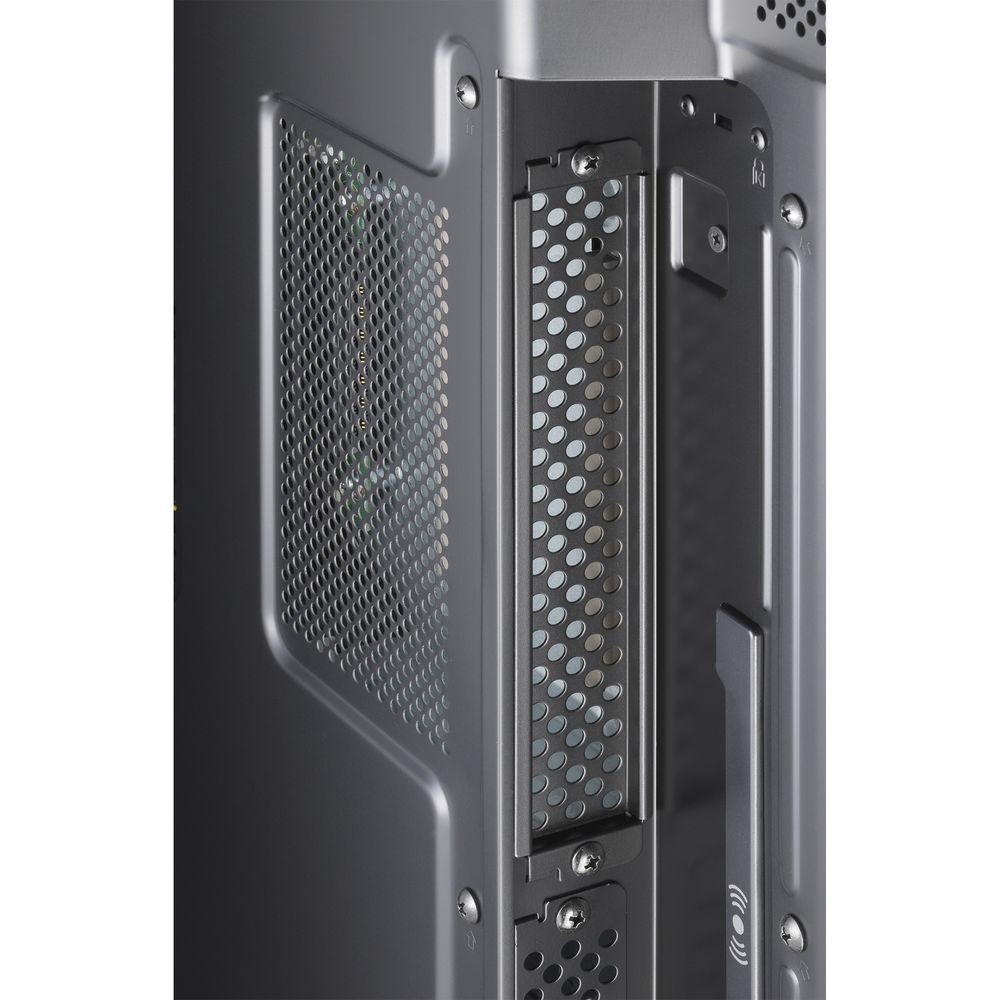

- OPS Expansion Slot
- Interface Expansion Slot
- 6-axis color adjustment

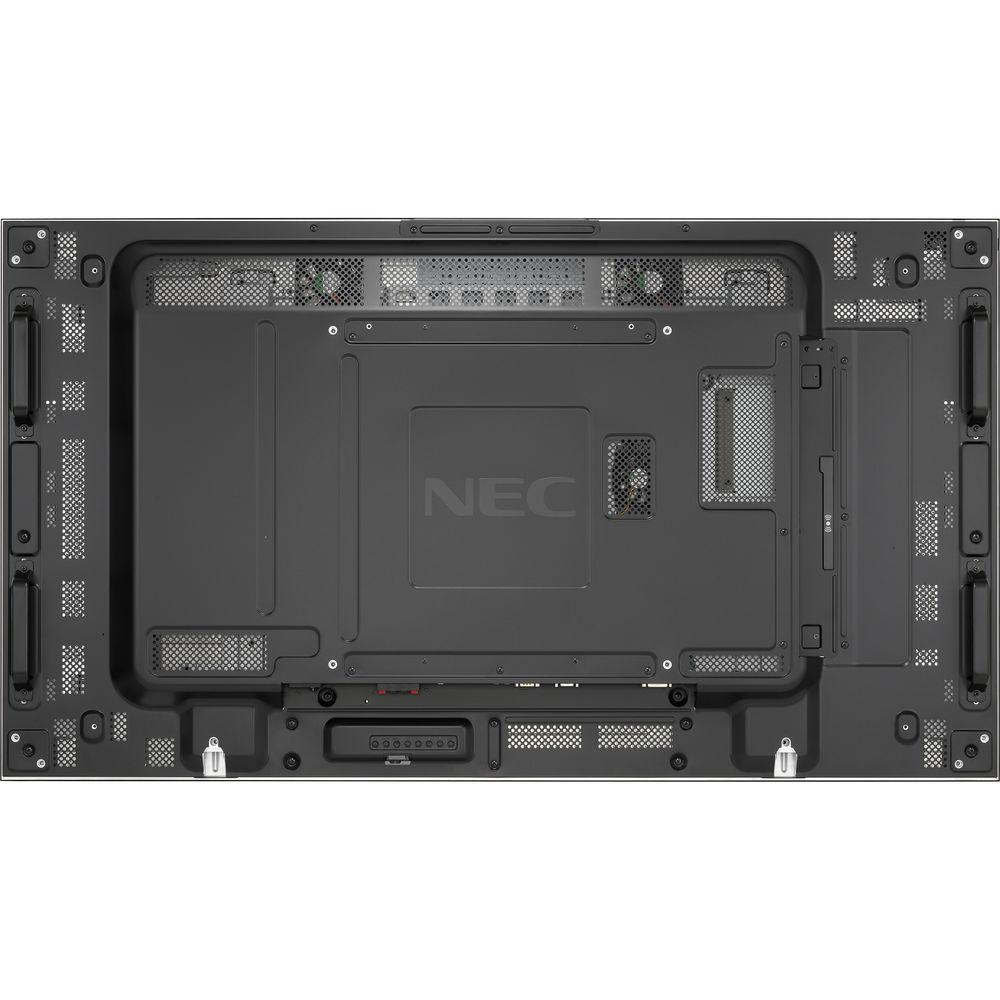

- Metal rear cabinet
- POP
- Side-by-Side
- Handles
- Variable picture modes
- Advanced video settings (Noise Reduction, Adaptive Contrast)
- Input labeling
- Backlight adjust
- Aspect ratio control
- 10-bit color over HDMI
UPC: 805736063509 In the Box NEC UN551S-TMX4P 55" Display TileMatrix Video Wall Bundle (2 x 2) Power Cord DisplayPort Cable LAN Cable Screws Thumbscrews Display Wall Calibration Kit ztfuzdxbxcaqxvutvbxdxvdcxvsxerydducq Overframe Bezel Kit Peerless DS_VW775 Mounting System SurgeX Power Conditioning Overnight Onsite Exchange Warranty Upgrade Limited 3-Year Warranty NEC Whitepaper: Commercial Monitors Vs. Consumer TVs PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC UN551S-TMX4P 55" Display TileMatrix Video Wall Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC UN551S Specs | | | Screen Size (Diagonal) | 55" | | Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
