Product description

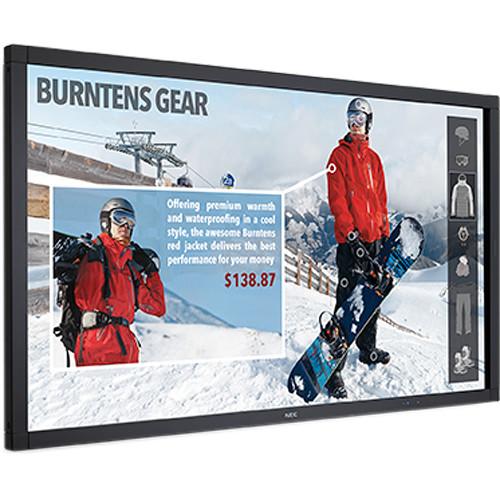

• 48" Touch Integrated Large-Screen Display The 48" Touch Integrated Large-Screen Display from NEC features a 1920 x 1080 native resolution, up to a 440 cd/m² brightness rating, a 4000:1 static contrast ratio, and support for over 1.07 billion colors. With integrated IR Touch capabilities, it allows for smooth integration into any type of environment with up to 10 simultaneous points of contact. It is equipped with multiple ports including DVI-D, HDMI, DisplayPort, and VGA for connecting a variety of video sources. For your convenience, the display has a microSD card slot and USB ports that support media playback, as well as LAN ports for longer connections. It includes expandability options such as the OPS (Open Pluggable Specification) and Raspberry Pi Compute Module slots for source integration directly into the display.
  Scalable Computing Power
  • Integrated computing options allow for cable free signage for any type of situation. The on-board multimedia player can be utilized for simple signage applications by allowing auto-play off a USB or SD card and content transfer via LAN. For more advanced signage systems, the display contains an ability to integrate a Raspberry Pi Compute module for near limitless potential and application. The display adheres to the Open Pluggable Specification that gives the ability to seamlessly integrate a full PC, HDBaseT receiver or other options directly into the unit. Internal connectivity allows for touch communication when using a Raspberry Pi device or OPS PC option.
  Advanced Heat Management
  • Monitoring and managing the temperature of the display is crucial to secure reliability and longevity. A panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation, and protects your display investment. Without thermal management, display can be prone to damaging heat over time. This damaging heat will lower the picture quality and life expectancy of the product. Integrated cooling fans automatically turn on and stay on when high internal temperatures are detected. These will stay on until the heat is properly dissipated and the display remains under proper temperature thresholds.
  L-Shaped Connectivity

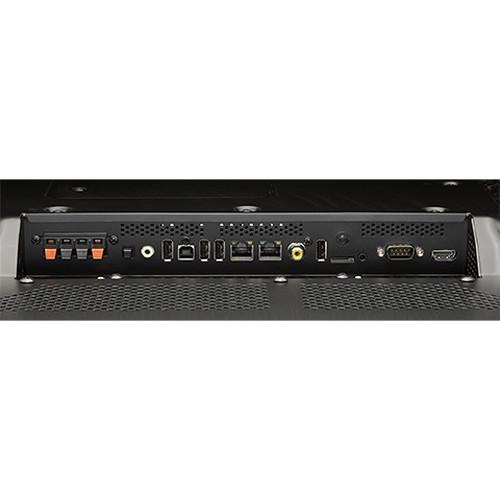

  • Connectivity is located on both the bottom and side of the display to allow for easy access regardless of orientation.
  Blue ON LED and Ambient Light Sensor
  • Mechanical structure allows for sleeker LED and ambient light sensor design. Auto dimming of the LED backlights can be utilized through the ambient light sensor allowing for the brightness to change depending on the external lux in the room of installation.
  NaViSet Administrator 2
  • This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.
  Proof of Play
  • This function provides accurate proof that the display is working as established when checking from an external location. Information regarding video source, time on, audio source and more can be pulled through the display when coupled with NaViSet Administrator 2.
  SpectraView Engine
  • Enhanced imaging performance through advanced settings of all relevant parameters allow full control of brightness, color, gamma, and uniformity via integrated color-critical chipset.
  Intelligent Wireless Data Function
  • The built-in near field communication (NFC) chip allows data to be read and written via a mobile phone or tablet PC. This is useful for larger roll-outs as it can be utilized even when the display is powered off.
  Key Guide

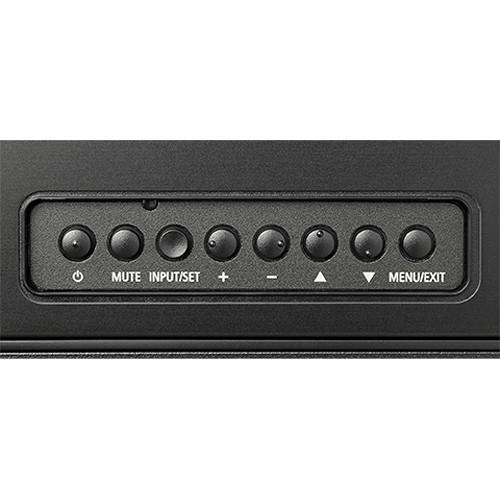

  • New Key Guide function allows for easier access to buttons when manually controlling the unit via the buttons on the back of the display by adding a graphic on the screen that directs the you to the correct button layout in both landscape and portrait modes.
  Protective Glass
  • The display is protected with tempered and anti-glare coated glass that allows for smooth finger sliding and resistance from minor scratches and other impact.
  Integrated IR Touch
  • Integrated touch sensors allow for up to 10 simultaneous points of contact.
  Additional Features
  • Ambient Light Sensor, AMX Support, Auto ID/Auto TileMatrix, Automated Email Alert Function, CEC Support through HDMI, Crestron Roomview Support, DICOM Simulation, Display Browser Control, Display Wall Calibrator Compatible, High Haze Panel, Image Flip, Intelligent Wireless Data (NFC), Key Guide, Media Player through Browser Control/SD Card/USB, Multi Picture Mode, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, OPS Compatible, Integrated anti-glare and tempered protective glass, Integrated IR Touch, PJ Link Support, Point Zoom Function, Power USB Port (5V/2A), Programmable LUT x3, Raspberry Pi Compute Module Compatible, Removeable Logo Ornament, Real Time Clock, SpectraView Engine Support, SNMP Support, 24-Hour Scheduler Function, UHD Support through HDMI/DisplayPort.
  UPC: 805736064384

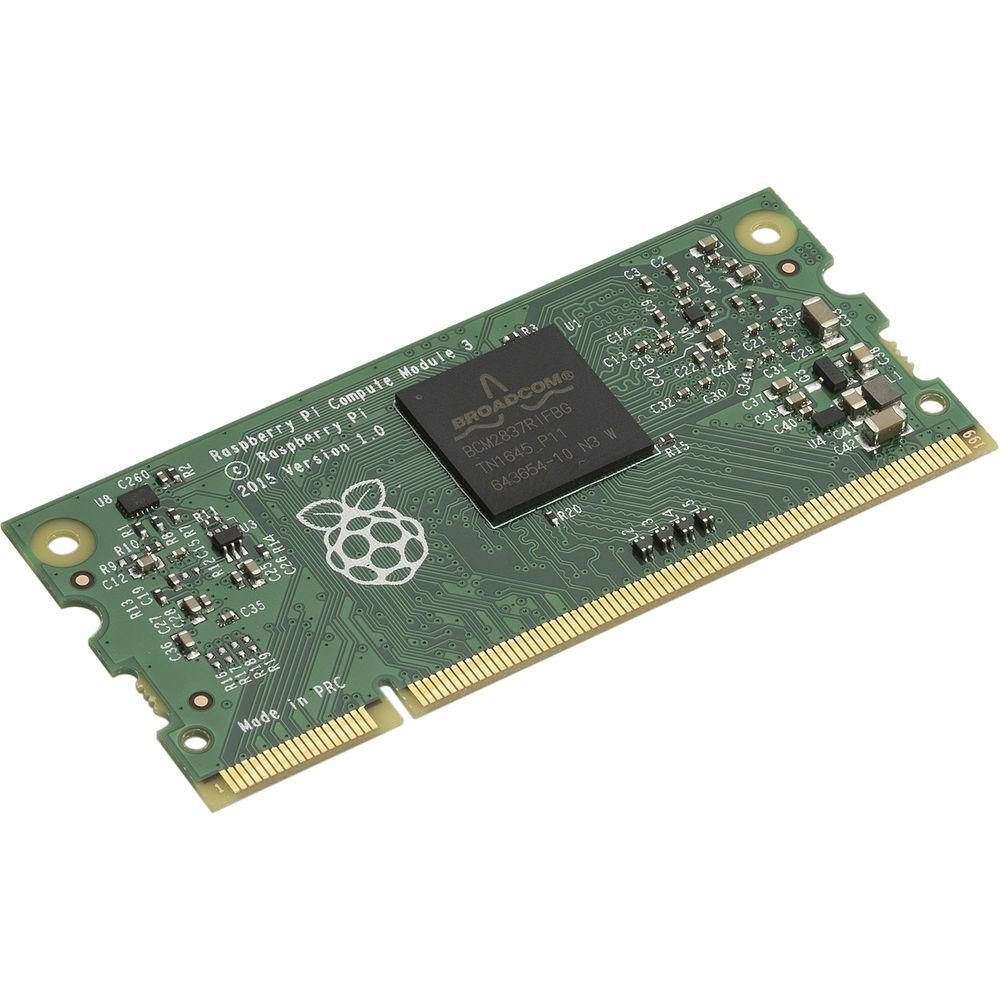

• Raspberry Pi Compute Module 3 Boost the performance of your NEC large-format display to suit a variety of visual applications by embedding the Raspberry Pi Compute Module 3 into it. This open-platform module offers flexibility in creating customized display applications. Software providers and users can benefit from the wide range of open-source solutions available from the global Raspberry Pi developers' community. The NEC edition tops the standard Raspberry Pi's performance with 16GB of onboard memory and intelligent Digital Signage functionality. The Ethernet and USB interfaces of the display hosting the module allow for easy integration into a network, or connection to external devices such mice, keyboards, and touch screens.
  Open Source Design
  • Adding the Raspberry Pi Compute Module 3 to an NEC Display gives users access to a robust global open-source development community offering innovative and creative uses for computing.
  Powerful Possibilities
  • The quad-core 1.2 GHz processor allows for crisp 1920 x 1080 playback.
  Designed for Professional Digital Signage
  • The Raspberry Pi Compute Module 3 provides 16GB of onboard memory and the necessary hardware decoders to meet the demands of professional signage applications.
  Versatility
  • Supporting various operating systems, this open platform offers considerable flexibility for digital signage software providers and system integrators.
  Seamless Integration with Select NEC Large-Format Displays
  • The Compute Module is installed internally into the display for a fully integrated cable-free solution. It offers internal connection for power, video, audio, data, and control interfaces.

    The internal serial connection between the display and the Raspberry Pi Compute Module allows full control and monitoring of the display from the software running on the Compute Module. A Python-based SDK for easy software development is available separately.
  Reliability
  • The use of industrial-grade components and advanced heat management makes this solution suited for 24/7 operation.
  UPC: 805736064841

• 10' AC Power Cord

• 6' DVI Cable

• IR Remote Control

• Batteries

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 48" Touch Integrated Large-Screen Display

  Screen Size (Diagonal)	48"
  Native Resolution	1920 x 1080
  Panel Type	VA LCD
  Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
  Brightness	440 cd/m Rating 100% users recommend this product to others. And what about you? This product has already been rated by 04 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
