User Manual for NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the NEC V Series NP-V302H 3000-Lumen Full
- Product category: Multimedia Projectors NEC
- Brand: NEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NEC Multimedia Projectors
 |
User manual for the NEC V Series NP-V302H 3000-Lumen Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NEC product will considerably shorten its lifespan!
|

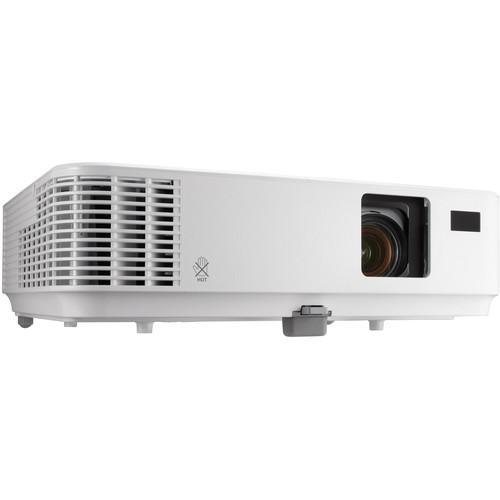

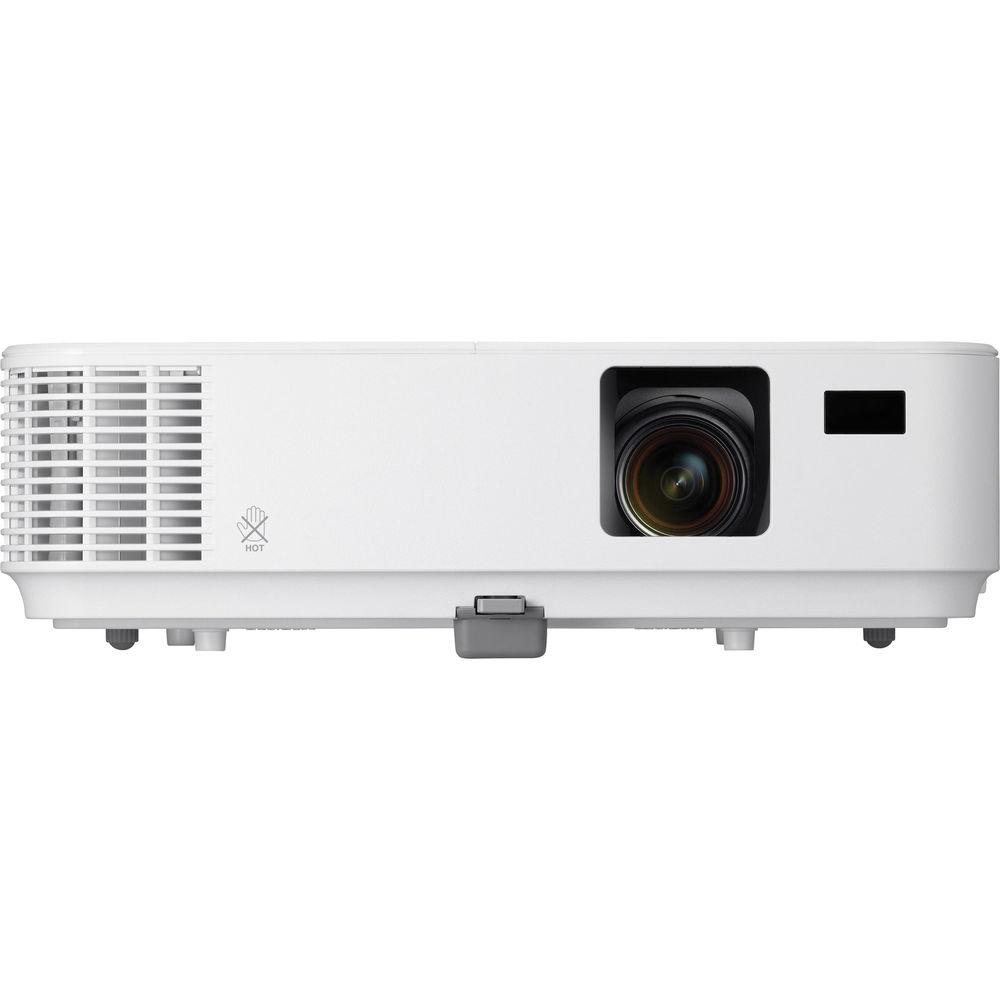

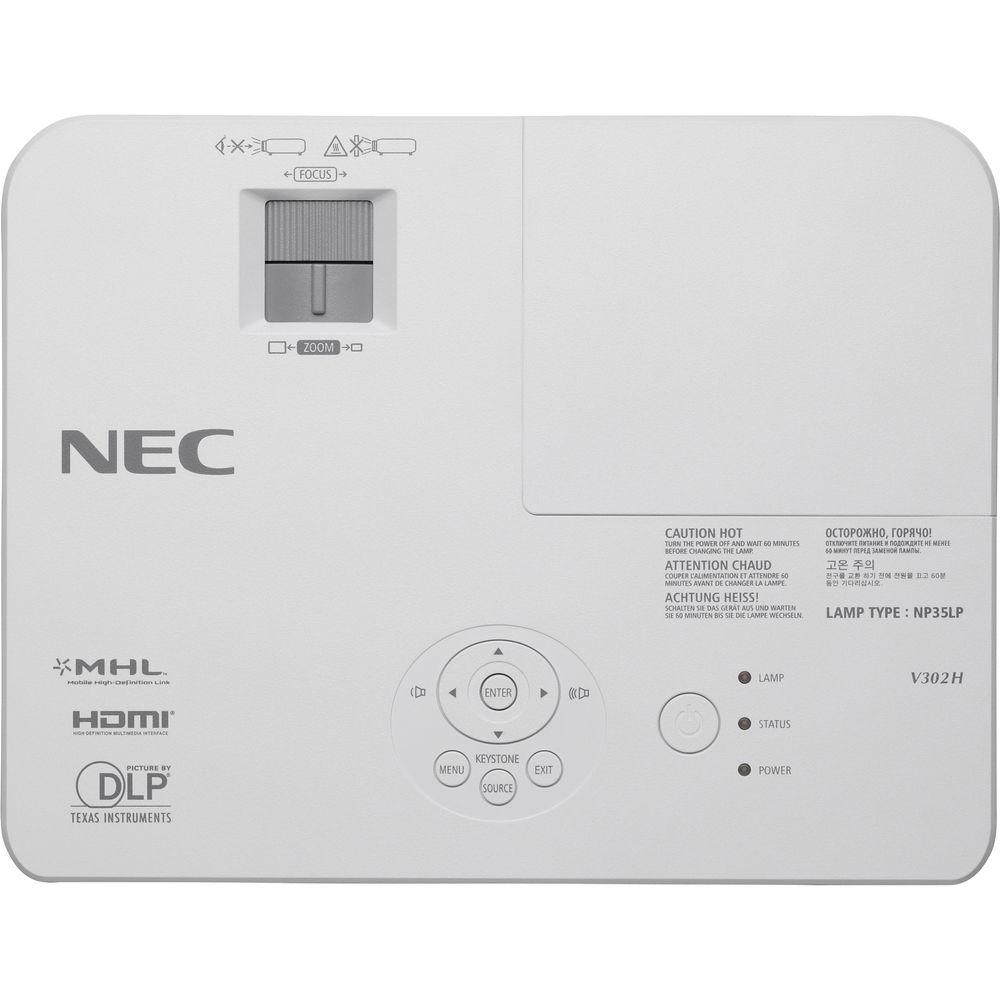

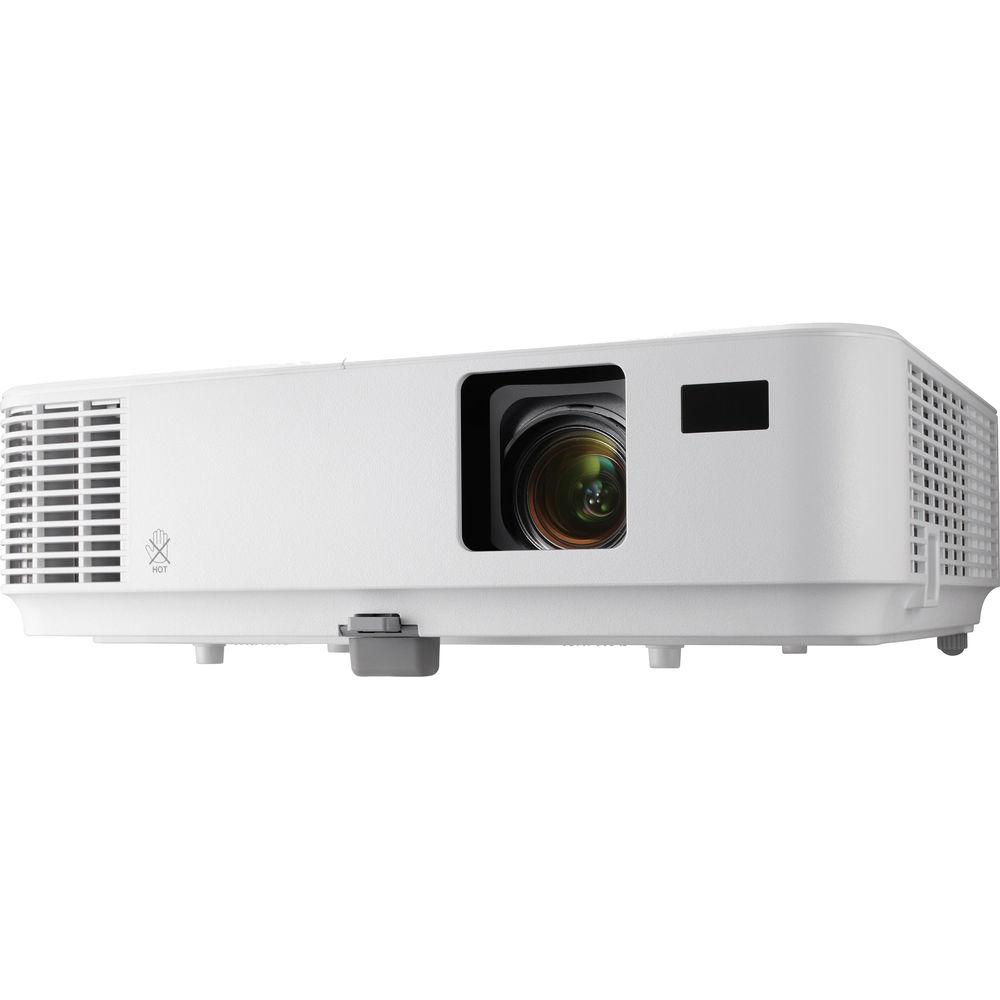

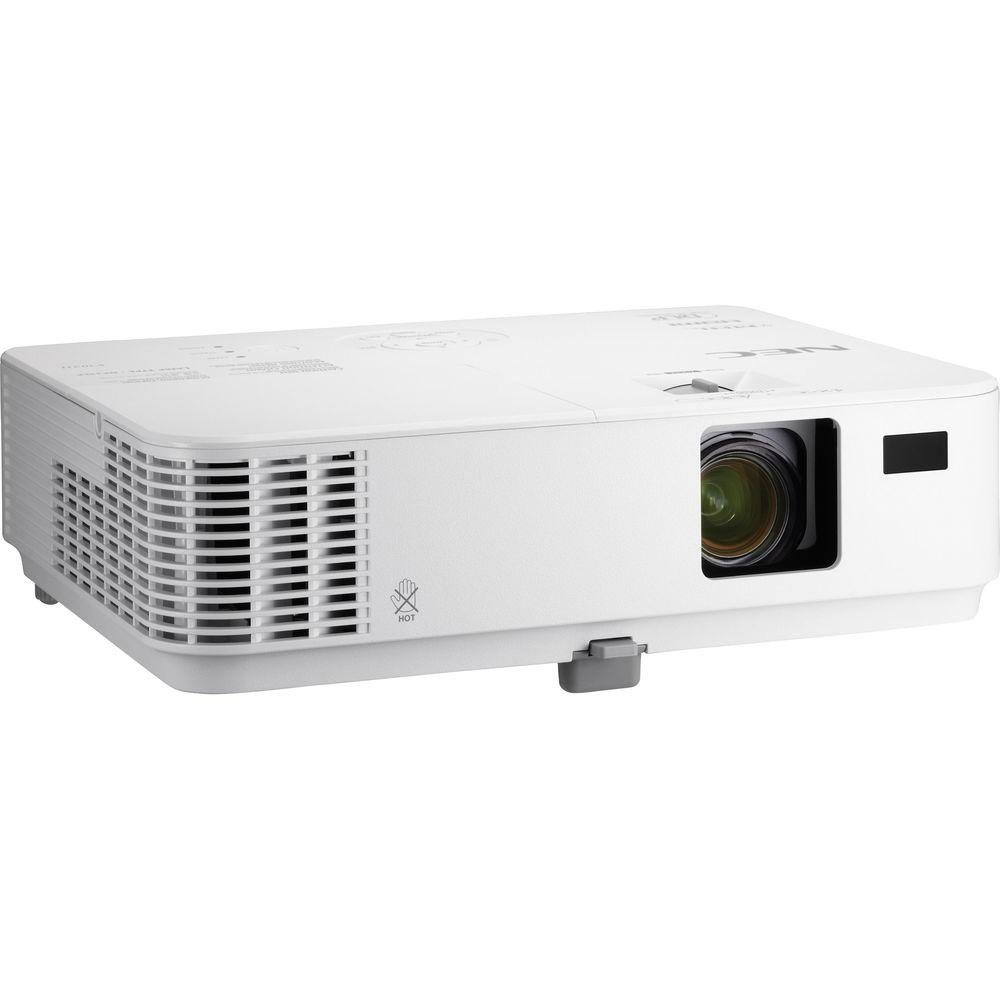

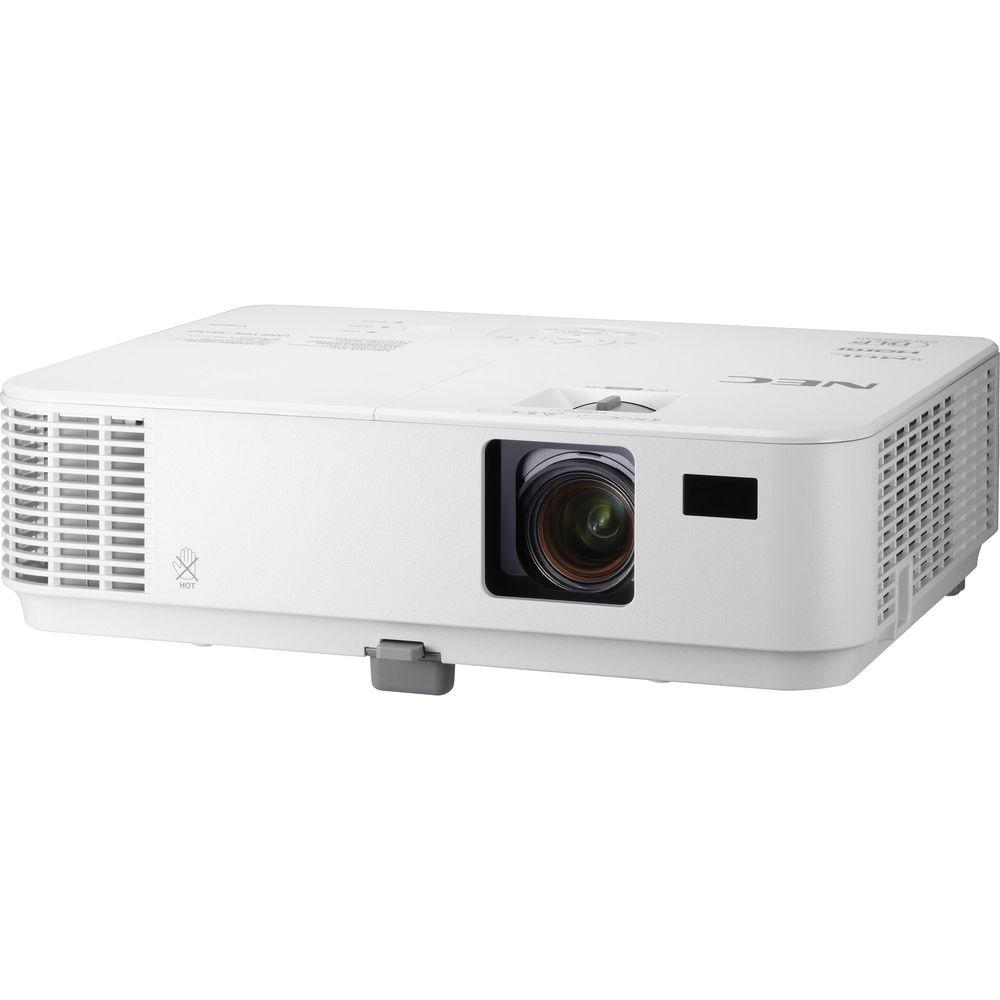

Product description Display detailed images with the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector. It features 3000 lumens of brightness and an 8000:1 contrast ratio. Additionally, this projector sports a Full HD 1920 x 1080 native resolution for viewing detailed content. The NP-V302H is powered by a DLP display system, and the lamp features a long life of up to 6000 hours in ECO Mode. You can use the NP-V302H to project up to a 300" diagonal screen size, and it features a 1.50 to 1.80:1 throw ratio.
With composite video, VGA, and dual HDMI inputs, this projector is well-equipped for external video sources. As an added convenience, a VGA cable is included. It also support MHL connectivity via HDMI, allowing you to mirror and charge compatible mobile devices. Other features include a 0.35W standby power consumption level and a 1.2x zoom with ten-step image magnification. - Essential
-
- Horizontal and vertical keystone correction ensures that a square image is displayed
- High-contrast images from the integrated Texas Instruments DLP engine featuring BrilliantColor technology with enhanced color accuracy
- Intuitive remote control provides one-touch source changes and complete menu control
- Integrated RJ45 for quick connection to the LAN 10/100 base-T capability
- Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
- Versatile and Powerful
-
- Powerful 8W speaker provides volume needed for large rooms
- Built-in wall color correction presets provide for adaptive color tone correction to display properly on non-white surfaces
- Plug-and-play setup and operation optimizes images displayed from computers and video sources

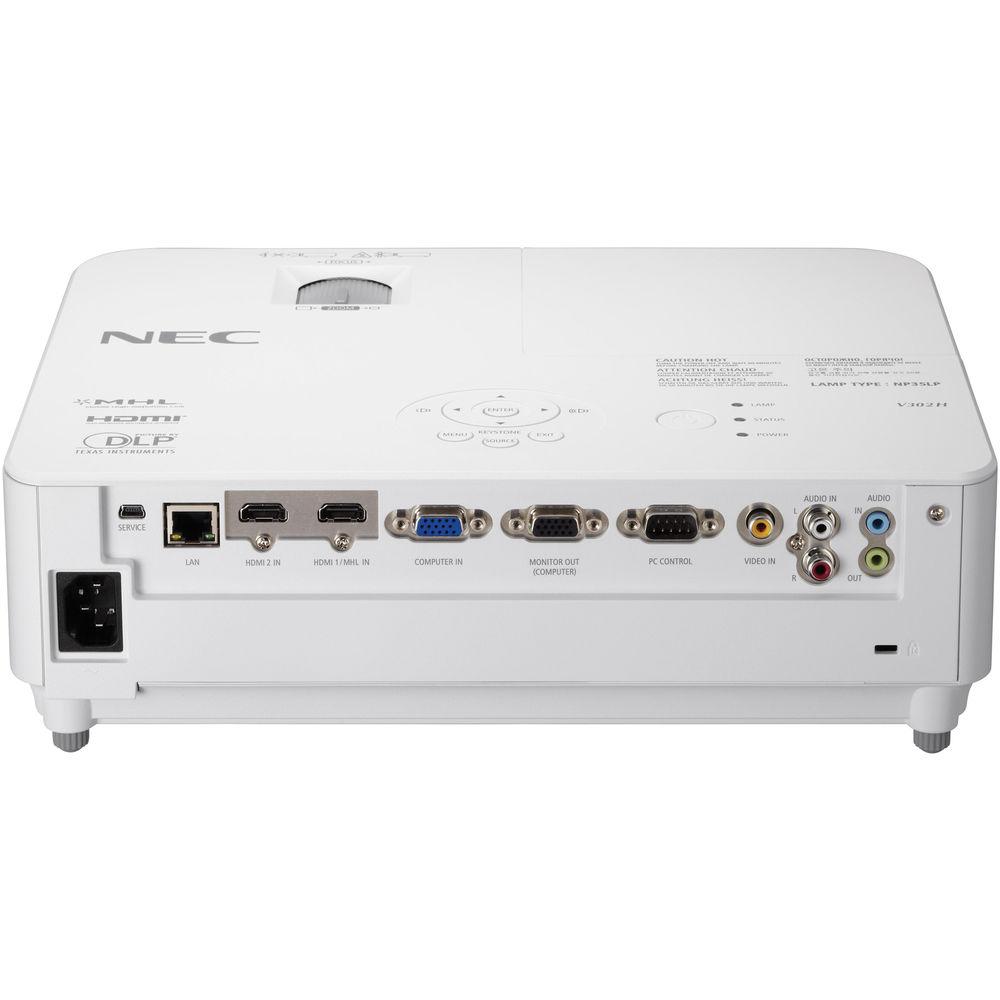

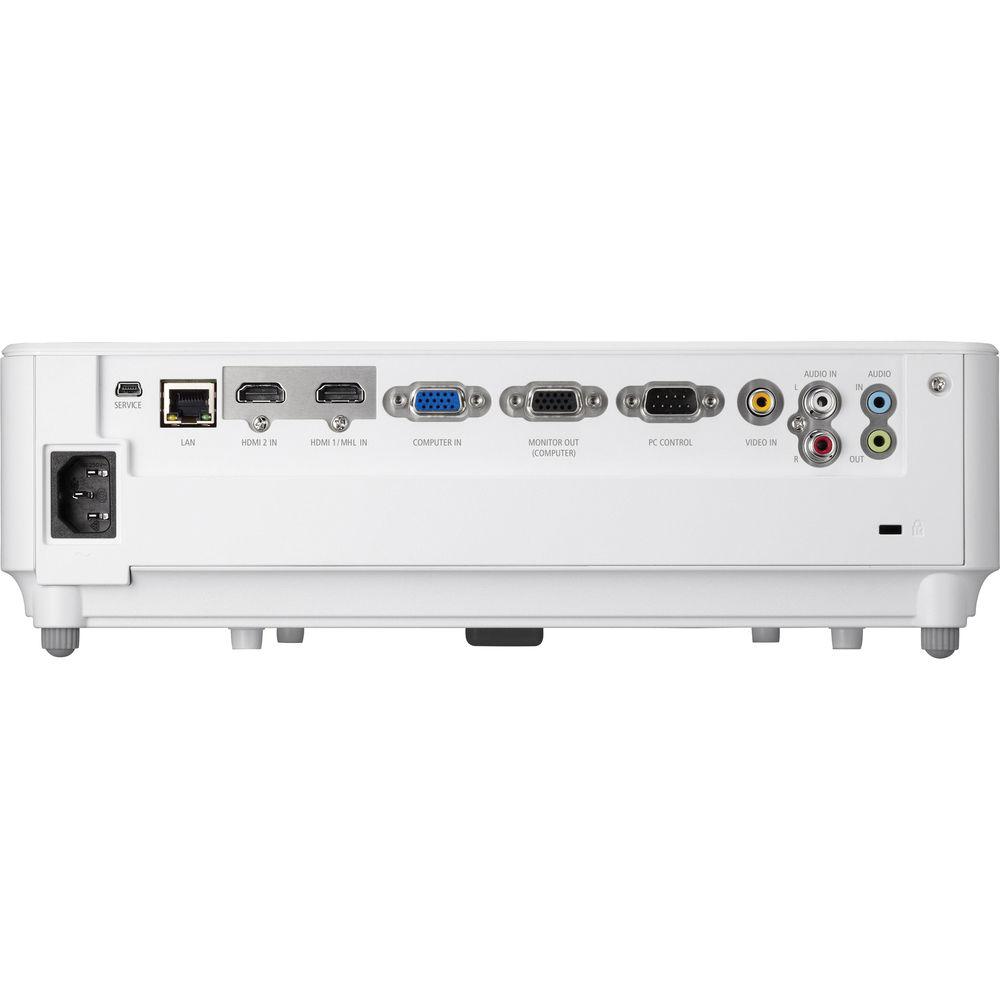

- Flexible input panel, color-coded and clearly labeled, connects to computers, Blu-ray players, and other sources using the VGA, Dual HDMI, and composite inputs
- Compact size and lightweight design simplifies transport of projector
- AV mute and video image freeze allows you to control the presentation and focus the audience's attention
- Virtual Remote Tool allows users to utilize virtual remote functionality from a connected PC via VGA or RS-232
- Supports 3D content viewing, 3D HDMI up to 144 Hz, computer up to 120 Hz
- Share video and audio from a connected smartphone via MHL input
- Environmentally Conscious
-
- Extended lamp life with ECO Mode technology increases lamp life up to 6000 hours while lowering power consumption
- Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
- Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) helps to ensure efficient energy usage
- Additional Features
-
- Crestron RoomView provides unified management, including the ability to switch the poweron and off for multiple projectors connected to a network
- View 3D computer content up to 120 Hz and 3D HDMI up to 144 Hz (NEC NP02GL and 3rd party glasses sold separately)
- Built-in closed captioning enables decoding and display of text information from a video
- Kensington lock slot enables security cable to be attached to projector
- Filter-free design eliminates the hassle and time spent monitoring and/or changing filters
- Ten-step image magnification with location control
- Virtual remote
- Sleep timer
- Advanced AccuBlend
- AutoSense
UPC: 805736057287 In the Box NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector Remote Control Remote Control Batteries RGB Cable Power Cord RGB Cable Lens Cap Limited 2-Year Warranty for Projector Limited 1-Year or 500-Hour Warranty for Lamp (Whichever Occurs First) User Manual PDF 8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNEC NP-V302H Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | VGA
SVGA
XGA
SXGA
SXGA+
UXGA
Full HD 1080p | | Max Brightness | 3000 Lumens
2400 Lumens | | Contrast Ratio | 8000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 100 kHz or 24 kHz
Vertical: 50 to 120 Hz or 24 Hz | | | | Focus | Manual | | Lens | f/2.55 - 2.85 (f = 22.41 - 26.82 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 4.9 - 32.8' / 1.494 - 9.997 m | | Throw Ratio | 1.50 - 1.80:1 | | Projection Size | 40 - 300" / 101.60 - 762.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 30°
Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 8W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Mini-USB Service
1 x Ethernet (RJ45) Control
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x RS-232C (Unspecified Connector) Control
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 170 W
218 W | | Expected Lamp Life | Low Brightness: 6000 Hours
Medium Brightness: 3500 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 280 W
Low Brightness: 217 W
Standby Mode (Lamp Off): 3.0 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | 12.8 x 4.0 x 9.8" / 324.0 x 101.0 x 250.0 mm | | Weight | 6.4 lb / 2.90 kg | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 19.9 x 12.8 x 8.4" |
